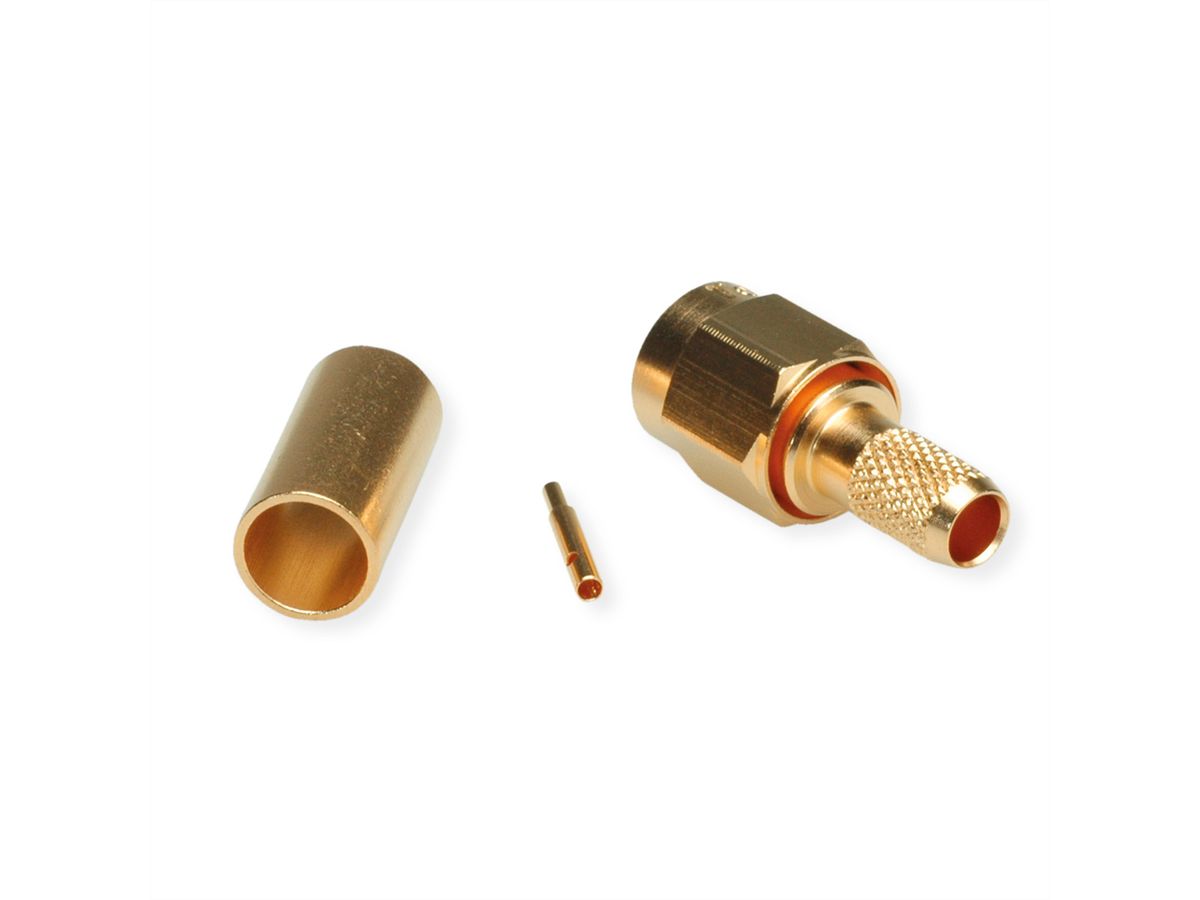

TELEGÄRTNER SMA Straight Plug Crimp, G1 (RG-58C/U) solder/crimp

Item no. 21170475 Brand / Manufacturer TELEGÄRTNER Manuf. item no. 100027633 EAN 4018359258252 Item weight 0.006 kg
TELEGÄRTNER

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

The SMA series is a very popular coax connector with threaded coupling, and can be used up to frequencies of over 18 GHz (depending on type). The impedance is controlled at 50 Ω. SMA applications include communications, satellite and test equipment.

  • Article name: SMA Plg str sd/cr G1 Au (Old item number J01150A0041)
  • Cable group; cable: G1 (RG-58C/U), RG-58C/U, 7806A, 9907, CNT-195, HPF 195, KX 15, LMR-195, WCX195
  • Remarks: solder/crimp
  • Finish: Gold
  • Dimensions: a=23.3, b=13
  • Assembly: C0105

Specifications

Manufacturer
TELEGÄRTNER
Product group
Coaxial Connectors
Product type
SMA Straight Plug Crimp
Colour
gold
Quantity of ports
1
Side 1 Connector Type
SMA connector
Side 1 Connector Gender
Male
Side 2 Connector Type
Solder / Crimp termination
Protection class (IP Code)
IP68
Connection direction
Straight
Height
9 mm
Width
9 mm
Depth
23.3 mm
Weight
4 g
Height of packaging (single piece)
50 mm
Width of packaging (single piece)
100 mm
Depth of packaging (single piece)
120 mm
Package weight (single piece)
0.006 kg
