Description

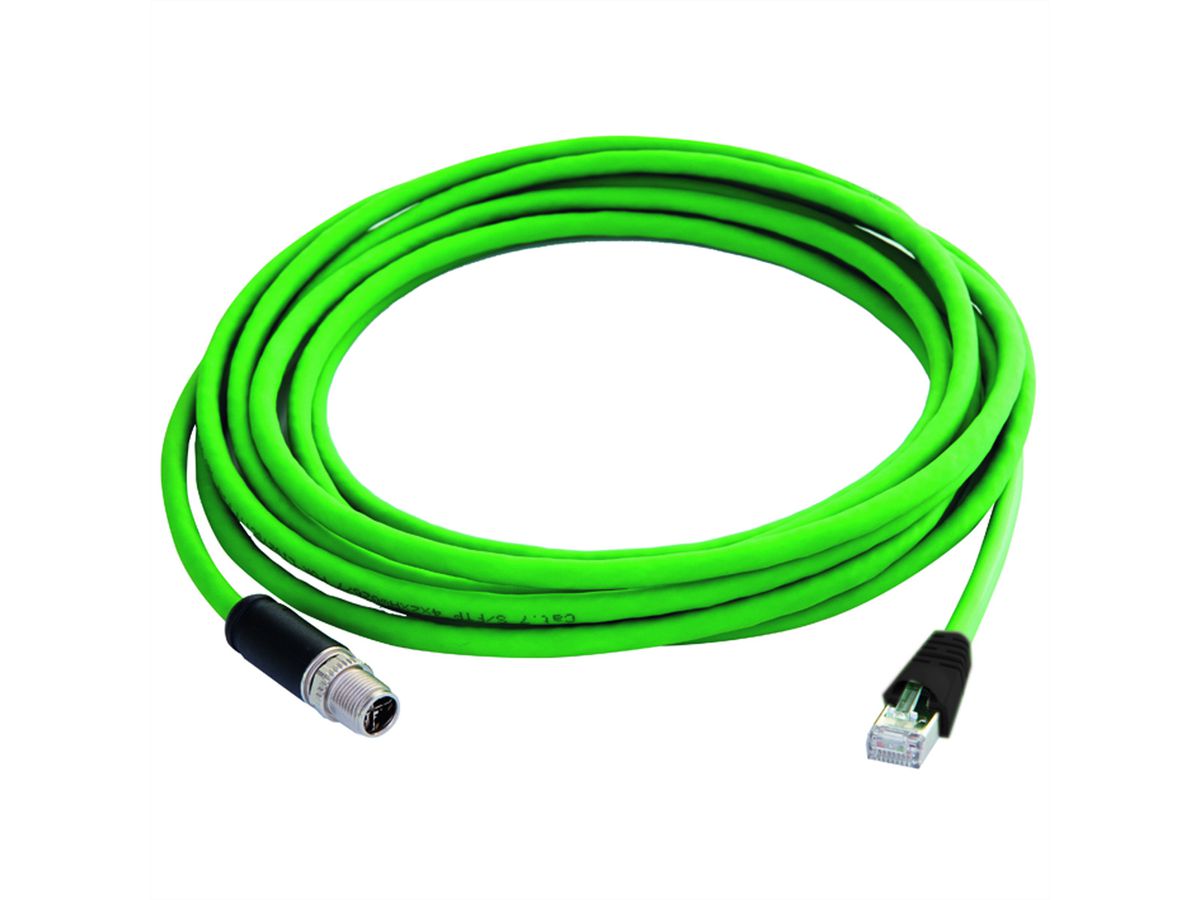

Connection cable with M12x1 X-coded Cable Plug to RJ45 Cable Plug black, Crimp connection IP20

• Designed for the transmission of highest data rates in industrial applications
• M12 connectors comply with the requirements for consistent cabling of industrial communication networks according to IEC 61918
• Configuration Side 1: M12x1 cable connector, X-coded, IP67
• Configuration Side 2: RJ45 cable plug IP20
• Boot Colour: Black
• Jacket Colour: Green

Mechanical attributes:
Overall shielding: tin plated copper braid
Cable structure: LI02YSC11Y PUR 4x2xAWG 26/7 PiMF
Stranded wire: AWG 26 (7 x 0.16 mm)
Jacket diameter: 6,2 mm ± 0,2 mm
Pair shielding: Al-foil, outside conducting
Durability (mating cycles) M12: ≥ 100
Colour: RAL 6018

Specifications

Manufacturer	TELEGÄRTNER
Product group	Network Passive Components
Product type	M12 Industrial cabling
Colour	green
Length	7.5 m
Shield type	PiMF
Transfer quality	Cat6A / Class EA
Anti-kink sleeve	Moulded-on
Side 1 Connector Type	M12-X
Side 1 Connector Gender	Male
Side 2 Connector Type	RJ-45
Side 2 Connector Gender	Male
Protection class (IP Code)	IP20 IP67
RAL colour	RAL 6018 Yellow green
Operating temperature min.	-40 °C
Operating temperature max.	85 °C
Weight	338.76 g
Height of packaging (single piece)	0 mm
Width of packaging (single piece)	0 mm
Depth of packaging (single piece)	0 mm
Package weight (single piece)	0 kg

Downloads

Manufacturer data sheet - Deutsch (687.4 KB)

Download

Manufacturer data sheet - English (687.4 KB)

Download

The products of the TELEGÄRTNER brand stand for professional connection technology.

More about TELEGÄRTNER

Product security

Information in accordance with the EU Product Safety Regulation, (GPSR):

Telegärtner Karl Gärtner GmbH
Lerchenstr. 35, 71144 Steinenbronn, Germany
