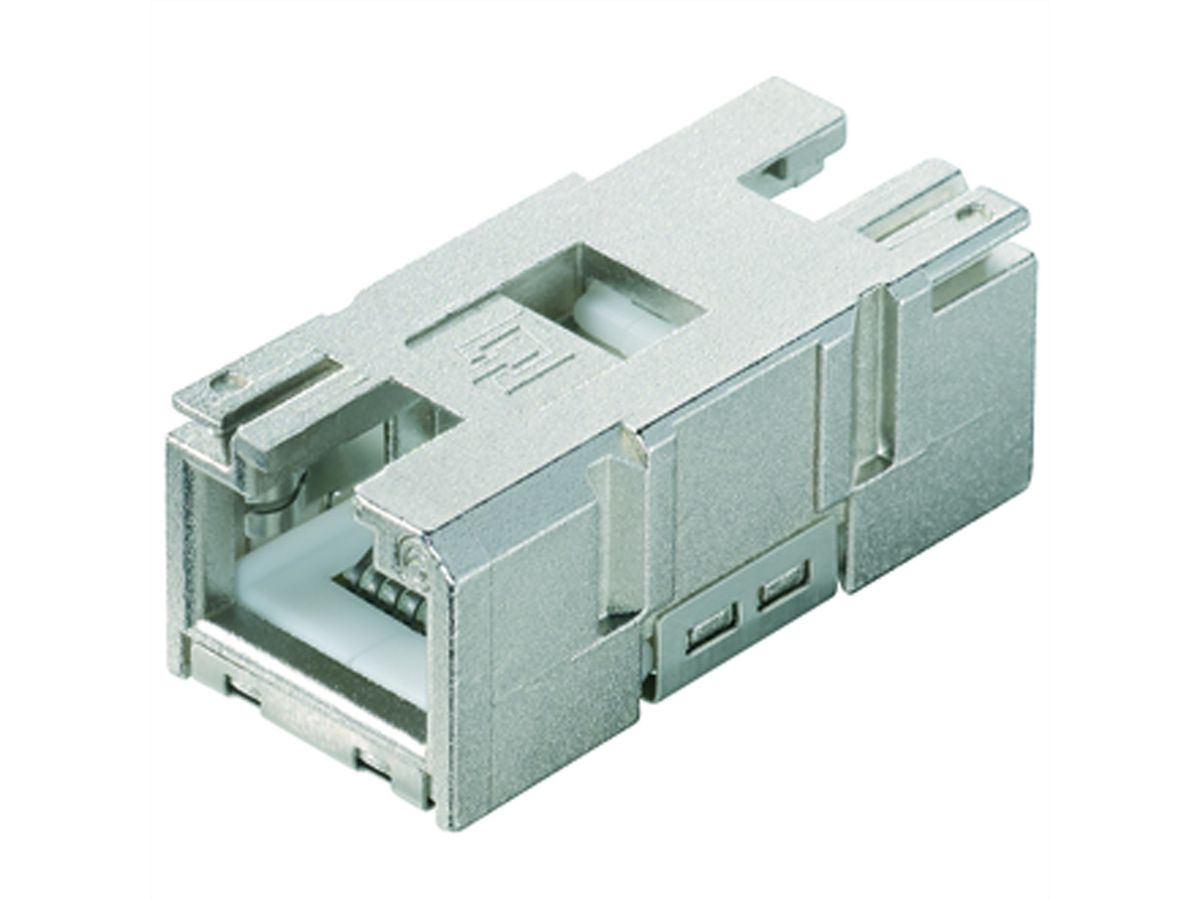

TELEGÄRTNER STX RJ45 coupler Cat.6 Class EA, Class EA (ISO)
Item no.
21173187
Brand / Manufacturer
TELEGÄRTNER
Manuf. item no.
100007533
EAN
4018359328993
Item weight
0.022 kg
:strip_icc():strip_exif()/cms_secde/cms/ueber_uns/markenwelt/hersteller_logos/telegartner.png "TELEGÄRTNER")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
Deliverable approx. 01/04/2027
Description
STX RJ45 coupler Cat.6 Class EA
- Cat.6A acc. to IEC 60603-7-51
- Cat.6A re-embedded tested acc. to IEC 60512-27-100
- link certificate: Class EA acc. to ISO/IEC 11801
- 10 Gigabit-Ethernet compliant (IEEE 802.3an)
- overbending protection: ≥750 mating cycles with RJ45/RJ11/RJ12 plugs
- suitable for PoE+ acc. to IEEE 802.3at
- suitable for switching programs from several manufacturers with design capable faceplate AMJ-S Up/0 flex
- integrated strain relief for cable O.D. to 9 mm
- universal, world-wide available installation dimension for mounting cut-outs: 19.3 x 14.7 mm
- universal, world-wide available installation dimension for mounting cut-outs: 19.3 x 14.7 mm
- AMJ-S DD: with integrated protection against damage to the contacts by automatic disconnection of the plug connection
Specifications
- Manufacturer
- TELEGÄRTNER
- Product group
- Connection technology TP
- Product type
- RJ-45 coupling
- Colour
- silver
- Transfer quality
- Cat6A / Class EA
- Component-Level certified
- yes
- Quantity of ports
- 1
- Side 1 Connector Type
- RJ-45
- Side 1 Connector Gender
- Female
- Side 2 Connector Type
- RJ-45
- Side 2 Connector Gender
- Female
- Material (casing)
- zinc diecast
- Protection class (IP Code)
- IP67
- Dimensions (HxWxD)
- 13,2 x 15,6 x 32,5 mm
- Operating temperature min.
- -40 °C
- Operating temperature max.
- 85 °C
- Height
- 13.2 mm
- Width
- 15.6 mm
- Depth
- 32.5 mm
- Weight
- 22.17 g
- Height of packaging (single piece)
- 20 mm
- Width of packaging (single piece)
- 100 mm
- Depth of packaging (single piece)
- 130 mm
- Package weight (single piece)
- 0.022 kg
The products of the TELEGÄRTNER brand stand for professional connection technology.
