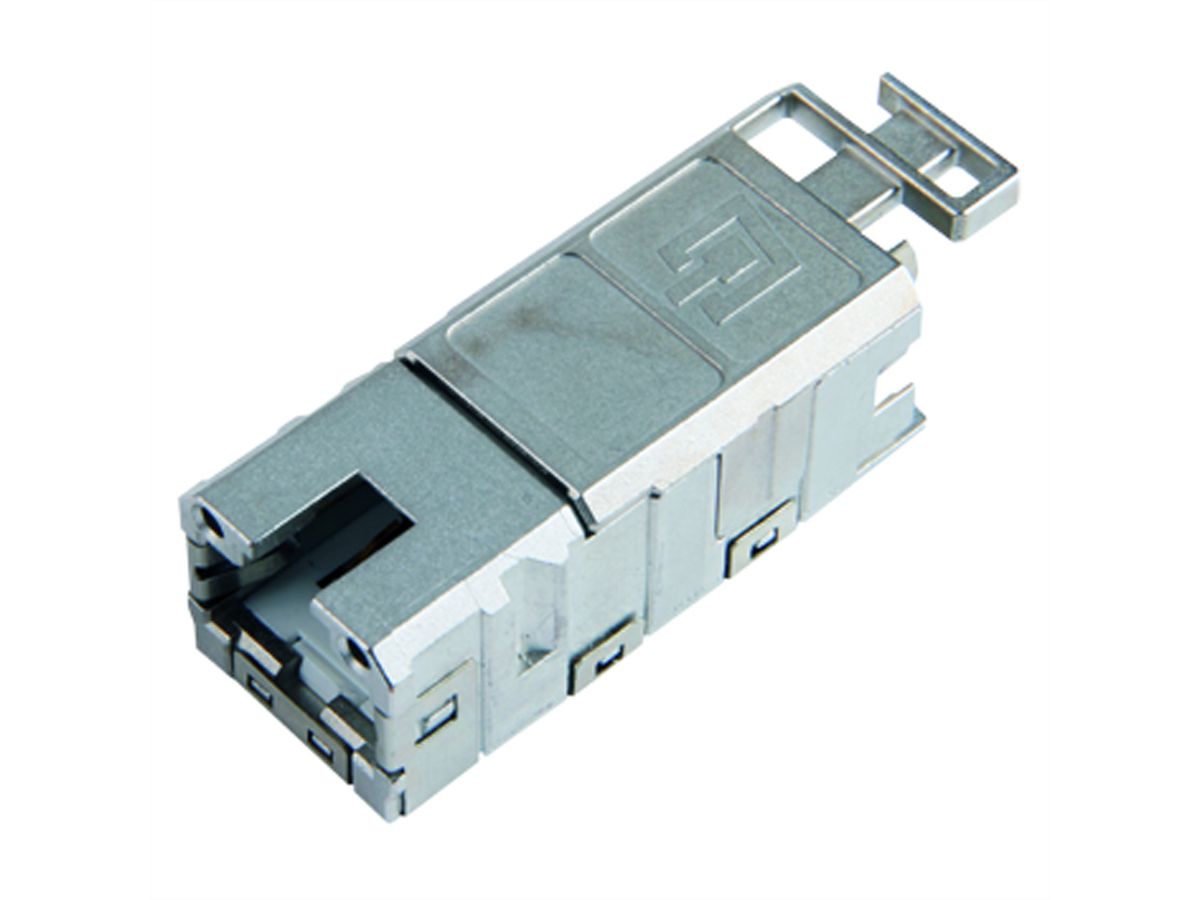

TELEGÄRTNER STX RJ45 Modul A Cat.6A (ISO/IEC), T568A
Item no.
21173151
Brand / Manufacturer
TELEGÄRTNER
Manuf. item no.
100007525
EAN
4018359328962
Item weight
0.026 kg
:strip_icc():strip_exif()/cms_secde/cms/ueber_uns/markenwelt/hersteller_logos/telegartner.png "TELEGÄRTNER")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description
STX RJ45 Modul A Cat.6A(IEC)
- Cat.6A acc. to IEC 60603-7-51
- Cat.6A re-embedded tested acc. to IEC 60512-27-100
- link certificate: Class EA acc. to ISO/IEC 11801
- 10 Gigabit Ethernet compliant (IEEE 802.3an)
- overbending protection: ≥ 750 mating cycles with RJ45/RJ11/RJ12 plugs
- suitable for PoE+ acc. to IEEE 802.3at
- suitable for switching programs from several manufacturers with design capable faceplate AMJ-S Up/0 flex
- integrated strain relief for cable O.D. to 9 mm
- universal, world-wide available installation dimension for mounting cut-outs: 19.3 x 14.7 mm
- Visually monitored testing of the RJ45 contact heights
- AMJ-S DD: with integrated protection against damage to the contacts by automatic disconnection of the plug connection
Specifications
- Manufacturer
- TELEGÄRTNER
- Product group
- Connection technology TP
- Product type
- Connectors RJ-45
- Colour
- silver
- Shield type
- Screened
- Transfer quality
- Cat6A / Class EA
- Component-Level certified
- yes
- Quantity of ports
- 1
- Assignment
- EIA/TIA 568A
- Side 1 Connector Type
- RJ-45
- Side 1 Connector Gender
- Female
- Protection class (IP Code)
- IP67
- separate strain relief
- yes
- Operating temperature min.
- -40 °C
- Operating temperature max.
- 70 °C
- Height
- 13.2 mm
- Width
- 15.6 mm
- Depth
- 44.5 mm
- Weight
- 16.92 g
- Height of packaging (single piece)
- 30 mm
- Width of packaging (single piece)
- 100 mm
- Depth of packaging (single piece)
- 160 mm
- Package weight (single piece)
- 0.026 kg
The products of the TELEGÄRTNER brand stand for professional connection technology.
Product security
Information in accordance with the EU Product Safety Regulation, (GPSR):
Telegärtner Karl Gärtner GmbH
Lerchenstr. 35, 71144 Steinenbronn, Germany
