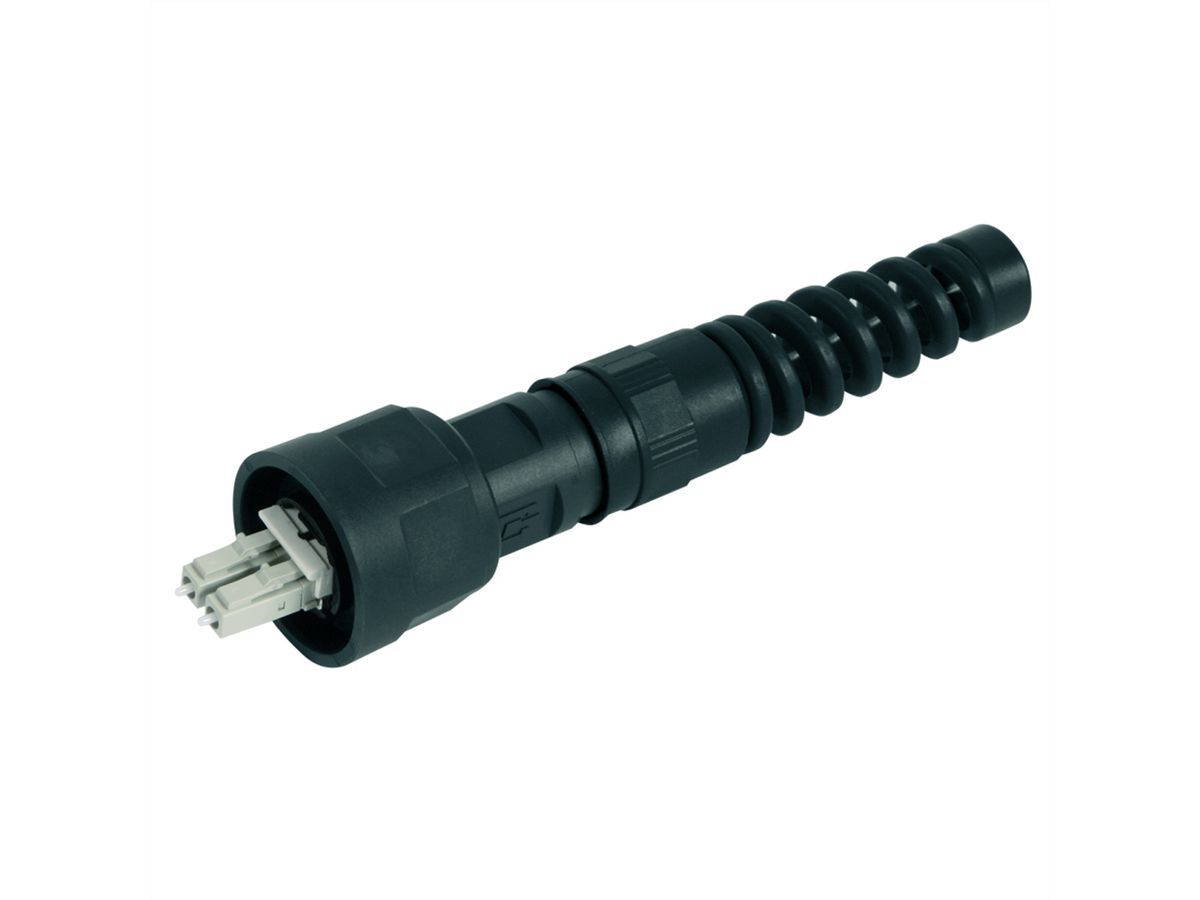

TELEGÄRTNER STX V1 LC duplex plug set, singlemode with bend protection

Item no. 21173191 Brand / Manufacturer TELEGÄRTNER Manuf. item no. 100007571 EAN 4018359329112 Item weight 0.043 kg
TELEGÄRTNER

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

STX V1 LC duplex plug set, singlemode with bend protection

  • storage of cables with diameter 5...10 mm
  • simple mounting of bulkheads through a central screwed gland or four screws
  • NBR aiguilette at the protection cap
  • bay for marking labels
  • with bend protection to prevent cables from being excessively bent
  • rugged zinc diecast or plastic housing
  • protection class IP67
  • Variant 1 acc. to IEC 61076-3-106
  • pre-assembled plugs and set products for simple assembly
  • available with RJ45 Cat.6A, Cat.6 Class EA, USB or FO insert

Specifications

Manufacturer
TELEGÄRTNER
Product group
Connection technology TP
Product type
Connectors RJ-45
Colour
black
Cable type
Duplex Cable
Side 1 Connector Type
LC
Tensile-loaded capacity
≥ 100 N
Protection class (IP Code)
IP67
Operating temperature min.
-20 °C
Operating temperature max.
80 °C
Storage temperature min.
-40 °C
Storage temperature max.
90 °C
Height
30 mm
Width
30 mm
Weight
44 g
Height of packaging (single piece)
30 mm
Width of packaging (single piece)
90 mm
Depth of packaging (single piece)
160 mm
Package weight (single piece)
0.043 kg

Downloads

Manufacturer data sheet - Deutsch (24.8 KB) Manufacturer data sheet - English (24.8 KB)

Product security

Information in accordance with the EU Product Safety Regulation, (GPSR):


Telegärtner Karl Gärtner GmbH
Lerchenstr. 35, 71144 Steinenbronn, Germany
