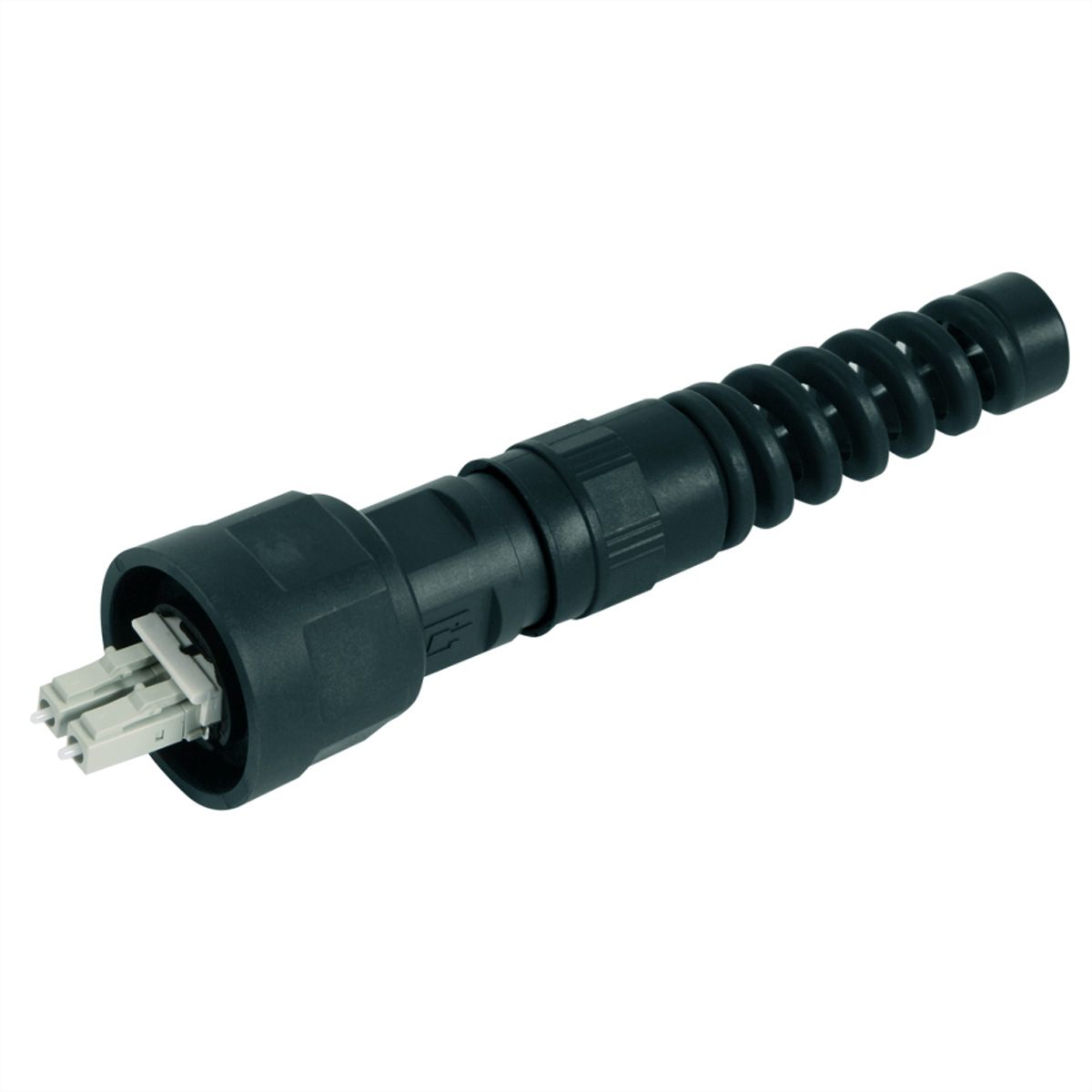

TELEGÄRTNER STX V1 LC duplex plug set, singlemode

Item no. 21173190 Brand / Manufacturer TELEGÄRTNER Manuf. item no. 100007570 EAN 4018359329105 Item weight 0.038 kg
TELEGÄRTNER

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

STX V1 LC duplex plug set, singlemode

  • storage of cables with diameter 5...10 mm
  • simple mounting of bulkheads through a central screwed gland or four screws
  • NBR aiguilette at the protection cap
  • bay for marking labels
  • with bend protection to prevent cables from being excessively bent
  • rugged zinc diecast or plastic housing
  • protection class IP67
  • Variant 1 acc. to IEC 61076-3-106
  • pre-assembled plugs and set products for simple assembly
  • available with RJ45 Cat.6A, Cat.6 Class EA, USB or FO insert

Specifications

Manufacturer
TELEGÄRTNER
Product group
Connection technology TP
Product type
Connectors RJ-45
Colour
black
Cable type
Duplex Cable
Side 1 Connector Type
LC
Tensile-loaded capacity
≥ 100 N
Protection class (IP Code)
IP67
Operating temperature min.
-20 °C
Operating temperature max.
80 °C
Storage temperature min.
-40 °C
Storage temperature max.
90 °C
Height
30 mm
Width
30 mm
Weight
40 g
Height of packaging (single piece)
30 mm
Width of packaging (single piece)
100 mm
Depth of packaging (single piece)
170 mm
Package weight (single piece)
0.038 kg

Downloads

Manufacturer data sheet - Deutsch (24.8 KB) Manufacturer data sheet - English (24.8 KB)
