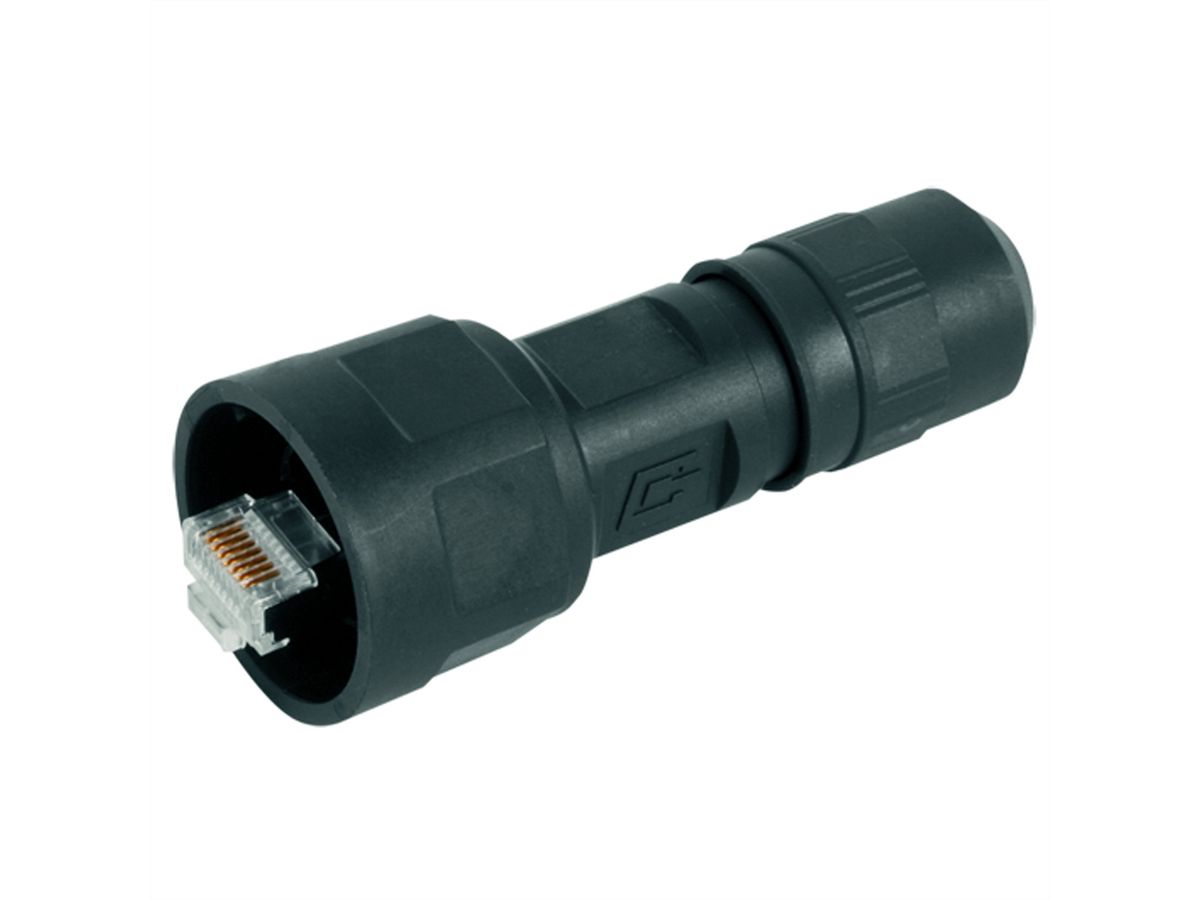

TELEGÄRTNER STX V1 RJ45 plug set, AWG24-27 Cat.6A (ISO)

Item no. 21173184 Brand / Manufacturer TELEGÄRTNER Manuf. item no. 100007459 EAN 4018359328863 Item weight 0.042 kg
TELEGÄRTNER

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

STX V1 RJ45 plug set AWG24-27 Cat.6A plastic

  • storage of cables with diameter 5...10 mm
  • simple mounting of bulkheads through a central screwed gland or four screws
  • NBR aiguilette at the protection cap
  • bay for marking labels
  • with bend protection to prevent cables from being excessively bent
  • rugged zinc diecast or plastic housing
  • protection class IP67
  • Variant 1 acc. to IEC 61076-3-106
  • pre-assembled plugs and set products for simple assembly
  • available with RJ45 Cat.6A, Cat.6 Class EA, USB or FO insert

Specifications

Manufacturer
TELEGÄRTNER
Product group
Connection technology TP
Product type
Connectors RJ-45
Colour
black
Shield type
Screened
Transfer quality
Cat6A / Class EA
Component-Level certified
yes
Quantity of ports
1
Side 1 Connector Type
RJ-45
Side 1 Connector Gender
Male
Material (casing)
PC UL94 V0
Protection class (IP Code)
IP67
Operating temperature min.
-40 °C
Operating temperature max.
85 °C
Weight
34.5 g
Height of packaging (single piece)
30 mm
Width of packaging (single piece)
100 mm
Depth of packaging (single piece)
130 mm
Package weight (single piece)
0.042 kg

Downloads

Manufacturer data sheet - Deutsch (105.5 KB) Manufacturer data sheet - English (105.5 KB)
