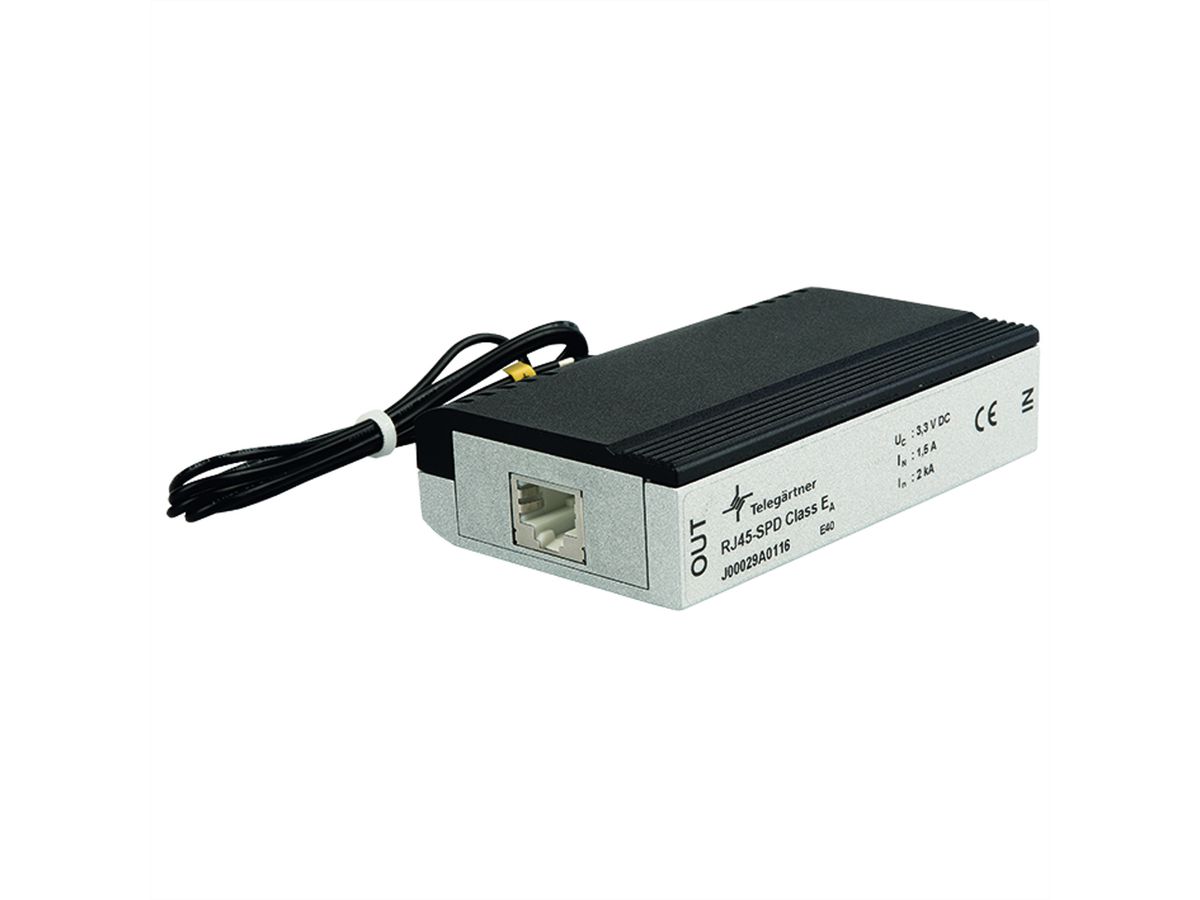

TELEGÄRTNER Surge Protection Device RJ45-SPD Class EA, suitable for RJ45/11/12 plugs
Item no.
21173203
Brand / Manufacturer
TELEGÄRTNER
Manuf. item no.
100023189
EAN
4018359469061
Item weight
0.324 kg
:strip_icc():strip_exif()/cms_secde/cms/ueber_uns/markenwelt/hersteller_logos/telegartner.png "TELEGÄRTNER")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description
Surge Protection Device RJ45-SPD Class EA; suitable for RJ45/11/12 plugs
Structured cabling with RJ45 connecting hardware is a vital part of today‘s telecommunication. 100 % uptime is mandatory for seamless data transmissionwith data rates up to 10 Gigabits per second. However, galvanic, inductive and capacitive coupling as well as potential differences may causee normous problems and hazards for any electronics connected to such a network. To protect the electronic equipment, an appropriate RJ45 surge protection with proper grounding has to be implemented in the cabling link.
- Full class EA-Performance
- Suitable for 10 Gigabit Ethernet 10GBASE-T in accordance with IEEE 802.3
- Suitable for Power over Ethernet Plus PoE+ in accordance with IEEE 802.3at
- RJ45 sockets with contact overbend protection
- Suitable for RJ45, RJ11 and RJ12 sockets
- Protection class IP20
- Temperature range -40 °C to +70 °C
- Compact design (103 x 25 x 63 mm)
- Mounting on top-hat rail or free
- Potential equalisation via top-hat rail or with enclosed PE adapter
- Installation and maintenance by qualified electricians only
- Mating cycles ≥ 750
Remark: Picture similar
Specifications
- Manufacturer
- TELEGÄRTNER
- Product group
- Connection technology TP
- Product type
- Overvoltage protection
- Colour
- multicolored
- Quantity of ports
- 1
- Side 1 Connector Type
- RJ-45
- Side 1 Connector Gender
- Female
- Protection class (IP Code)
- IP20
- Operating temperature min.
- -40 °C
- Operating temperature max.
- 70 °C
- Height
- 103 mm
- Width
- 25 mm
- Depth
- 63 mm
- Weight
- 321.43 g
- Height of packaging (single piece)
- 50 mm
- Width of packaging (single piece)
- 80 mm
- Depth of packaging (single piece)
- 120 mm
- Package weight (single piece)
- 0.324 kg
