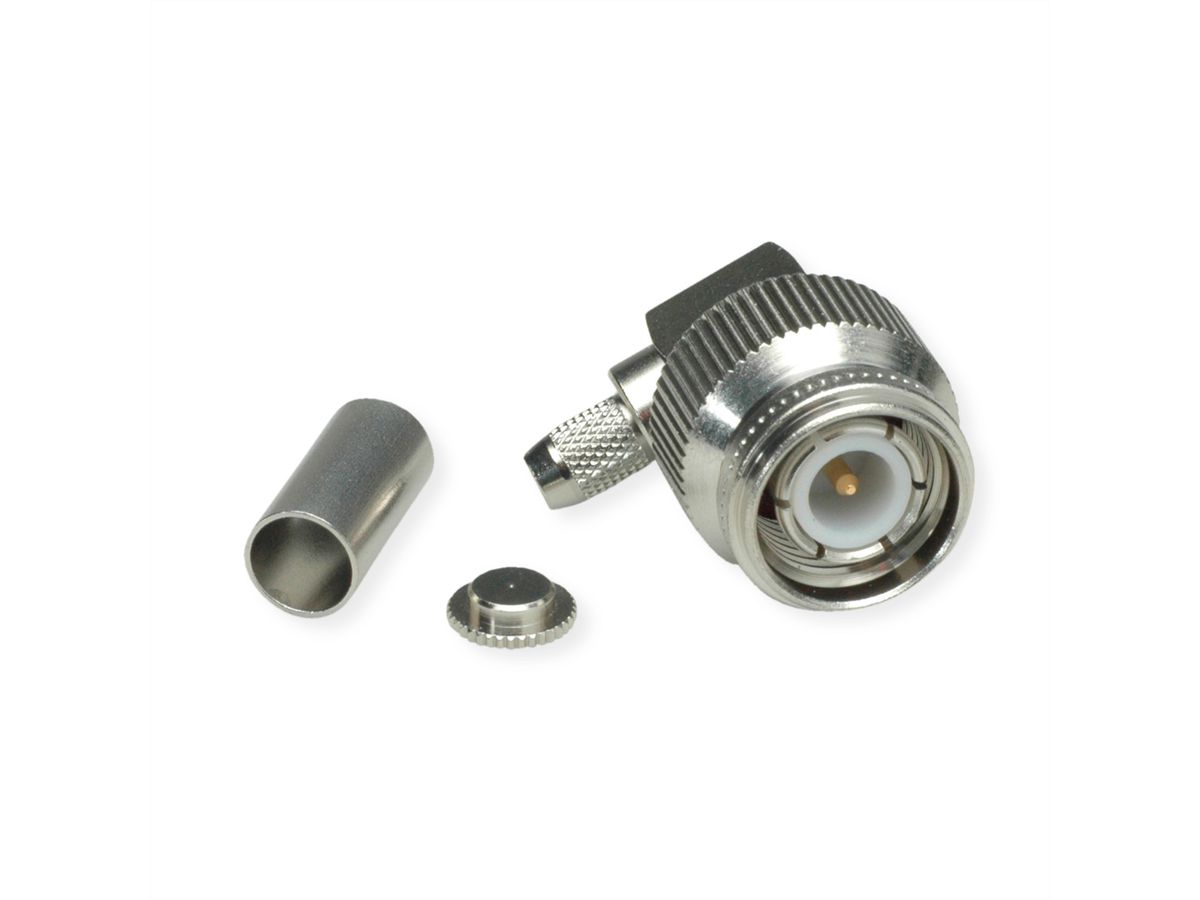

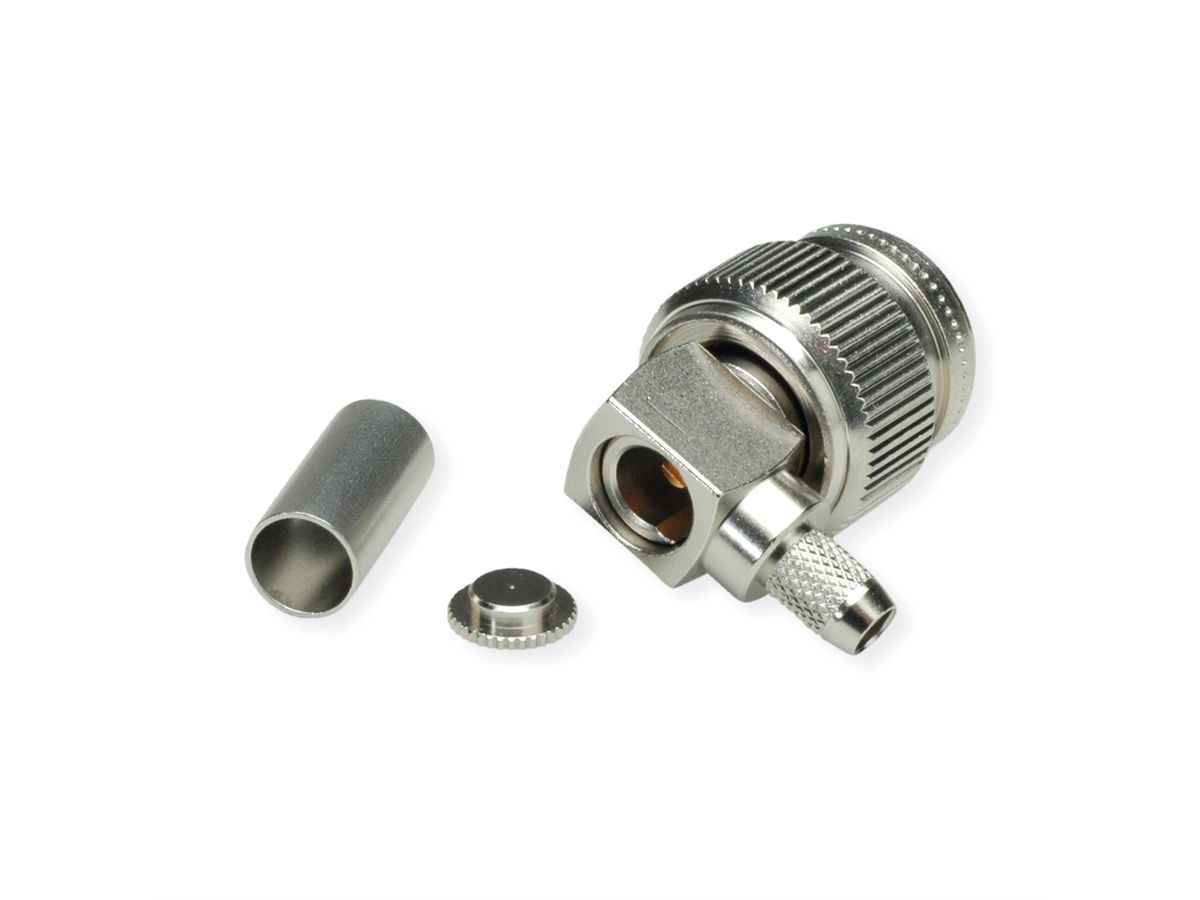

TELEGÄRTNER TNC Angle Plug Crimp, G5 (RG-223/U), RG-142B/U solder/crimp

Item no. 21170489 Brand / Manufacturer TELEGÄRTNER Manuf. item no. 100023697 EAN 4018359107932 Item weight 0.023 kg
TELEGÄRTNER

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

The TNC series is a commonly used coax connector. The same size as BNC connectors, but with a threaded coupling mechanism, this connector can be used up to 11 GHz. Applications for these connectors range from signal and data to video transmission where vibration resistance is required. TNC’s are a low-cost high-frequency solution for coax connections.

  • Article name: TNC Plg 90 sd/cr G5 RG-142B/U
  • Impedance: 50 Ω
  • Cable group; cable: G5 (RG-223/U); RG-142B/U, RG-223/U, RG-400/U, RG-142B/U
  • Remarks: solder/crimp

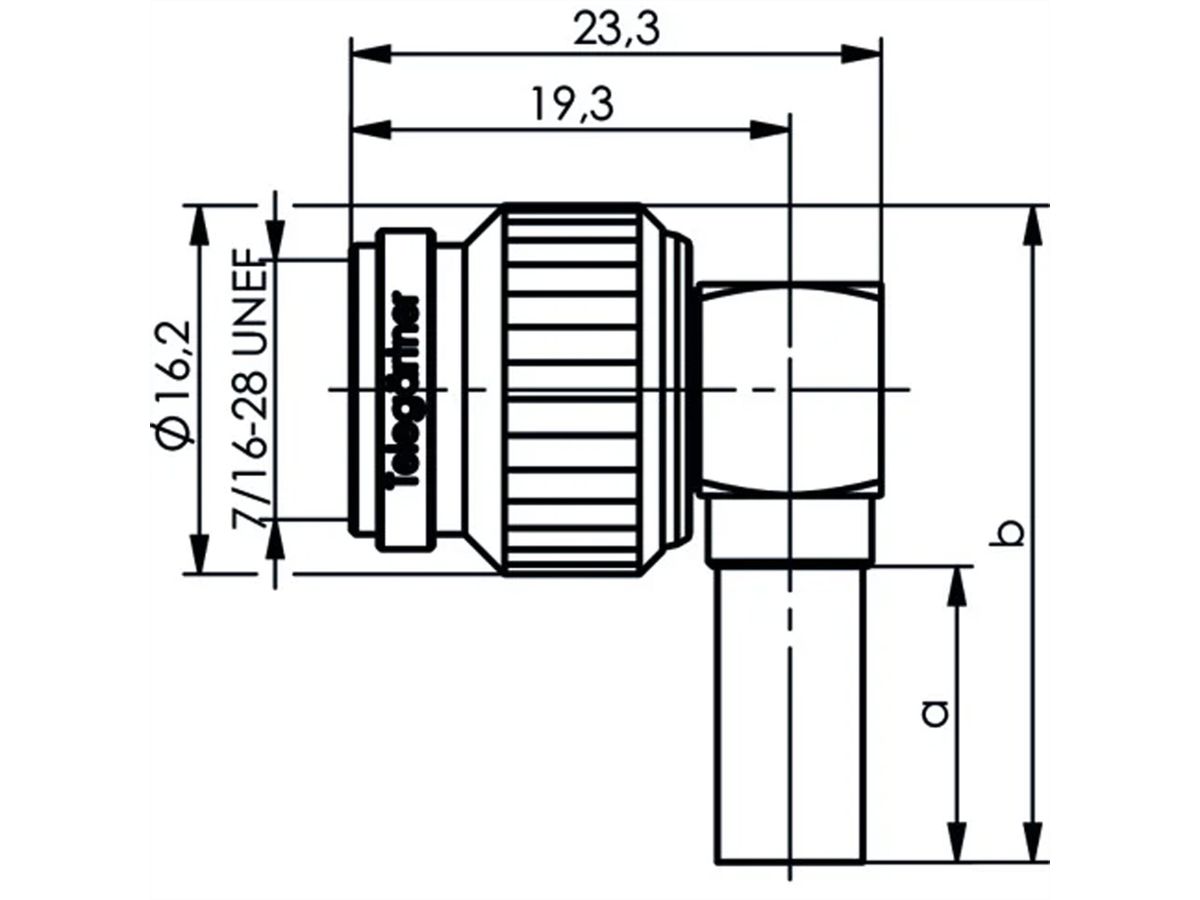

  • Dimensions: a=13.5, b=29.5
  • Assembly: A0505

Specifications

Manufacturer
TELEGÄRTNER
Product group
Coaxial Connectors
Product type
TNC Angle Plug Crimp
Colour
silver
Quantity of ports
1
Side 1 Connector Type
TNC connector
Side 1 Connector Gender
Male
Side 2 Connector Type
Solder / Crimp termination
Protection class (IP Code)
IP68
Connection direction
angled
Characteristic impedance
50 Ohm
Height
29.5 mm
Width
16.2 mm
Depth
23.3 mm
Weight
18.57 g
Height of packaging (single piece)
20 mm
Width of packaging (single piece)
90 mm
Depth of packaging (single piece)
120 mm
Package weight (single piece)
0.023 kg
