TELTONIKA DAP145 Industrial Wireless Access Point mit RS485

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 12/15/2025

Item no.	21222337
Brand / Manufacturer	Teltonika
Manuf. item no.	DAP145000000
EAN	4779051846795

Description

Der DAP145 ist ein industrieller Wi-Fi-Access-Point mit RS485-Kommunikation, der für Versorgungsunternehmen, Maschinenbauer und Systemintegratoren entwickelt wurde. Es ermöglicht den Anschluss von kabelgebundenen Industriegeräten an moderne IP-Netzwerke ohne aufwändige Verkabelung.

Das Gerät fungiert als Access Point oder Client (STA/Mesh/Fast Roaming) und bietet über seinen nativen RS485-Port direktes Serial-to-IP-Bridging. Fortschrittliche RutOS-Tools wie Data to Server und Unterstützung industrieller Protokolle erleichtern die sichere Datenerfassung in der Cloud, die alle über die RMS-Plattform remote verwaltet werden.

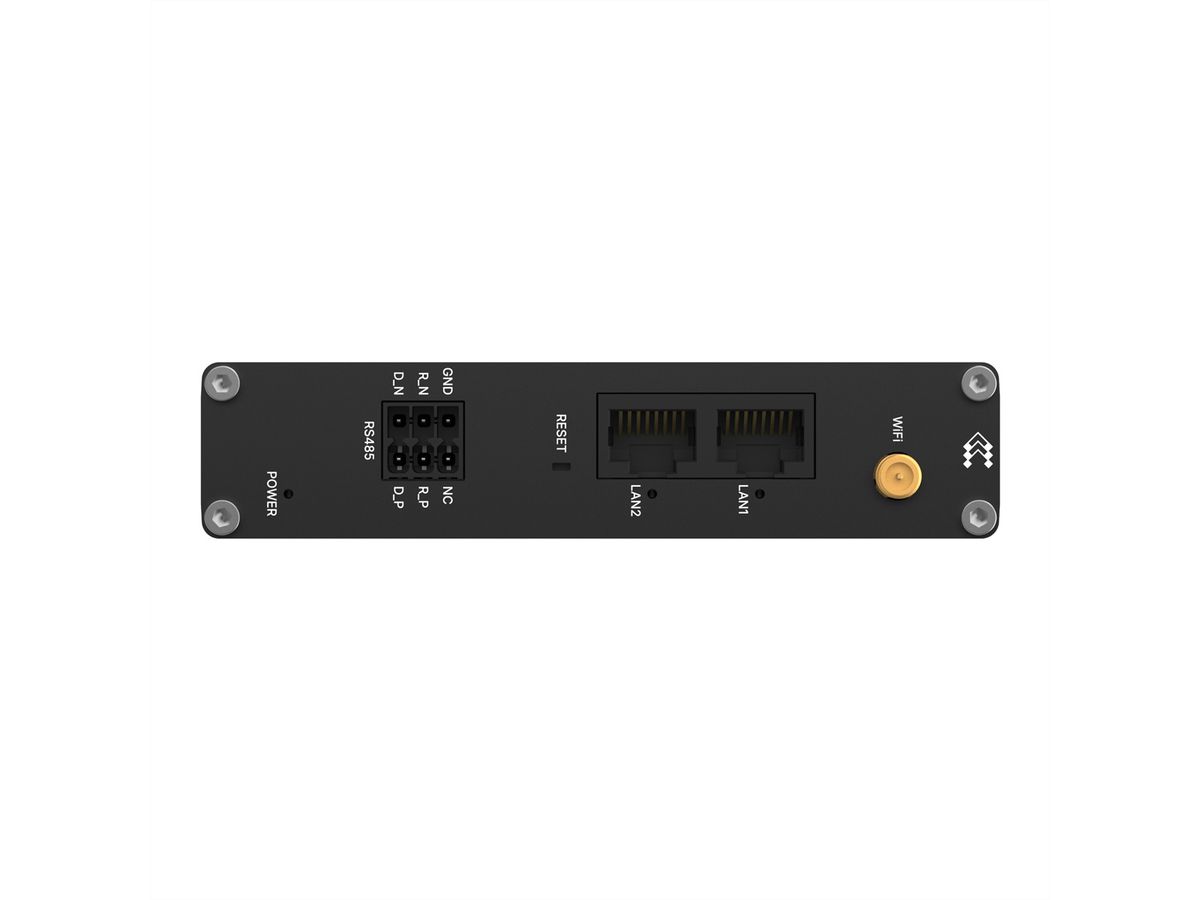

Wi-Fi und RS485-Überbrückung - Brücken Sie RS-485-Geräte mit Serial-over-IP und Modbus auf IP
Flexible Wi-Fi Modi - Mesh, STA und Fast Roaming für Abdeckungserweiterung, Backhaul und Mobilität von Industrieanlagen
Cloud-fähige Datenerfassung - Erfassen und Konvertieren industrieller Daten mit dem Data-to-Server-Tool und nativer Protokollunterstützung

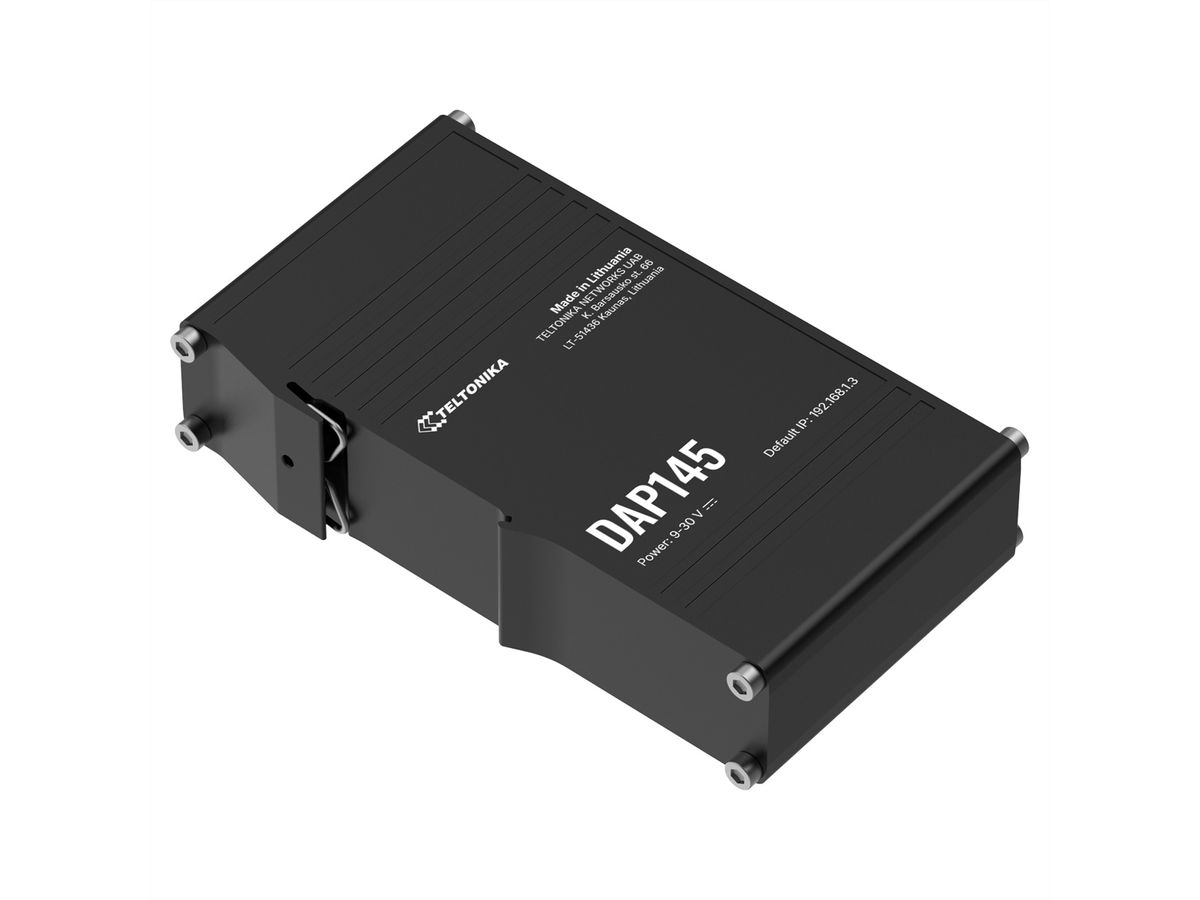

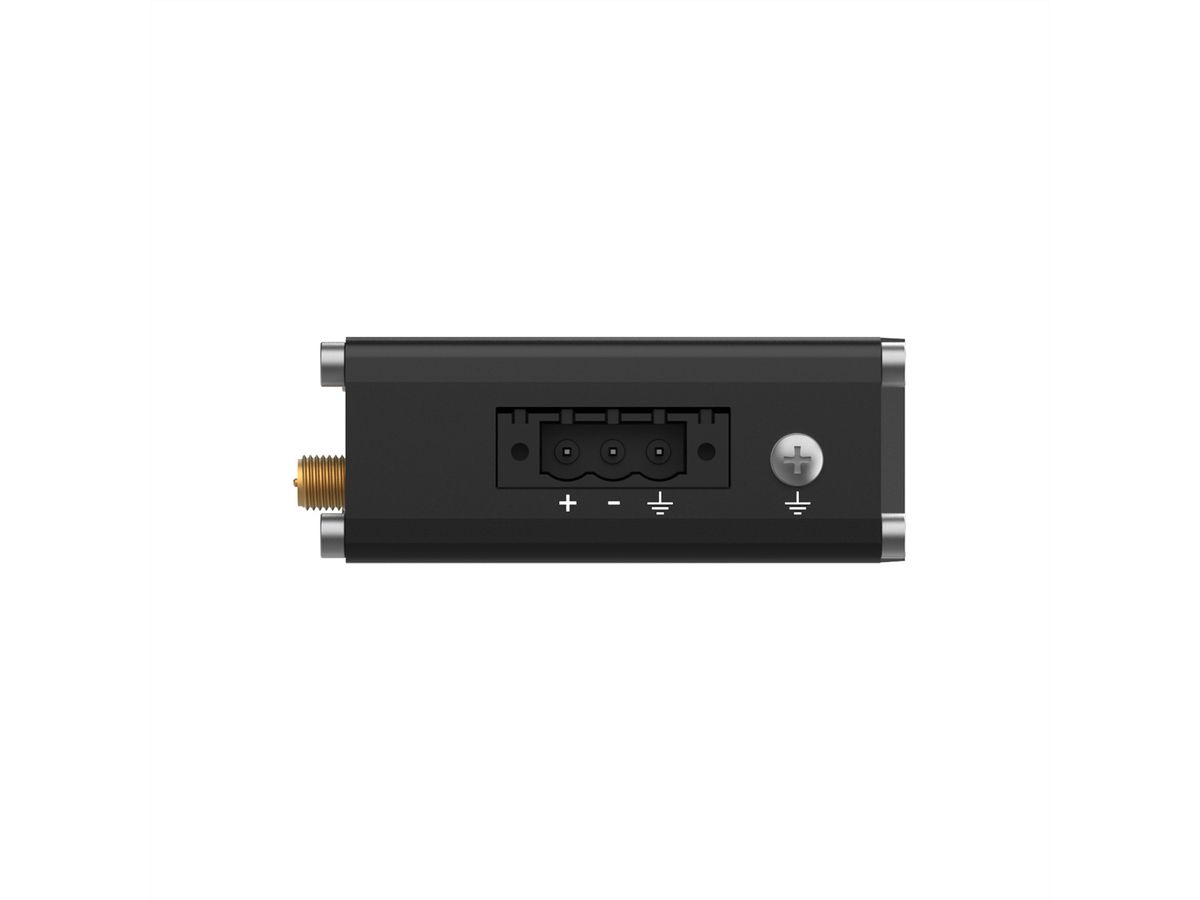

Konzipiert für die Industrie - Schmale Stellfläche mit integrierter DIN-Schienenmontage und Stromversorgung des Klemmenblocks von oben

LAN: 2 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Routing: Static routing, Dynamic routing(RIP, OSPF, EIGRP, BGP, NHRP), Policy based routing, Routing rules

Network protocols: TCP, UDP, IPv4, IPv6, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SNMP, MQTT, Wake On Lan (WOL)

VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection Monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall: Port forward, traffic rules, custom rules
Firewall status page: View all your Firewall statistics, rules, and rule counters
Ports Management: View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
DHCP: Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

Specifications

Manufacturer	Teltonika
Product group	Industrial Networking
Product type	WLAN Access Points
Colour	black
Scope of delivery	DAP145, 3-pin power connector, 2x3-pin connector
IEEE standard	IEEE 802.11b/g/n (Wi-Fi 4)
WiFi standard	WiFi 4 (IEEE 802.11n)
Encryption	WPA-PSK, WPA2-PSK, WPA3-SAE, WPA-EAP, OWE, WPA2-EAP, WPA3-EAP
WLAN WPA encryption	ja
WLAN WPA2 encryption	ja
WLAN WPA3 encryption	ja
Roaming	ja
Power over Ethernet (PoE)	ja
Protection class (IP Code)	IP30
Operating temperature min.	-40 °C
Operating temperature max.	75 °C
Height	25 mm
Width	114 mm
Depth	69 mm
Weight	150 g
Height of packaging (single piece)	0 mm
Width of packaging (single piece)	0 mm
Depth of packaging (single piece)	0 mm
Package weight (single piece)	0 kg
Interface	2 x RJ45 ports, 10/100 Mbps: 2 x LAN
