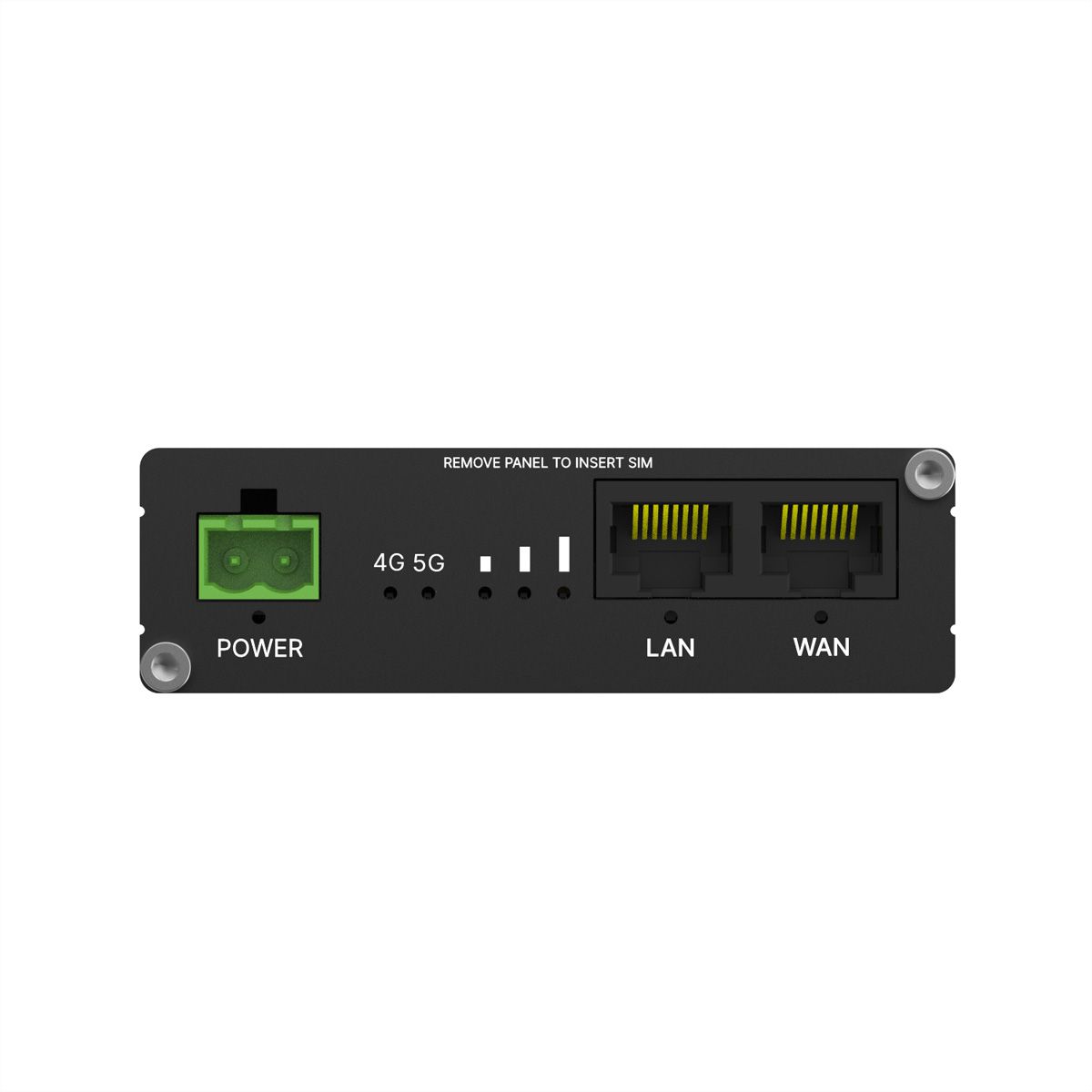

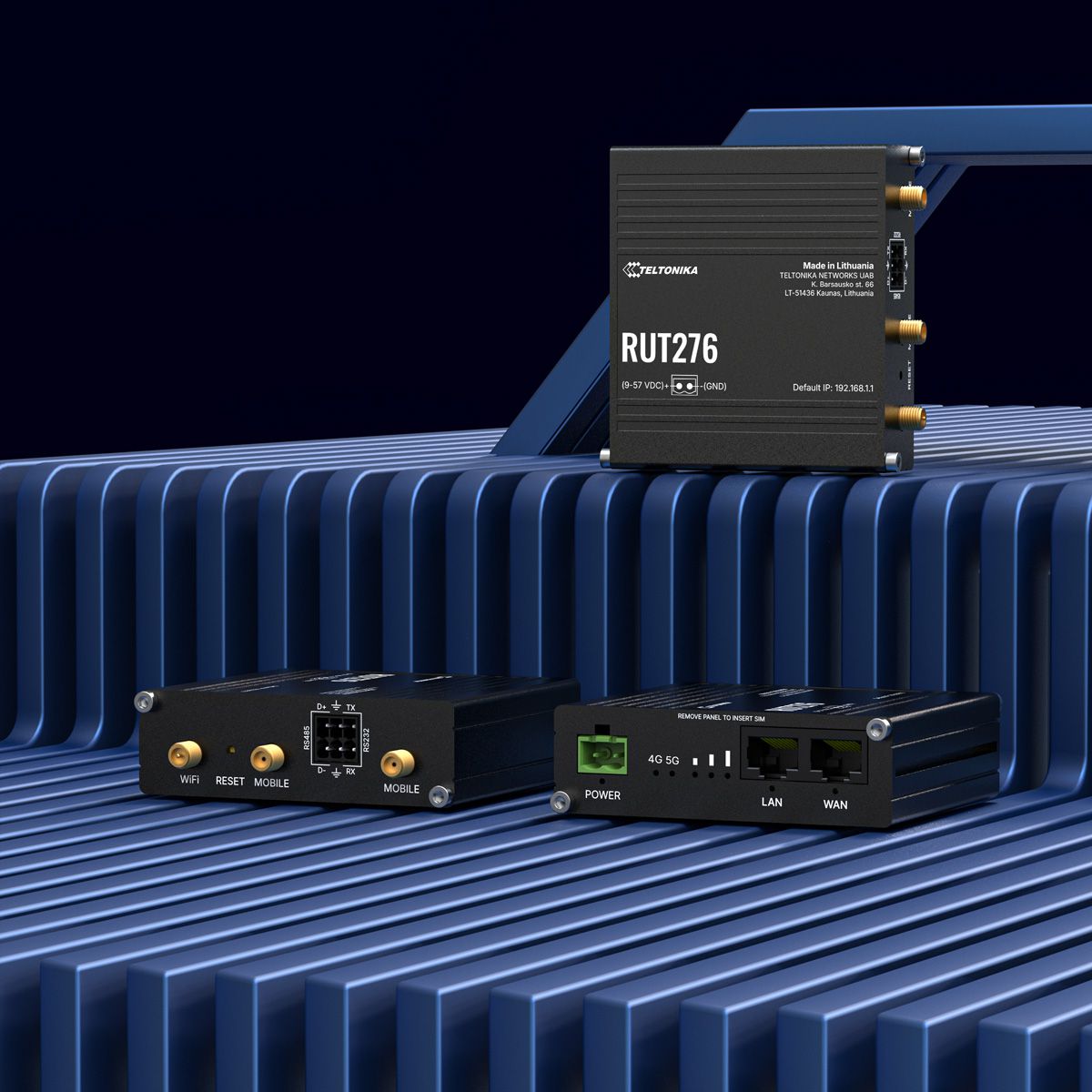

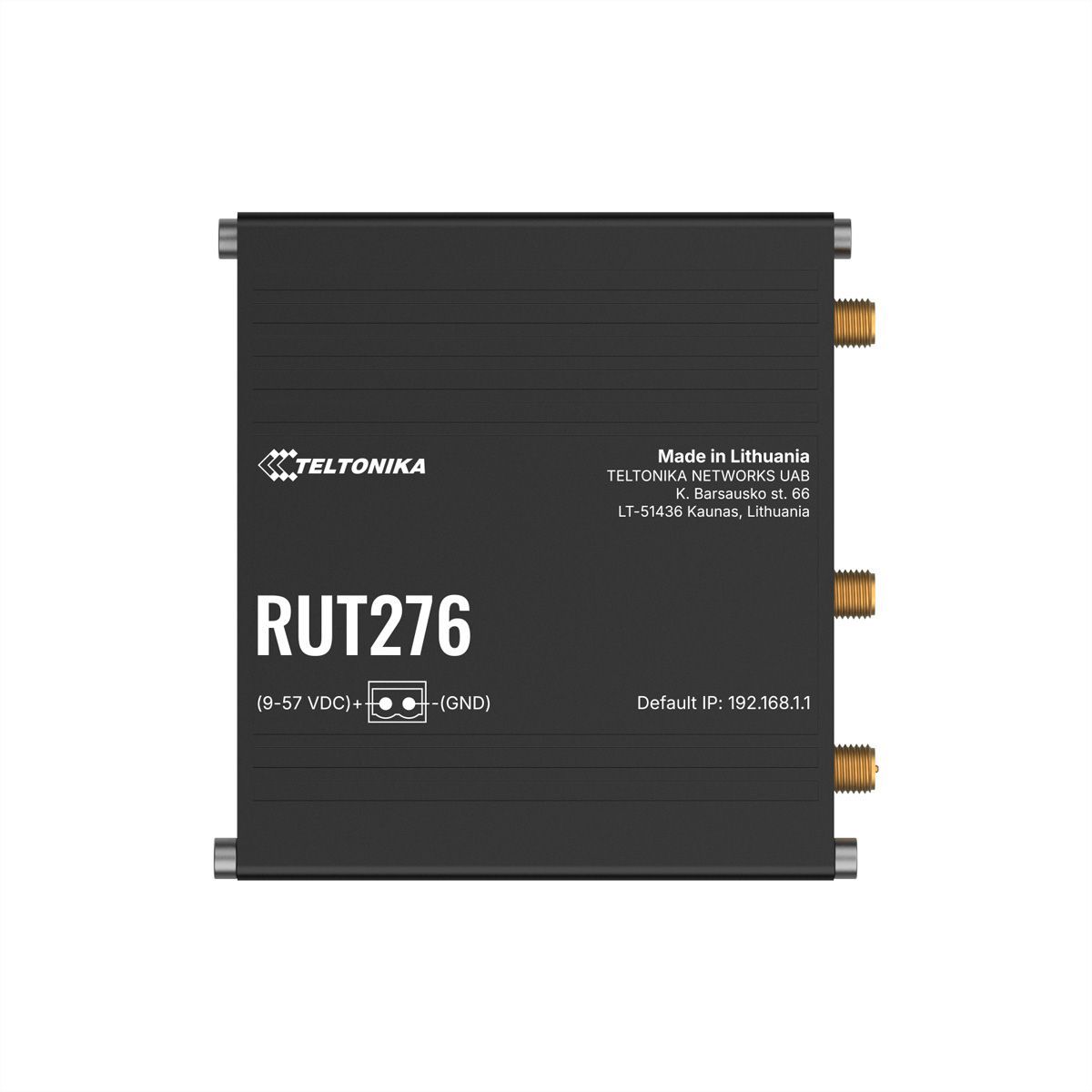

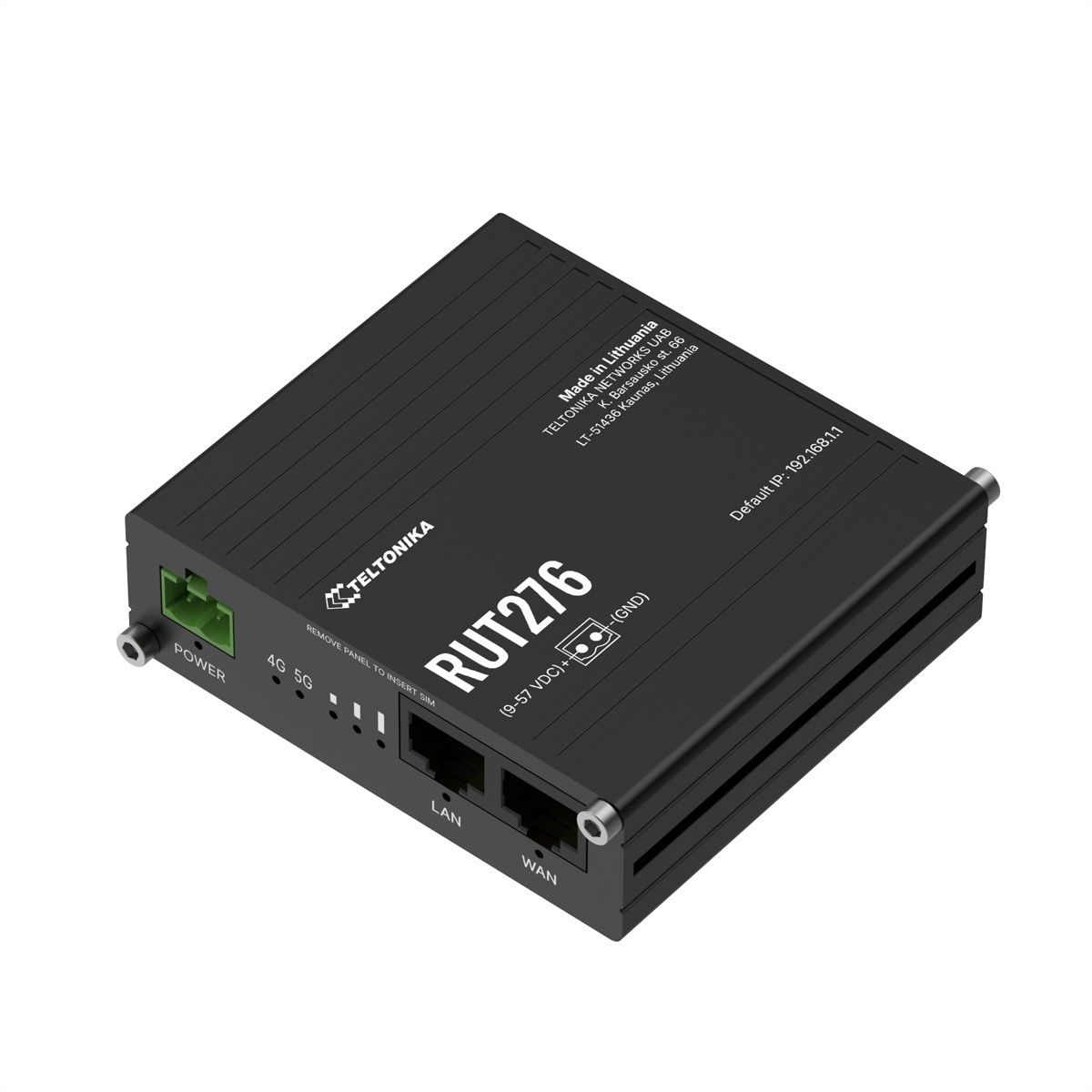

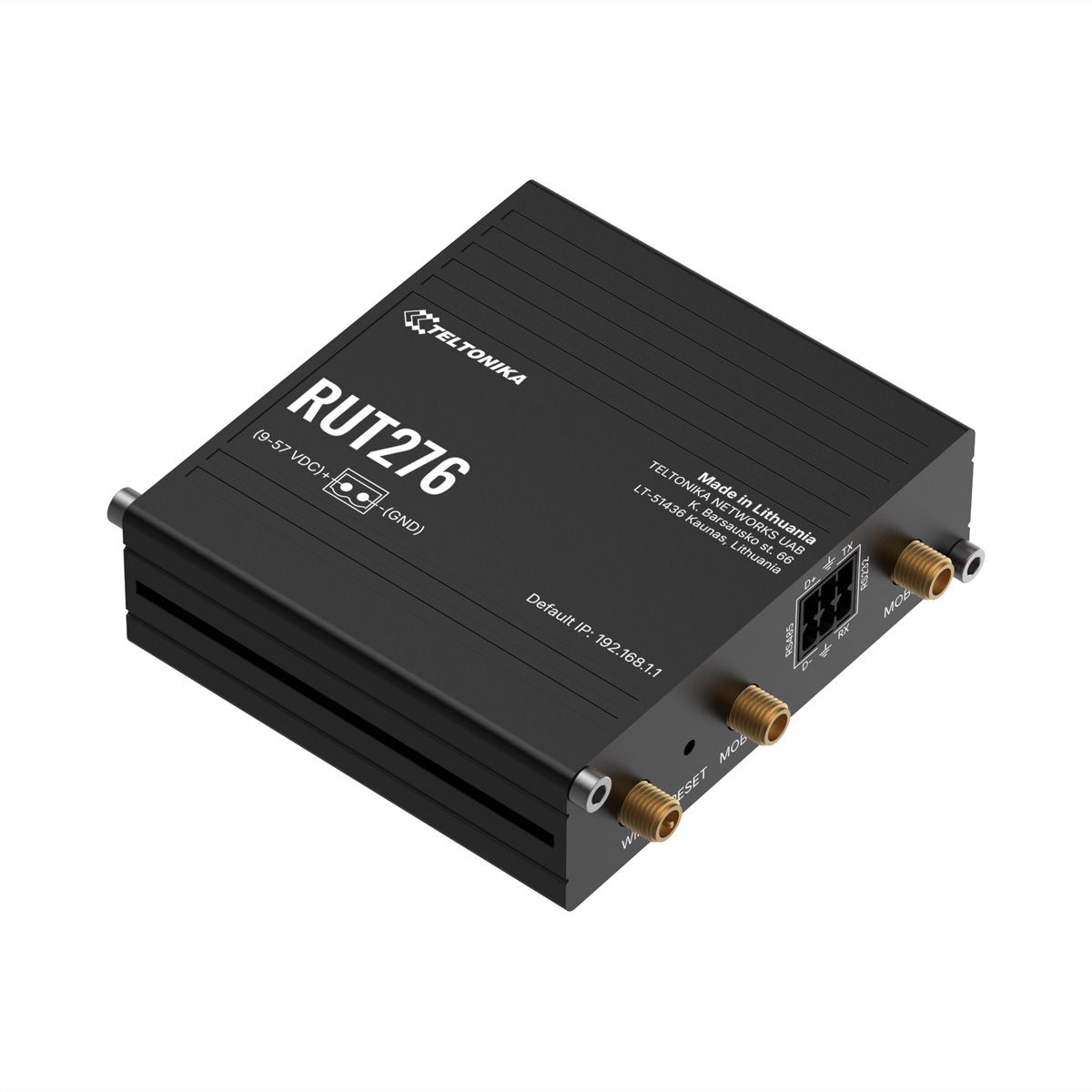

TELTONIKA RUT276 Redcap 5G Router
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 21222339 |
|---|---|
| Brand / Manufacturer | Teltonika |
| Manuf. item no. | RUT276000000 |
| EAN | 4779051845705 |
| Item weight | 0.166 kg |
:strip_icc():strip_exif()/logos/teltonika.png "Teltonika")
Description
Nutzen Sie mit dem RUT276 die Vorteile von 5G RedCap für Ihre IoT-Projekte: höhere Bandbreite und geringere Latenz als 4G bei deutlich geringeren Kosten als bei einem vollwertigen 5G-Modul. Über RS232/RS485-Schnittstellen lässt sich der Router nahtlos in industrielle Anlagen integrieren, während Dual-SIM mit Failover für permanente Konnektivität sorgt.
- REDCAP 5G - Niedrige Latenz, hohe Kapazität, kosteneffizienter Einsatz

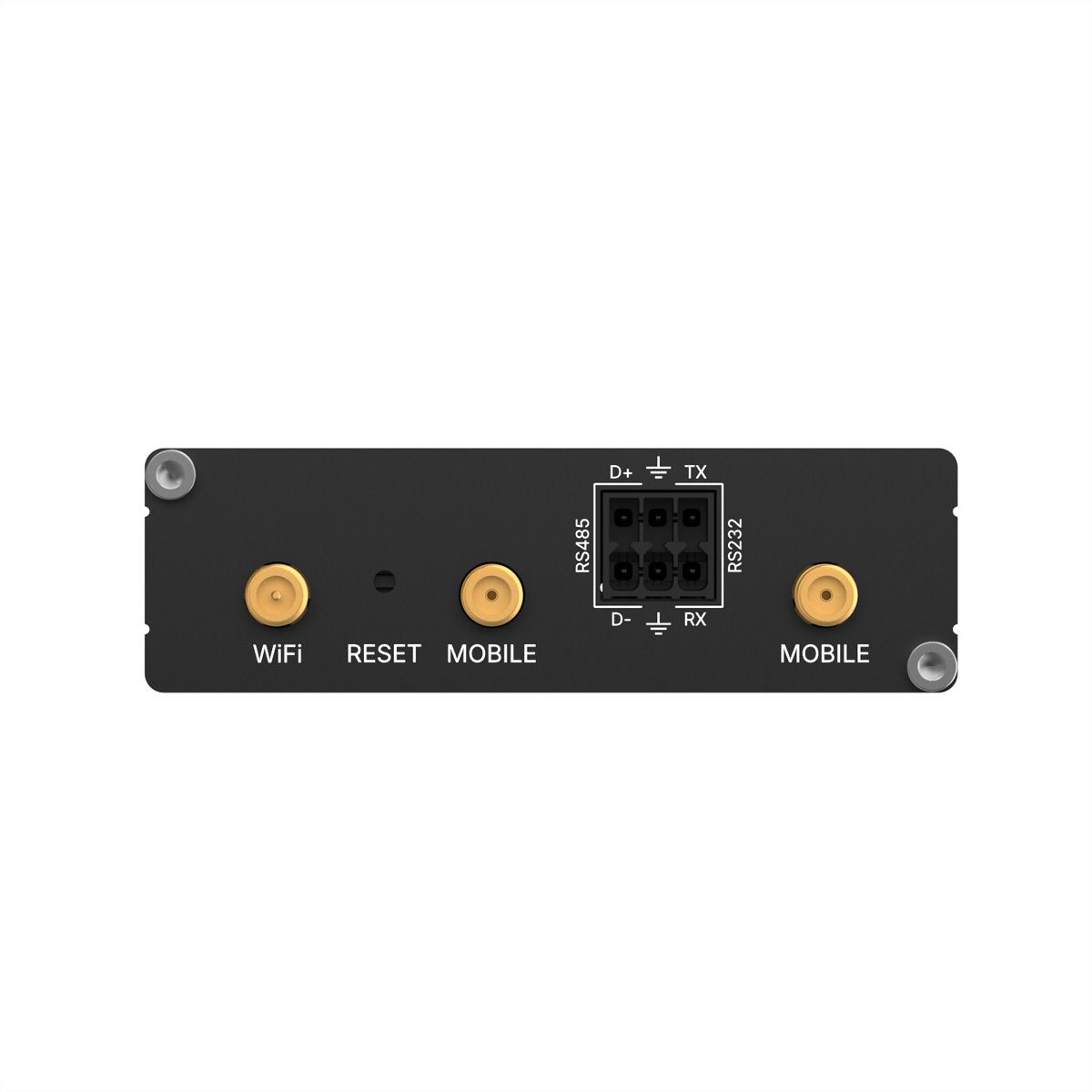

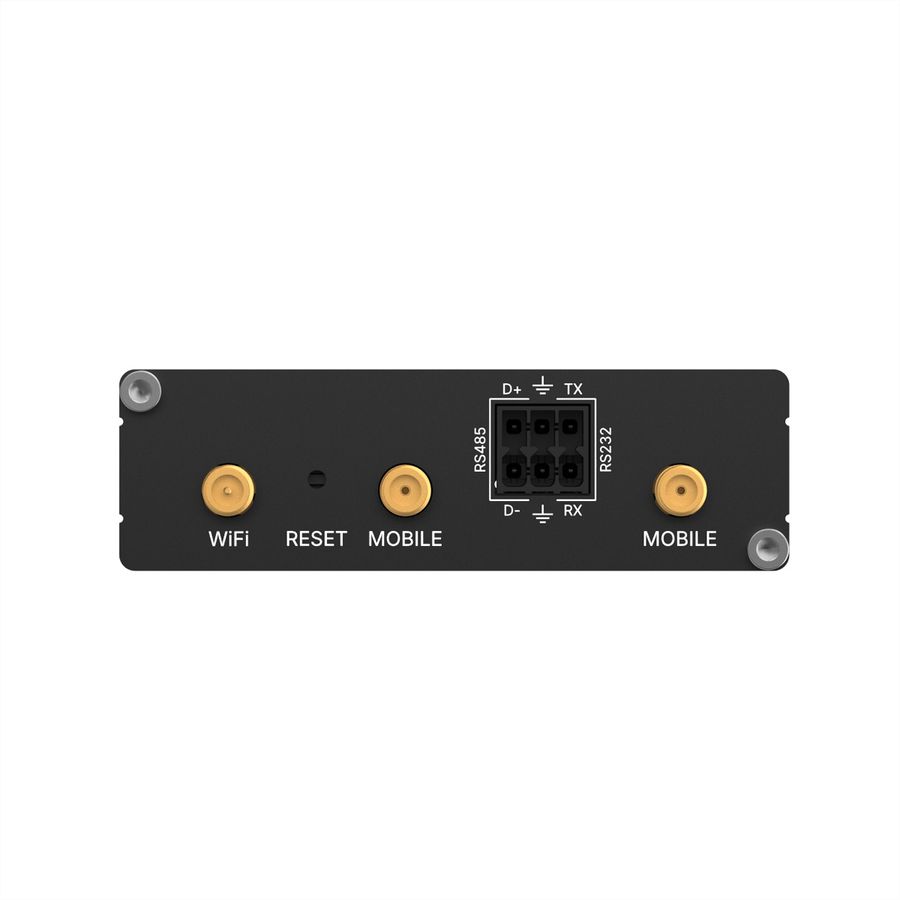

- Serielle Integration - Integrierte RS232/RS485-Schnittstellen für nahtlose Anbindung von Industrieanlagen
- Protokollfähig - Native Unterstützung von Modbus, OPC UA und BACnet für industrielle Systeme
- Industriedesign - Robustes Aluminiumgehäuse, weiter Temperaturbereich und flexible Montagemöglichkeiten
- SSID/ESSID: SSID stealth mode and access control based on MAC address
- Wi-Fi users: Up to 50 simultaneous connections
- Wireless Connectivity Features: Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)
- WAN: 1 x WAN port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- LAN: 1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
- Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake on Lan (WOL), VXLAN
Specifications
| Manufacturer | Teltonika |
|---|---|
| Product group | Industrial Networking |
| Product type | Router |
| Colour | black |
| Scope of delivery | RUT276, 2-pin terminal block, I/0 2x3pin connector, Hex key, SIM Adapter Kit, QSG (Quick Start Guide) |
| Radio standard 4G | ja |
| Radio standard 5G | ja |
| WLAN support | ja |
| WLAN Access Point | ja |
| WLAN IEEE Standard | IEEE 802.11b/g/n (Wi-Fi 4) Access Point (AP), Client (STA), Mesh (802.11s) |
| WiFi standard | WiFi 4 (IEEE 802.11n) |
| Protection class (IP Code) | IP30 |
| Mains connection | Systemstecker, Proprietär |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 75 °C |
| Height | 25 mm |
| Width | 83 mm |
| Depth | 83 mm |
| Weight | 132 g |
| Height of packaging (single piece) | 40 mm |
| Width of packaging (single piece) | 110 mm |
| Depth of packaging (single piece) | 110 mm |
| Package weight (single piece) | 0.166 kg |
Teltonika develops IoT connectivity solutions for the world of tomorrow. With over 25 years of market expertise, Teltonika brings its vision and know-how to the development of innovative products that provide seamless connectivity, easy integration and remote management capabilities for industrial solutions worldwide.
