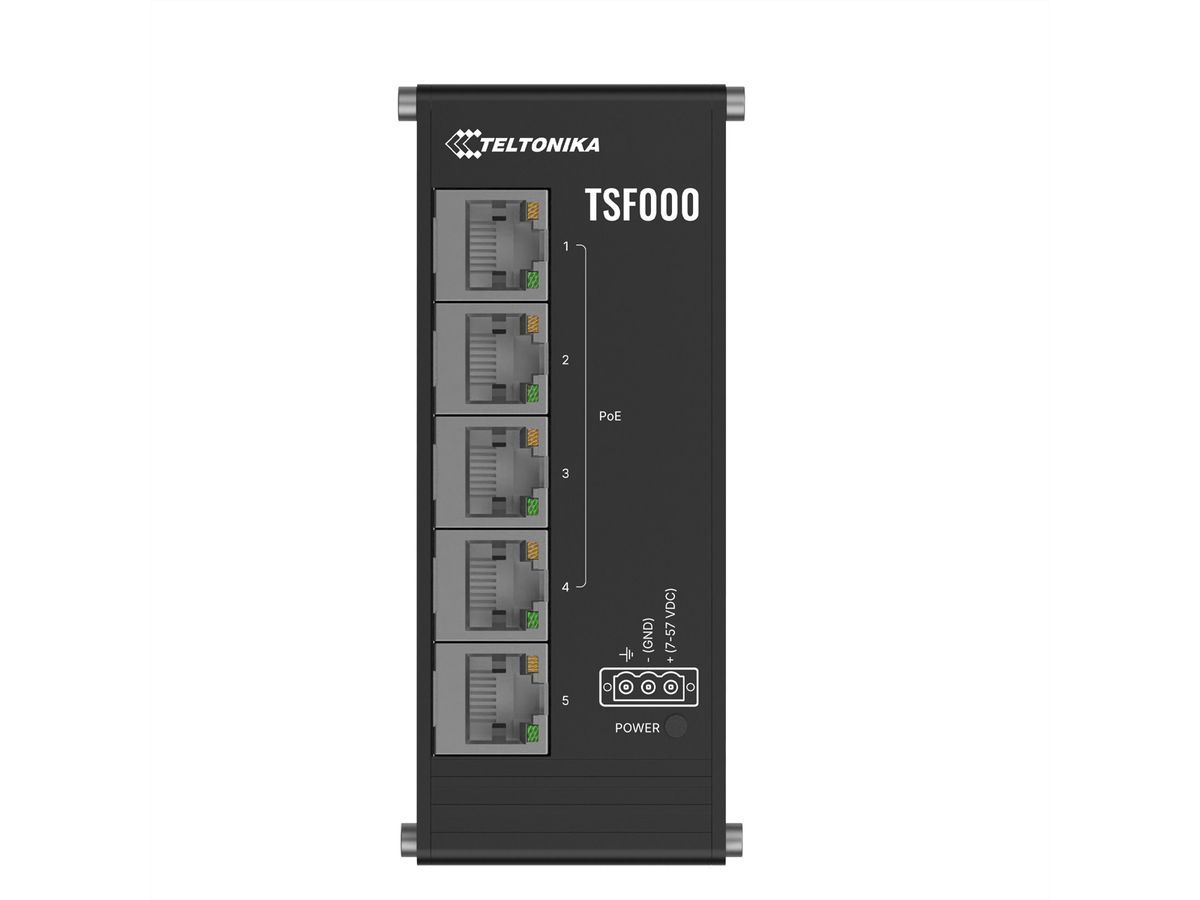

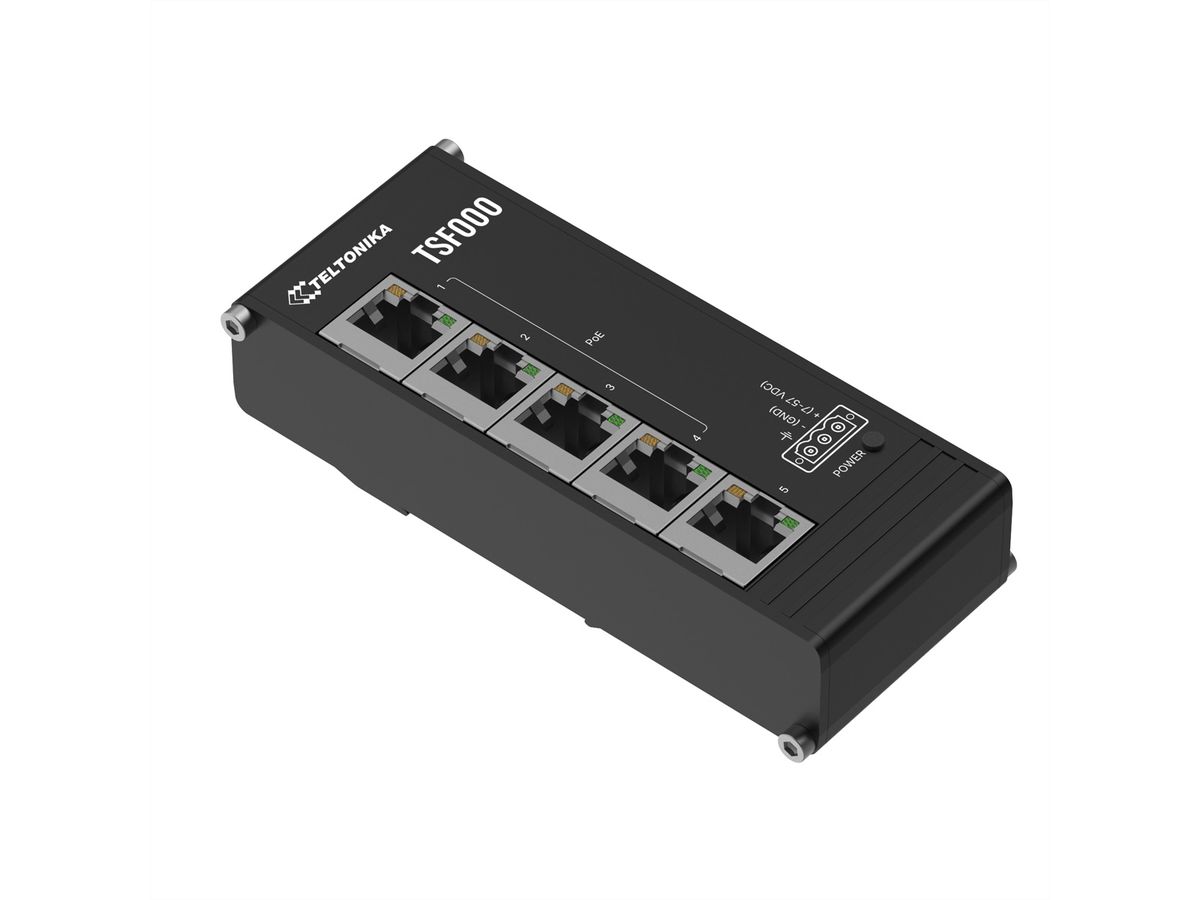

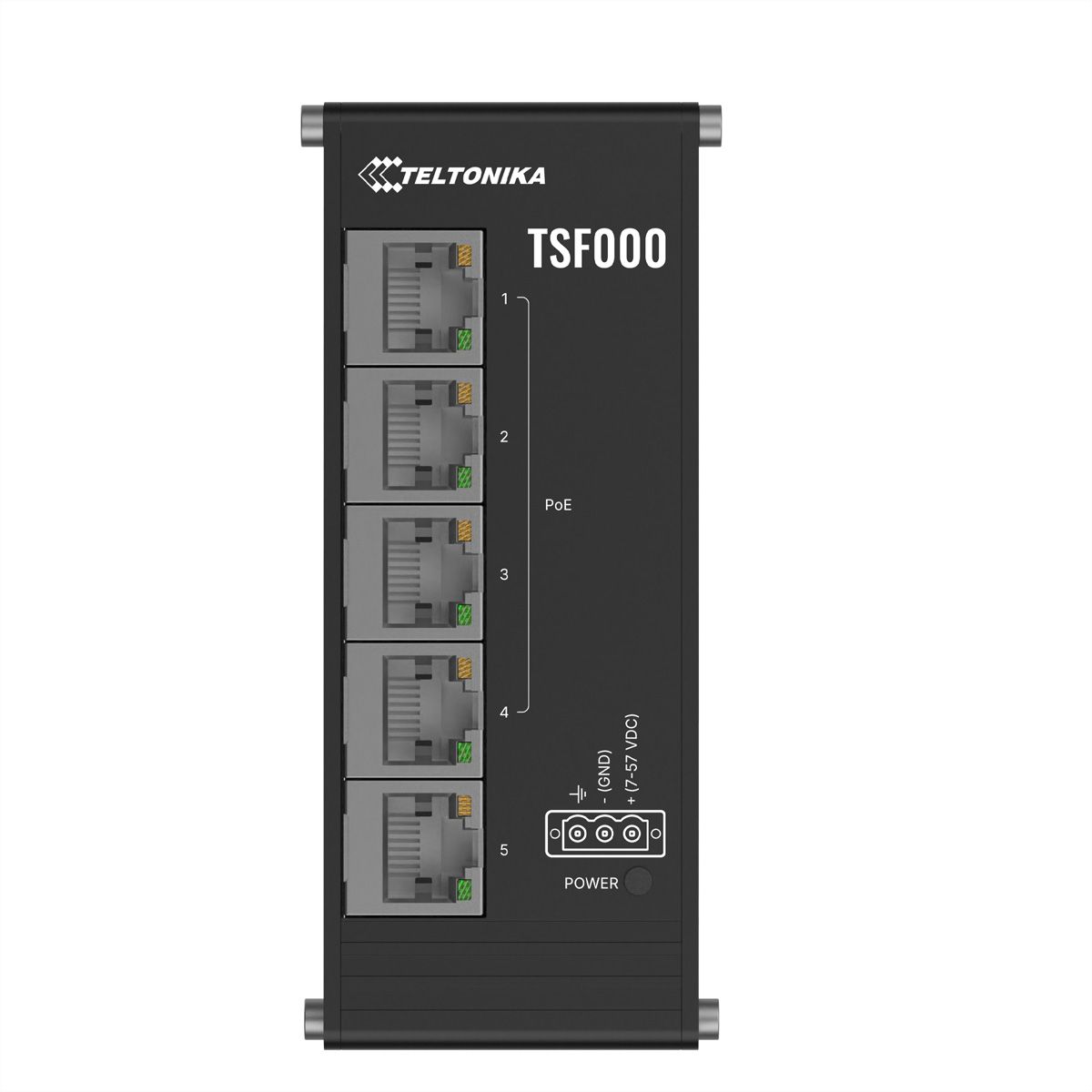

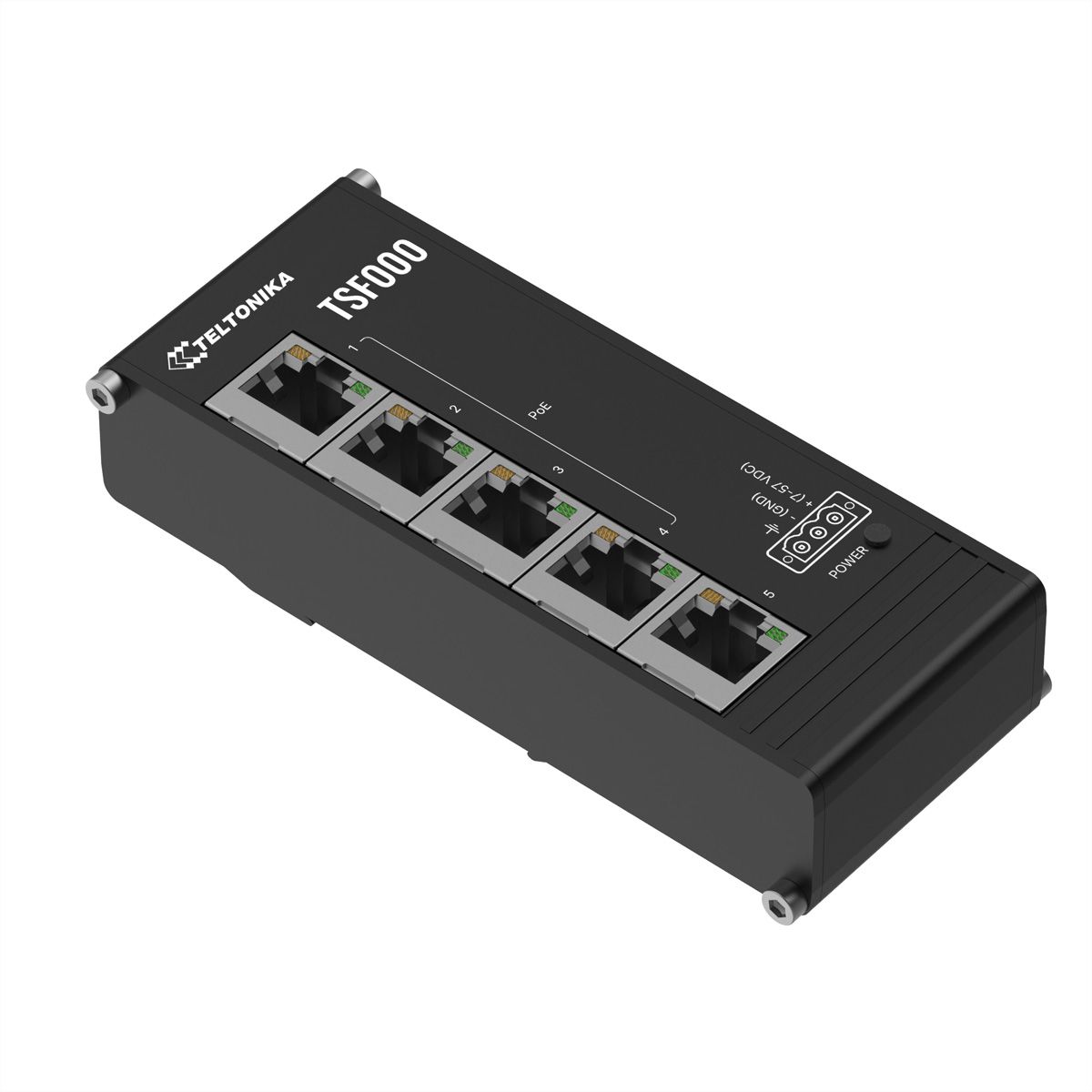

TELTONIKA TSF000 5-Port Switch 4x PoE+
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 21222368 |
|---|---|
| Brand / Manufacturer | Teltonika |
| Manuf. item no. | TSF000000000 |
| EAN | 4779051846979 |
| Item weight | 0.146 kg |
:strip_icc():strip_exif()/logos/teltonika.png "Teltonika")
Description
The TSF000 is a compact unmanaged Ethernet switch designed for tight industrial spaces. It features 4× PoE+ outputs with a 120 W power budget, a low-profile housing, DIN rail mount, and 5 x Ethernet ports for stable, reliable industrial connectivity. With a flexible 7 – 57 VDC power input, this switch simplifies powering and linking multiple devices in IoT automation, office spaces, and surveillance systems.
- Power & Connect with PoE+: Deliver power and data for up to 4 devices with 120W power budget

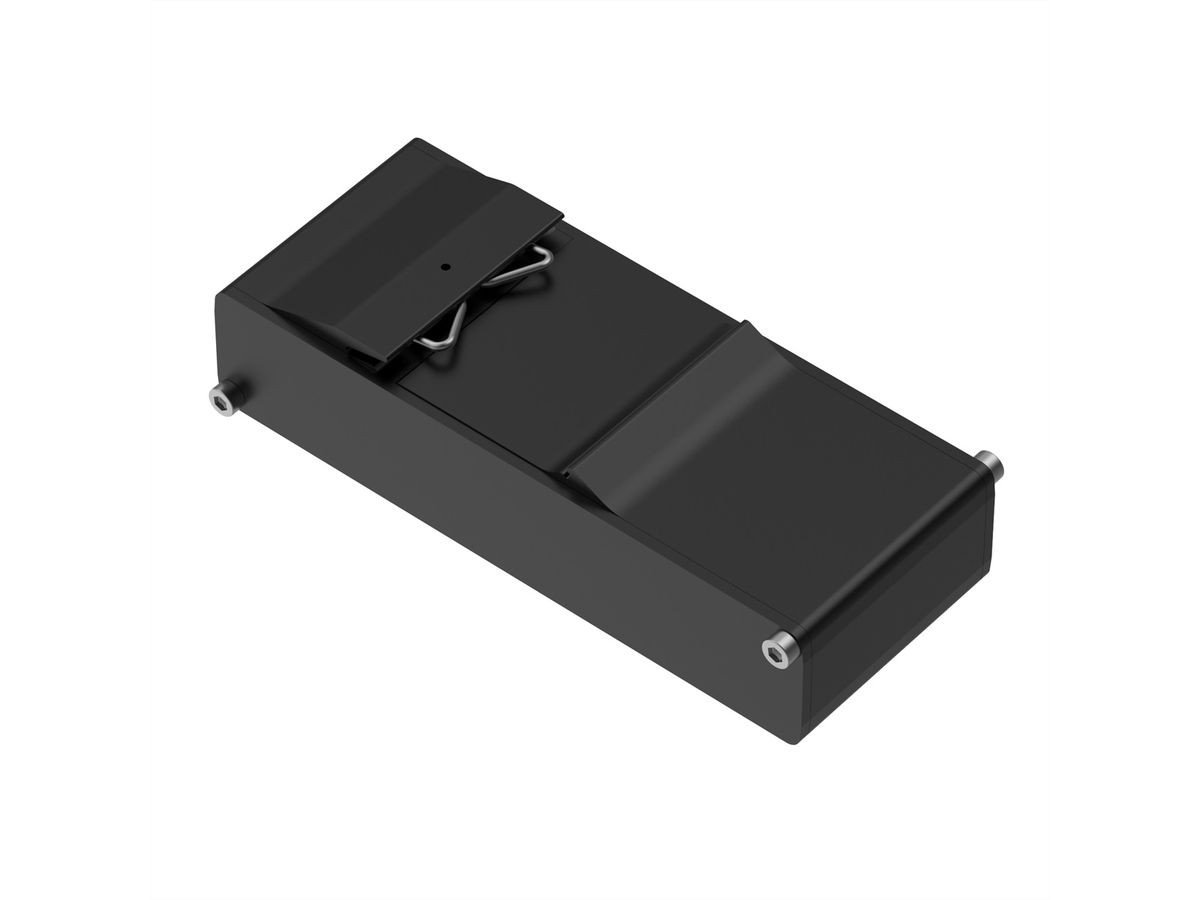

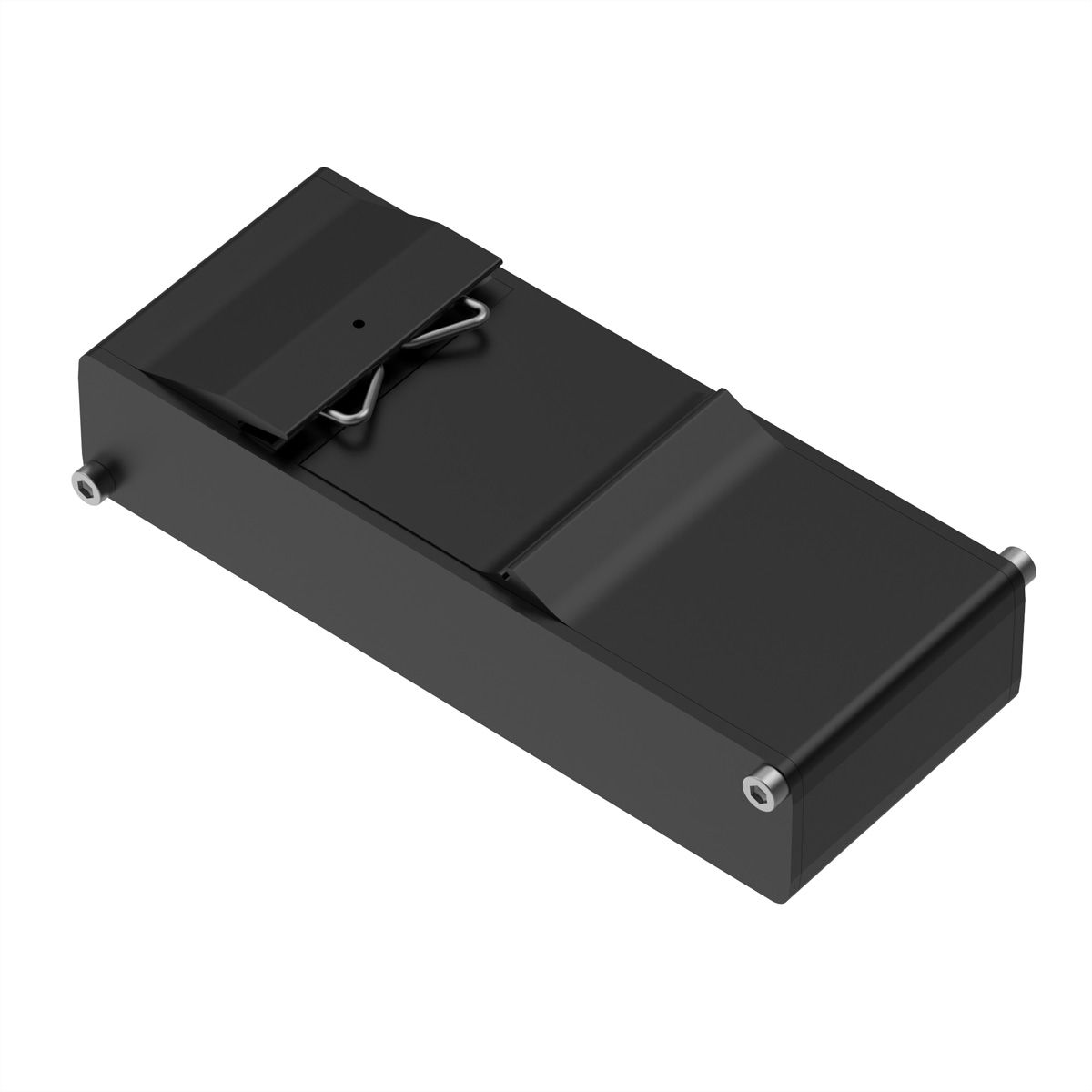

- Low-Profile Industrial Fit: Flat housing with DIN rail mount for effortless installation
- 5x Ethernet: Front access Ethernet with extremely compact form factor

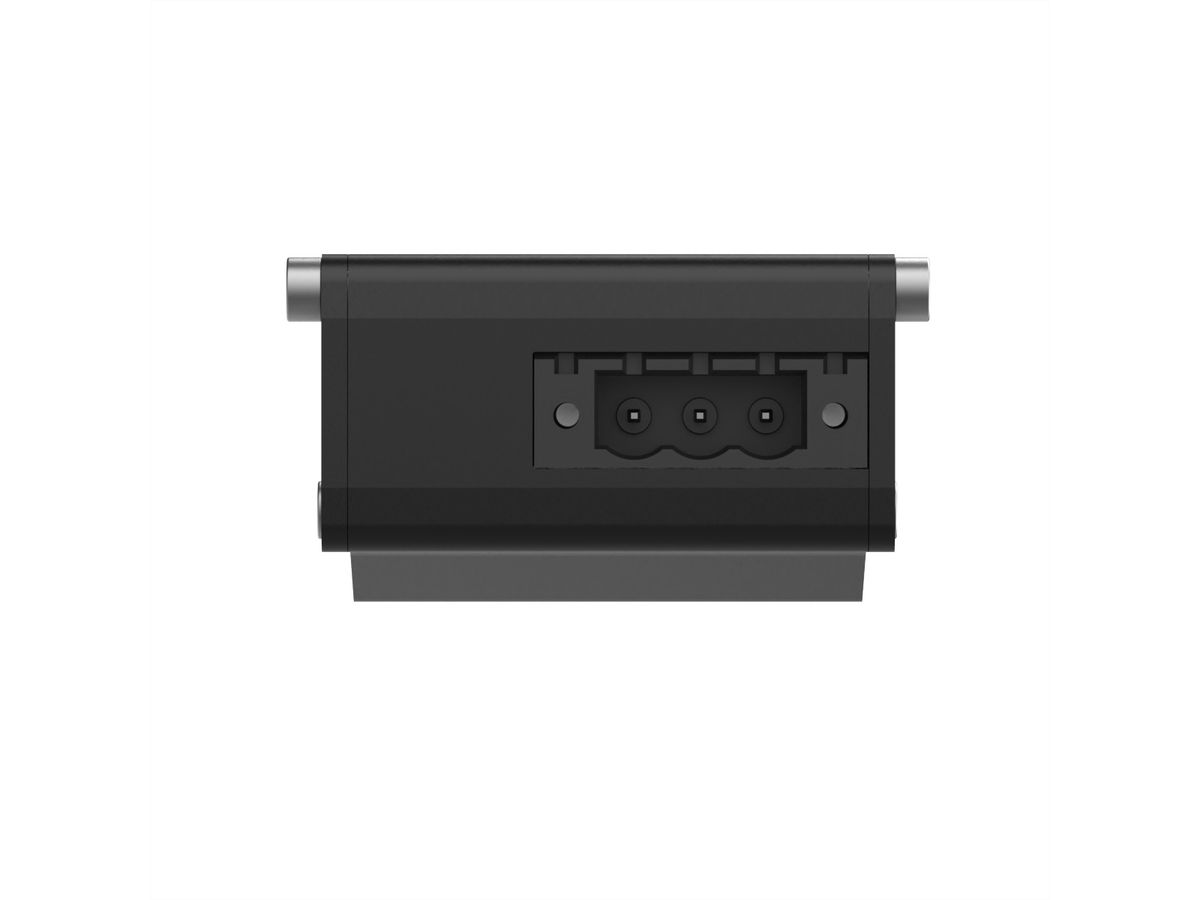

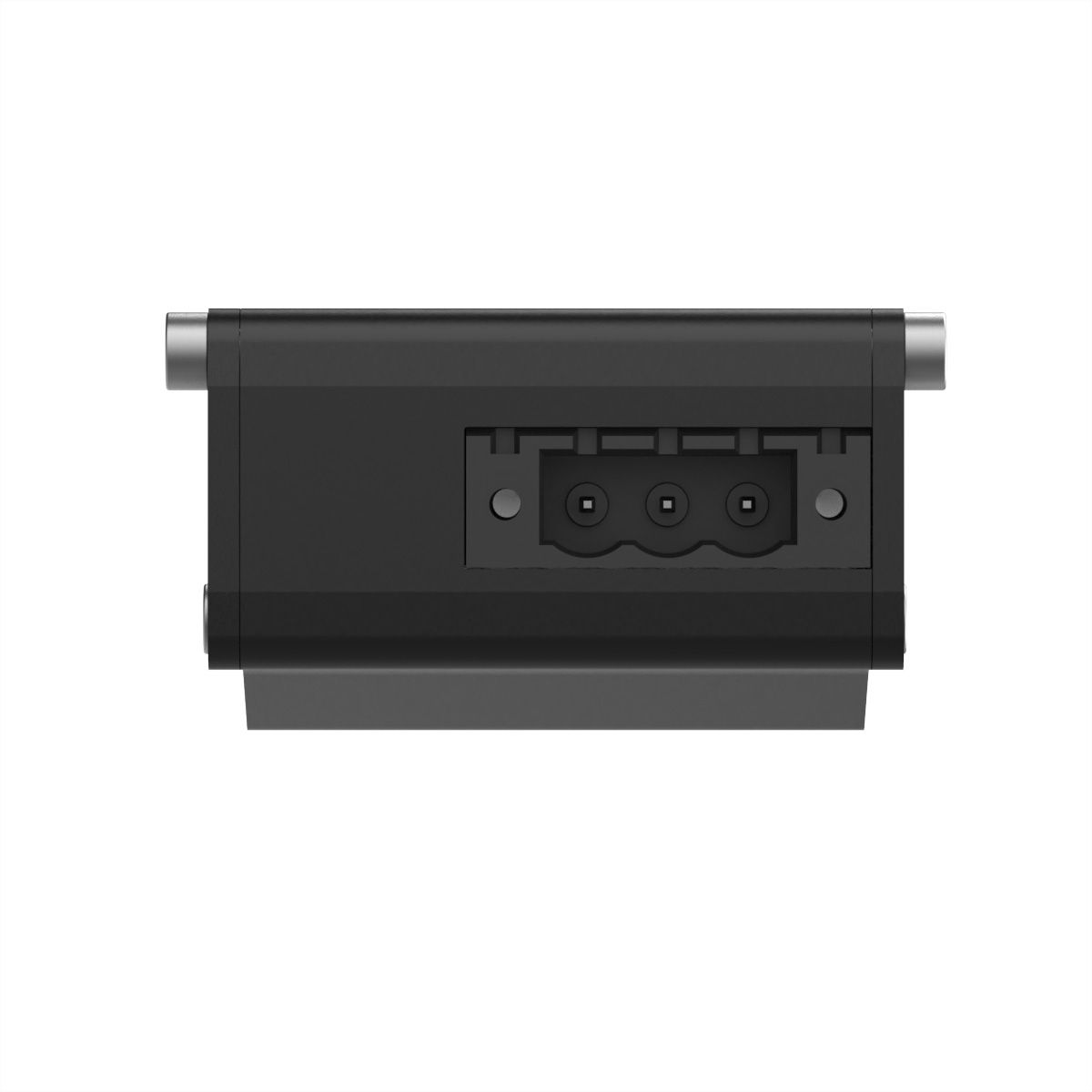

- Flexible Power Input: 7 – 57 VDC for compatibility with diverse industrial systems
Specifications
| Manufacturer | Teltonika |
|---|---|
| Product group | Industrial Networking |
| Product type | Network Switch |
| Colour | black |
| Scope of delivery | TSF000, 3-pin power connector, QSG (Quick Start Guide), Packaging box |
| Network standard | Fast Ethernet |
| LAN (Mbps) | 10/100 |
| Quantity of ports | 5 |
| Fast Ethernet Ports RJ-45 | 5 |
| Power over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Quantity of PoE ports | 4 |
| Max. PoE output power per port | 30 W |
| Max. PoE output power (total) | 120 W |
| Protection class (IP Code) | IP30 |
| Mains connection | System plug, proprietary |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 75 °C |
| Height | 28 mm |
| Width | 113 mm |
| Depth | 50 mm |
| Weight | 142 g |
| Height of packaging (single piece) | 40 mm |
| Width of packaging (single piece) | 60 mm |
| Depth of packaging (single piece) | 150 mm |
| Package weight (single piece) | 0.146 kg |
Teltonika develops IoT connectivity solutions for the world of tomorrow. With over 25 years of market expertise, Teltonika brings its vision and know-how to the development of innovative products that provide seamless connectivity, easy integration and remote management capabilities for industrial solutions worldwide.
