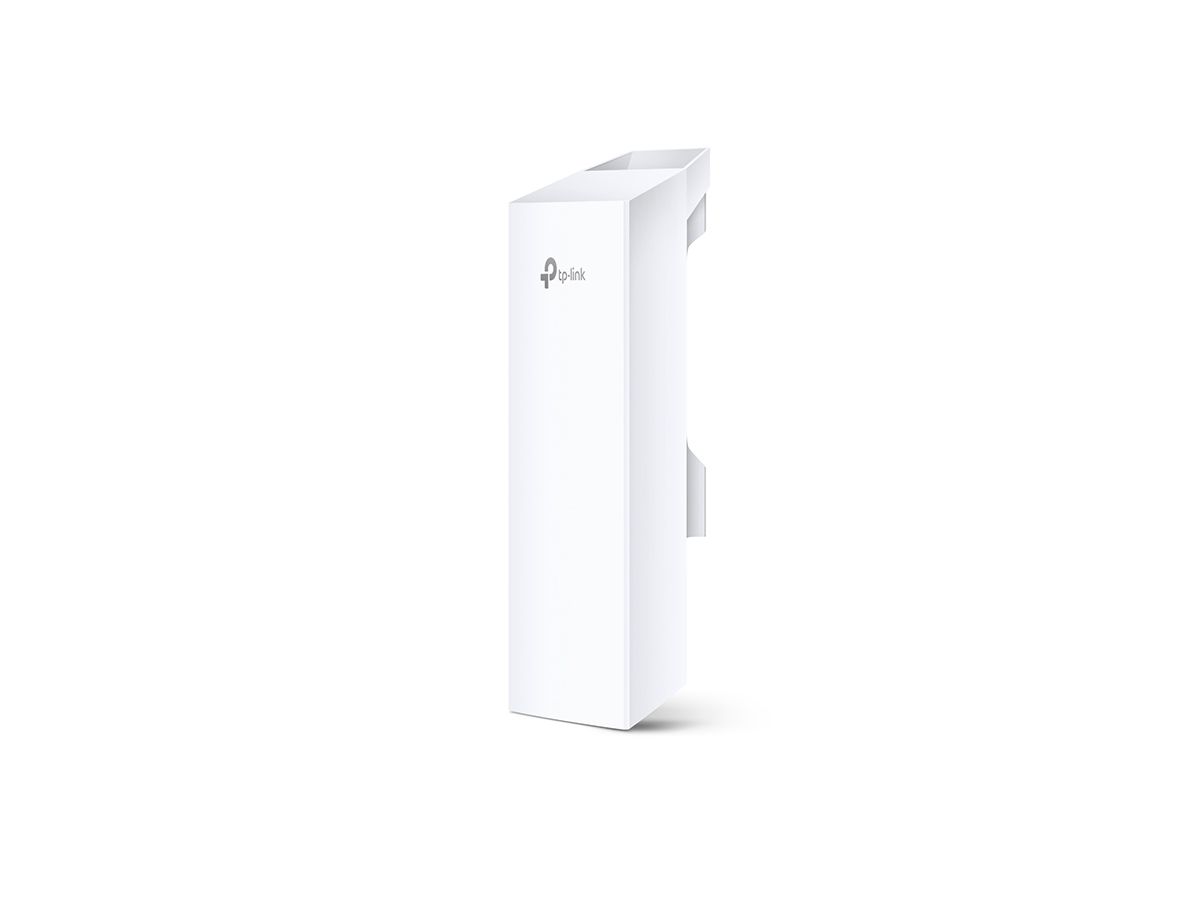

TP-Link 5GHz 300Mbps 13dBi Outdoor CPE
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 514299618 |
|---|---|
| Brand / Manufacturer | TP-LINK TECHNOLOGIES |
| Manuf. item no. | CPE510 |
| EAN | 6935364070922 |
| Item weight | 0.696 kg |
:strip_icc():strip_exif()/logos/tp-link-technologies.png "TP-LINK TECHNOLOGIES")
Description
TP-Link 5GHz 300Mbps 13dBi Outdoor CPE. 5 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK. Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: White
What this product does
TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.
Enterprise Hardware Design
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).
Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna and dedicated metal reflection ensures higher gain and lower noise interference.
High Power & High Sensitivity
In advanced, high power Tx (up to 27dBm/500mw) and high sensitivity Rx (up to -95dBm) radio front-end design breaks down the barriers of traditional Wi-Fi transmission range, making CPE510 an ideal product for outdoor wireless networking applications.
Professional Outdoor Design
CPE510 is designed to work in harsh environments, even in some of the world’s most hostile climate conditions.
Weatherproof Design
With its outdoor weatherproof enclosure and industrial-level hardware design, CPE510 can continue operating in various weather conditions, such as sunshine, rainfall, wind, snow or extremely low/high temperature environment(-30°C~70°C).
Double Protection against ESD Attacks
Besides its grounding terminal, CPE510 offers another way to eliminate ESD attacks via the PoE adapter and Ethernet cable with grounding wire. The CPE510’s additional security measures provide up to 15KV ESD and 6000V lightning protection for more reliable operation.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience, to mitigate these effects, the CPE510 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
CPE510 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
PharOS
User-friendly web-based management system allows professionals to apply more specific configurations
Specifications
| Manufacturer | TP-LINK TECHNOLOGIES |
|---|---|
| Product type | Wireless Access Points |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | Yes |
Weight & dimensions
| Width | 224.4 mm |
|---|---|
| Depth | 79 mm |
| Height | 60.3 mm |
Power
| Power over Ethernet (PoE) | Yes |
|---|---|
| DC voltage range | 16 - 27 V |
| Power consumption (typical) | 13 W |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90% |
|---|---|
| Operating temperature (T-T) | -30 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Protocols
| Universal Plug and Play (UPnP) | Yes |
|---|---|
| Management protocols | TDMA |
Packaging data
| Package width | 132 mm |
|---|---|
| Package depth | 270 mm |
| Package height | 106 mm |
| Package weight | 720 g |
Security
| Security algorithms | AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK |
|---|---|
| MAC address filtering | Yes |
| IP address filtering | Yes |
| Service Set Identifier (SSID) features | SSID broadcast, SSID broadcast on/off |
| IGMP snooping | Yes |
| Auto Wireless Distribution System (WDS) | Yes |
Certificates
| Certification | - FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark- RoHS |
|---|
Management features
| Web-based management | Yes |
|---|---|
| Syslog | Yes |
| Management platform | Pharos Control |
| Firmware upgradeable | Yes |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|---|
| PoE adapter included | Yes |
| Cables included | AC |
| Mounting kit | Yes |
Antenna
| Antenna type | Internal |
|---|---|
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antennas quantity | 1 |
| Antenna gain level (max) | 13 dBi |
Design
| Placement | Pole, Wall |
|---|---|
| Product colour | White |
| Housing material | Plastic |
| International Protection (IP) code | IP5X |
| Reset button | Yes |
| LED indicators | Yes |
Performance
| Built-in processor | Yes |
|---|---|
| Processor model | Qualcomm Atheros |
| Processor frequency | 560 MHz |
| Processor architecture | MIPS 74Kc |
| Flash memory | 8 MB |
| Internal memory | 64 MB |
| Compatible operating systems | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. |
Features
| 2.4 GHz | No |
|---|---|
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 300 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Throughput data rate | 300 Mbit/s |
| Frequency band | 5.15 - 5.85 GHz |
| Bandwidth | 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11n |
| Cabling technology | 10/100Base-T(X) |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
| Wireless isolation | Yes |
| Maximum outdoor range | 15000 m |
| Receiver sensitivity | 802.11a:54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm802.11n:MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm,MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm,MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm,MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm,MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm |
