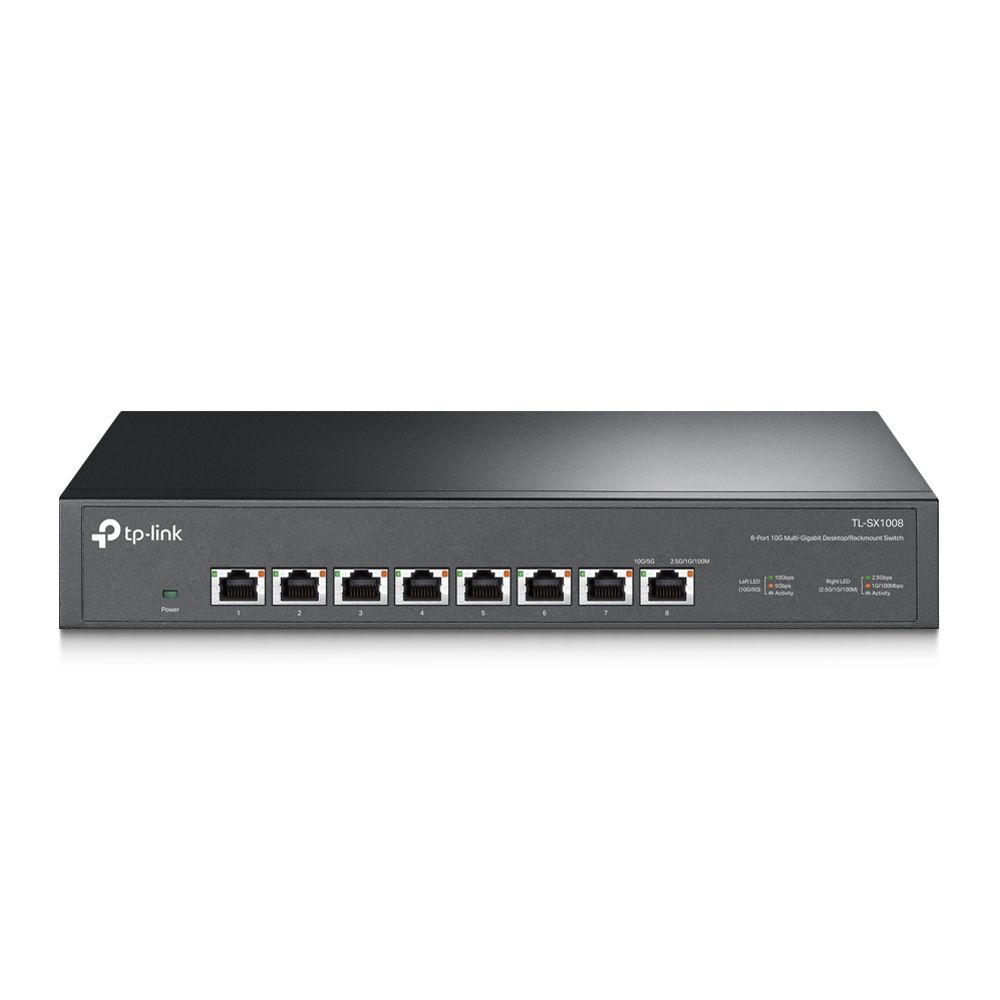

TP-Link 8-Port 10G Desktop/Rackmount Switch

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Item no.	524918397
Brand / Manufacturer	TP-LINK TECHNOLOGIES
Manuf. item no.	TL-SX1008

Description

TP-Link 8-Port 10G Desktop/Rackmount Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 32000 entries, Switching capacity: 160 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3p, IEEE 802.3x. Rack mounting, Form factor: 1U

Futuristic Networking withLightning-Fast 10G Connections8-Port 10G Desktop/Rackmount SwitchUnlock the Highest Performance of 10G/Multi-Gig Bandwidthand DevicesAs the flagship 10G product, TL-SX1008 is an 8-port 10G desktop/rackmount switch, providing up to 160 Gbps of switching capacity. Auto-negotiation 5-speed (100Mbps/1G/2.5G/5G/10G) connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including 10G NAS, 10G server, workstation, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, desktop, and more.Ready for Immediate Network Upgrading to 10G?Reliable, lightning-fast connections and the lowest possible latency make it ideal for gaming and small office and home office use.Lightning-Fast Connections for Business and Home OfficeWork at office or home with lightning-fast connections to workstations, desktop computers, and WiFi 6 access points.Built for Smooth LAN PartiesNever host a laggy LAN party again. Experience the unparalleled speed and lower latency, and prioritize gaming traffic with QoS. Let’s begin the unprecedented smooth game!Low-Noise Operation andRobust DesignIntelligent fan speed adjustment ensures minimal noise to be non-distracting when in use. Durable metal casing and a heat dissipating design guarantee a wide operating temperature (0–50 ℃) that make it ideal for virtually any working environment.Just Plug and Play for Internet AccessA plug-and-play design allows for easy deployment without the need for a technician. Auto MDI/MDIX eliminates the need for crossover cables.Flexible Deployment OptionsThe versatile mounting system gives you the flexibility to place the TL-SX1008 on a desktop or mount it in a rack.

Specifications

Manufacturer	TP-LINK TECHNOLOGIES
Product type	Network Switch

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
10G Ethernet (copper) ports quantity	8

Weight & dimensions

Width	294 mm
Depth	180 mm
Height	44 mm

Power

Power source	AC
Power supply included	Y
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	0.8 A
Power consumption (max)	28.4 W

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Network

Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3p, IEEE 802.3x
10G support	Y
Auto MDI/MDI-X	Y
Auto-negotiation	Y

Data transmission

MAC address table	32000 entries
Switching capacity	160 Gbit/s
Forwarding rate	119 Mpps
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	10000
Packet buffer memory	16 MB

Packaging data

Cables included	AC
Quick start guide	Y
Rack mount kit	Y

Management features

Switch type	Unmanaged

Design

Rack mounting	Y
Form factor	1U
Product colour	Black
LED indicators	Y
Number of fans	1 fan(s)
Certification	CE, FCC ,RoHS

Power over Ethernet (PoE)

Power over Ethernet (PoE)	N

Logistics data

Harmonized System (HS) code	85176990
