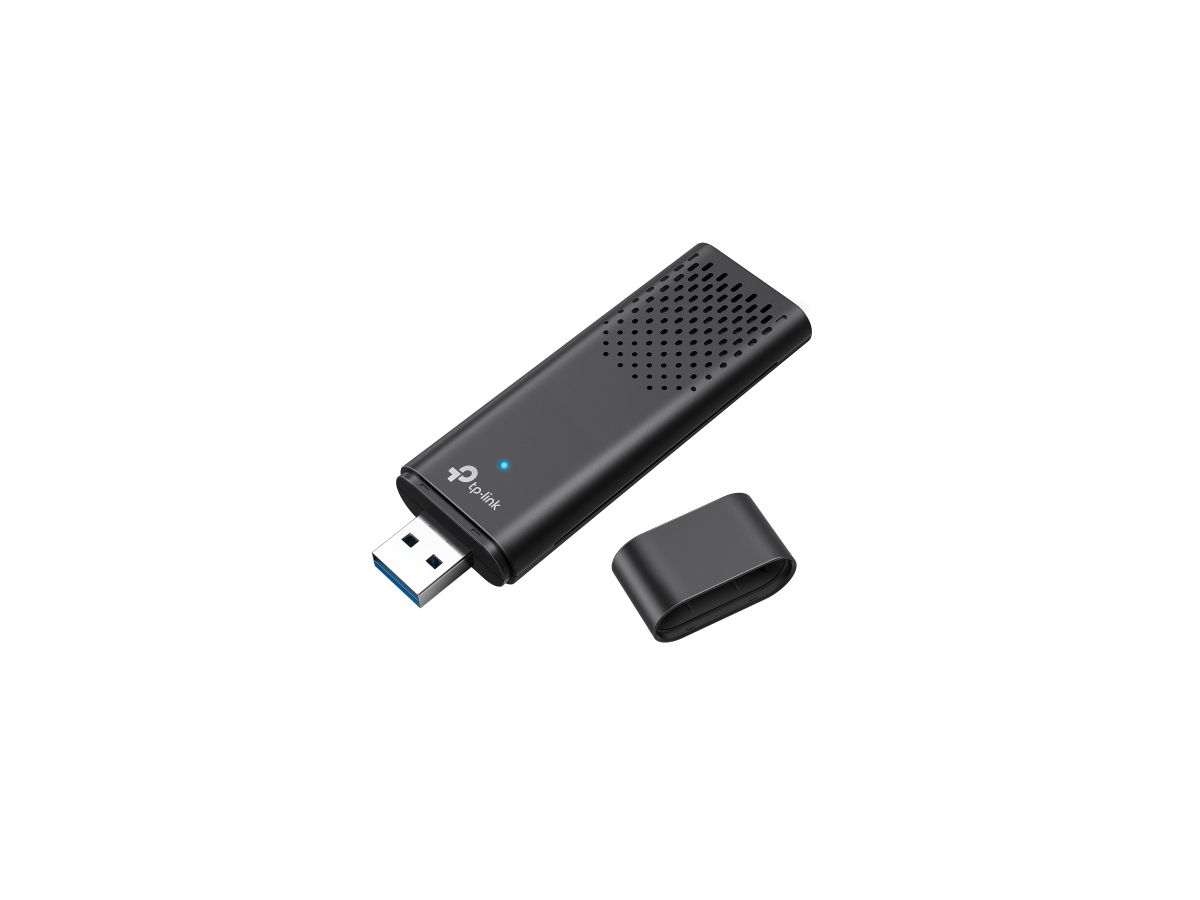

TP-Link Archer AX1800 Dual Band Wi-Fi 6 Wireless USB Adapter
:strip_icc():strip_exif()/logos/tp-link-technologies.png "TP-LINK TECHNOLOGIES")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
LoginDescription
TP-Link Archer AX1800 Dual Band Wi-Fi 6 Wireless USB Adapter. Connectivity technology: Wired, Host interface: USB, Interface: WLAN. Maximum data transfer rate: 1201 Mbit/s, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Product colour: Black
Wi-Fi 6 Upgrades Everything
The latest Wifi technology makes annoying lag and endless loading a thing of the past. Equip your PC with TX20U and enjoy the future of faster network loads and more connections.
Greater Coverage and Stability
The built-in high-performance antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.
Lower Latency, Higher Efficiency, and Less Congestion
MU-MIMO
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.
OFDMA
Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.
USB 3.0 for Superior Transfer Speeds
Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 — the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer TX20U ideal for HD streaming, online gaming and large file downloads.
Specifications
- Manufacturer
- TP-LINK TECHNOLOGIES
- Product type
- Network Cards
- Windows operating systems supported
- Windows 10, Windows 11
- Connectivity technology
- Wired
- Host interface
- USB
- Interface
- WLAN
- USB connector form factor
- Straight
- USB version
- 3.2 Gen 1 (3.1 Gen 1)
- Width
- 90.2 mm
- Depth
- 29.2 mm
- Height
- 12.9 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 5 - 90%
- Maximum data transfer rate
- 1201 Mbit/s
- Networking standards
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Wi-Fi
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Top Wi-Fi standard
- Wi-Fi 6 (802.11ax)
- Wi-Fi standards
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- WLAN data transfer rates supported
- 11,54,300,400,574,867 Mbit/s
- Security algorithms
- WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
- Quick installation guide
- Yes
- Internal
- No
- Component for
- PC
- Product colour
- Black
- Transmitting power (CE)
- 18.5 - 21.5 dBm
- Transmitting power (FCC)
- 19 dBm
- LED indicators
- Status
- Operating modes
- Infrastructure mode
- Sustainability certificates
- CE, Federal Communications Commission (FCC), RoHS
