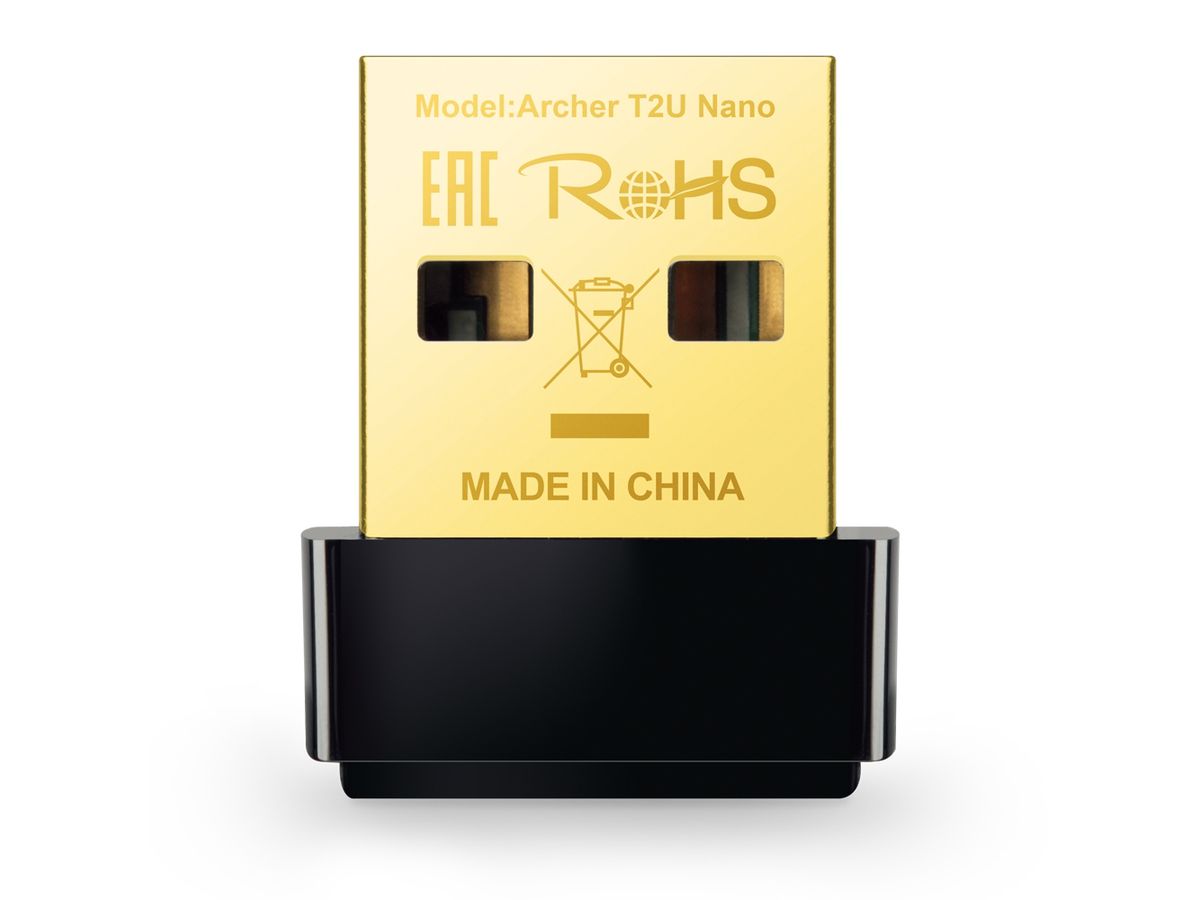

TP-LINK Archer T2U Nano WLAN 633 Mbit/s
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 521325616 |
|---|---|
| Brand / Manufacturer | TP-LINK TECHNOLOGIES |
| Manuf. item no. | ARCHER T2U NANO |
| EAN | 6935364099978 |
:strip_icc():strip_exif()/logos/tp-link-technologies.png "TP-LINK TECHNOLOGIES")
Description
TP-LINK Archer T2U Nano. Connectivity technology: Wired, Host interface: USB, Interface: WLAN. Maximum data transfer rate: 633 Mbit/s, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Antenna type: Internal. USB powered. Product colour: Black
Tiny Size. Powerful Connection AC600 Nano Wireless USB Adapter Archer T2U Nano High-Speed Dual Band Adapter for Better Connections The Archer T2U Nano receives WiFi signals on two separate bands. 256QAM technology increases the 2.4 GHz data rate from 150 Mbps to 200 Mbps for 33% faster performance. 433 Mbps on 5 GHz is perfect for HD video streaming and lag-free online gaming, while 200 Mbps on 2.4 GHz is perfect for web surfing with legacy devices. Miniature Design - Plug it in and forget it With its miniature size and sleek design, users can insert the nano adapter into any USB port and leave it in there, making it perfect for home or travel use WiFi Roaming Some public WiFi networks require you to go through the hassle of constantly selecting and connecting to different networks as you move around. Connect automatically to the nearest WiFi network with the Archer T2U Nano’s WiFi Roaming for an uninterrupted network no matter where you go.
Specifications
| Manufacturer | TP-LINK TECHNOLOGIES |
|---|---|
| Product type | Network Cards |
System requirements
| Windows operating systems supported | Windows 10,Windows 7,Windows 8,Windows 8.1,Windows XP |
|---|---|
| Mac operating systems supported | macOS |
| Linux operating systems supported | Y |
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Host interface | USB |
| Interface | WLAN |
| USB version | 2.0 |
Weight & dimensions
| Width | 15 mm |
|---|---|
| Depth | 7.1 mm |
| Height | 18.6 mm |
Power
| USB powered | Y |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Network
| Maximum data transfer rate | 633 Mbit/s |
|---|---|
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1x |
| Wi-Fi | Y |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Frequency range | 2.4 - 5 GHz |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| WLAN data transfer rates supported | 11,54,150,200,433 Mbit/s |
| Modulation | 16-QAM,64-QAM,256-QAM,CCK,COFDM,DBPSK,DQPSK,OFDM |
| Security algorithms | 64-bit WEP,128-bit WEP,WPA-PSK,WPA2-PSK |
Packaging content
| Quick installation guide | Y |
|---|
Design
| Internal | N |
|---|---|
| Product colour | Black |
| Antenna | Y |
| Antenna type | Internal |
| Receiver sensitivity | 5GHz：\n11a 6Mbps: -90dBm\n11a 54Mbps: -73dBm\n11n HT20 MCS0: -89dBm\n11n HT20 MCS7: -70dBm\n11n HT40 MCS0: -86dBm\n11n HT40 MCS7: -67dBm\n11ac VHT80 MCS0: -82dBm\n11ac VHT80 MCS9: -56dBm\n2.4GHz:\n11b 1Mbps: -96dBm\n11b 11Mbps: -88dBm\n11g 6Mbps: -89dBm\n11g 54Mbps: -74dBm\n11n HT20 MCS0: -89dBm\n11n HT20 MCS7: -72dBm\n11n HT40 MCS0: -86dBm\n11n HT40 MCS7: -66dBm |
| RoHS compliance | Y |
| Certification | CE, FCC |
