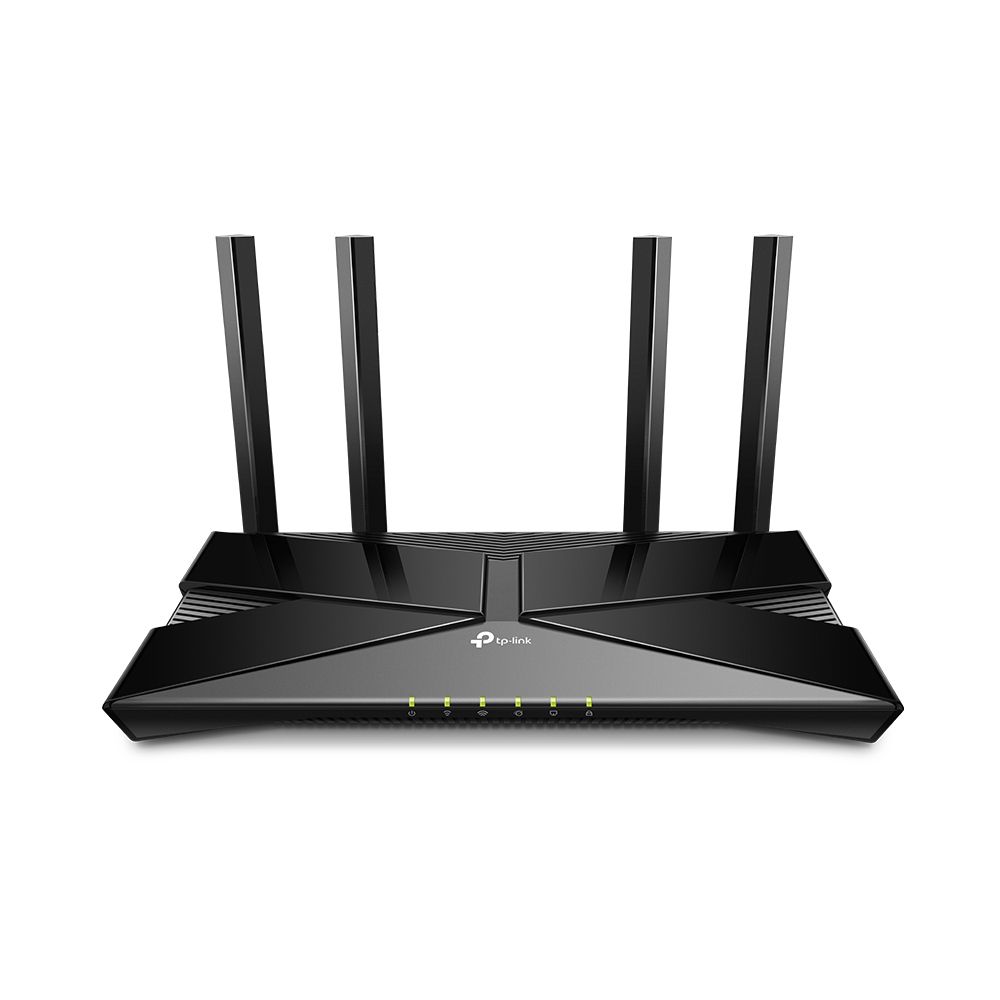

TP-Link AX1500 Wi-Fi 6 Router

Item no. 522409098 Brand / Manufacturer TP-LINK TECHNOLOGIES Manuf. item no. ARCHER AX10 EAN 6935364089221
TP-LINK TECHNOLOGIES

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/31/2026

Description

TP-Link AX1500 Wi-Fi 6 Router. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 1500 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, Firewall security: SPI. Supported network protocols: IPv4, IPv6

Triple-Core CPU Powered Wi-Fi 6 Stable Next-Gen PerformanceArcher AX10 AX1500 Wi-Fi 6 RouterAdvanced, Revolutionary Wi-Fi 6Wi-Fi 6 delivers a huge boost in speed and total capacity. Get on the latest Wi-Fi technology to wipe out all the annoying jittering and slow down, and enjoy the future network that loads faster and connects more.Speed Beyond GigabitThe latest 1024-QAM and higher symbol rate combine to boost speeds for newer devices to the Gigabit level. Connect to a 1 Gbps Wi-Fi network with your phone or laptop, and enjoy speeds comparable to plugging in an Ethernet cable.Connect Dozens of DevicesAdd more Wi-Fi devices without dragging down performance. OFDMA allows multiple devices to use one single band at the same time, enabling your Wi-Fi to bear more devices compared to the same speed level Wi-Fi 5 router.Less Lag, More FunWi-Fi 6 efficiently transmits data, enabling data packets for different applications to share one broadcast and cut the latency. Enjoy flawless video and audio chats, better gaming speeds, and instantaneous video loading on different devices—all at the same time.Triple-Core ProcessorInstant Response to Every ClickA 1.5 GHz triple-core CPU provides overwhelming power to tackle huge amounts of data transferring, minimizing the latency within your network. Enjoy instant response when you click the play button for online playback and get better quality for the online video chatting.Boosted Wi-Fi CoverageBeamforming technology and 4 high-gain antennas combine to generate strong, reliable Wi-Fi signal throughout your home, delivering smooth and stable connections for every client.Gigabit Broadband Internet AccessAll Gigabit Ethernet ports allow you to take full advantage of your broadband speed up to 1 Gbps. Plug your PCs, smart TVs, and game consoles into one of the four Gigabit Ethernet LAN ports for fast, reliable wired connections.Easy Setup and UseWhether you prefer the intuitive Tether App or the powerful web interface, you can set up your Archer AX10 in minutes. The Tether App allows you to manage network settings from any Android or iOS device.Ready for Today and Tomorrow's Smart HomeWith the growing number of devices in today's home, everyone deserves a smarter and easier way to bring all your products together. Utilize Amazon Alexa to control everything via voice commands to enjoy truly intelligent life.

Specifications

Manufacturer
TP-LINK TECHNOLOGIES
Product type
Wireless Routers
System requirements
Browser supported
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
Windows operating systems supported
Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows XP
Linux operating systems supported
Y
Mac operating systems supported
Y
Mac compatibility
Y
Ports & interfaces
Ethernet LAN (RJ-45) ports
4
USB port
N
Memory card slot(s)
N
DC-in jack
Y
Weight & dimensions
Width
260 mm
Depth
126 mm
Height
33 mm
Power
Power source type
AC
Output voltage
12 V
Output current
1 A
Protocols
DHCP client
Y
DHCP server
Y
Universal Plug and Play (UPnP)
Y
Supported network protocols
IPv4, IPv6
Network
Ethernet LAN
Y
Ethernet LAN interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Port forwarding
Y
Dynamic DNS (DDNS)
Y
Receiver sensitivity
5 GHz:11a 6Mbps:-97dBm, 11a 54Mbps:-79dBm11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-66dBm11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-63dBm11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS11:-60dBm11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-63dBm11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-60dBm11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-58dBm2.4 GHz:11g 6Mbps:-91dBm, 11a 54Mbps:-74dBm11n HT20_MCS0:-90dBm, 11n HT20_MCS7:-73dBm11n HT40_MCS0:-88dBm, 11n HT40_MCS7:-70dBm
Packaging data
Package width
330 mm
Package depth
240 mm
Package height
73 mm
Package weight
780 g
Number of products included
1 pc(s)
Security
Security algorithms
64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Firewall
Y
Firewall security
SPI
Guest access
Y
DMZ support
Y
Wireless LAN features
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)
1500 Mbit/s
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band)
300 Mbit/s
WLAN data transfer rate (second band)
1201 Mbit/s
Management features
Reset button
Y
WPS push button
Y
Packaging content
Cables included
LAN (RJ-45)
AC adapter included
Y
Quick installation guide
Y
Antenna
Antenna design
External
Antennas quantity
4
Transmit power
CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz); FCC:<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
Design
Product type
Tabletop router
Product colour
Black
On/off switch
Y
Mobile network
3G
N
4G
N
5G
N
Features
Built-in processor
Y
Processor frequency
1500 MHz
Processor cores
3
Internal memory
256 MB
Flash memory
16 MB
Certification
FCC, CE, RoHS
Logistics data
Harmonized System (HS) code
85176990
WAN connection
Ethernet WAN
Y
DSL WAN
N
SIM card slot
N
3G/4G USB modem compatibility
N
WAN connection type
RJ-45
