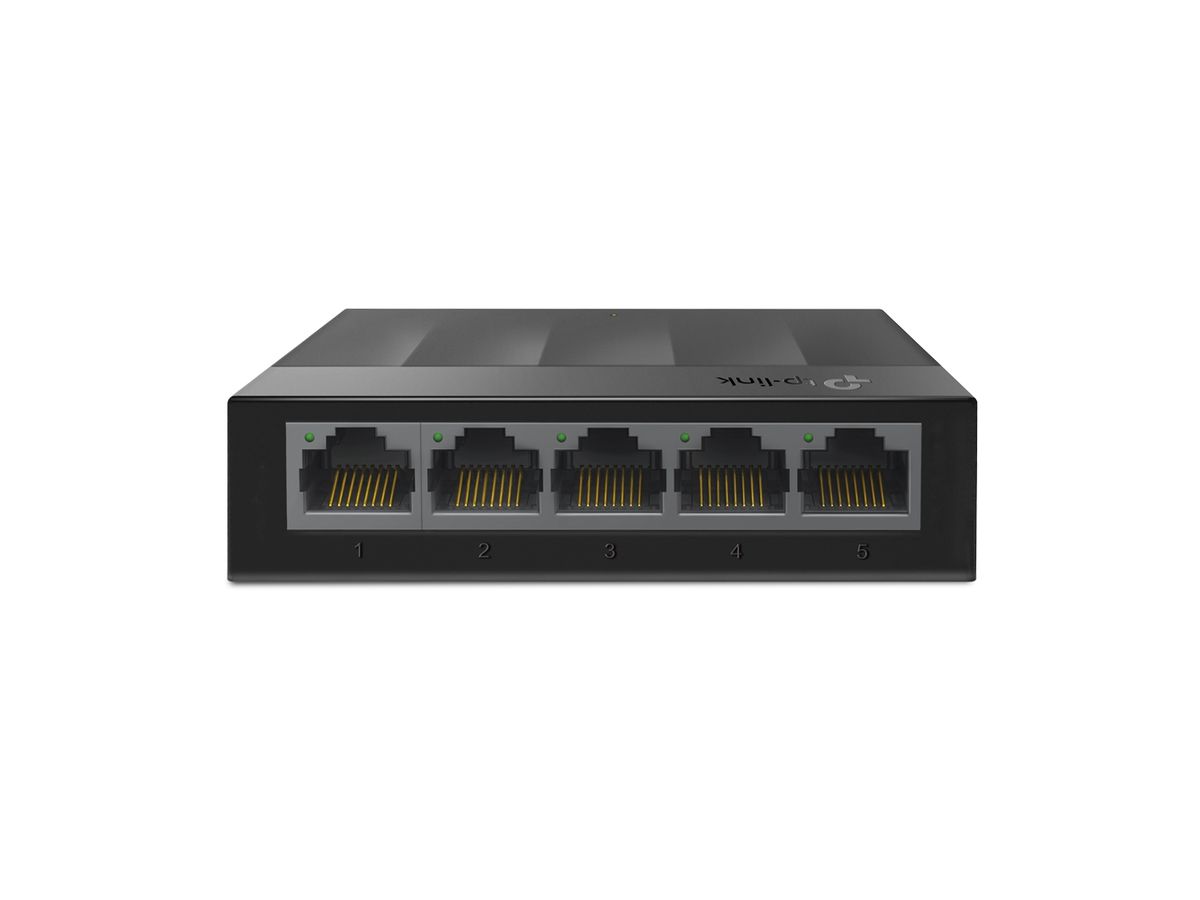

TP-LINK LS1005G network switch Gigabit Ethernet (10/100/1000) Black
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
LoginDescription
TP-LINK LS1005G. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3i,IEEE 802.3u,IEEE 802.3x. DC input voltage: 5 V. Wall mountable
Let LiteWave Bring You Lighter Network Life The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use. Go Green with Your Ethernet The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win! Gigabit Ports For Faster Speeds Increase the speed of your network with the LS1005G 5-port Gigabit desktop switch. Non-blocking, 5× 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference. Use Where You Need, However You Need The LS1005G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
Specifications
- Manufacturer
- TP-LINK TECHNOLOGIES
- Product type
- Network Switch
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Width
- 90 mm
- Depth
- 72 mm
- Height
- 23 mm
- Power supply included
- Y
- DC input voltage
- 5 V
- Input current
- 0.6 A
- Power consumption (max)
- 3.7 W
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 5 - 90%
- Heat dissipation
- 12.617 BTU/h
- Networking standards
- IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
- 10G support
- N
- Flow control support
- Y
- Auto MDI/MDI-X
- Y
- Auto-negotiation
- Y
- MAC address table
- 2000 entries
- Switching capacity
- 10 Gbit/s
- Forwarding rate
- 7.4 Mpps
- Store-and-forward
- Y
- Jumbo frames support
- Y
- Jumbo frames
- 16000
- Packet buffer memory
- 1.5 MB
- Quick start guide
- Y
- Package type
- Box
- Rack mounting
- N
- Product colour
- Black
- Housing material
- Plastic
- LED indicators
- Y
- International Protection (IP) code
- IP20, IP40
- Wall mountable
- Y
- Certification
- CE, FCC, RoHS
- Power over Ethernet (PoE)
- N
