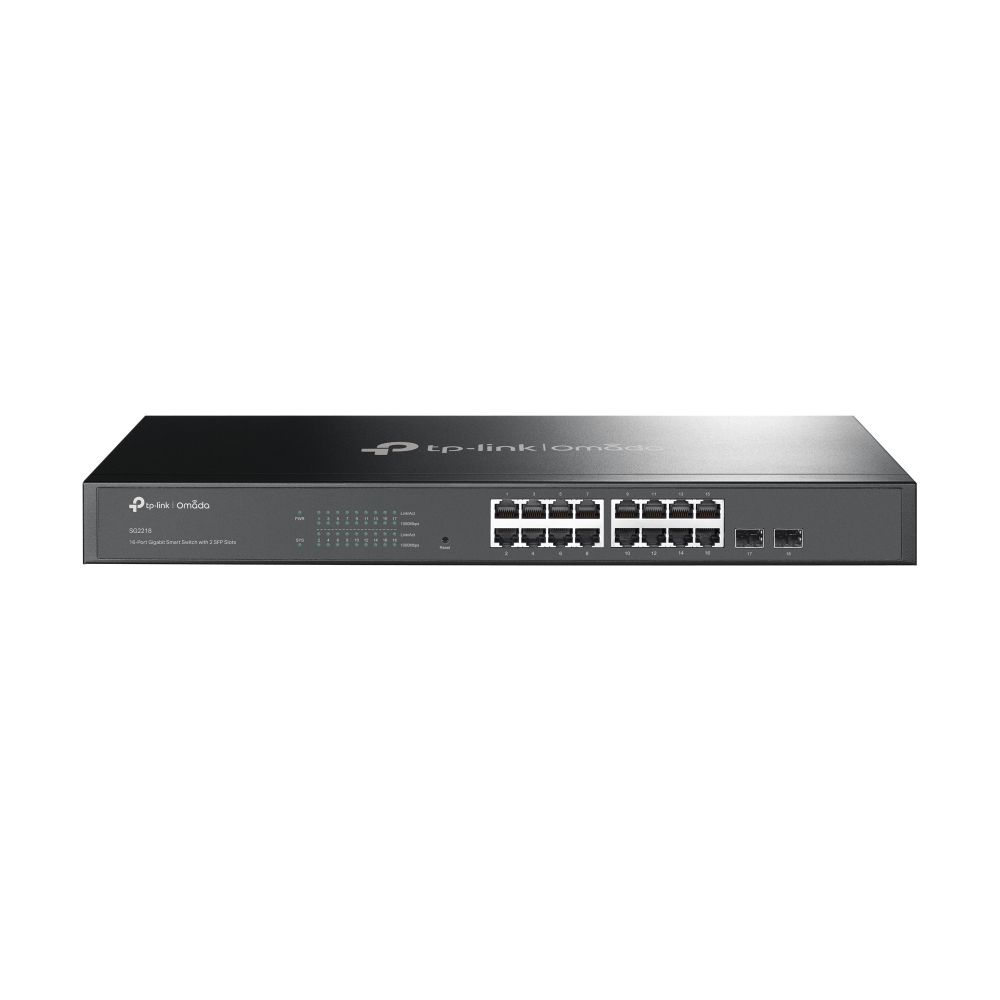

TP-Link Omada 16-Port Gigabit Smart Switch with 2 SFP Slots

Item no. 529949455 Brand / Manufacturer TP-LINK TECHNOLOGIES Manuf. item no. SG2218

TP-Link Omada 16-Port Gigabit Smart Switch with 2 SFP Slots

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Download PDF

Description

TP-Link Omada 16-Port Gigabit Smart Switch with 2 SFP Slots. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z. Rack mounting, Form factor: 1U

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Specifications

Manufacturer: TP-LINK TECHNOLOGIES
Product type: Network Switch

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 16
SFP module slots quantity: 2

Weight & dimensions

Width: 440 mm
Depth: 180 mm
Height: 44 mm

Power

Power source: AC
Power supply included: Yes
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 12.3 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 41.97 BTU/h

Protocols

Management protocols: SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP): Yes

Network

Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
10G support: No
Port mirroring: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
VLAN support: Yes
Virtual LAN features: Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs: 4000

Data transmission

MAC address table: 8000 entries
Switching capacity: 36 Gbit/s
Forwarding rate: 26.8 Mpps
Store-and-forward: Yes
Static route: Yes
Number of static routes: 32
Number of IP interfaces: 16
Jumbo frames support: Yes
Jumbo frames: 9000
Packet buffer memory: 4.1 MB

Security

DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL): Yes
IGMP snooping: Yes
SSH/SSL support: Yes
Loop protection: Yes
BPDU filtering/protection: Yes

Certificates

Certification: CE, FCC, RoHS

Management features

Switch type: Managed
Switch layer: L2/L2+
Quality of Service (QoS) support: Yes
Web-based management: Yes
Cloud-managed: Yes
ARP inspection: Yes
System event log: Yes
MIB support: Yes

Packaging content

Cables included: AC, LAN (RJ-45)
Quick start guide: Yes

Design

Rack mounting: Yes
Form factor: 1U
Product colour: Black
LED indicators: Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Performance

Fanless: Yes

Multicast features

Multicast support: Yes
Multicast Listener Discovery (MLD) snooping: Y
