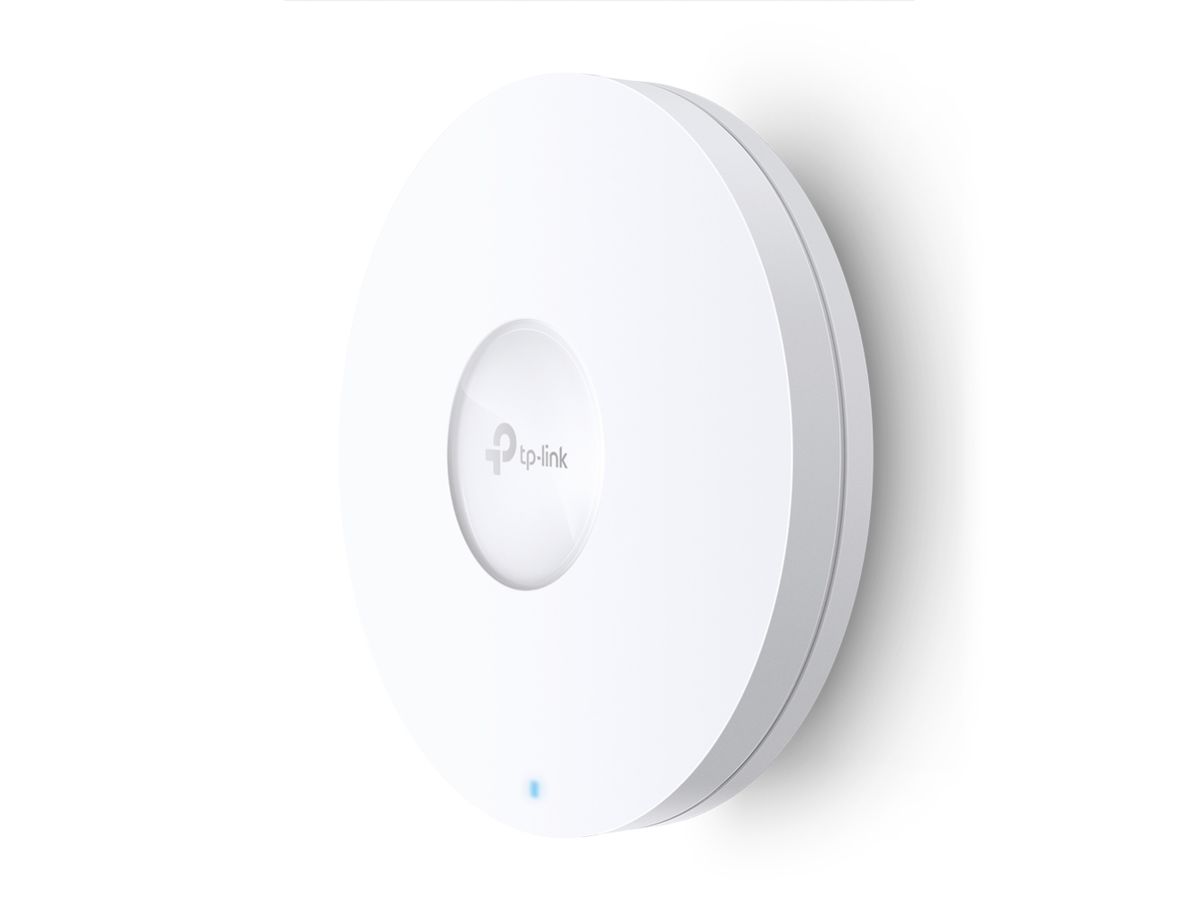

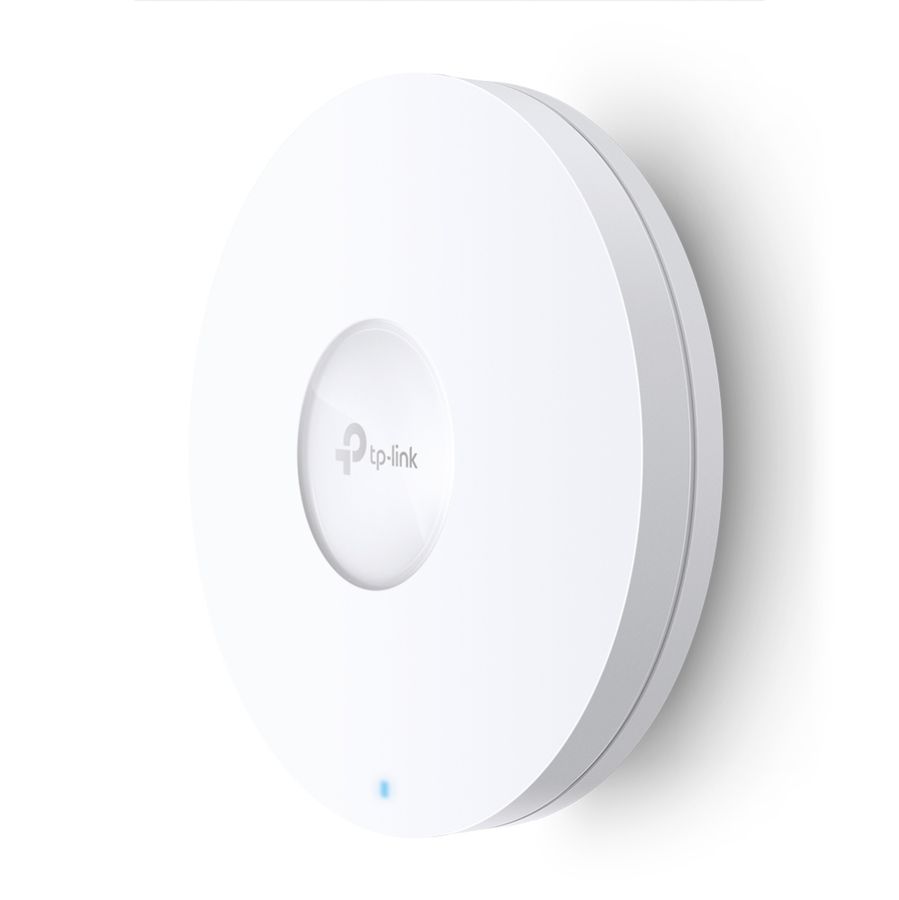

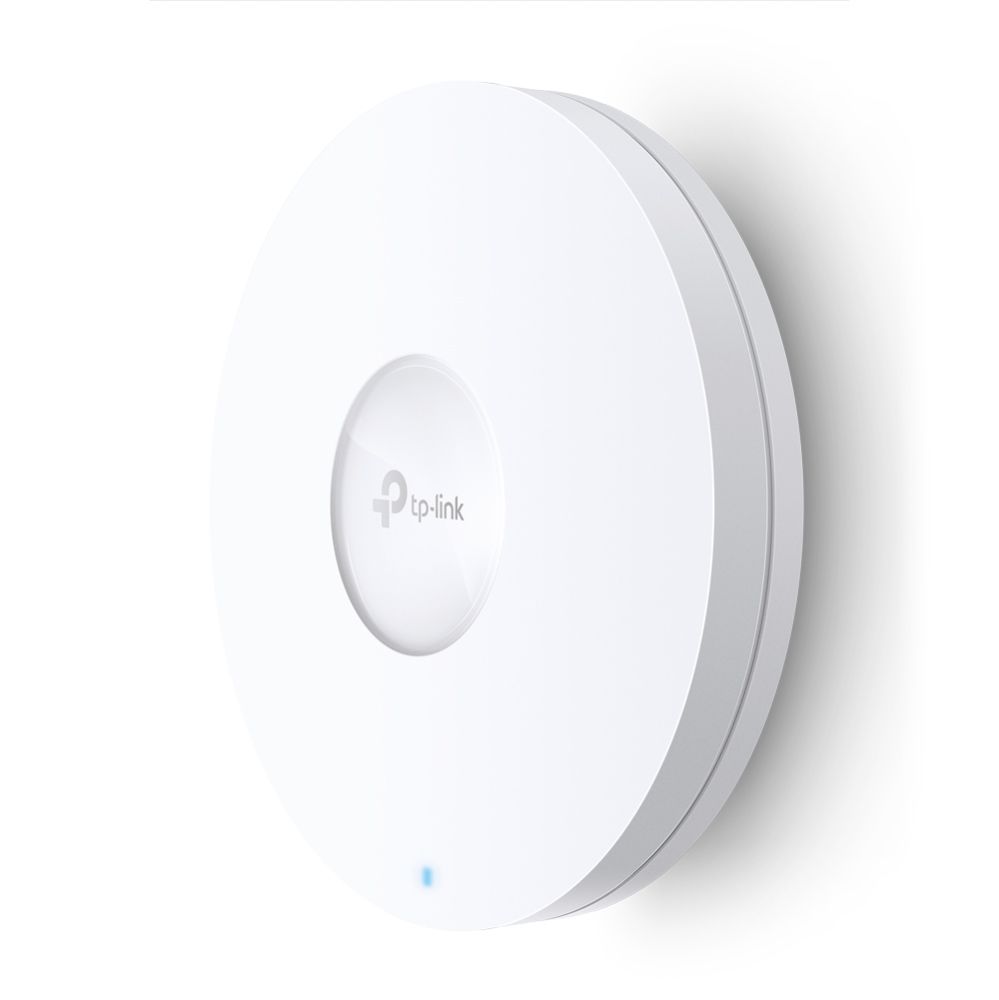

TP-Link Omada AX1800 Ceiling Mount WiFi 6 Access Point

Item no. 524374102 Brand / Manufacturer TP-LINK TECHNOLOGIES Manuf. item no. EAP620 HD
TP-LINK TECHNOLOGIES

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/25/2026

Description

TP-Link Omada AX1800 Ceiling Mount WiFi 6 Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1201 Mbit/s. Security algorithms: SNMP, SNMPv2, SNMPv3, SSH, WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-PSK. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White

High-Density Connectivity with 4× Increased Capacity
OFDMA* and Uplink & Downlink MU-MIMO increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.

Advanced Wi-Fi Speed with 4 Spatial Streams
The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1775 Mbps (1201 Mbps on a 5 GHz band and 574 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.

Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Seamless Roaming
802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.

Secure Guest Network with Facebook Wi-Fi and SMS Login
Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.

Specifications

Manufacturer
TP-LINK TECHNOLOGIES
Product type
Wireless Access Points
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
Weight & dimensions
Width
160 mm
Depth
160 mm
Height
33 mm
Power
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
Active PoE, Passive PoE
DC voltage range
12 V
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Packaging data
Package type
Box
Security
Security algorithms
SNMP, SNMPv2, SNMPv3, SSH, WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-PSK
MAC address filtering
Yes
Remote Authentication Dial-In User Service (RADIUS)
Yes
Access Control List (ACL)
Yes
Certificates
Certification
CE, FCC, RoHS
Management features
Web-based management
Yes
Syslog
Yes
Firmware upgradeable
Yes
Packaging content
Quantity per pack
1 pc(s)
Mounting kit
Yes
Quick start guide
Yes
Antenna
Antenna type
Internal
Antenna direction type
Omni-directional
Design
Placement
Ceiling, Wall
Product colour
White
Reset button
Yes
LED indicators
Yes
Features
2.4 GHz
Yes
5 GHz
Yes
6 GHz
No
Maximum data transfer rate
1201 Mbit/s
Maximum data transfer rate (2.4 GHz)
574 Mbit/s
Maximum data transfer rate (5 GHz)
1201 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Frequency band
2.4 - 5 GHz
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
Cabling technology
10/100/1000Base-T(X)
Number of users
1020 user(s)
Automatic channel selection
Yes
Automatic channel scanning
Yes
MIMO
Yes
MIMO type
Multi User MIMO
Spread spectrum method
OFDMA
Fit AP mode features
Mesh networking
VLAN support
Yes
Rate limiting
Yes
Flow control support
Yes
Band steering
Yes
Airtime Fairness (ATF)
Yes
Quality of Service (QoS) support
Yes
BeamForming
Yes
Transmitting power (CE)
20/23 dBm
Transmitting power (FCC)
23 dBm
