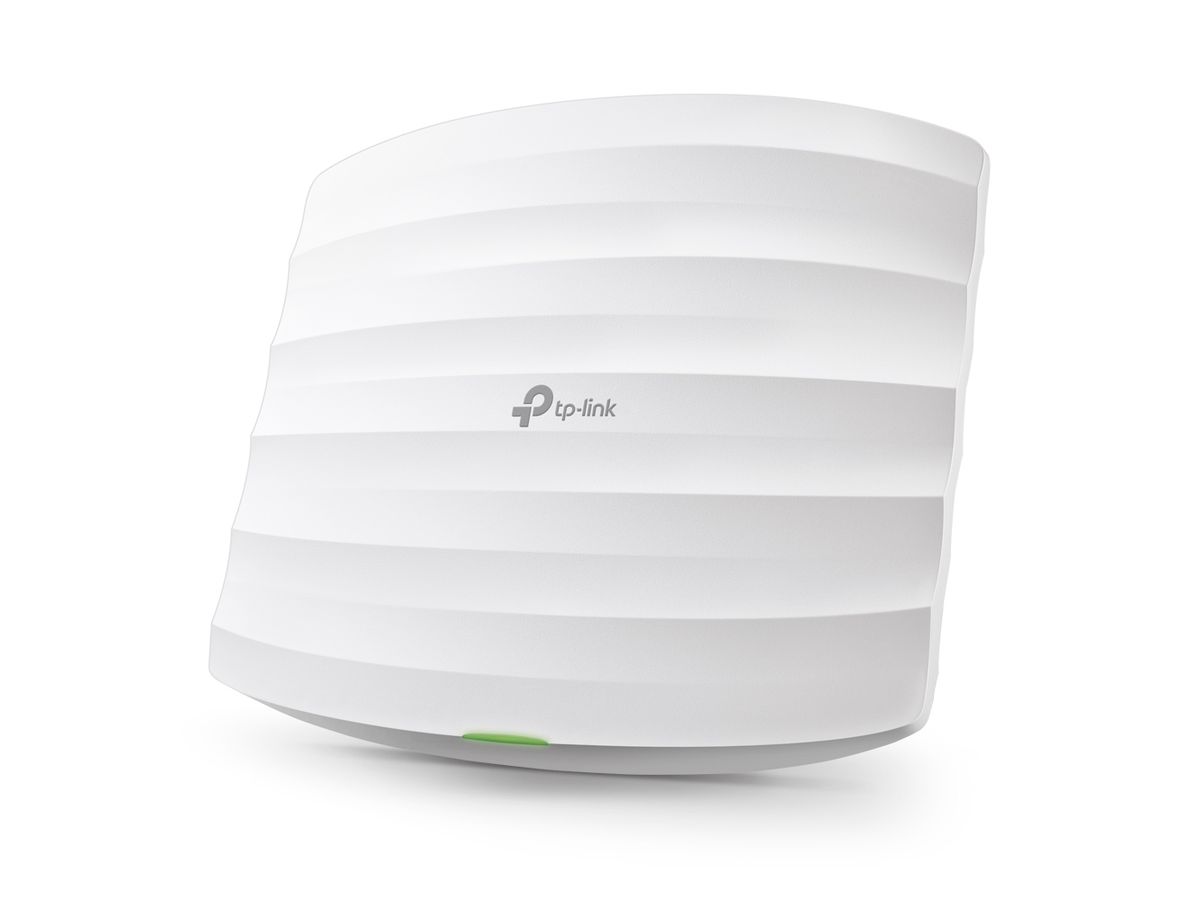

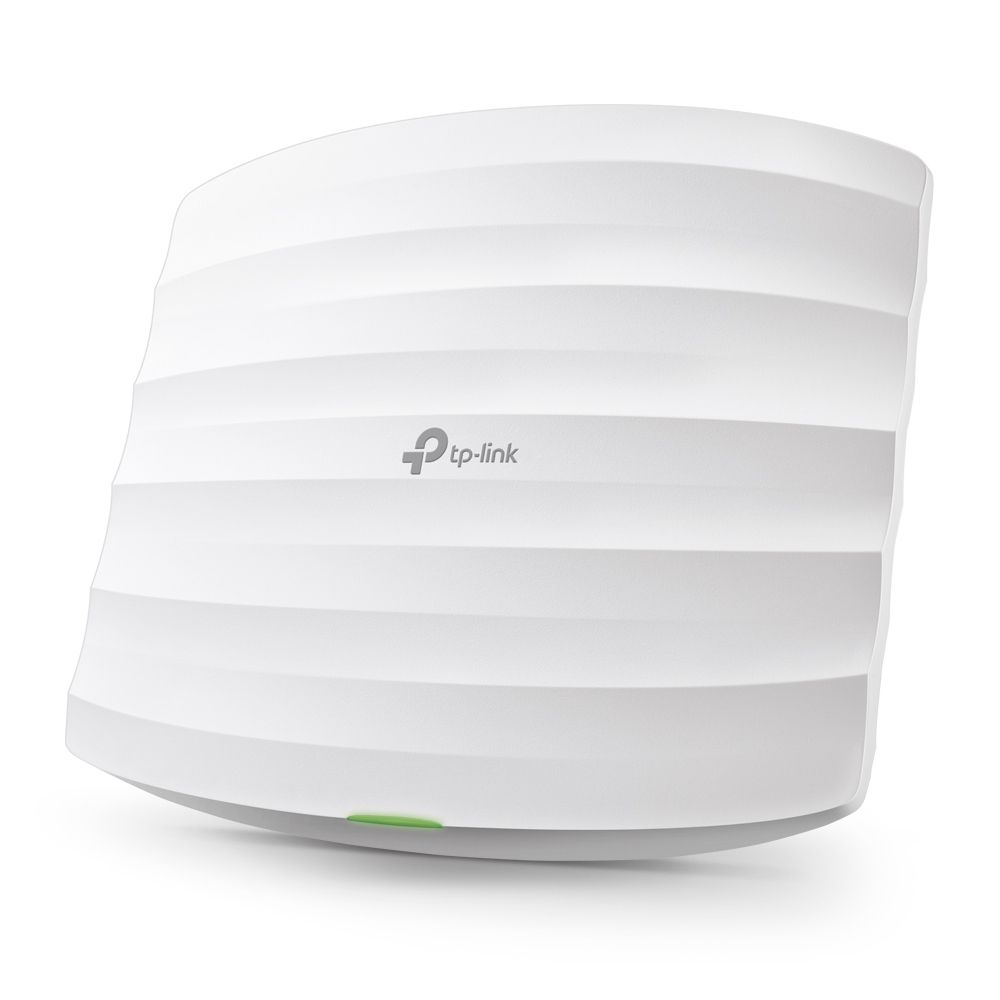

TP-Link Omada EAP225 wireless access point 1350 Mbit/s White Power over Ethernet (PoE)

Item no. 517590814 Brand / Manufacturer TP-LINK TECHNOLOGIES Manuf. item no. EAP225 EAN 6935364096915 Item weight 0.995 kg
TP-LINK TECHNOLOGIES

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/25/2026

Description

TP-Link Omada EAP225. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1350 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White

Superior Wi-Fi Speeds with MU-MIMO Technology
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.

Cloud Centralized Management
- Anytime, Anywhere

Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Facebook check-in and SMS authentication expands your social influence in secured ways
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Multiple PoE Options for Easy Installation
EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE injector, making deployment effortless and flexible.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Meet Our New Hero Product!
The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.

Specifications

Manufacturer
TP-LINK TECHNOLOGIES
Product type
Wireless Access Points
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
Weight & dimensions
Width
205.5 mm
Depth
181.5 mm
Height
37.1 mm
Power
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
Passive PoE
Output voltage
12 V
Output current
1.5 A
Power consumption (typical)
10.15 W
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Packaging data
Package width
228 mm
Package depth
340 mm
Package height
65 mm
Package weight
910 g
Package type
Box
Security
Security algorithms
64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering
Yes
Service Set Identifier (SSID) features
Multiple SSIDs
Number of SSID supported
16
Access Control List (ACL)
Yes
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Management features
Web-based management
Yes
Syslog
Yes
Packaging content
Quantity per pack
1 pc(s)
AC adapter included
Yes
PoE adapter included
Yes
Mounting kit
Yes
Quick start guide
Yes
Antenna
Antenna type
Internal
Antenna direction type
Omni-directional
Antenna features
Integrated antenna
Antennas quantity
5
Antenna gain level (max)
5 dBi
Design
Placement
Ceiling, Wall
Product colour
White
Cable lock slot
Yes
Cable lock slot type
Kensington
On/off switch
Yes
Reset button
Yes
LED indicators
Power, WLAN
Mobile network
SIM card slot
No
Performance
Compatible operating systems
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Features
2.4 GHz
Yes
5 GHz
Yes
6 GHz
No
Maximum data transfer rate
1350 Mbit/s
Maximum data transfer rate (2.4 GHz)
450 Mbit/s
Maximum data transfer rate (5 GHz)
867 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
Cabling technology
10/100/1000Base-T(X)
MIMO
Yes
MIMO type
Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)
Yes
VLAN support
Yes
Virtual LAN features
VLAN mapping
Rate limiting
Yes
Band steering
Yes
Airtime Fairness (ATF)
Yes
Quality of Service (QoS) support
Yes
BeamForming
Yes
Transmitting power (CE)
23 dBm
Transmitting power (FCC)
24 dBm
Logistics data
Harmonized System (HS) code
85176990
Sustainability
Sustainability compliance
Yes

Product security

Information in accordance with the EU Product Safety Regulation, (GPSR):


TP-LINK Deutschland GmbH
Am Trippelsberg 100, 40589 Düsseldorf, Germany
support.de@tp-link.com
