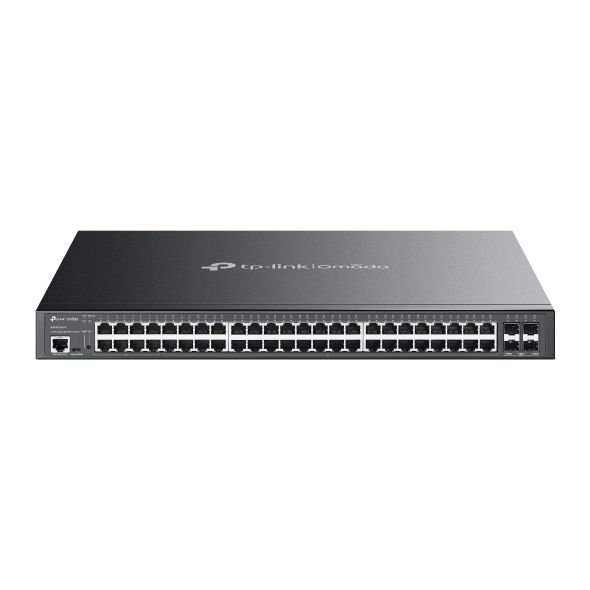

TP-Link Omada SG3452XMPP network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Item no. 529629941 Brand / Manufacturer TP-LINK TECHNOLOGIES Manuf. item no. SG3452XMPP EAN 8885020620870

TP-Link Omada SG3452XMPP network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Download PDF

Description

TP-Link Omada SG3452XMPP. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45/Micro-USB. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Specifications

Manufacturer: TP-LINK TECHNOLOGIES
Product type: Network Switch

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 4
Console port: RJ-45/Micro-USB
Power connector: AC-in jack

Weight & dimensions

Width: 440 mm
Depth: 330 mm
Height: 44 mm

Power

Power source: AC
Power supply included: Yes
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 635.7 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 2169.2 BTU/h

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
10G support: Yes
Port mirroring: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
Head-of-line (HOL) blocking: Yes
VLAN support: Yes

Data transmission

MAC address table: 16000 entries
Switching capacity: 176 Gbit/s
Forwarding rate: 130.9 Mpps
Store-and-forward: Yes
Jumbo frames support: Yes
Jumbo frames: 9000
Packet buffer memory: 12 MB

Packaging data

Cables included: AC
Quick start guide: Yes

Security

DHCP features: DHCP client, DHCP relay, DHCP server
Access Control List (ACL): Yes
IGMP snooping: Yes
MAC address filtering: Yes
Static port security: Yes
SSH/SSL support: Yes
BPDU filtering/protection: Yes
IP-MAC-Port binding: Yes
Authentication: Auto VLAN, Guest VLAN

Management features

Switch type: Managed
Switch layer: L2+
Quality of Service (QoS) support: Yes
Web-based management: Yes
Cloud-managed: Yes
ARP inspection: Yes
Configuring Location Settings (CLI): Yes
System event log: Yes

Design

Rack mounting: Yes
Form factor: 1U
Product colour: Black
Reset button: Yes
LED indicators: Yes
Number of fans: 3 fan(s)
Certification: CE, FCC, RoHS

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 40
Power over Ethernet 4PPoE (PoE++) ports quantity: 8
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 750 W

Multicast features

Multicast support: Yes

Downloads

PDF data sheet - Generated PDF - English (119.1 KB)
