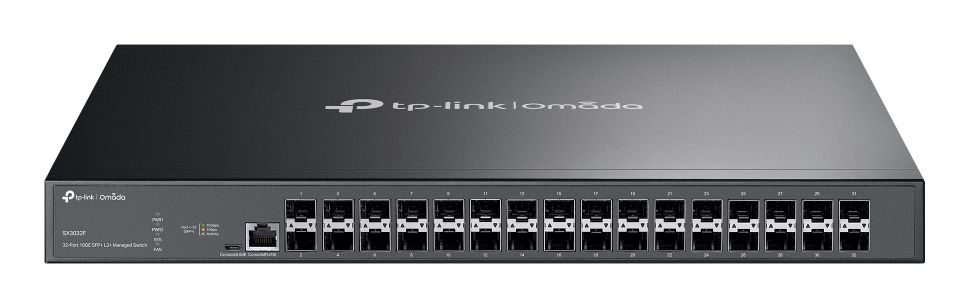

TP-Link Omada SX3032F network switch Managed L2+ Black
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 529229211 |
|---|---|
| Marke / Hersteller | TP-LINK TECHNOLOGIES |
| Manuf. item no. | SX3032F |
| EAN | 4895252504477 |
:strip_icc():strip_exif()/logos/tp-link-technologies.png "TP-LINK TECHNOLOGIES")
Description
TP-Link Omada SX3032F. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports quantity: 1, Installed SFP+ modules quantity: 32, Console port: RJ-45/Micro-USB. MAC address table: 32000 entries, Switching capacity: 640 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3x. Rack mounting
Omada 32-Port 10GE SFP+ L2+ Managed Switch
Easily Build a Whole 10G Multi-gigabit Network
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Specifications
| Manufacturer | TP-LINK TECHNOLOGIES |
|---|---|
| Product type | Network Switch |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 1 |
|---|---|
| Installed SFP+ modules quantity | 32 |
| Console port | RJ-45/Micro-USB |
Weight & dimensions
| Width | 440 mm |
|---|---|
| Depth | 330 mm |
| Height | 44 mm |
Power
| Power source | AC |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 49.4 W |
Operational conditions
| Operating temperature (T-T) | -5 - 45 °C |
|---|---|
| Storage temperature (T-T) | 40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Protocols
| GARP VLAN Registration Protocol (GVRP) | Yes |
|---|---|
| IPv4 & IPv6 features | Dual stack IPv4/IPv6, ICMPv6, IPv6 TFTP |
| IP Source Guard (IPSG) | Yes |
Network
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3x |
|---|---|
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| VLAN support | Yes |
| Virtual LAN features | Protocol-based VLAN, SSID-based VLAN assignment, Tagged VLAN, VLAN mapping, Voice VLAN |
| Number of VLANs | 30 |
Data transmission
| MAC address table | 32000 entries |
|---|---|
| Switching capacity | 640 Gbit/s |
| Forwarding rate | 240 Mpps |
| Number of queues | 8 |
| Static route | Yes |
| Number of static routes | 128 |
| Number of IP interfaces | 128 |
| Jumbo frames support | Yes |
| Jumbo frames | 9 |
| Packet buffer memory | 24 MB |
Security
| DHCP features | DHCP relay, DHCP server, DHCPv6 snooping |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| IP-MAC-Port binding | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Password protection | Yes |
| Authentication type | AAA, TACACS+ |
| Queue scheduling algorithms | Priority queuing (PQ), SP, Weighted Round Robin (WRR) |
Certificates
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
|---|
Management features
| Switch type | Managed |
|---|---|
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| MIB support | • MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB |
Packaging content
| Cables included | Power |
|---|---|
| Quick start guide | Yes |
Design
| Rack mounting | Yes |
|---|---|
| Product colour | Black |
| Redundant fans support | Yes |
| Number of fans | 2 fan(s) |
Multicast features
| Multicast support | Yes |
|---|---|
| Number of multicast groups filtered | 4000 |
| Multicast Listener Discovery (MLD) snooping | Yes |
