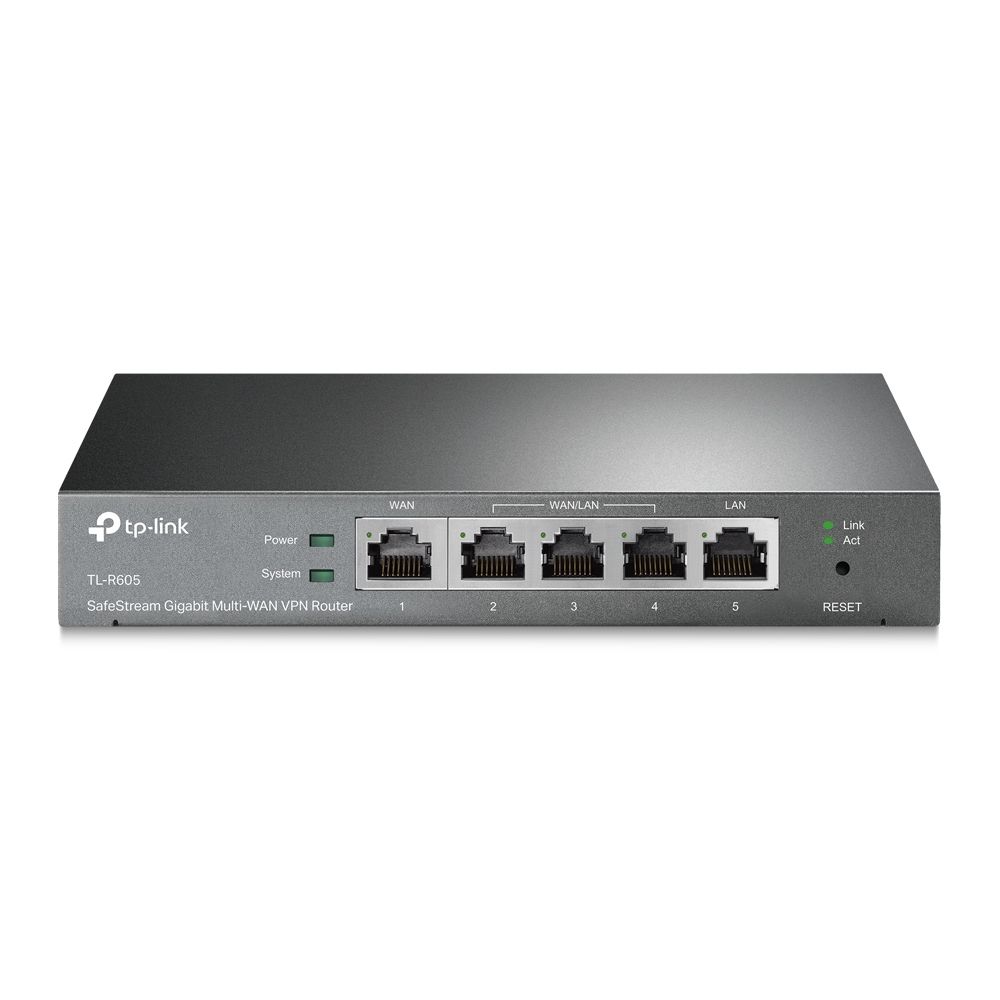

TP-LINK SafeStream Gigabit Multi-WAN VPN Router
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
LoginDescription
TP-LINK SafeStream Gigabit Multi-WAN VPN Router. Networking standards: IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x, Ethernet interface type: 10 Gigabit Ethernet, 100 Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). Security algorithms: FTPES,SIPS, NAT functionality: One-to-One NAT5 Multi-Net NAT Virtual Server Port Triggering5 NAT-DMZ FTP/H.323/SIP/IPSec/PPTP.... Windows operating systems supported: Windows 10,Windows 7,Windows 8,Windows 8.1,Windows 98SE,Windows Vista,Windows XP, Mac operating systems supported: MacOS, Certification: CE, FCC, RoHS. Product colour: Black, LED indicators: LAN, Power, Status, WAN. Output voltage: 9 V
Professional, Secure, and Reliable Gigabit Multi-WAN VPN Router with Centralized Management CapabilityOmada SDN—The Smarter Cloud Solution for Business NetworkingAs the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, TL-R605 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.Hassle-Free Centralized Cloud Management:100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.Up to Four WAN Gigabit Ports to Optimize Bandwidth UsageThree freely interchangeable ports that can be set to either WAN or LAN allow the router to support up to four WAN ports to satisfy various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.Highly Secure VPNTL-R605 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. With a powerful hardware design, the router supports and manages up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment while also securing and encrypting private site-to-site data communications traveling over the internet.Internet Access Management StrategyStandardize users’ online behavior and easily specify the internet access rights and strategies of employee via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.Easy Management with the Omada AppFollow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Specifications
- Manufacturer
- TP-LINK TECHNOLOGIES
- Product type
- Wired Routers
- Ethernet LAN (RJ-45) ports
- 4
- DC-in jack
- Y
- Width
- 158 mm
- Depth
- 101 mm
- Height
- 25 mm
- Output voltage
- 9 V
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 5 - 90%
- DHCP server
- Y
- DMZ support
- Y
- Networking standards
- IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
- Ethernet interface type
- 10 Gigabit Ethernet, 100 Gigabit Ethernet
- Cabling technology
- 10/100/1000Base-T(X)
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Forwarding rate
- 1.3 Mpps
- Static route
- Y
- VLAN support
- Y
- AC adapter included
- Y
- Cables included
- LAN (RJ-45)
- Quick installation guide
- Y
- Security algorithms
- FTPES,SIPS
- Firewall
- Y
- DoS attack prevention
- Y
- ARP attack prevention
- Y
- ICMP attack prevention
- Y
- Access Control List (ACL)
- Y
- Network address translation (NAT)
- Y
- System event log
- Y
- VPN tunnels quantity
- 20
- NAT functionality
- One-to-One NAT5Multi-Net NATVirtual ServerPort Triggering5NAT-DMZFTP/H.323/SIP/IPSec/PPTP ALG,UPnP
- Universal Plug and Play (UPnP)
- Y
- Reset button
- Y
- Product colour
- Black
- LED indicators
- LAN, Power, Status, WAN
- 3G
- N
- 4G
- N
- Windows operating systems supported
- Windows 10,Windows 7,Windows 8,Windows 8.1,Windows 98SE,Windows Vista,Windows XP
- Mac operating systems supported
- MacOS
- Certification
- CE, FCC, RoHS
- Ethernet WAN
- Y
- DSL WAN
- Y
- SIM card slot
- N
