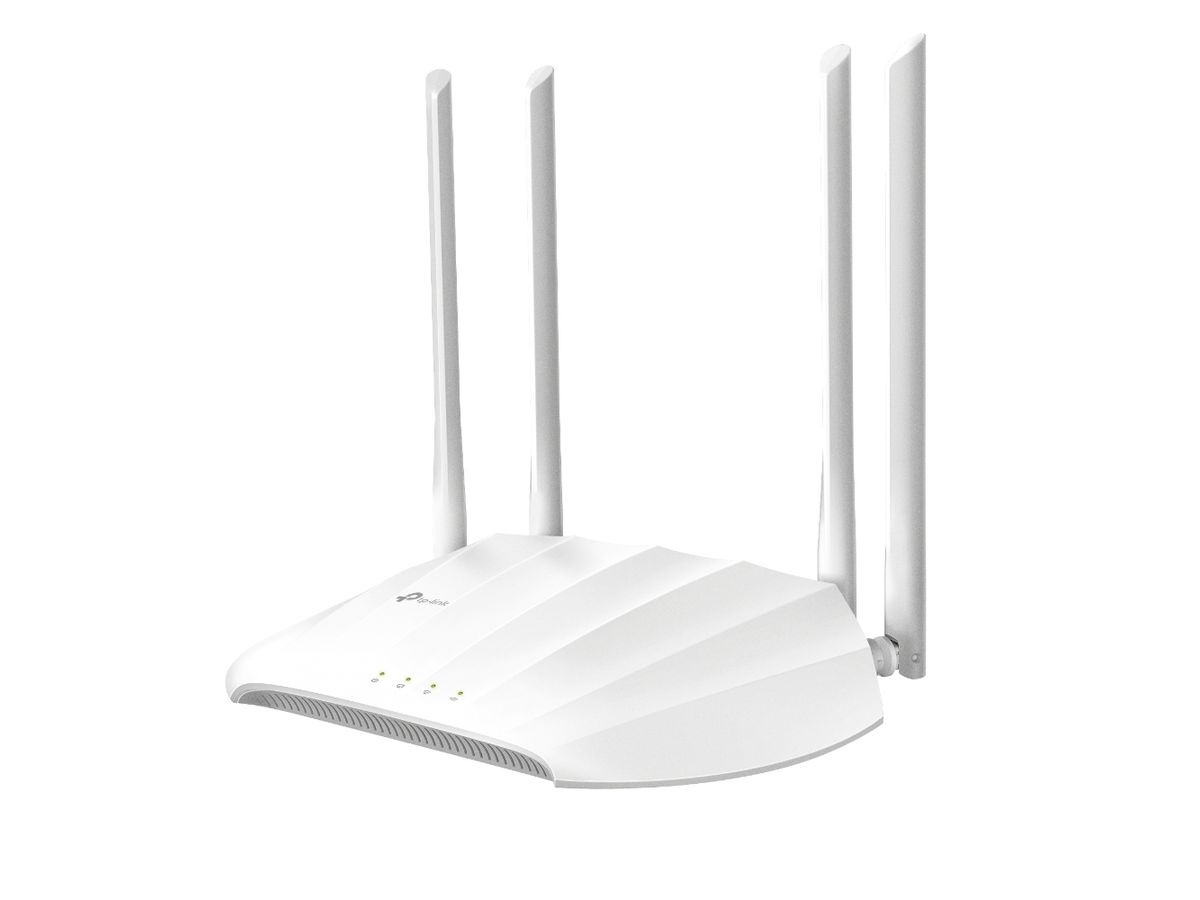

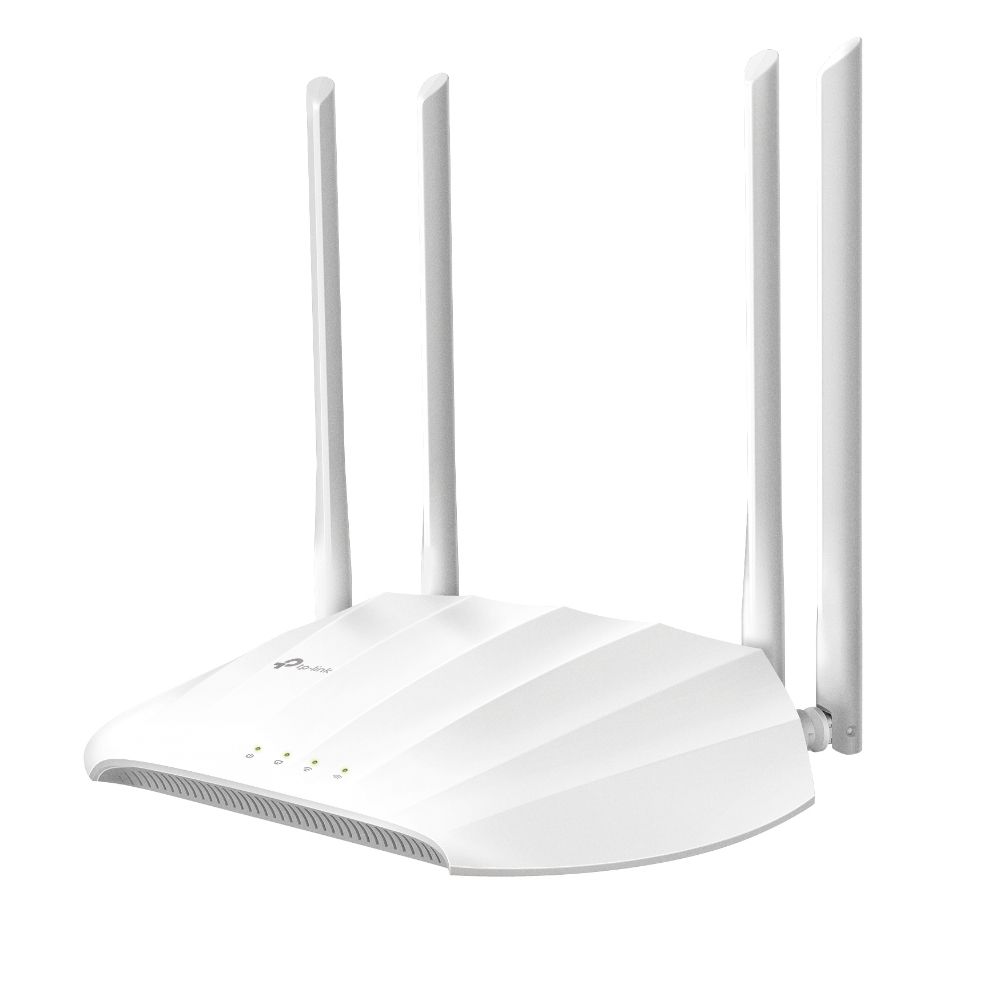

TP-Link TL-WA1201 wireless access point 867 Mbit/s White Power over Ethernet (PoE)
Item no.
523018677
Brand / Manufacturer
TP-LINK TECHNOLOGIES
Manuf. item no.
TL-WA1201
EAN
6935364084035
Item weight
0.887 kg
:strip_icc():strip_exif()/logos/tp-link-technologies.png "TP-LINK TECHNOLOGIES")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
Deliverable approx. 08/25/2026
Description
TP-Link TL-WA1201. 2.4 GHz, 5 GHz, Maximum data transfer rate: 867 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White
Specifications
- Manufacturer
- TP-LINK TECHNOLOGIES
- Product type
- Wireless Access Points
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 1
Weight & dimensions
- Width
- 225 mm
- Depth
- 145.5 mm
- Height
- 37 mm
Power
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) type supported
- Active PoE
- Output voltage
- 12 V
- Output current
- 1.5 A
Operational conditions
- Operating relative humidity (H-H)
- 10 - 90%
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Storage relative humidity (H-H)
- 10 - 90%
Protocols
- Universal Plug and Play (UPnP)
- Yes
- DHCP server
- Yes
- DHCP client
- Yes
- IPv4 & IPv6 features
- Dual stack IPv4/IPv6
Packaging data
- Package width
- 400 mm
- Package depth
- 255 mm
- Package height
- 69 mm
- Package weight
- 860 g
Security
- Security algorithms
- 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
- Service Set Identifier (SSID) features
- Multiple SSIDs
- Auto Wireless Distribution System (WDS)
- Yes
- Access Control List (ACL)
- Yes
Certificates
- Compliance certificates
- RoHS, Federal Communications Commission (FCC), CE
Packaging content
- Quantity per pack
- 1 pc(s)
- AC adapter included
- Yes
- PoE adapter included
- Yes
- Cables included
- LAN (RJ-45)
- Quick start guide
- Yes
Antenna
- Antenna type
- External
- Antennas quantity
- 4
Design
- Placement
- Table
- Product colour
- White
- On/off switch
- Yes
- Reset button
- Yes
- WPS push button
- Yes
Performance
- Compatible operating systems
- Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,10, MAC OS, NetWare, UNIX or LinuxInternet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or otherJava-enabled browser
Features
- 2.4 GHz
- Yes
- 5 GHz
- Yes
- 6 GHz
- No
- Maximum data transfer rate
- 867 Mbit/s
- Maximum data transfer rate (2.4 GHz)
- 300 Mbit/s
- Maximum data transfer rate (5 GHz)
- 867 Mbit/s
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Networking standards
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- MIMO
- Yes
- MIMO type
- Multi User MIMO
- Wi-Fi Multimedia (WMM)/(WME)
- Yes
- VLAN support
- Yes
- Virtual LAN features
- Multicast VLAN
- Quality of Service (QoS) support
- Yes
- Transmitting power (CE)
- 20 - 23 dBm
- Transmitting power (FCC)
- 30 dBm
