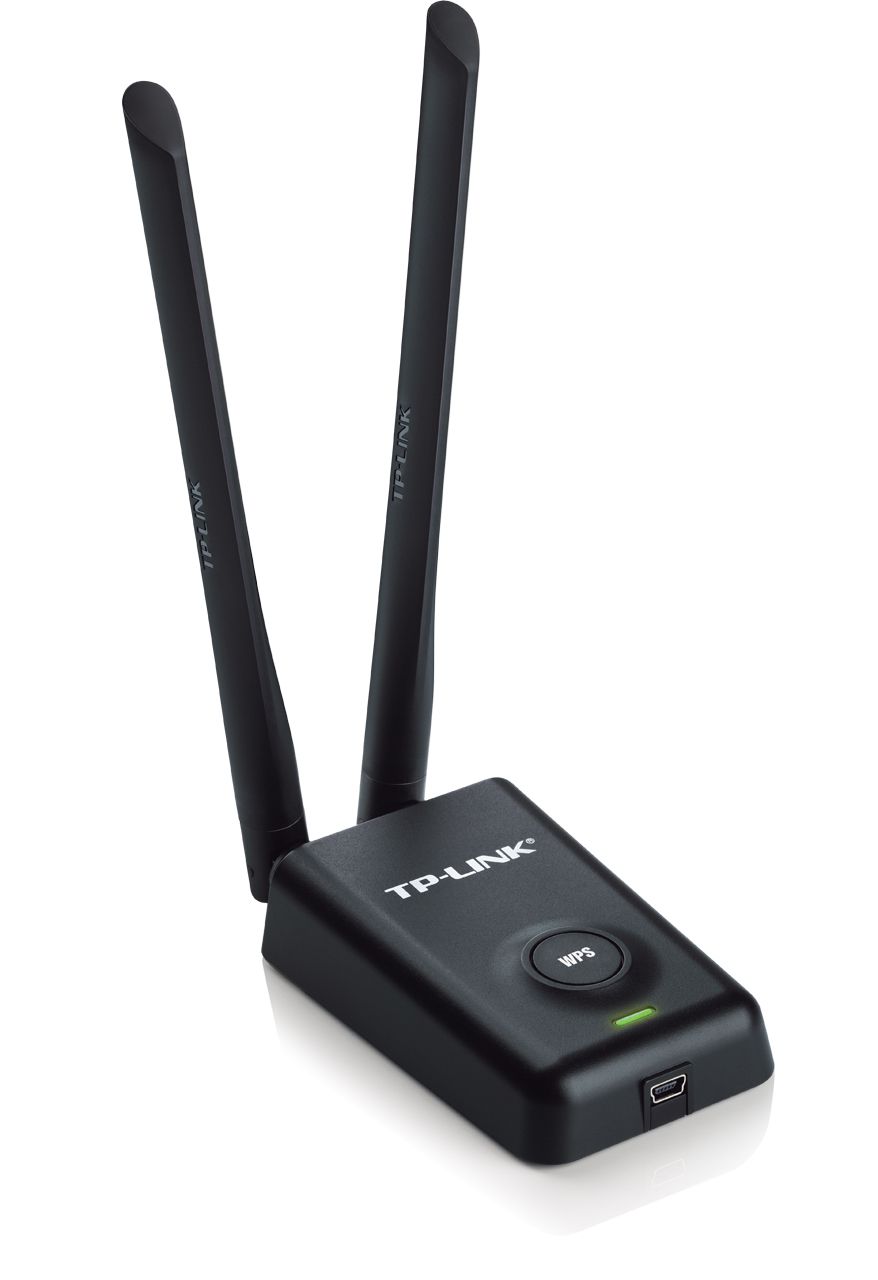

TP-LINK TL-WN8200ND networking card WLAN 300 Mbit/s

TP-LINK TL-WN8200ND networking card WLAN 300 Mbit/s

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 03/31/2026
Item no. 511366544
Brand / Manufacturer TP-LINK TECHNOLOGIES
Manuf. item no. TL-WN8200ND
EAN 6935364050740
Item weight 3 kg

Description

TP-LINK TL-WN8200ND. Connectivity technology: Wireless, Host interface: USB, Interface: WLAN. Maximum data transfer rate: 300 Mbit/s, Top Wi-Fi standard: IEEE 802.11n, Wi-Fi band: Single-band (2.4 GHz). Product colour: Black

What This Product Does TP-LINK TL-WN8200ND is a 300Mbps high power wireless adapter that allows users to enable their PCs or notebooks with extremely powerful wireless capability to deliver performance enhancements. The adapter adopts high power design which offers up to 10 times the range of conventional adapters. One of the TL-WN8200ND's best features is its stronger penetrability, which can effectively ensure that signal still remains reliable when it passes through multiple walls or floors. High Receive Sensitivity for Reliable Signal TL-WN8200ND features its high receive sensitivity, which could let you move further away from the access point while still maintaining the same wireless signal. In this case, using TL-WN8200ND means that you don't have to move the laptop like a divining rod, and you can easily pick up the network with its strong sensitivity. Two 5 dBi External Detachable Antennas Two high gain external antennas insure stronger transmission and reception capacity. The two detachable antennas can be rotated and adjusted in different directions to fit various operation environments. For even more demanding applications, the antennas can also be replaced with diverse indoor antennas or directional antennas (using standard RP-SMA connector) to show even greater flexibility and wider wireless coverage. One Button for Security Setup TL-WN8200ND supports Wi-Fi Protected Setup™ (WPS) that allows users to simply press the "WPS" button on the exterior, instantly establishing a highly secured connection. Not only is it faster than normal security setups but more convenient in that you don't need to remember any password! Desktop-Style Design & 1.5m USB Extension Cable Besides the fashionable and novelty exterior, the desktop-style design is beneficial for the signal reception in various application environments, guaranteeing the smooth and stable signal. And TL-WN8200ND also provides 1.5m USB extension cable, convenient for your installation, even for the desktop equipment. Bundled CD for Easy Operation TL-WN8200ND comes with a CD with utility that helps you complete the software installation and wireless network settings, including security configurations and wireless connection, which is convenient for users, even for novice users.

Specifications

Manufacturer TP-LINK TECHNOLOGIES
Product type Network Cards
System requirements
Windows operating systems supported Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Ports & interfaces
Connectivity technology Wireless
Host interface USB
Interface WLAN
Weight & dimensions
Width 90.8 mm
Depth 60.7 mm
Height 24 mm
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Networking
Maximum data transfer rate 300 Mbit/s
Networking standards IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Wi-Fi Y
Wi-Fi band Single-band (2.4 GHz)
Frequency range 2.4 - 2.4835 GHz
Top Wi-Fi standard IEEE 802.11n
Wi-Fi standards IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Gain 5 dBi
Security algorithms 128-bit WEP,64-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK,WPS
Bandwidth 2.4 GHz
Packaging data
Cables included USB
Manual Y
Other features
Supported data transfer rates 150 - 300Mb/s
Connector(s) Mini USB
Design
Internal N
Product colour Black
Antenna Y
Antenna connector type RP-SMA
LED indicators Y
Certification CE, FCC
