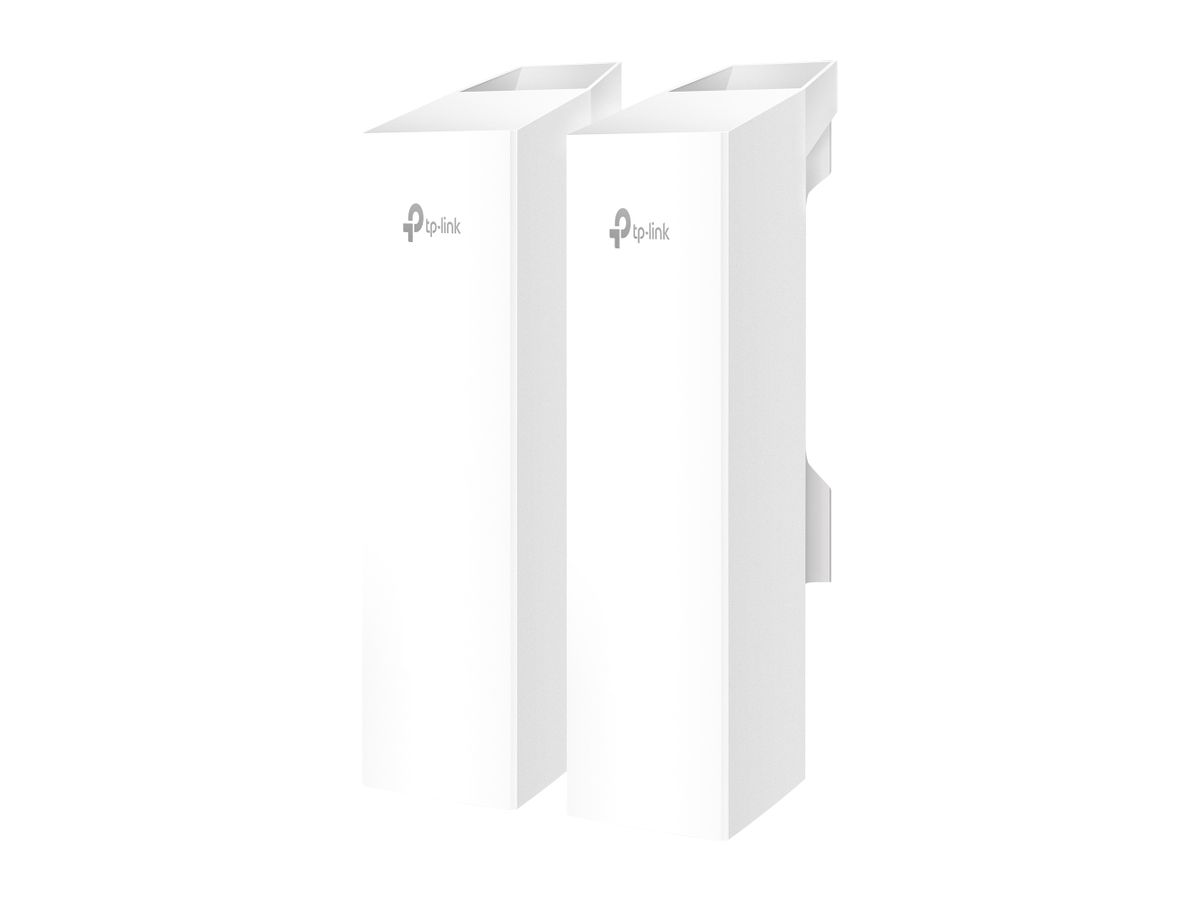

TP-Link Wireless Bridge 5 GH 867 Mbps Long-Range Indoor/Outdoor Access Point
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 529229216 |
|---|---|
| Brand / Manufacturer | TP-LINK TECHNOLOGIES |
| Manuf. item no. | EAP215-BRIDGE KIT |
| EAN | 4895252502565 |
:strip_icc():strip_exif()/logos/tp-link-technologies.png "TP-LINK TECHNOLOGIES")
Description
TP-Link Wireless Bridge 5 GH 867 Mbps Long-Range Indoor/Outdoor Access Point. Maximum data transfer rate: 867 Mbit/s, Maximum data transfer rate (5 GHz): 867 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: SNMP, SNMPv2, SNMPv3, SSH. Power over Ethernet (PoE) type supported: Passive PoE, DC voltage range: 12 V. Placement: Pole, Product colour: White, Certification: CE, FCC, RoHS. Antenna type: Internal, Antenna direction type: Directional, Antenna features: Integrated antenna
Wireless Bridge 5 GH 867 Mbps Long-Range Indoor/Outdoor Access Point- Long-Distance Transmission
- Auto-Pairing
- Agile LEDs for Easy Deployment
- 3× Fast Ethernet Ports
- 12V DC/Passive PoE
- IP65 Weatherproof & 6 KV Lightning Protection
- Omada Centralized Cloud Management
- Passive PoE Adapter Included
5-km Long-Distance Wi-Fi Transmission
Easy and Simple Deployment
Point-to-Point Connection, Perfect for Surveillance
Seamless Integration into Omada SDN
Specifications
| Manufacturer | TP-LINK TECHNOLOGIES |
|---|---|
| Product type | Wireless Access Points |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 3 |
|---|
Weight & dimensions
| Width | 224 mm |
|---|---|
| Depth | 79 mm |
| Height | 60 mm |
| Weight | 330.9 g |
Power
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet (PoE) type supported | Passive PoE |
| DC voltage range | 12 V |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90% |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Security
| Security algorithms | SNMP, SNMPv2, SNMPv3, SSH |
|---|---|
| MAC address filtering | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Access Control List (ACL) | Yes |
Management features
| Web-based management | Yes |
|---|---|
| Syslog | Yes |
Packaging content
| Quick start guide | Yes |
|---|
Antenna
| Antenna type | Internal |
|---|---|
| Antenna direction type | Directional |
| Antenna features | Integrated antenna |
| Antenna gain level (max) | 11 dBi |
| Polarization | Dual polarization |
Design
| Placement | Pole |
|---|---|
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Certification | CE, FCC, RoHS |
Features
| 2.4 GHz | No |
|---|---|
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 867 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
| Cabling technology | 10/100/1000Base-T(X) |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| BeamForming | Yes |
| Transmitting power (CE) | <23dBm (5 GHz, band 1/2, EIRP); <30dBm (5 GHz band3, EIRP) |
| Transmitting power (FCC) | <22dBm (5 GHz band1/4) |
