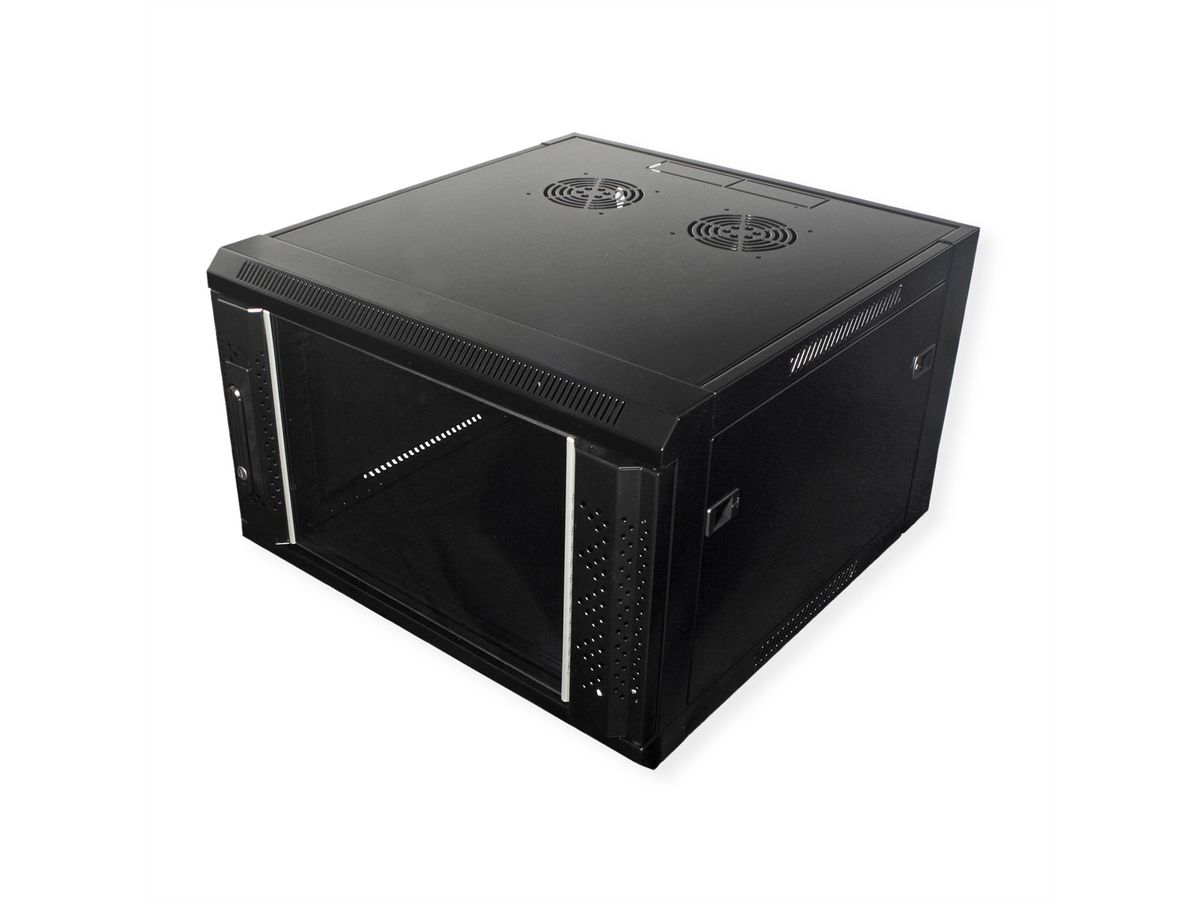

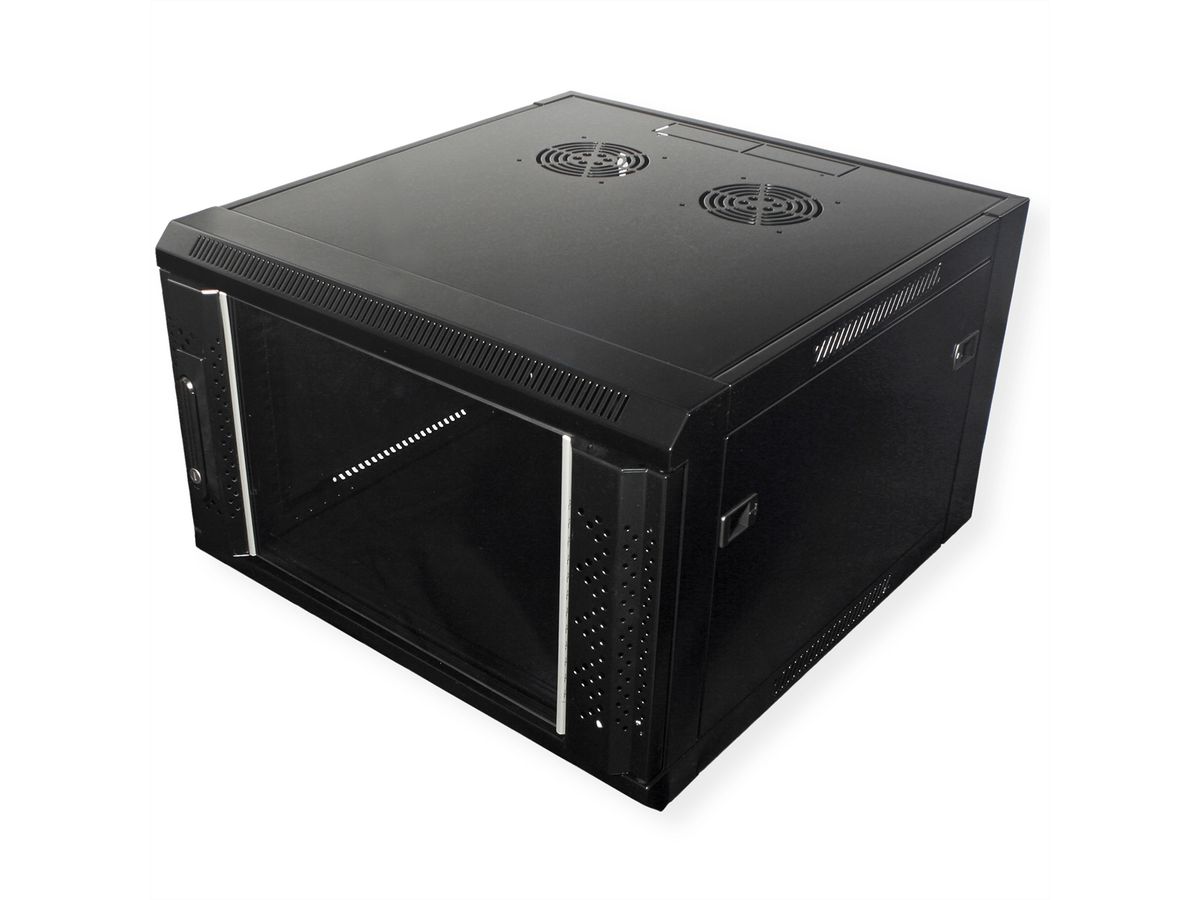

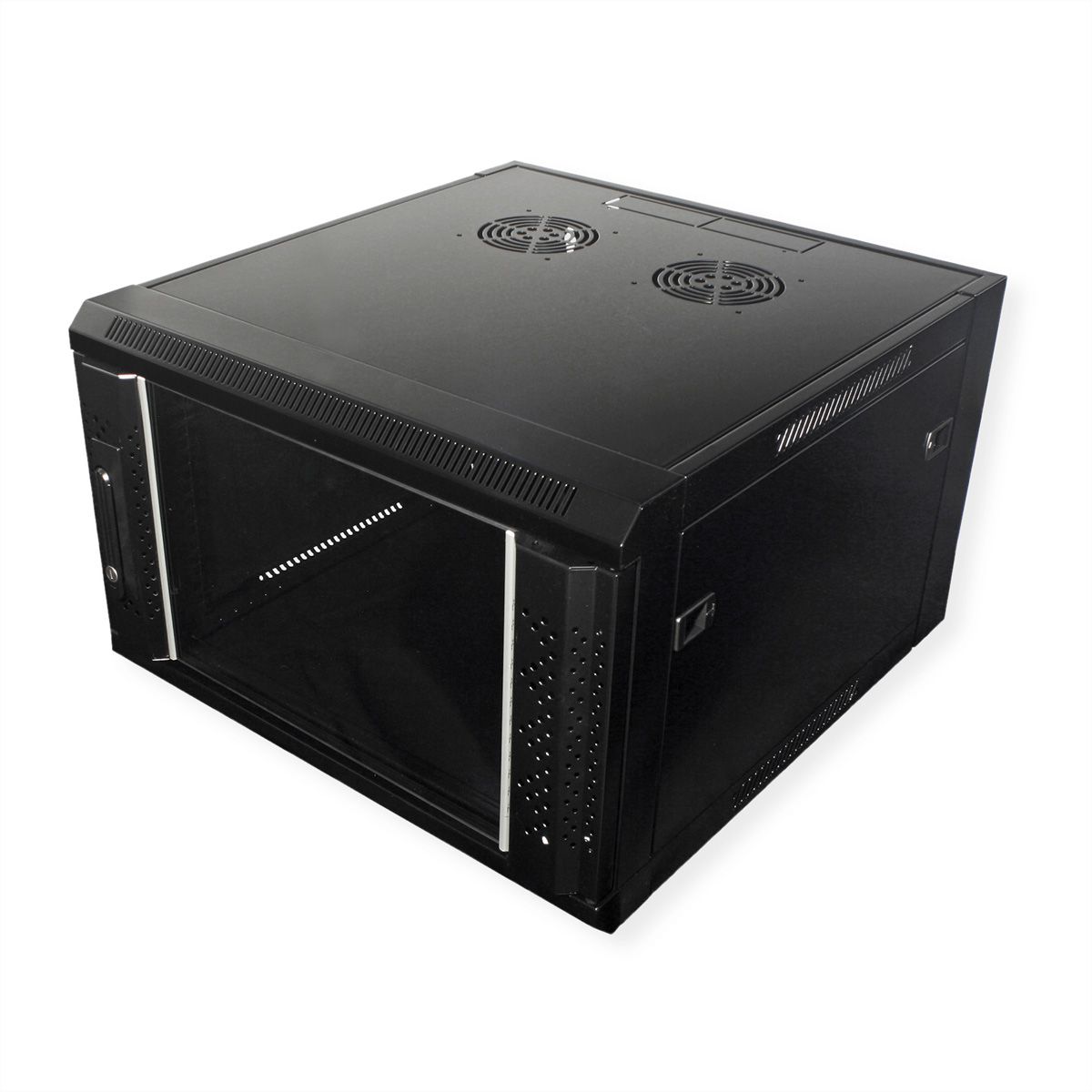

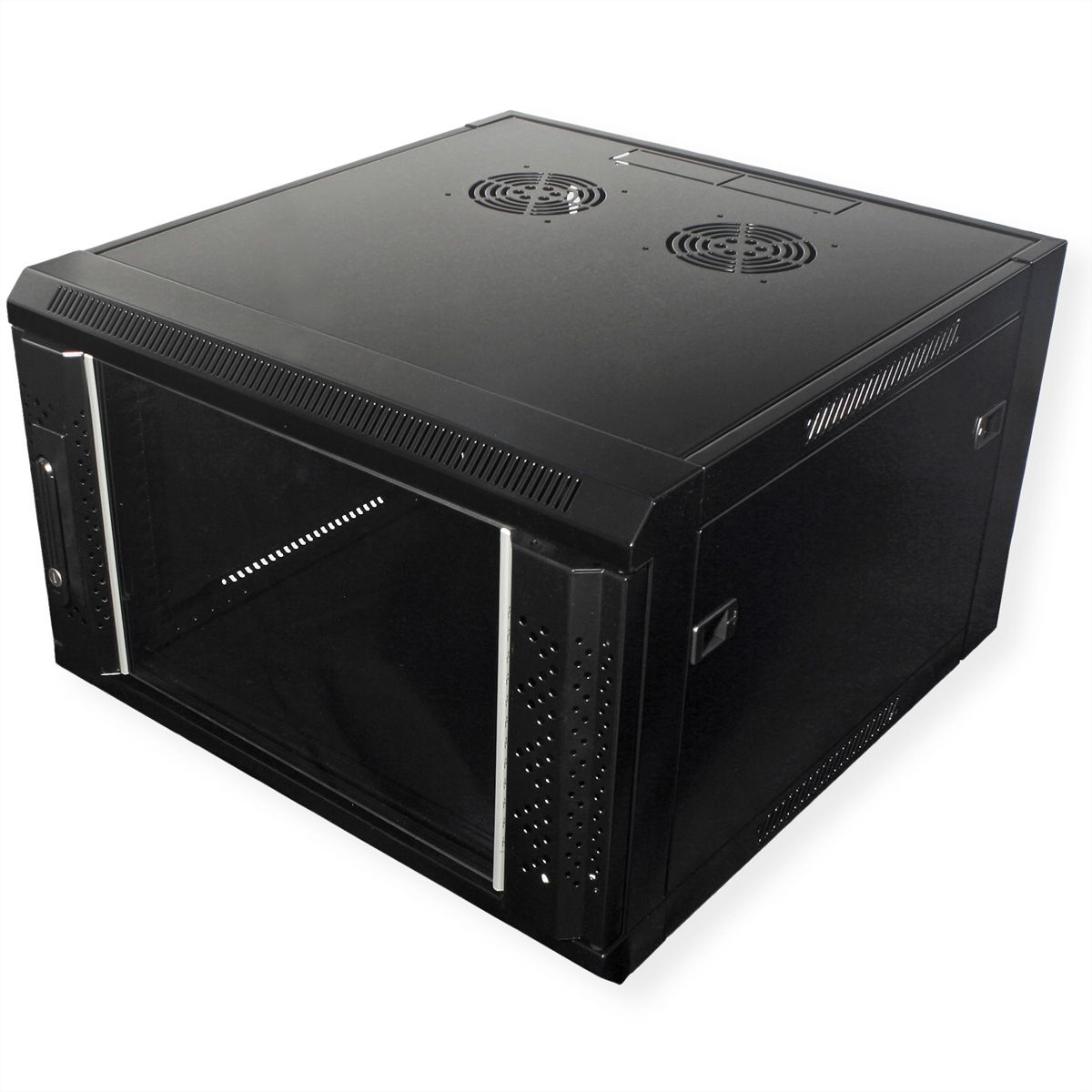

VALUE 19" Wall Mount Rack 6U, 368 x 570 x 600mm (HxWxD), black

Item no. 26990147 Brand / Manufacturer VALUE Manuf. item no. 26.99.0147 EAN 7611990137763 Item weight 18.5 kg
VALUE
Height:
Depth:

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day

Description

  • VALUE stand/wall mount cabinets for the installation of active and passive network components

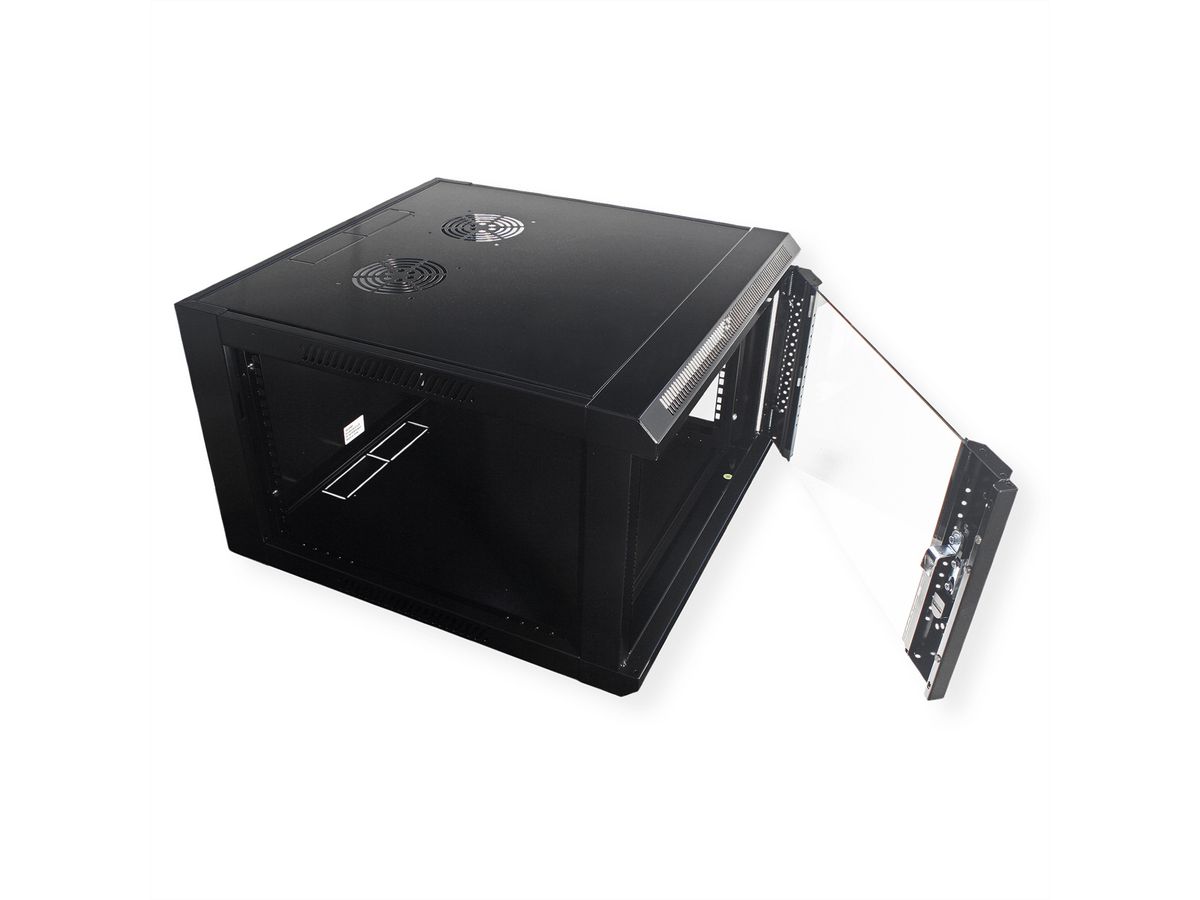

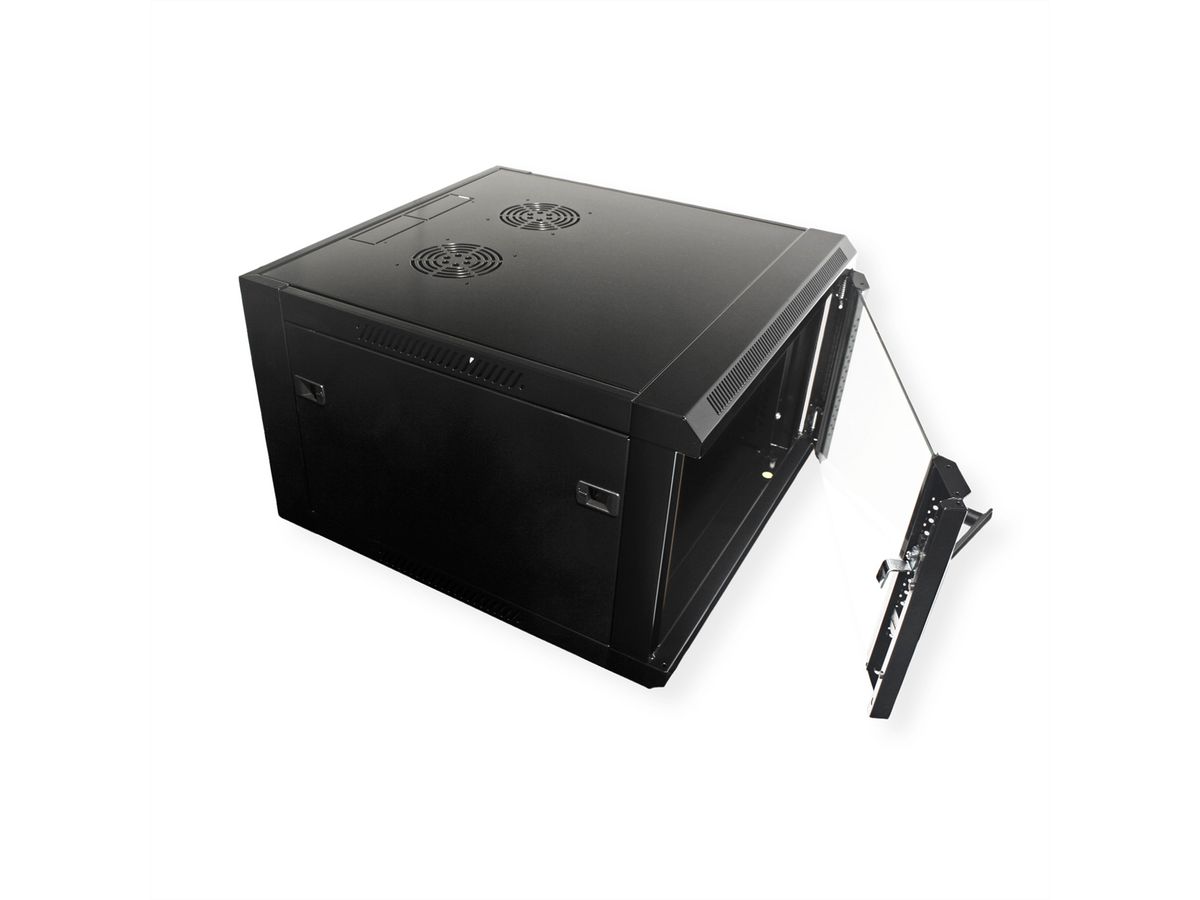

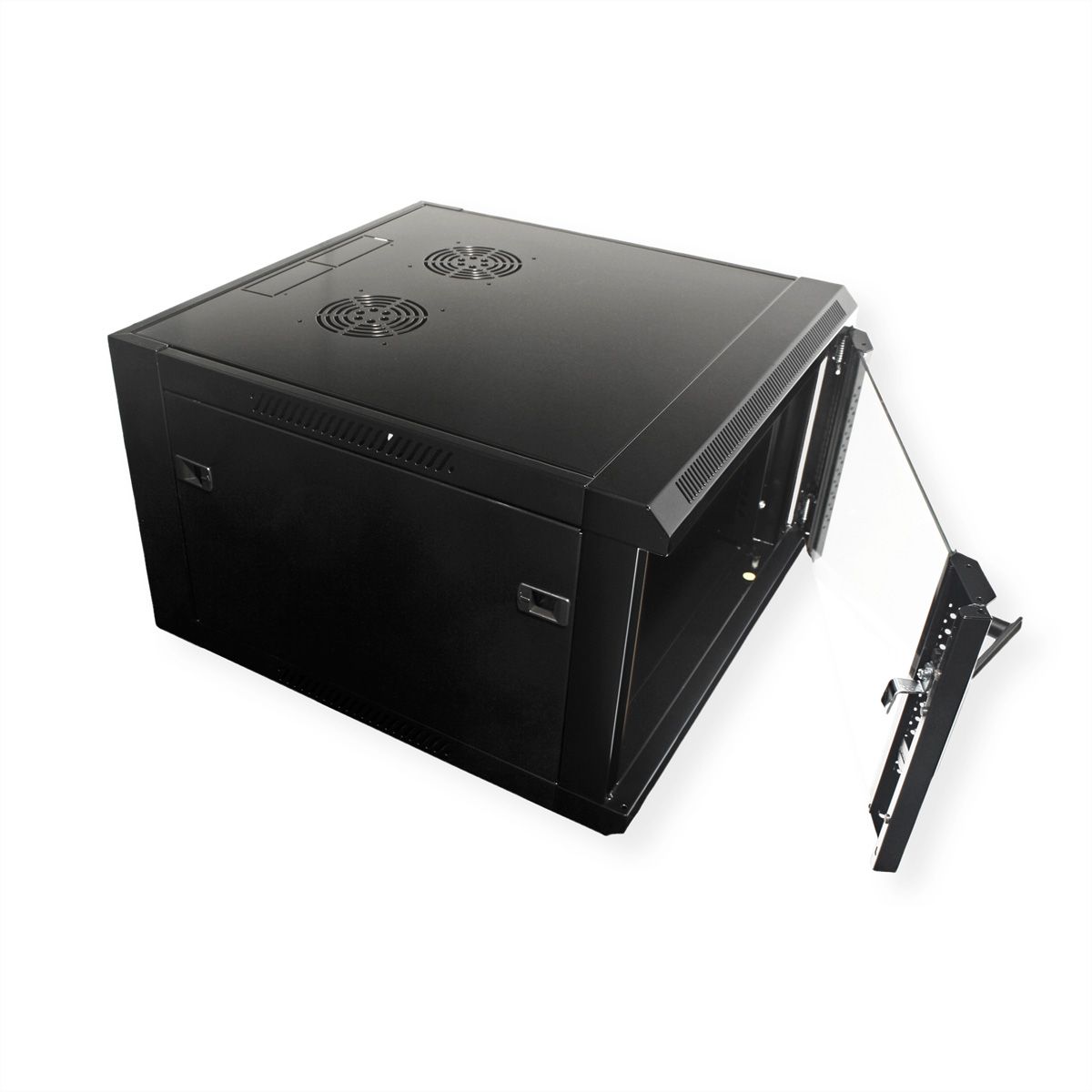

  • Toughened glass front with lock with rotary handle, the direction of opening the door can be changed according to the requirement, the opening degree of the door is more than 180°

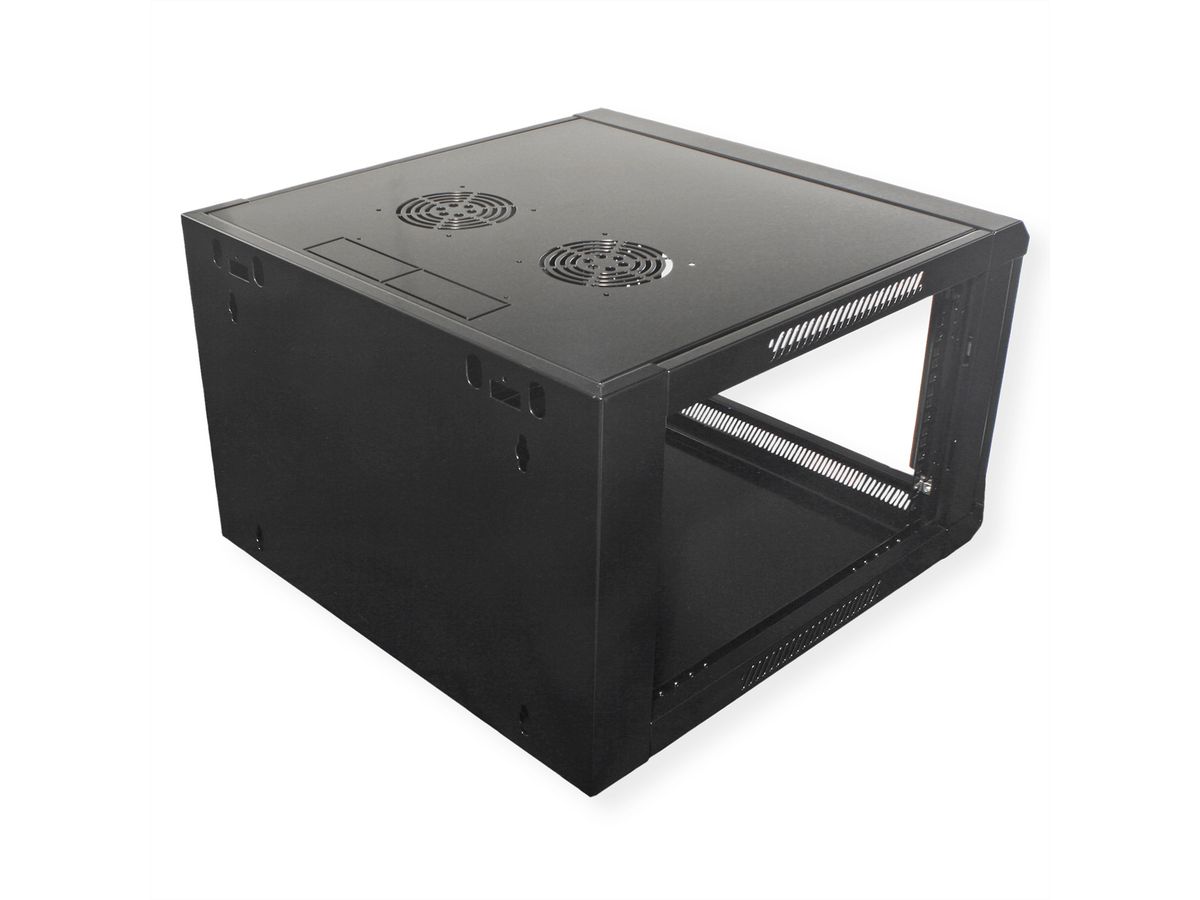

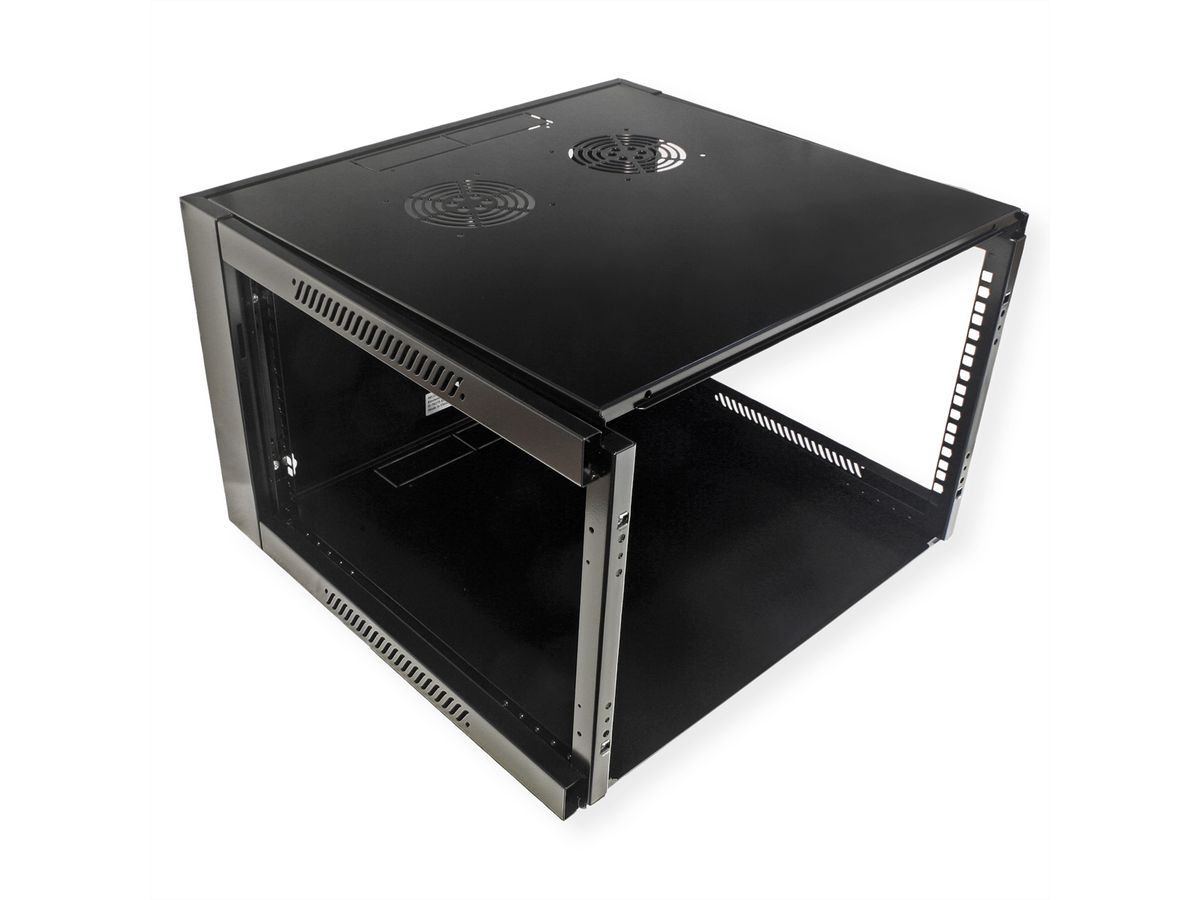

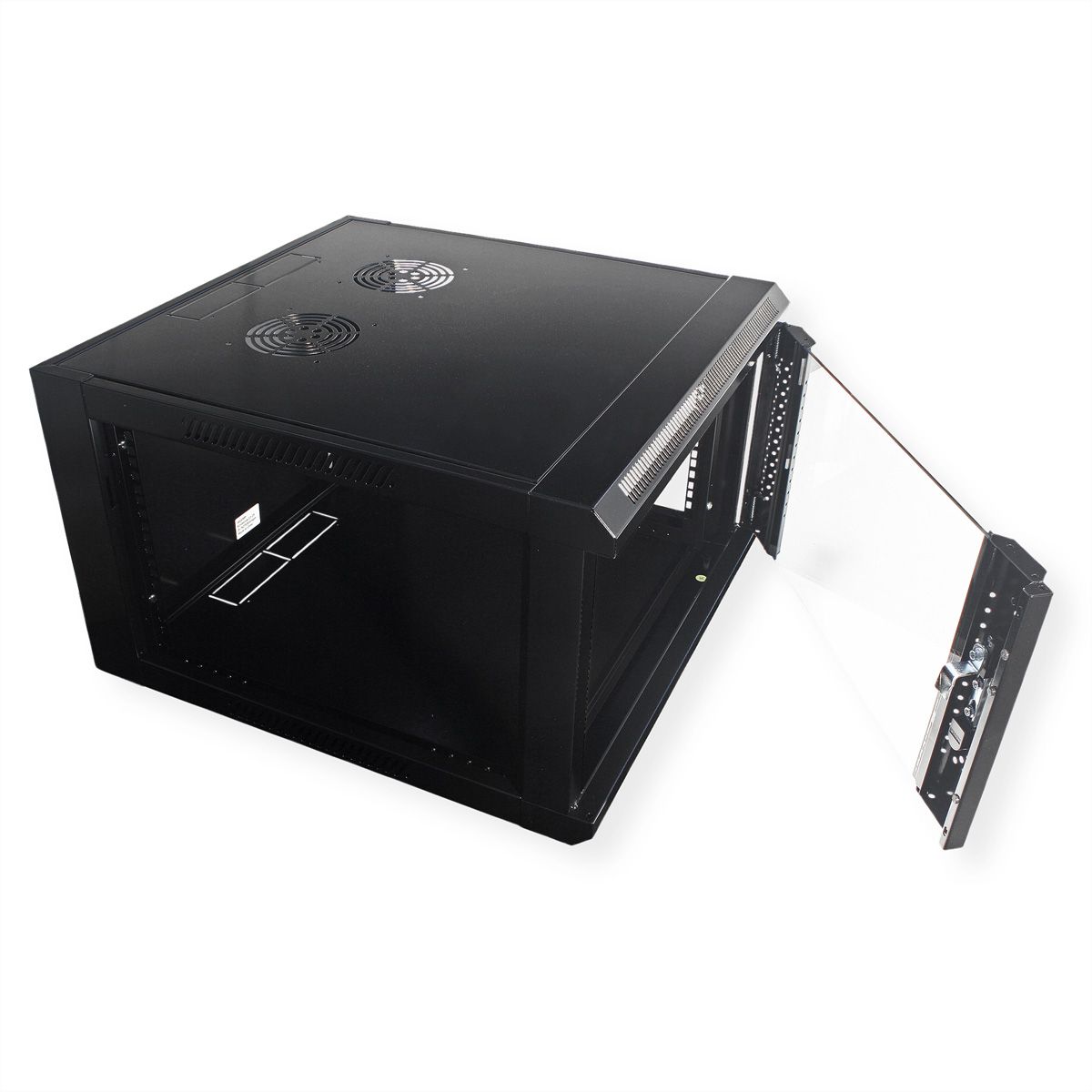

  • Quick open side door, convenient for equipment installation and maintaining
  • One cable channel on the top and the other on the bottom

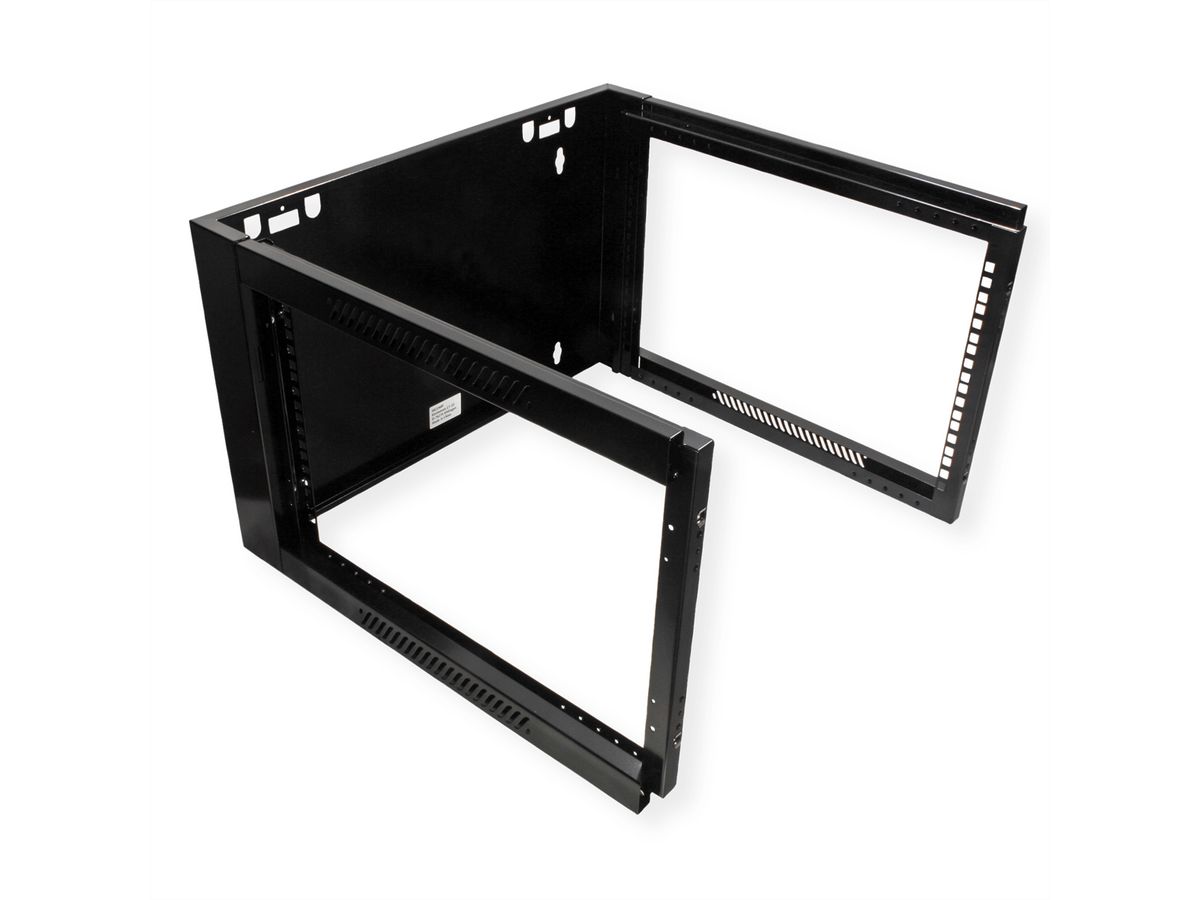

  • 19" standard installation, installation depth can be adjusted according to the requirement
  • Colour: black (RAL 7021)
  • Max. Load (distributed): 60 kg
  • Remark: Delivery as an assembly set
  • Contents: Wall mount rack, grounding set, installation material

For small network installations, even a half-height network cabinet is often too big, especially since only a parking space has to be found. In such cases, wall enclosures are the better solution. They provide enough space for some switches and patch panels and do not require space on the floor due to wall mounting. In addition, the network administrator can easily read the status of the switches without compromising their knees, or patch a patch cable without slipping on the ground.

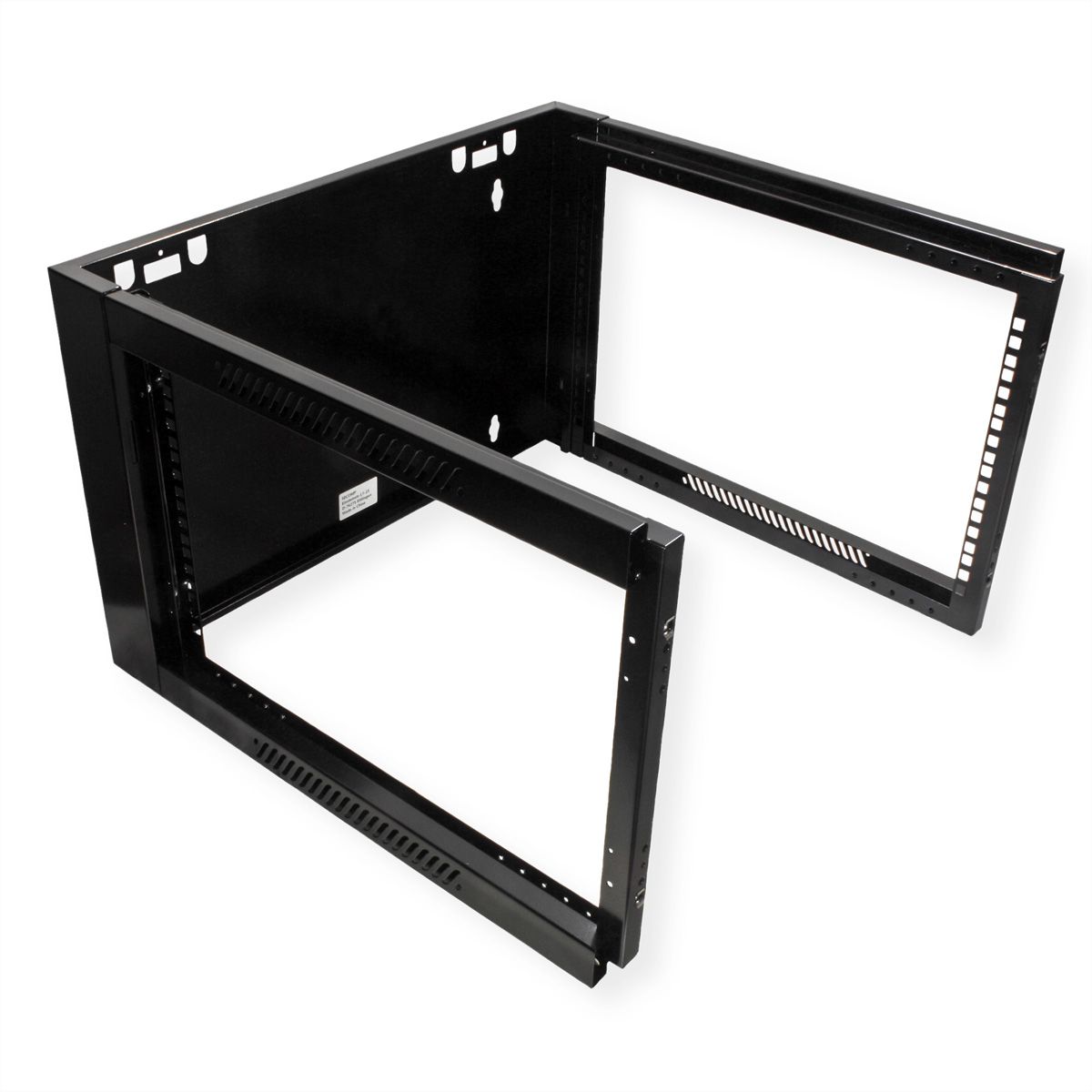

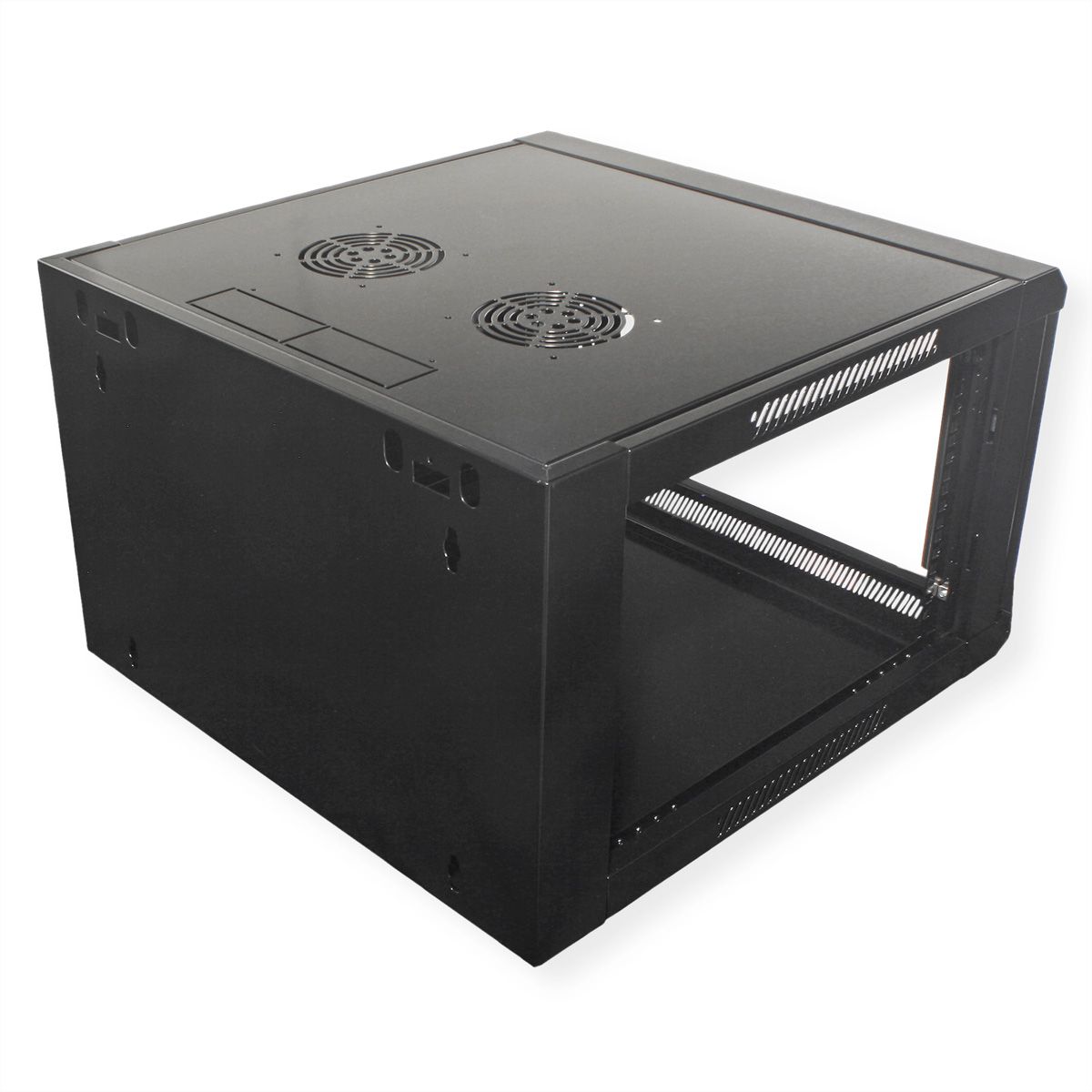

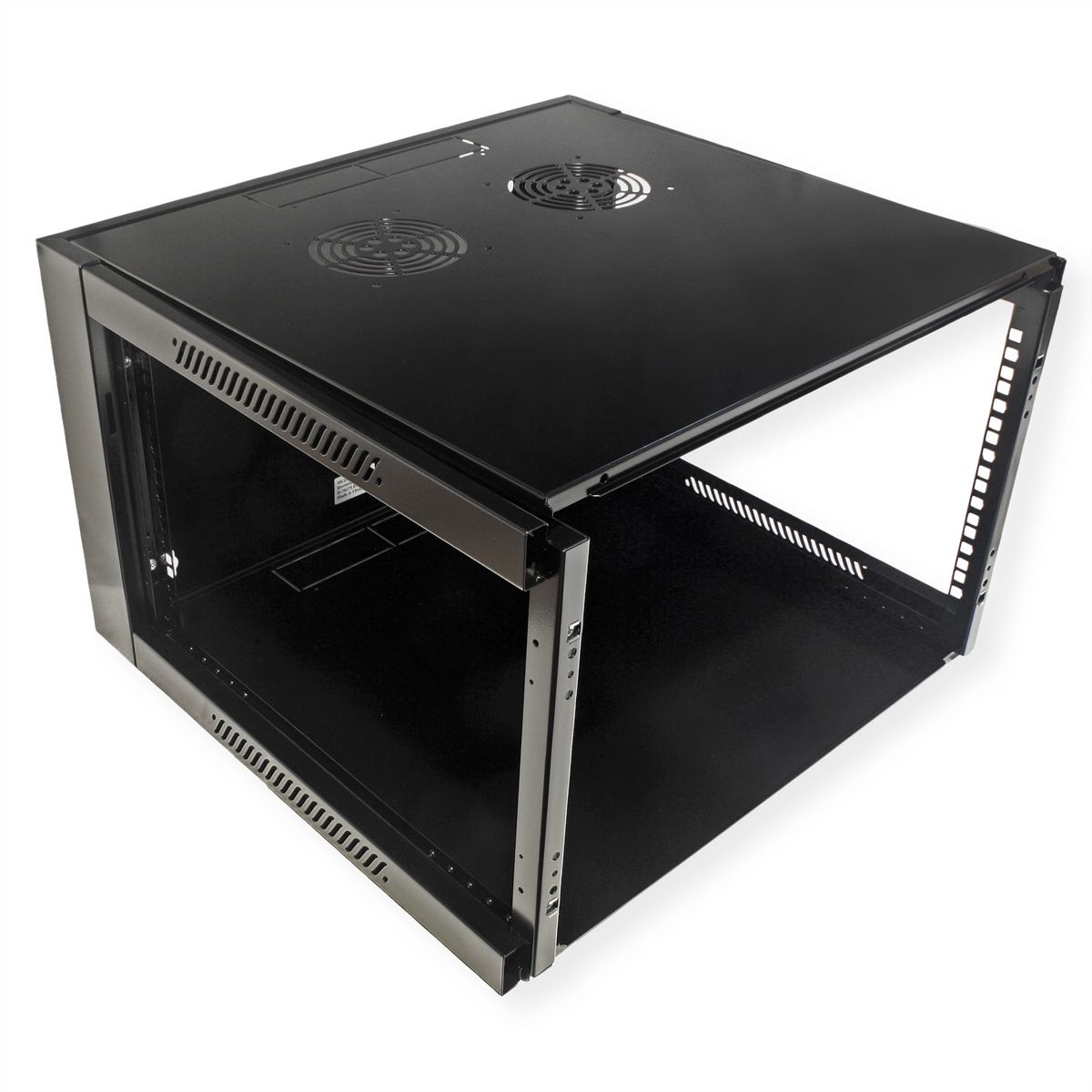

The VALUE wall enclosures prove that such practical solutions can also be attractive. The black, slightly shiny housings are quite office-appropriate. A generous glass insert in the door allows a clear view of all built-in active and passive components even when the door is closed. Both the door and the side walls can be removed for optimum access to the inside of the housing; The cable feed can be carried out from above or below. The door of the VALUE wall housing comes with lockable swivel lever.

Specifications

Manufacturer
VALUE
Product group
19"-/10"-Cabinet
Product type
19"-wall housing
Colour
black
Scope of delivery
Wall mount rack, grounding set, installation material
Modular spacing
482.6 mm (19 inch)
Height units
6 U
Maximum rack depth supported
500 mm
Delivery condition
Flatpack, disassembled
Demountable
yes
Server cabinet
no
Wall mountable
yes
Socket
no
Socket with tilt protection
no
Dimensions (HxWxD) w/o socket
368 x 570 x 600 mm
Maximum weight capacity
60 kg
Number of doors
1
With front door
yes
With backside door
no
With glazed door
yes
Front
Glass door with frame
Side panel
Plug door
19" level
Ahead
Roof
Cable entry possibility
Roof raised
no
Floor
Closed
Ventilation
Passive
Fan ready
yes
Grounding set mounted
no
Colour (Cabinet)
black
Colour (Covering)
black
Colour
black
Height
368 mm
Width
570 mm
Depth
600 mm
Weight
17.41 kg
Height of packaging (single piece)
300 mm
Width of packaging (single piece)
600 mm
Depth of packaging (single piece)
570 mm
Package weight (single piece)
18.5 kg
