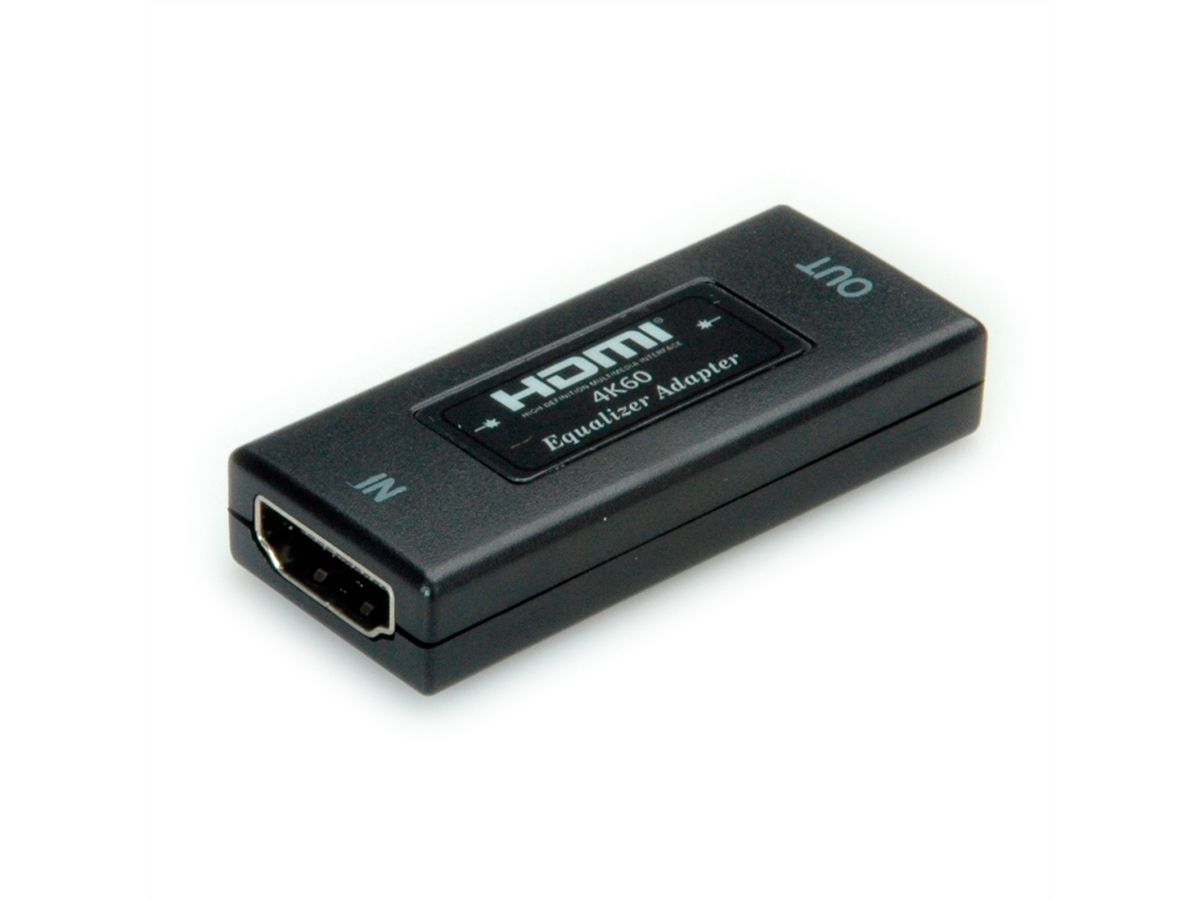

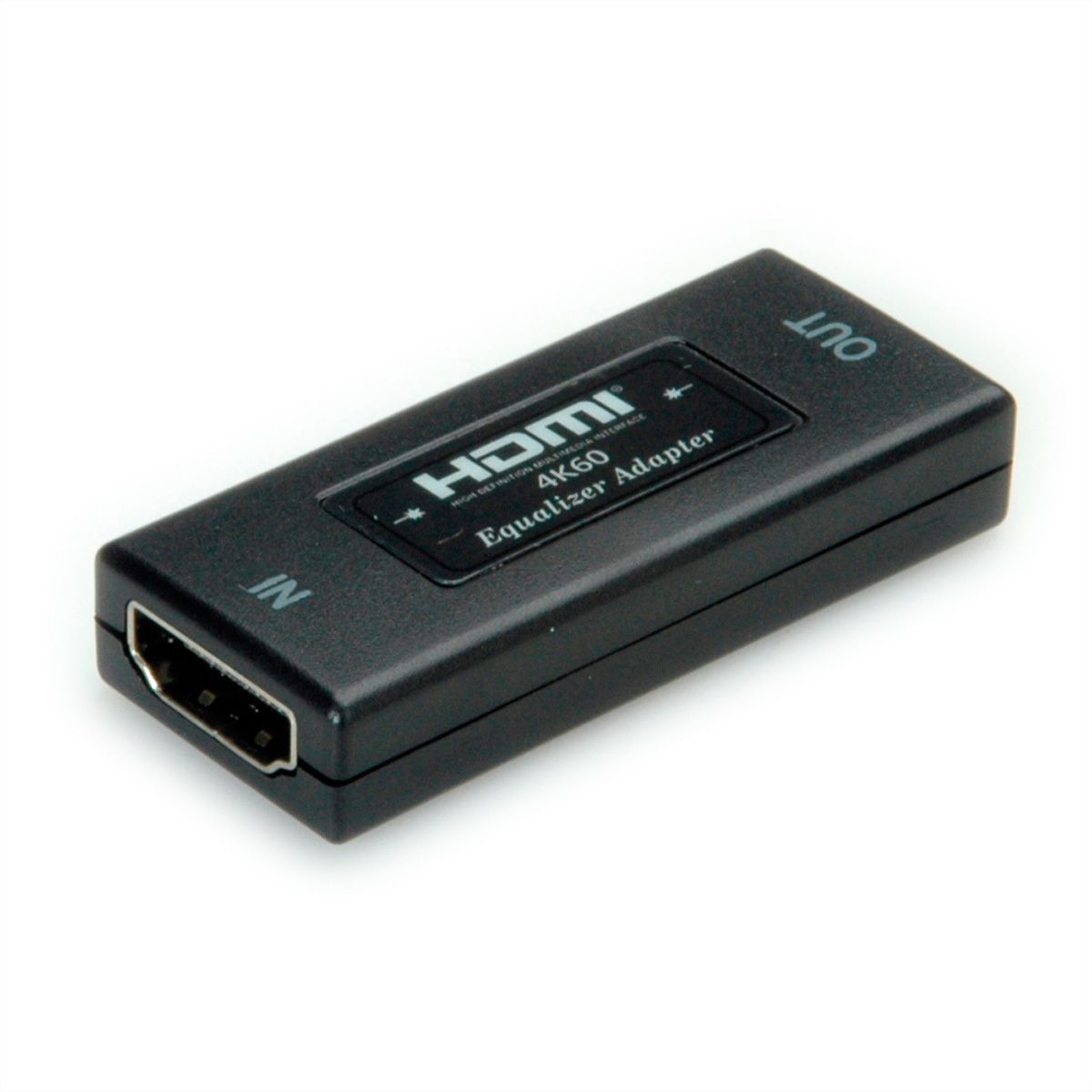

VALUE 4K HDMI Repeater, 20 m

Item no. 14993459 Brand / Manufacturer VALUE Manuf. item no. 14.99.3459 EAN 7630049610842 Item weight 0.025 kg
VALUE

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

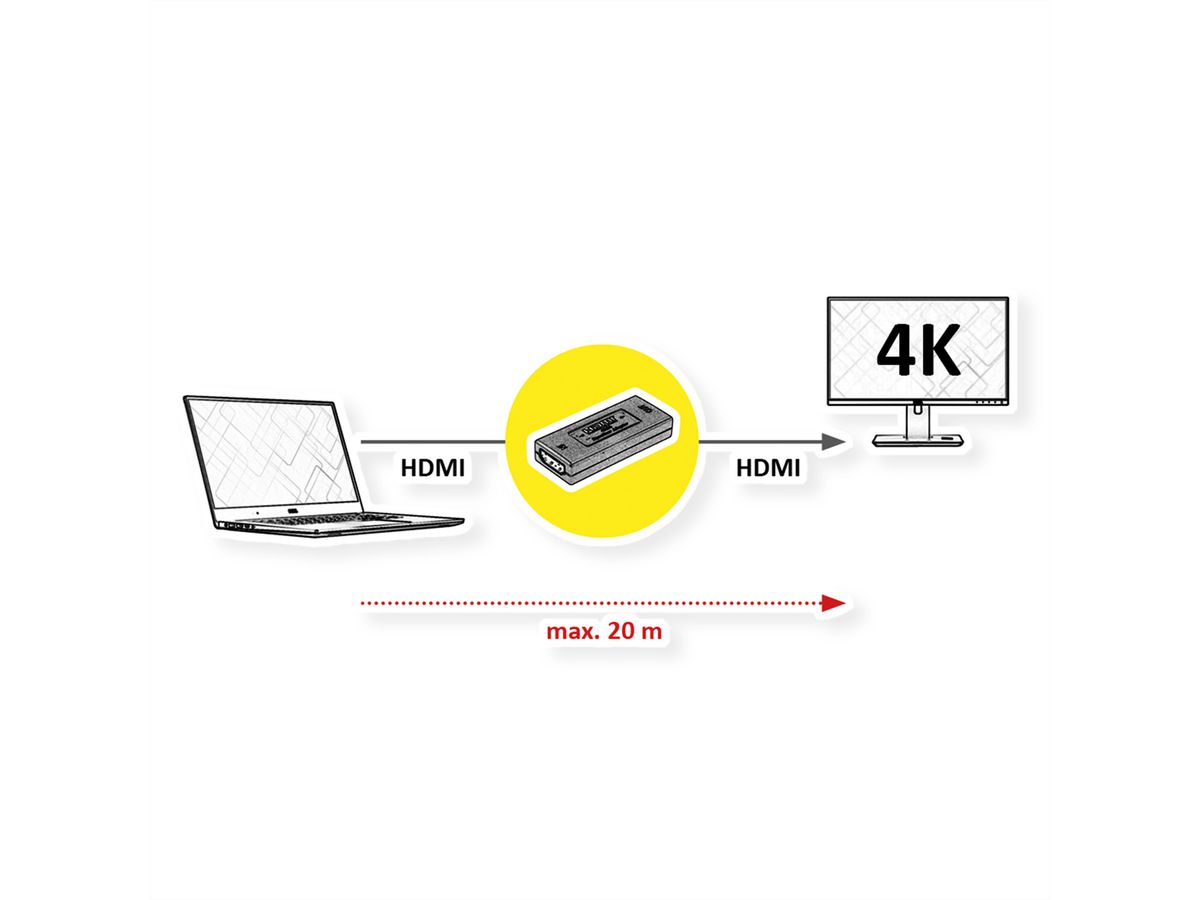

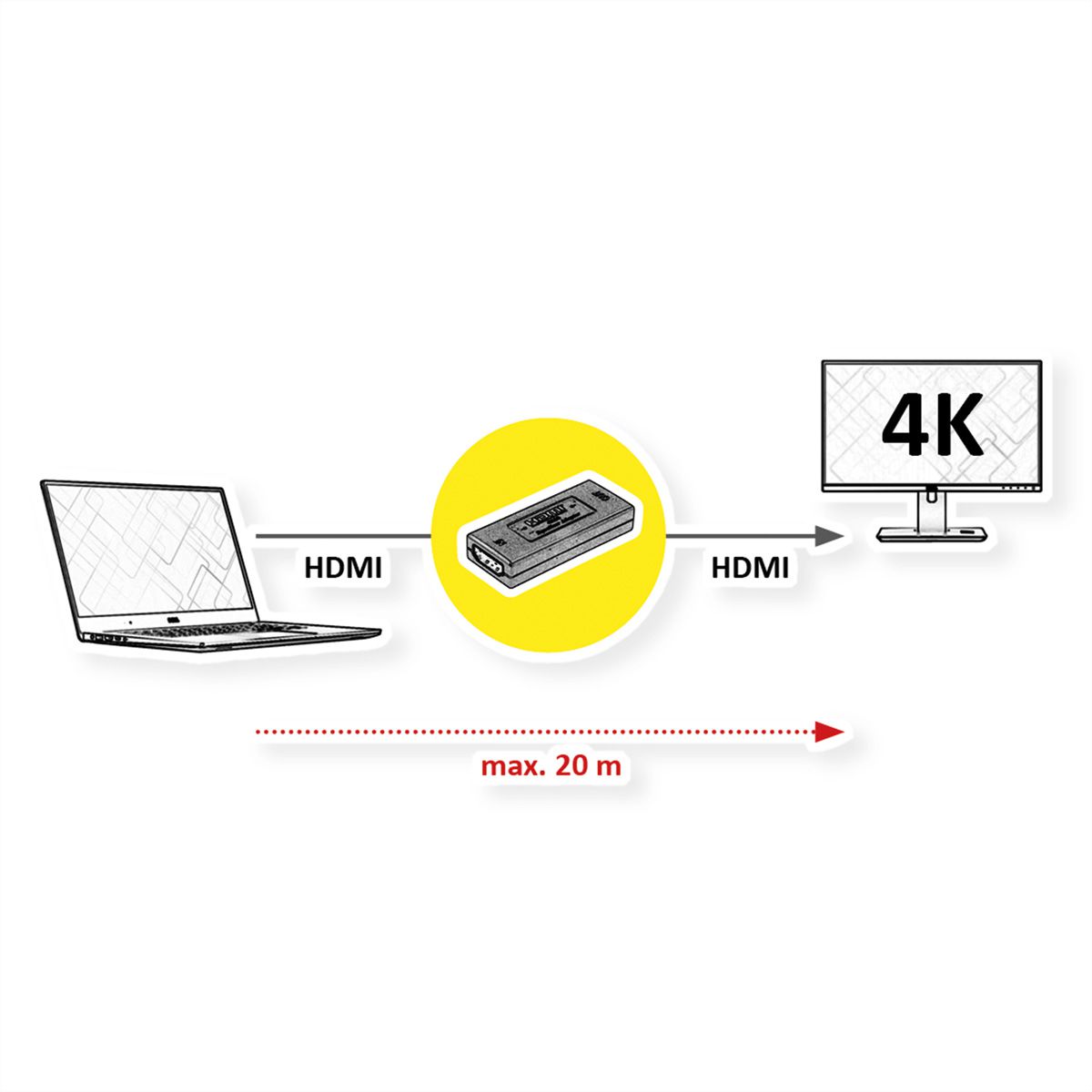

Allows you to extend the transmission range of your HDMI connection by up to 20m in total (max. 15m input + 5m output). Supports a maximum resolution of up to 3840x2160 @60Hz!

This 4K HDMI repeater regenerates the incoming HDMI Signal by decoding and re-encoding it to a new standard HDMI signal, so it can extend the transmission range without degradation. Up to 20 meters transmission distance in total, but max. 15m on in- and 5m on output side.

  • Supports 3D and resolutions of up to 3840x2160 @60Hz
  • Compliant with HDCP
  • Dimensions (WxHxD): 21x7x51 mm

Specifications

Manufacturer
VALUE
Product group
Video Extender
Product type
HDMI Extender
Colour
black
Interface
HDMI
Inputs
1
Outputs
1
Max. distance
20 m
Max. bandwidth
340 MHz
Max. resolution (nom.)
2160P @60Hz
Max. resolution
3840 x 2160 @60Hz (4K, UHD-1)
Height
7 mm
Width
21 mm
Depth
51 mm
Weight
10.5 g
Height of packaging (single piece)
10 mm
Width of packaging (single piece)
60 mm
Depth of packaging (single piece)
30 mm
Package weight (single piece)
0.025 kg

Downloads

Product data sheet - English (58.6 KB) Manufacturer data sheet - English (167.7 KB)
