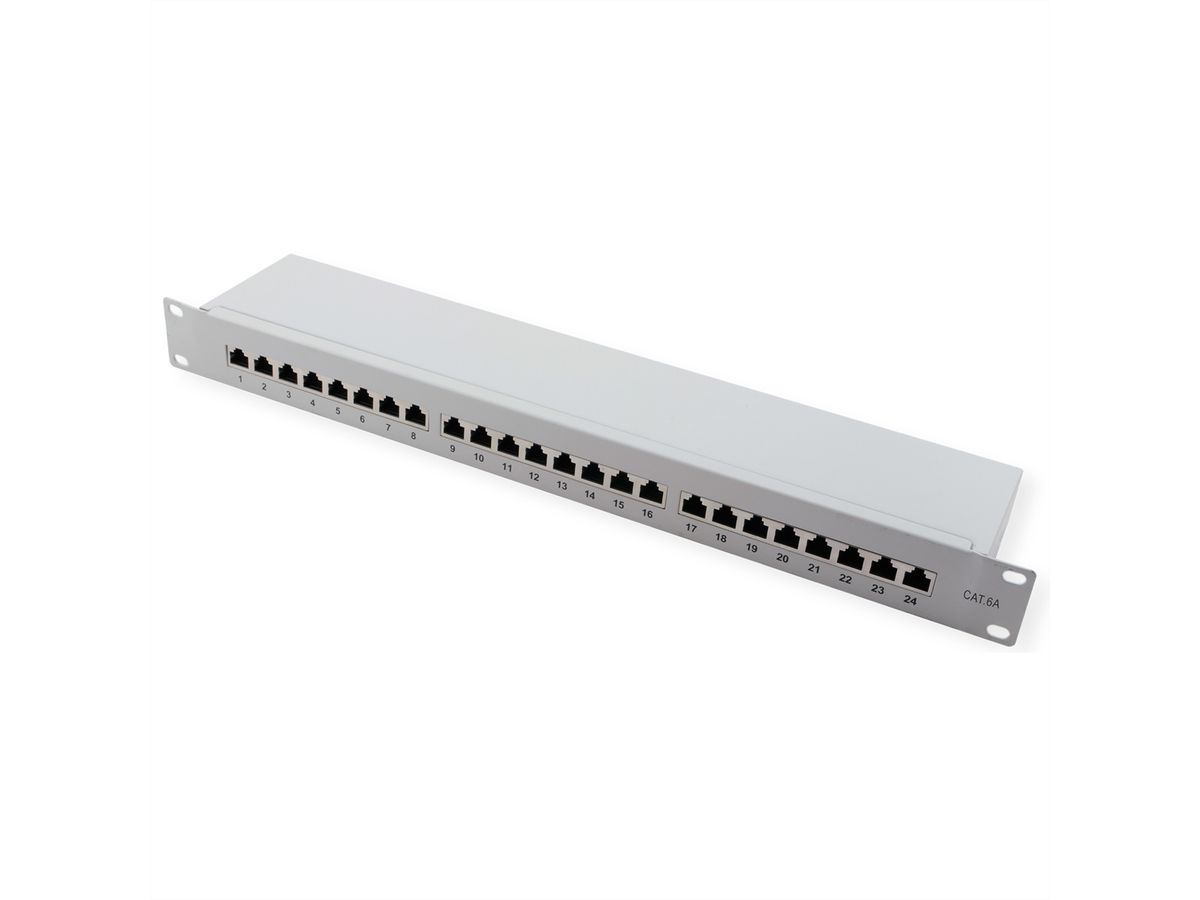

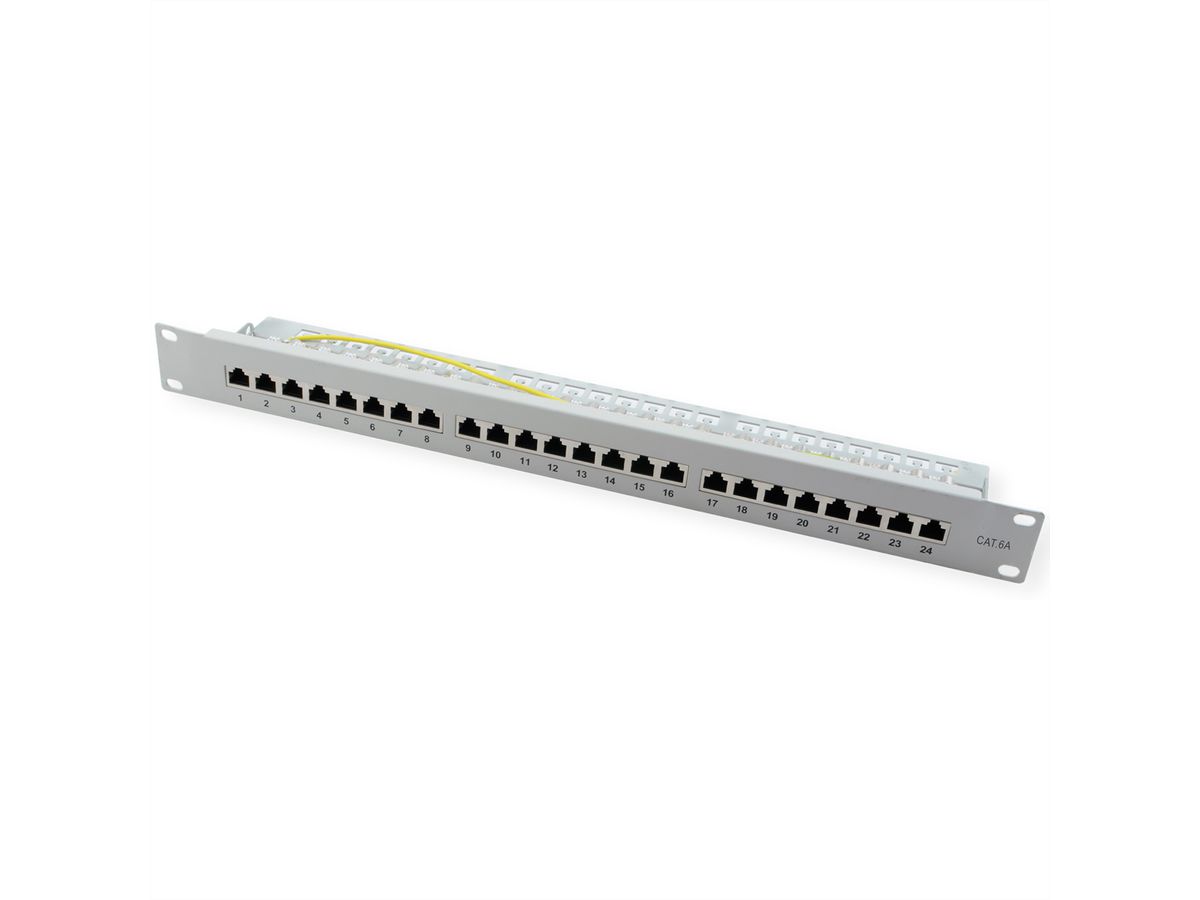

VALUE Cat.6A (Class EA) 19" Patch Panel, 24 Ports, shielded, grey
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 26990365 |
|---|---|
| Brand / Manufacturer | VALUE |
| Manuf. item no. | 26.99.0365 |
| EAN | 7630049633575 |
| Item weight | 1.6 kg |
:strip_icc():strip_exif()/logos/value.png "VALUE")
Description
Cat. 6A (Class EA) 19" Patch Panel, shielded, 1U, with 24 ports, for installation in 19” cabinets, incl. mounting material.
- This VALUE Cat. 6A 19" patch panel fulfisl the Cat. 6A/Class E permanent link standard and is ideal for use 10 Gigabit Ethernet networks
- Sheet steel housing
- Shielded

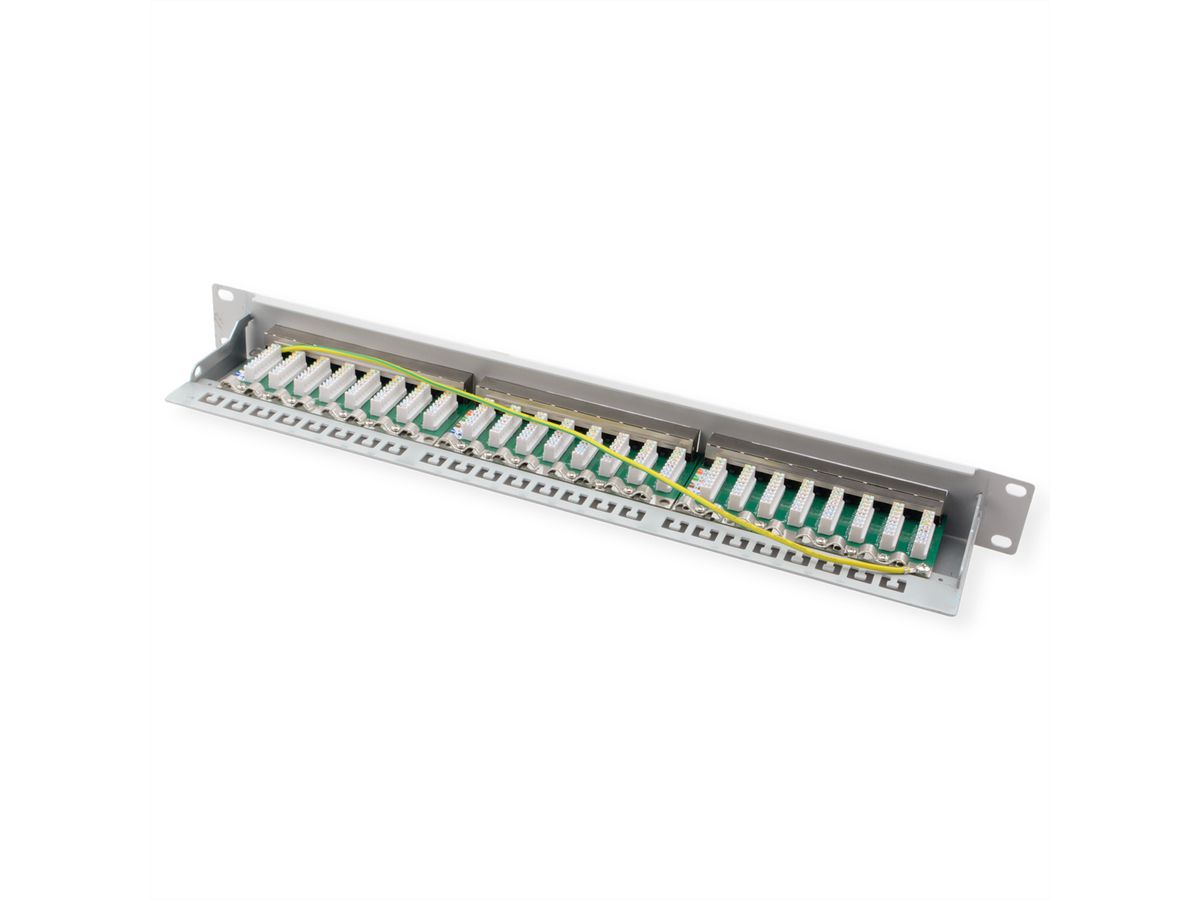

- Cable assembly takes place using LSA plus piercing terminals with colour coding on the top in accordance with EIA/TIA 568A
- Separate strain relief
- For 22-26 AWG Cable
- Colour: light grey
Specifications
| Manufacturer | VALUE |
|---|---|
| Product group | Connection technology TP |
| Product type | Patchpanel Cat.6A / Class EA |
| Colour | grey |
| Shield type | Screened |
| Transfer quality | Cat6A / Class EA |
| Cabinet system | 19"-Technique |
| Quantity of ports | 24 |
| Assembly cable connection | Krone LSAplus |
| Assignment | EIA/TIA 568A & 568B |
| Material (casing) | Metal |
| Shield contacts | ja |
| separate strain relief | yes |
| Height units | 1 U |
| RAL colour | RAL 7035 Light grey |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 60 °C |
| Storage temperature min. | -40 °C |
| Storage temperature max. | 70 °C |
| Height | 44.2 mm |
| Width | 482.6 mm |
| Depth | 88 mm |
| Weight | 1510 g |
| Height of packaging (single piece) | 60 mm |
| Width of packaging (single piece) | 160 mm |
| Depth of packaging (single piece) | 500 mm |
| Package weight (single piece) | 1.6 kg |
| Scope of delivery | Patch Panel, Mounting Material, Installation Instructions |
| Dimensions (HxWxD) | 44,2 x 482,6 x 88 mm |
