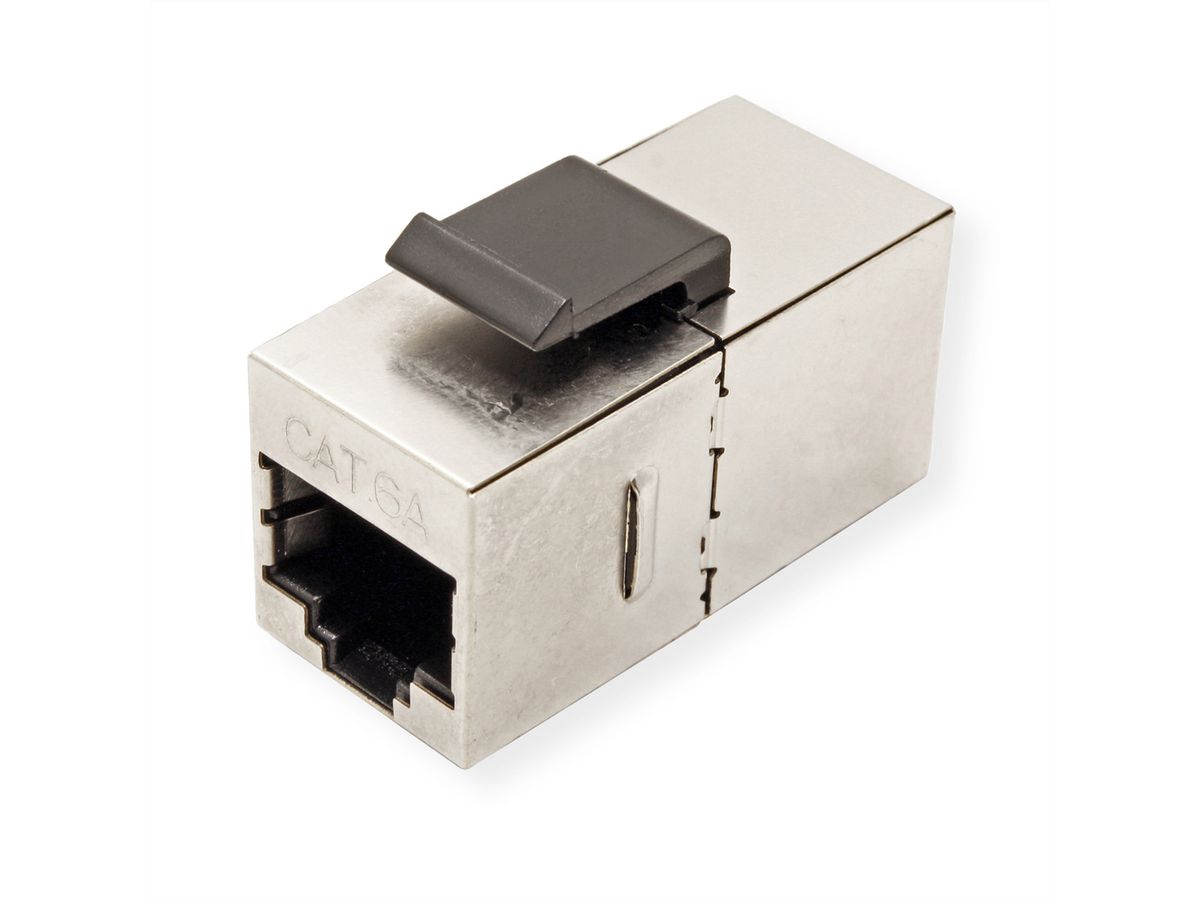

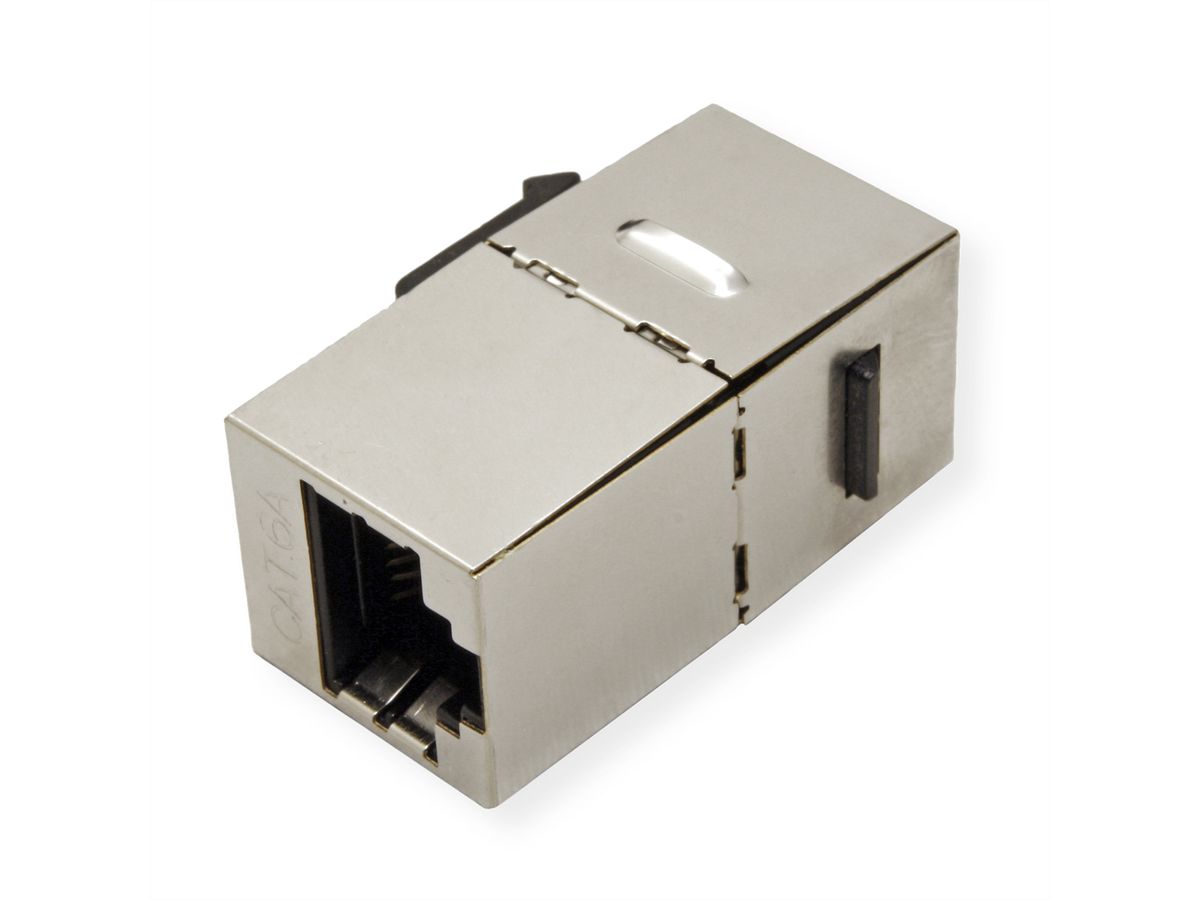

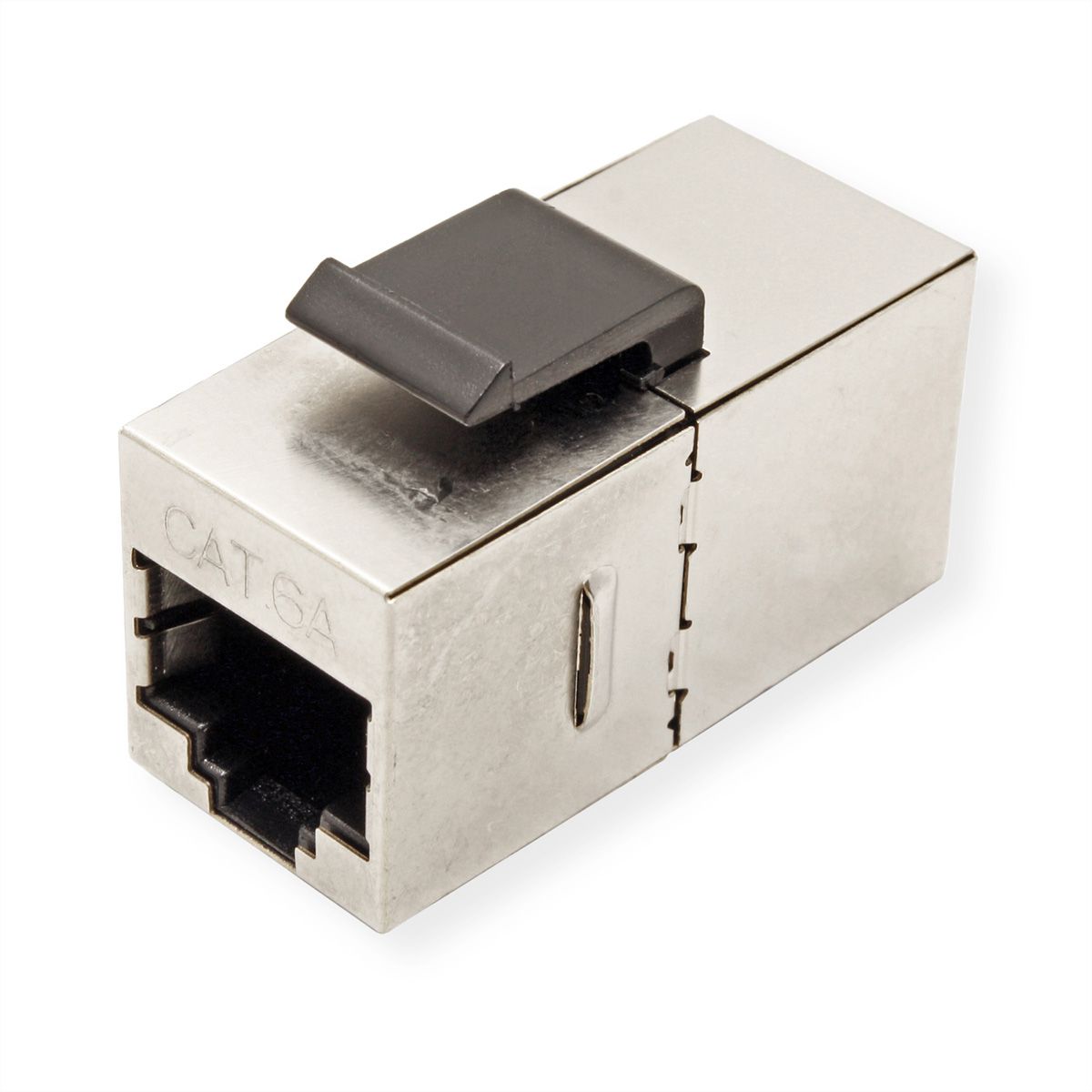

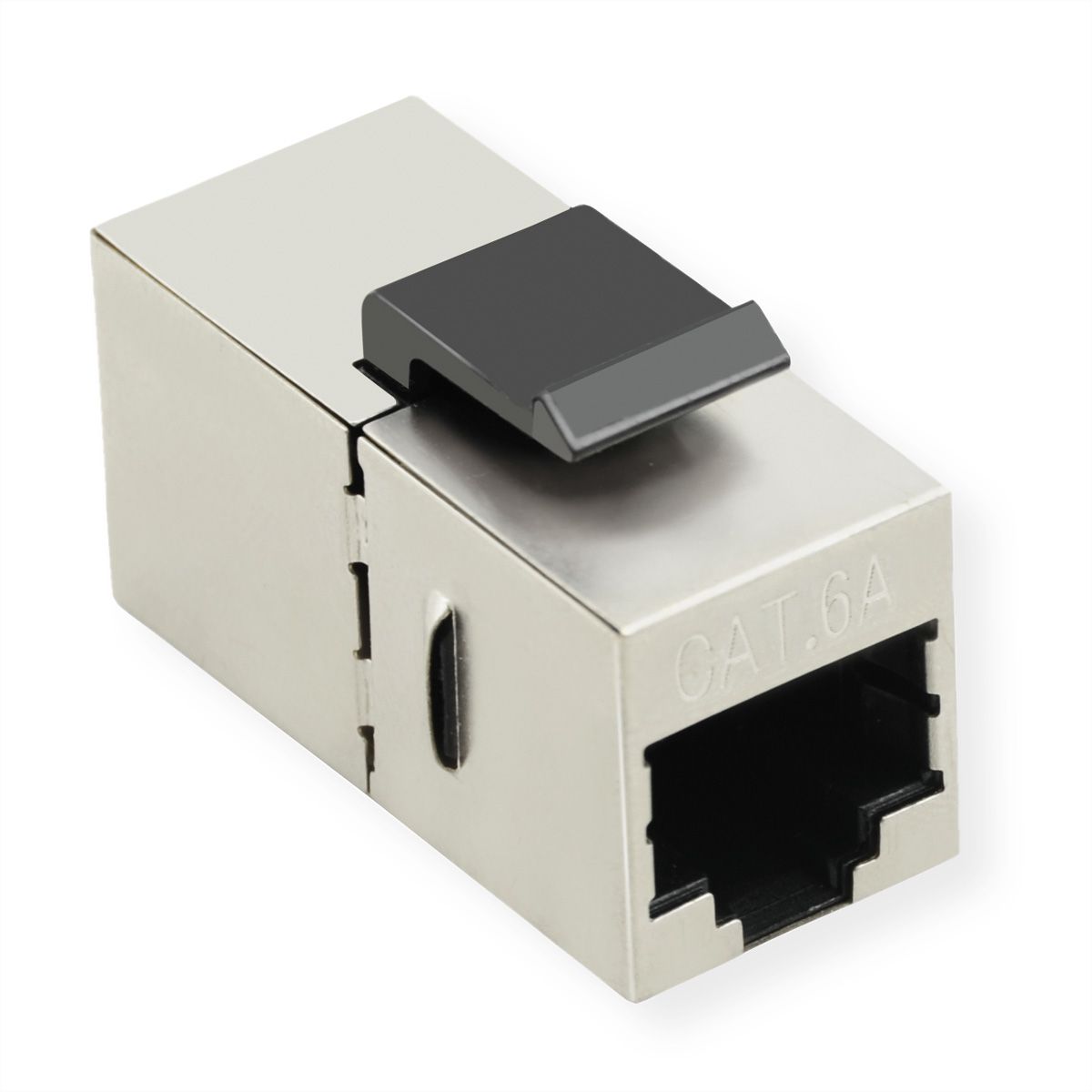

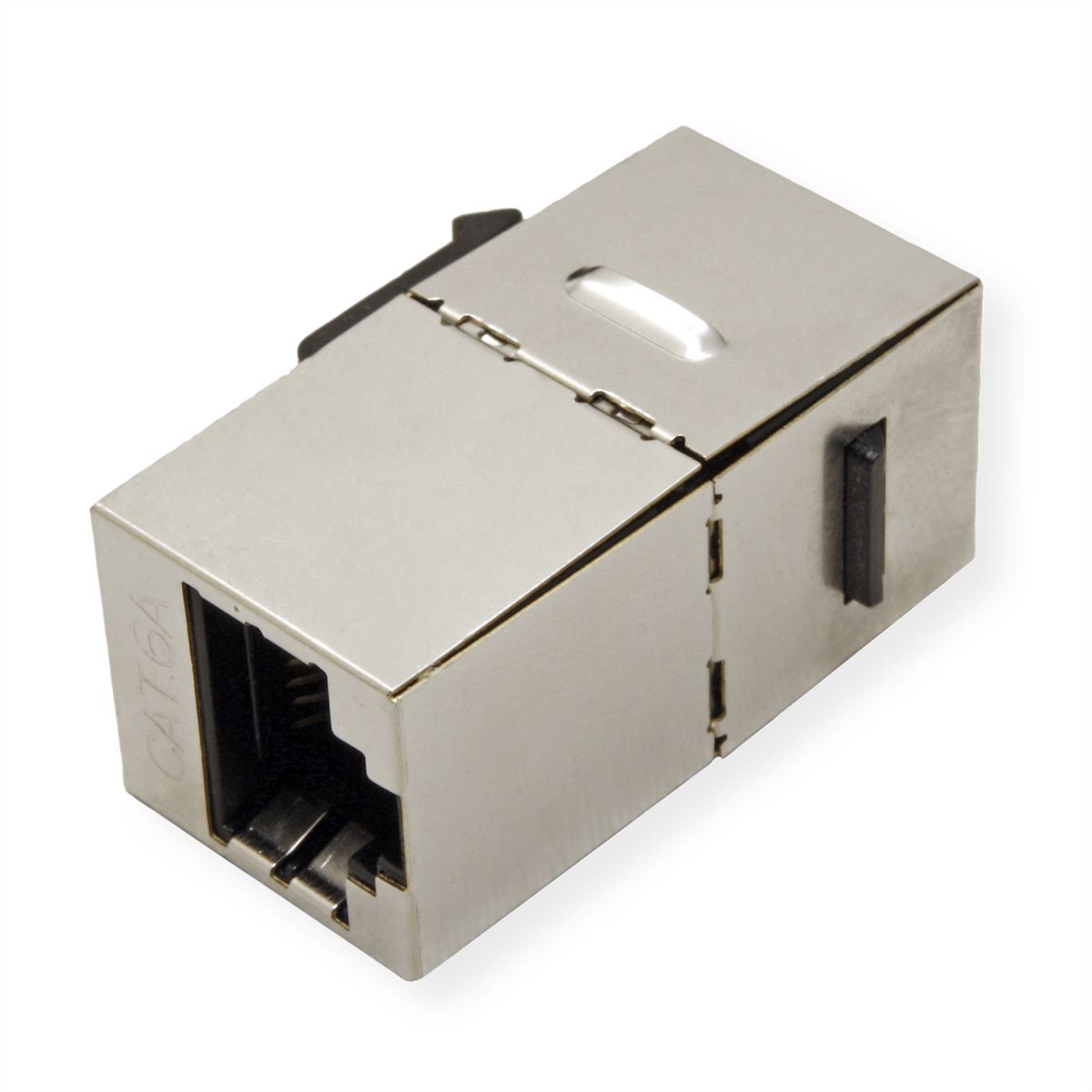

VALUE Cat.6A (Class EA) Keystone Modular Coupler, STP

Item no. 21993006 Brand / Manufacturer VALUE Manuf. item no. 21.99.3006 EAN 7630049615458 Item weight 0.02 kg
VALUE

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 09/10/2026
Download PDF

Description

Shielded Keystone connector in CAT. 6a for connection or extension of RJ-45 network cables

  • Shielded RJ-45 connector for extending twisted pair cables
  • Suitable for Keystone panels and junction boxes
  • Suitable for Cat.6A cabling up to 500 MHz
  • Entire metal housing for signal protection against electromagnetic interference
  • 8 contacts, 1:1 connected
  • Narrow form factor for space-constrained environments

Specifications

Manufacturer
VALUE
Product group
Connection technology TP
Product type
RJ-45 coupling
Colour
silver
Shield type
Screened
Transfer quality
Cat6A / Class EA
Quantity of ports
1
Assignment
EIA/TIA 568A
Material (casing)
metal
Shield contacts
yes
separate strain relief
no
Connection direction
Straight
Technical particularity
1 : 1 connected
Operating temperature min.
-10 °C
Operating temperature max.
60 °C
Height
16 mm
Width
14.6 mm
Depth
30 mm
Weight
7.8 g
Height of packaging (single piece)
10 mm
Width of packaging (single piece)
20 mm
Depth of packaging (single piece)
20 mm
Package weight (single piece)
0.02 kg

Downloads

Product data sheet - English (47.6 KB) Manufacturer data sheet - English (109.0 KB)
