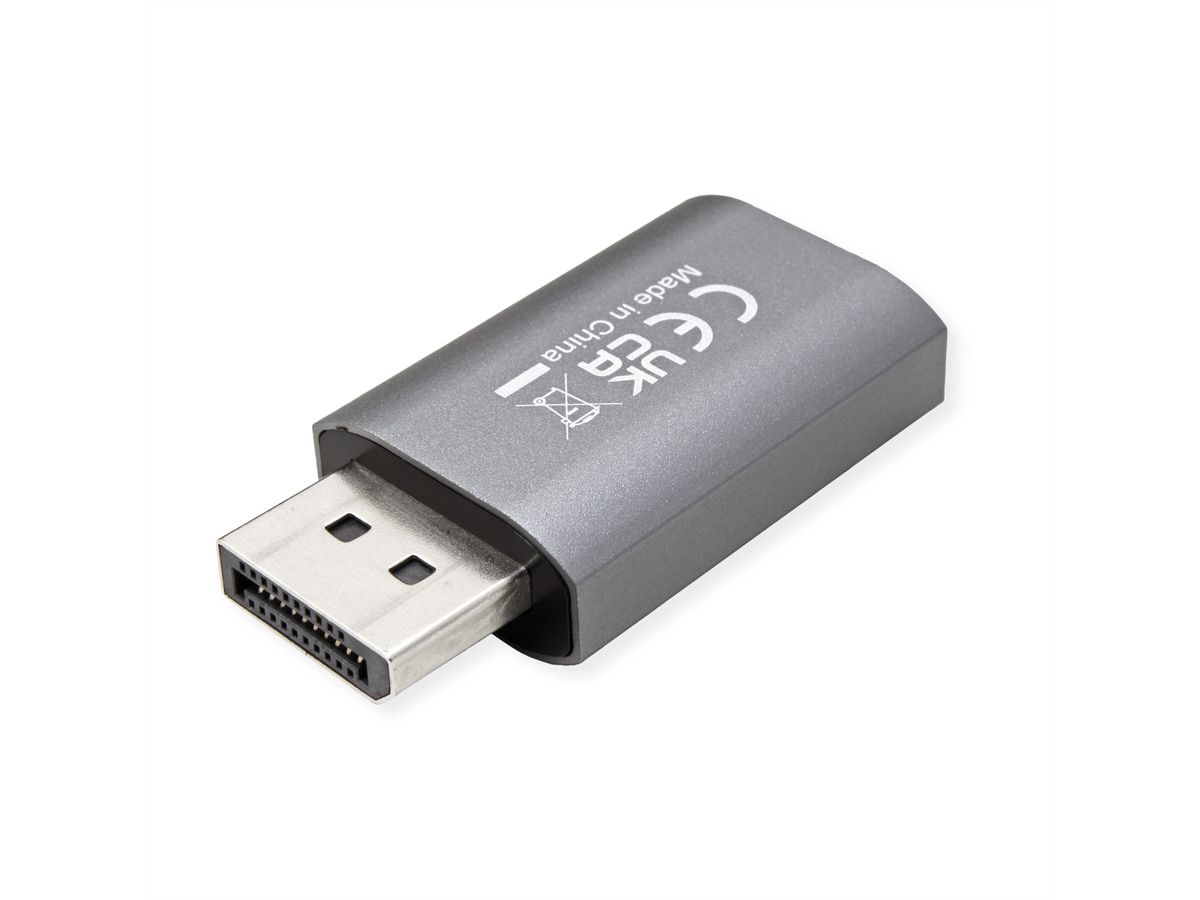

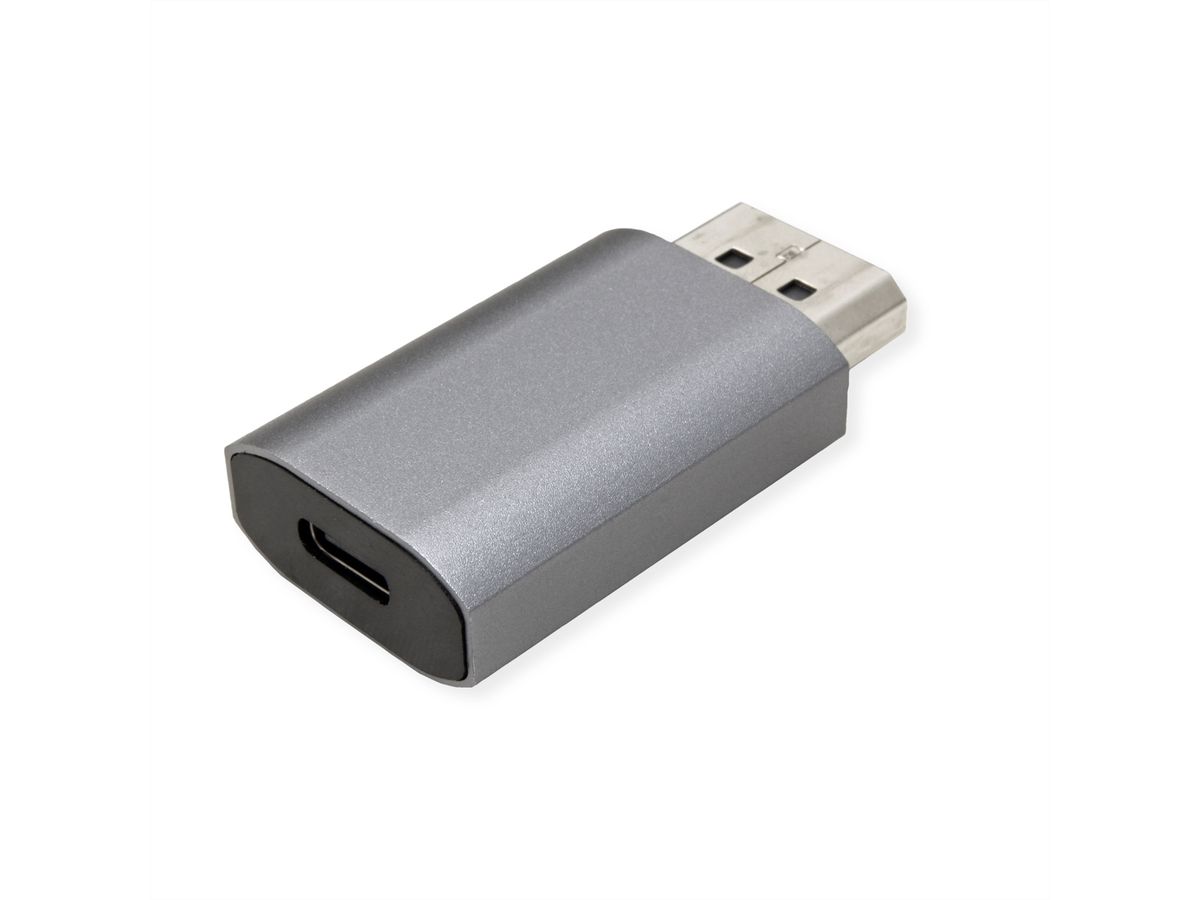

VALUE DisplayPort to Type C Adapter, Bi-directional, 8K60Hz
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
LoginDescription

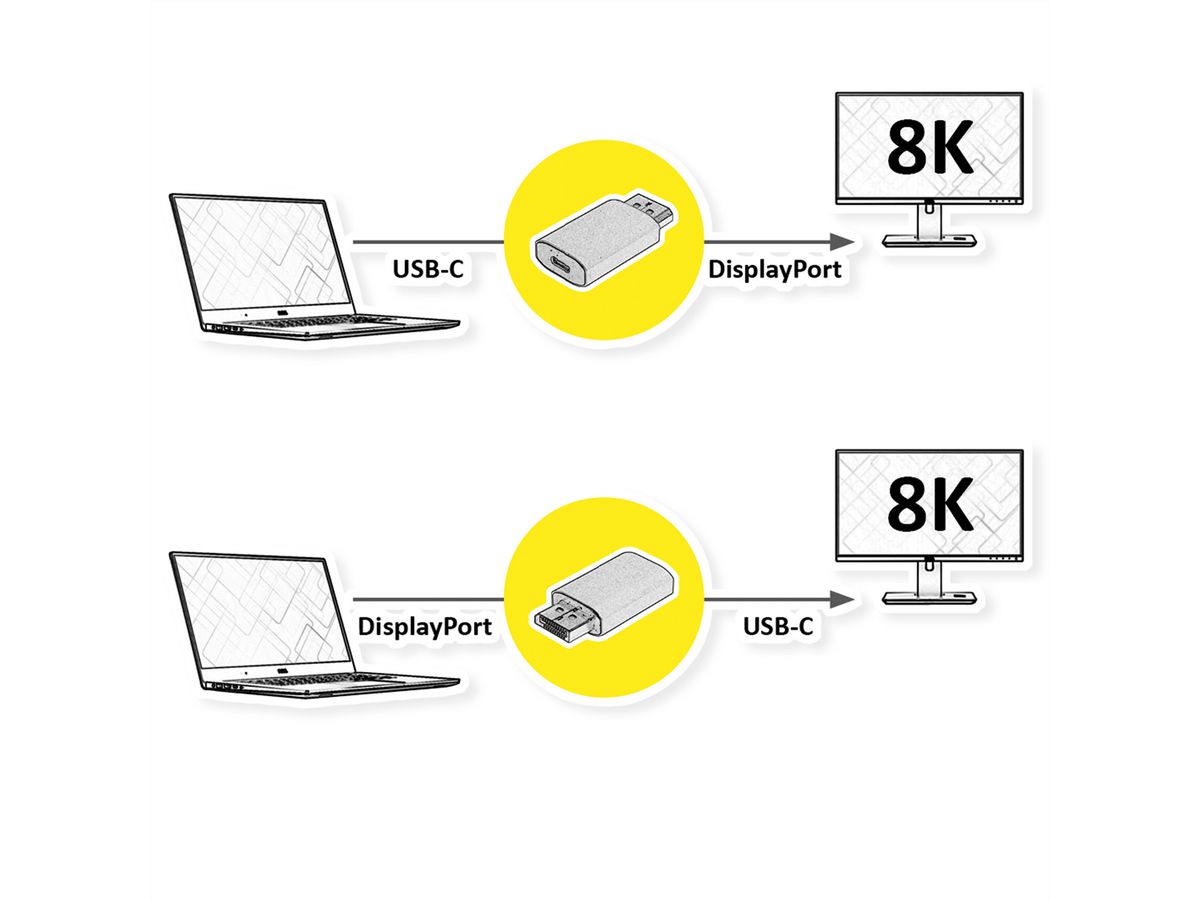

Bidirectional DisplayPort to USB Type-C Adapter with up to 8K@60Hz - works in BOTH signal directions.
- Bidirectional adapter - works in BOTH signal directions
- Requires the support of DisplayPort Alternate Mode on the USB Type C connection (laptop / PC / monitor)
- Plug & Play
- No additional power supply needed
- Max. resolution: 7680 x 4320 @60Hz
- Supports 3840 x 2160 @144Hz
- Connectors: DisplayPort male and Type-C female
Remark: Support of "Alternate Mode (DP Alt Mode)" required
Specifications
| Manufacturer | VALUE |
|---|---|
| Product group | Adapters, Terminators, Converters |
| Product type | USB-DisplayPort Adapter |
| Colour | silver |
| Max. resolution | 7680 x 4320 @60Hz (8K, UHD-2) |
| Side 1 connection (PC) | DisplayPort Male |
| Side 2 connection (Peripherals) | Type C Female |
| Side 1 Connector Type | DisplayPort |
| Side 1 Connector Gender | Male |
| Side 2 Connector Type | USB Type C (USB-C) |
| Side 2 Connector Gender | Female |
| Area of application | External |
| Technical particularity | DisplayPort versie 1.2 |
| Height | 11 mm |
| Width | 23 mm |
| Depth | 46 mm |
| Weight | 12 g |
| Height of packaging (single piece) | 10 mm |
| Width of packaging (single piece) | 20 mm |
| Depth of packaging (single piece) | 50 mm |
| Package weight (single piece) | 0.025 kg |
| Scope of delivery | Adapter |
| Conversion direction | bidirectional |
| Dimensions (HxWxD) | 11 x 23 x 46 mm |
