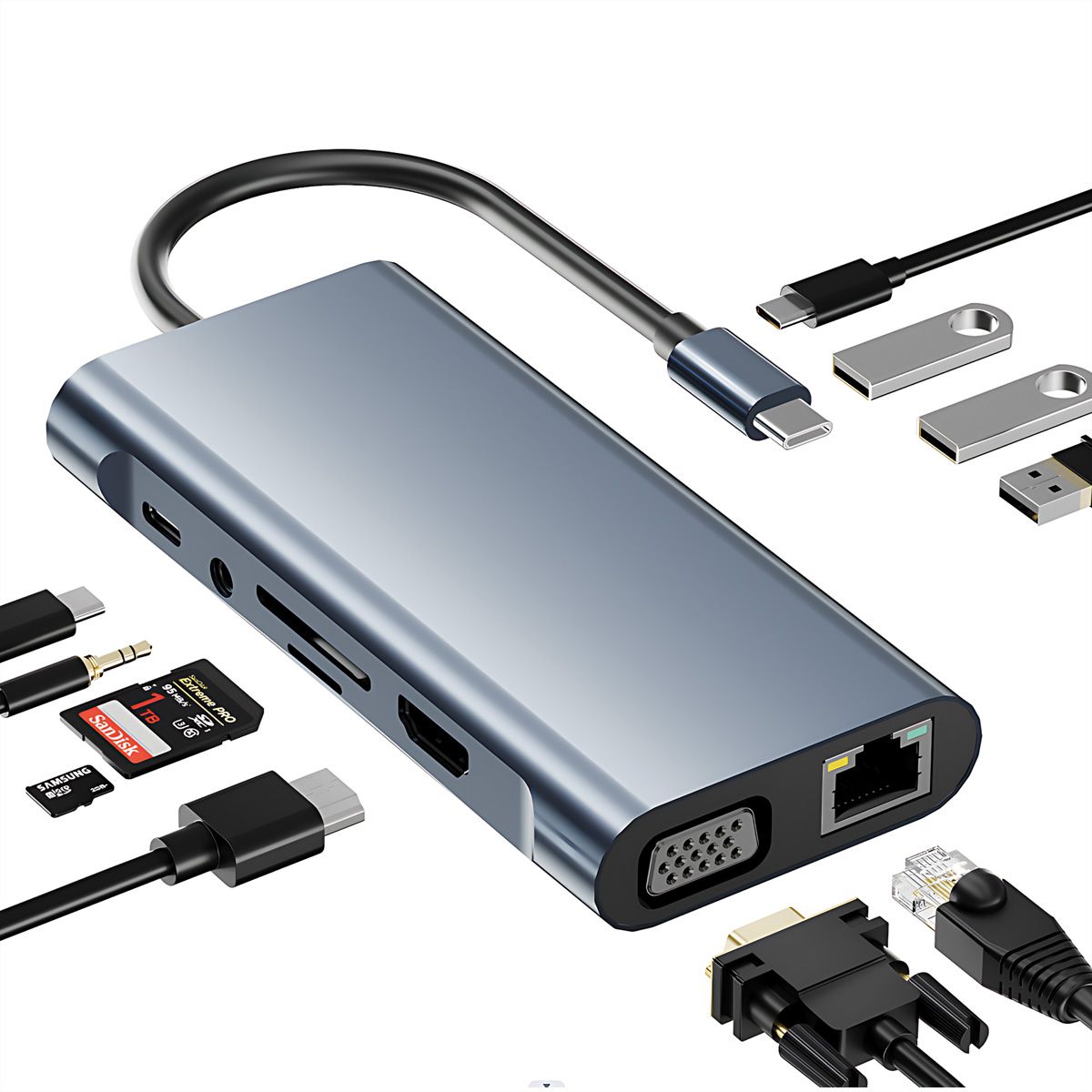

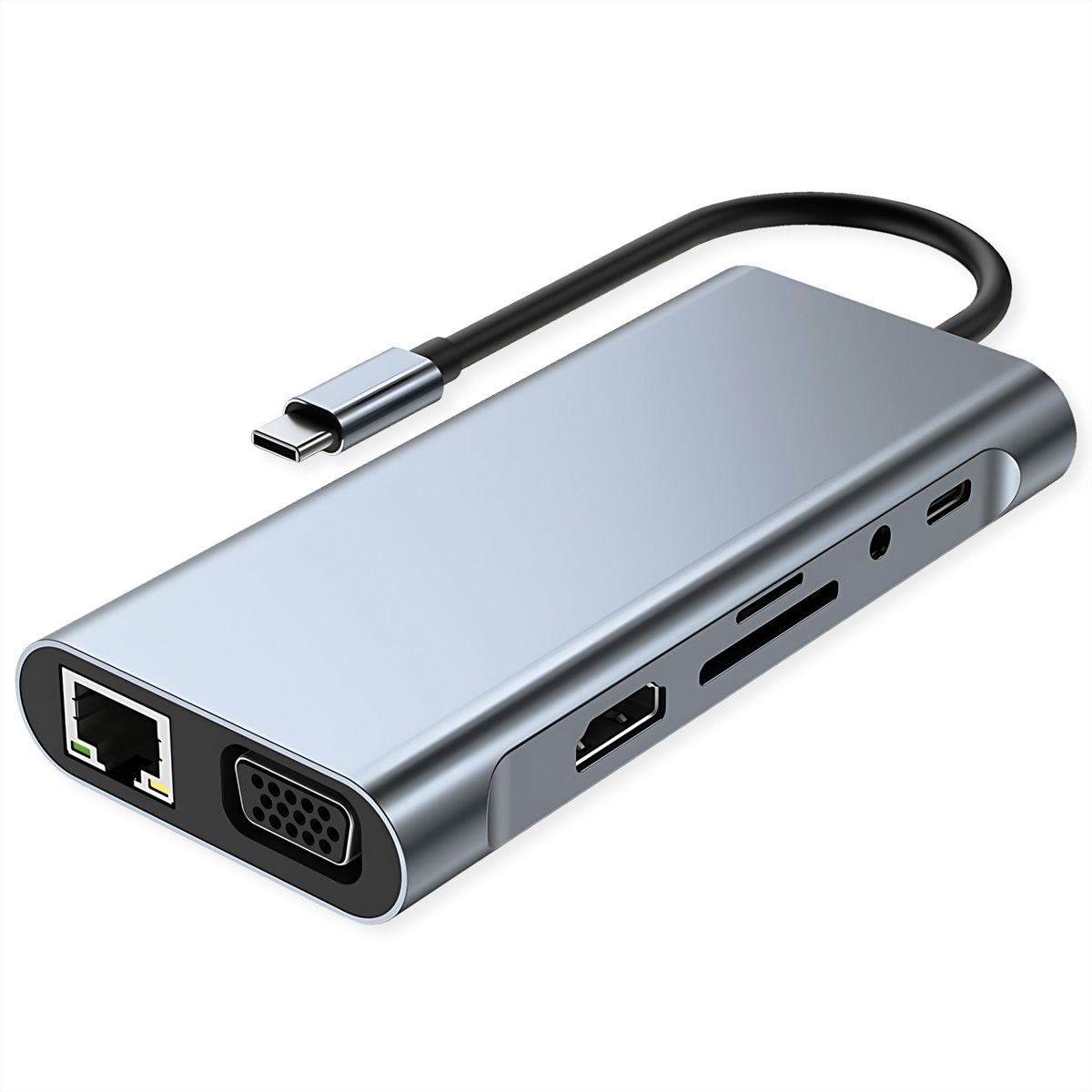

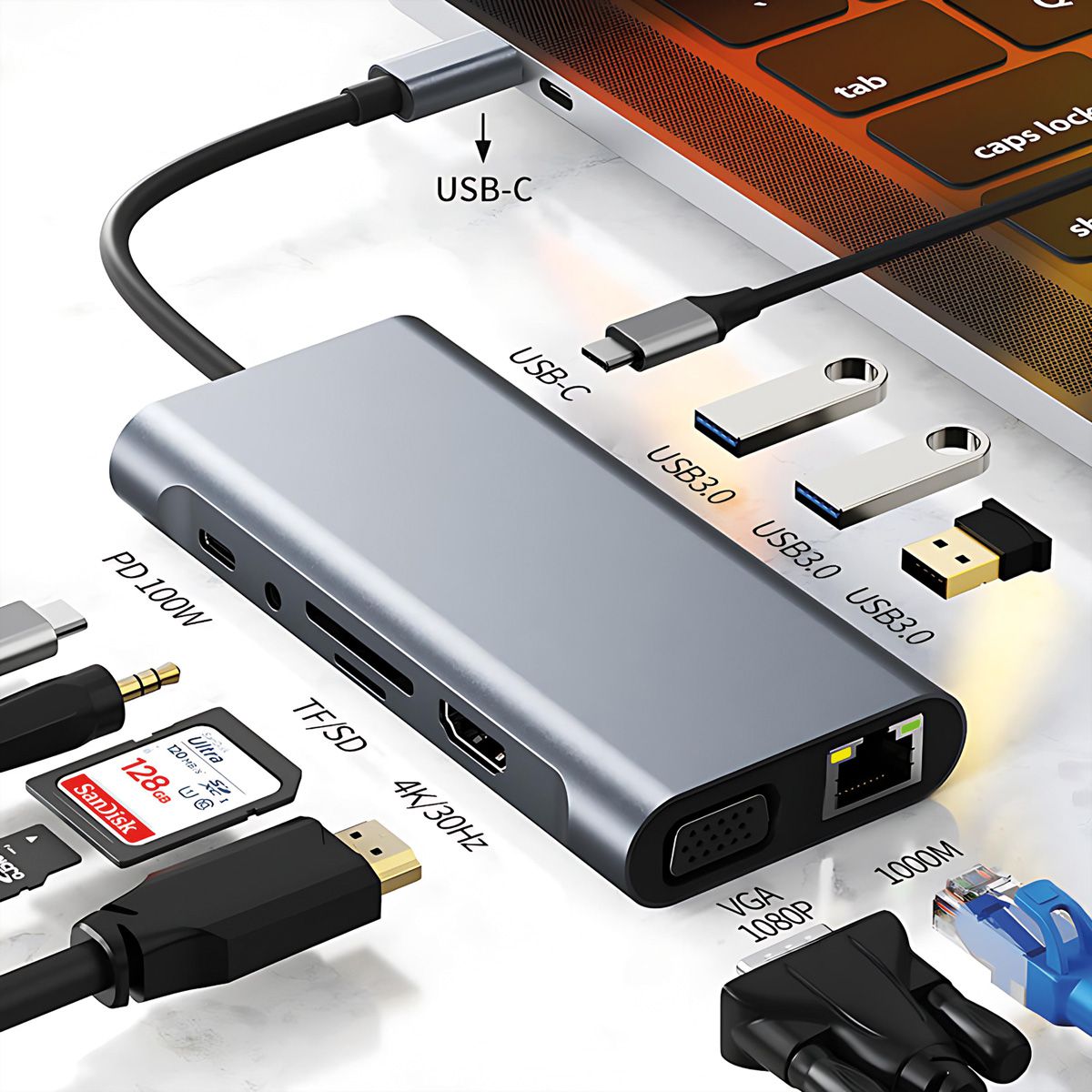

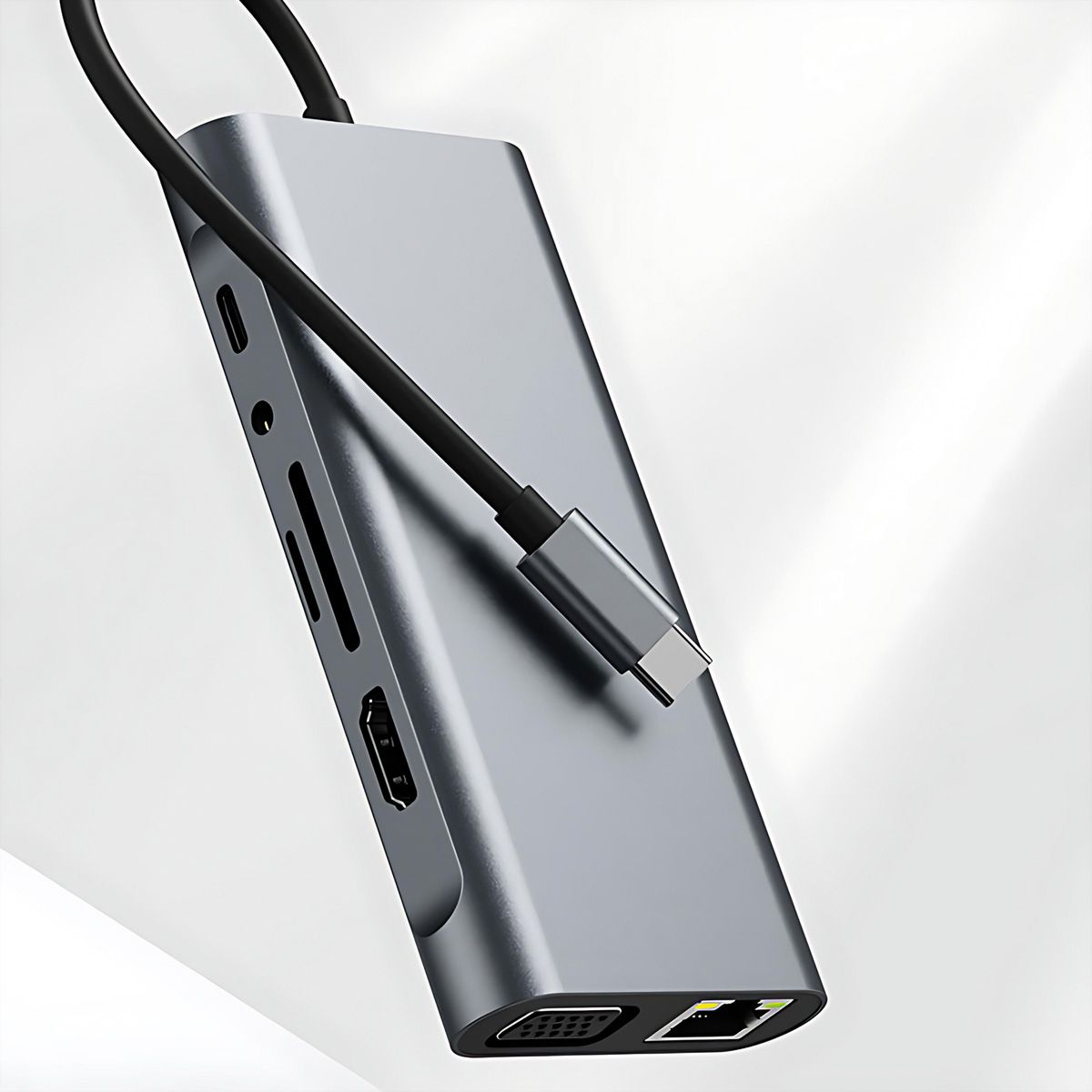

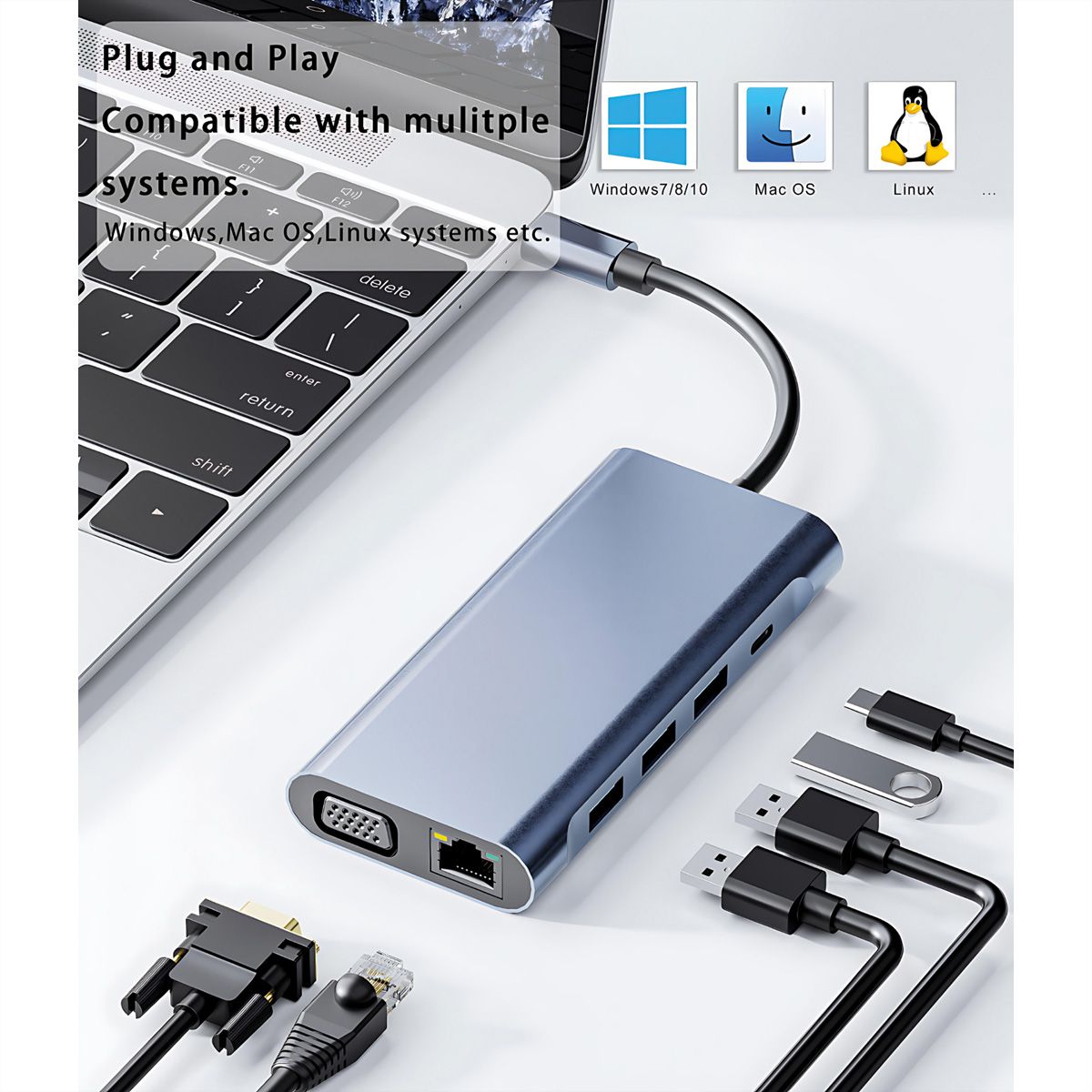

VALUE Dockingstation Type C, 1x HDMI 4K30, 1x VGA 1080p, 1x Gigabit Ethernet, 3x USB 3.2 Gen1 (A), 1x USB 2.0 (C), 1x SD/TF, 1x Audio, 1x Type C PD (Power Delivery)

Item no. 12991143 Brand / Manufacturer VALUE Manuf. item no. 12.99.1143 EAN 7630049640771 Item weight 0.1 kg
VALUE

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day

Description

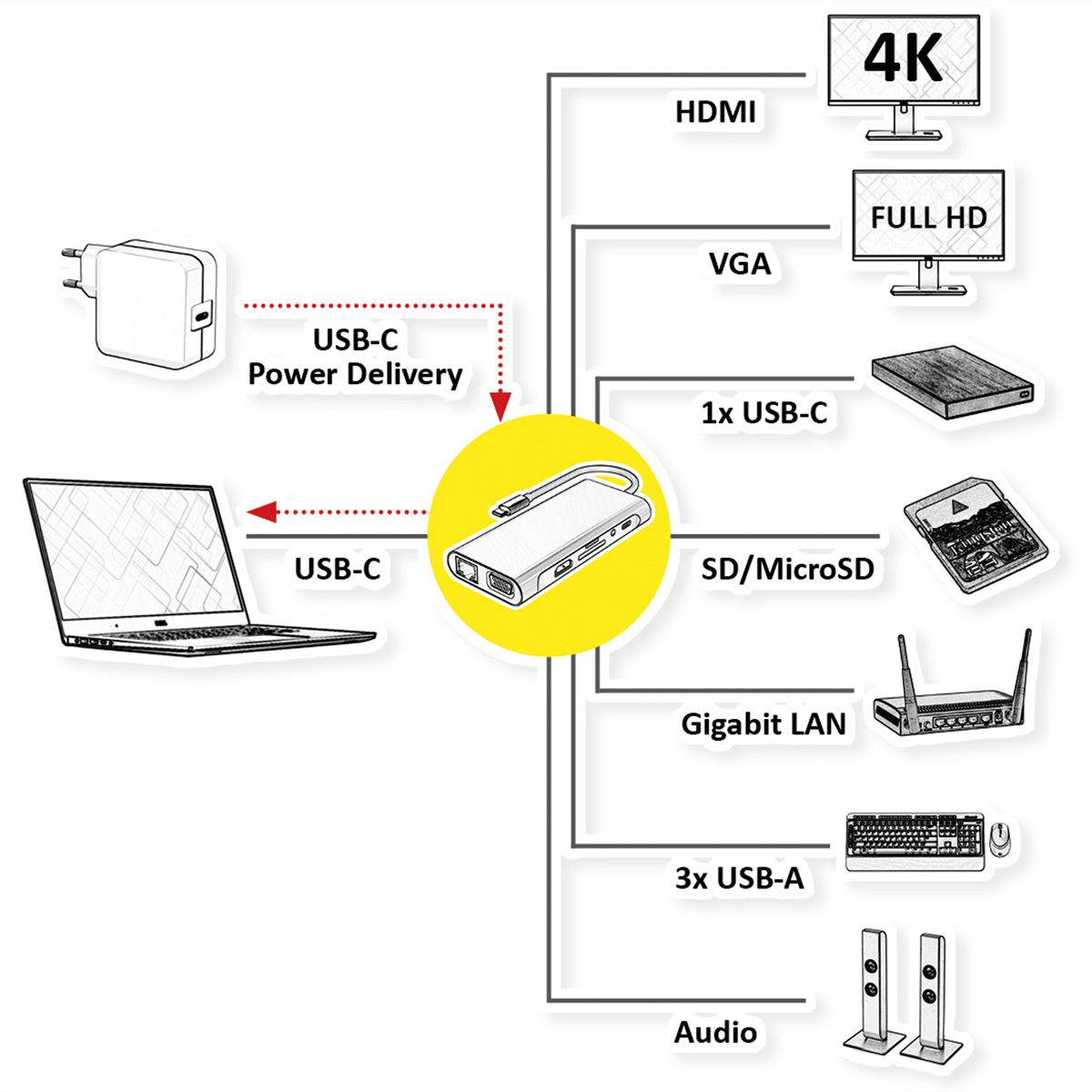

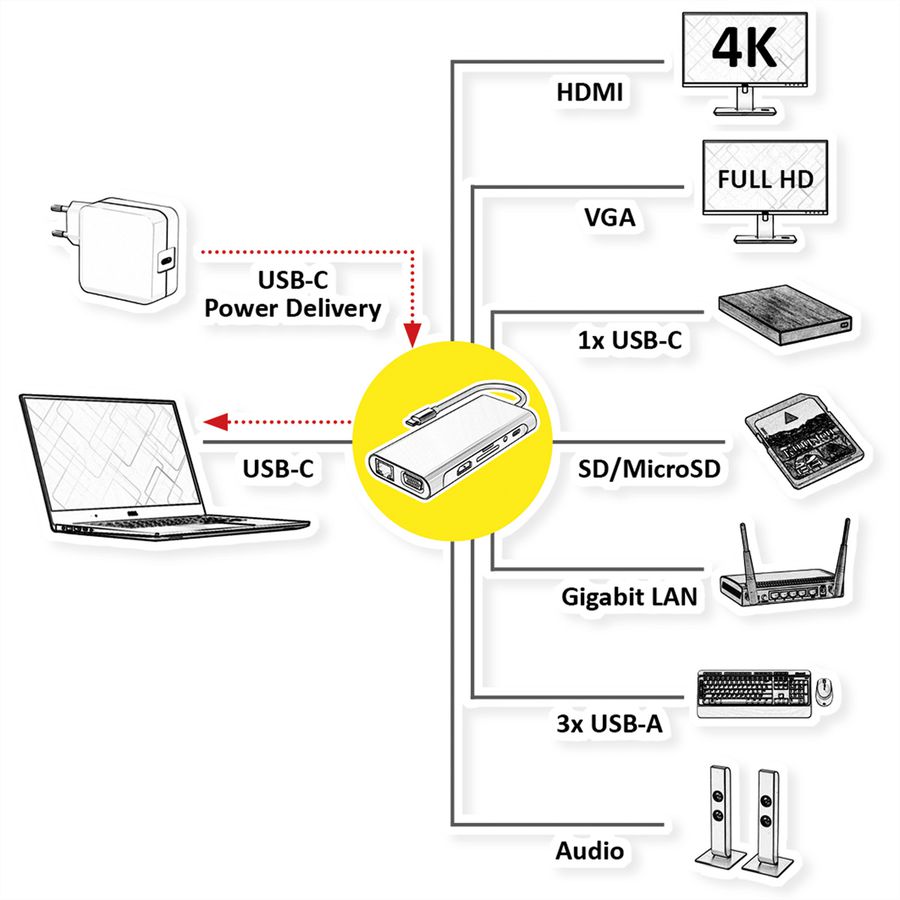

Connect your Macbook, Ultrabook, Notebook/Laptop or PC with USB Type C interface to HDMI (3840x2160@30Hz) or VGA (1080p) displays/monitor or projectors. Also, you can connect USB devices to the additional 4 USB Ports (3x A, 1x C), while charging your device simultaneously over the Type C PD port!

  • Connect your device with USB Type C port to a HDMI or VGA display/monitor or projector
  • 1x HDMI (3840x2160 @30Hz) and 1x VGA (1920x1080 @60Hz)
  • 1x Gigabit Ethernet (GbE - 1000MBit/s)
  • 3x USB-A 3.2 Gen 1 (5Gbit/s) + 1x USB-C 2.0 (480Mbit/s)
  • SD/Micro SD (TF) Card Reader (cannot be supported at the same time)
  • 1x 3.5mm Audio Out
  • USB Type C PD (Power Delivery) up to 100 Watts
  • No power adapter required

Remark: Support of "Alternate Mode (DP Alt Mode)" required

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer
VALUE
Product group
Adapters, Terminators, Converters
Product type
Notebook-Docking-Station
Colour
grey
Length
0.1 m
Scope of delivery
Docking Station
Max. resolution
3840 x 2160 @30Hz (4K, Full HD)
Side 1 connection (PC)
USB Type C
Side 2 connection (Peripherals)
1x HDMI 4K30, 1x VGA 1080p, 1x Gigabit Ethernet, 3x USB 3.2 Gen1 (A), 1x USB 2.0 (C), 1x SD/MicroSD (TF), 1x Audio Out, 1x Type C PD (Power Delivery)
Side 1 Connector Type
USB Type C (USB-C)
Side 1 Connector Gender
Male
Side 2 Connector Type
  • HDMI Type A
  • HD D-Sub 15-pin (HD-15), VGA
  • USB 3 Type A
  • USB Type C (USB-C)
  • USB Type C PD (Power Delivery)
  • RJ-45
  • SD-Card-Slot
  • MicroSD-Card-Slot
Side 2 Connector Gender
Female
Area of application
External
Dimensions (HxWxD)
17 x 56 x 119 mm
Technical particularity
Power Delivery Function (100W)
Height
17 mm
Width
56 mm
Depth
119 mm
Weight
91 g
Height of packaging (single piece)
10 mm
Width of packaging (single piece)
120 mm
Depth of packaging (single piece)
170 mm
Package weight (single piece)
0.1 kg

Downloads

Product data sheet - English (65.8 KB)
