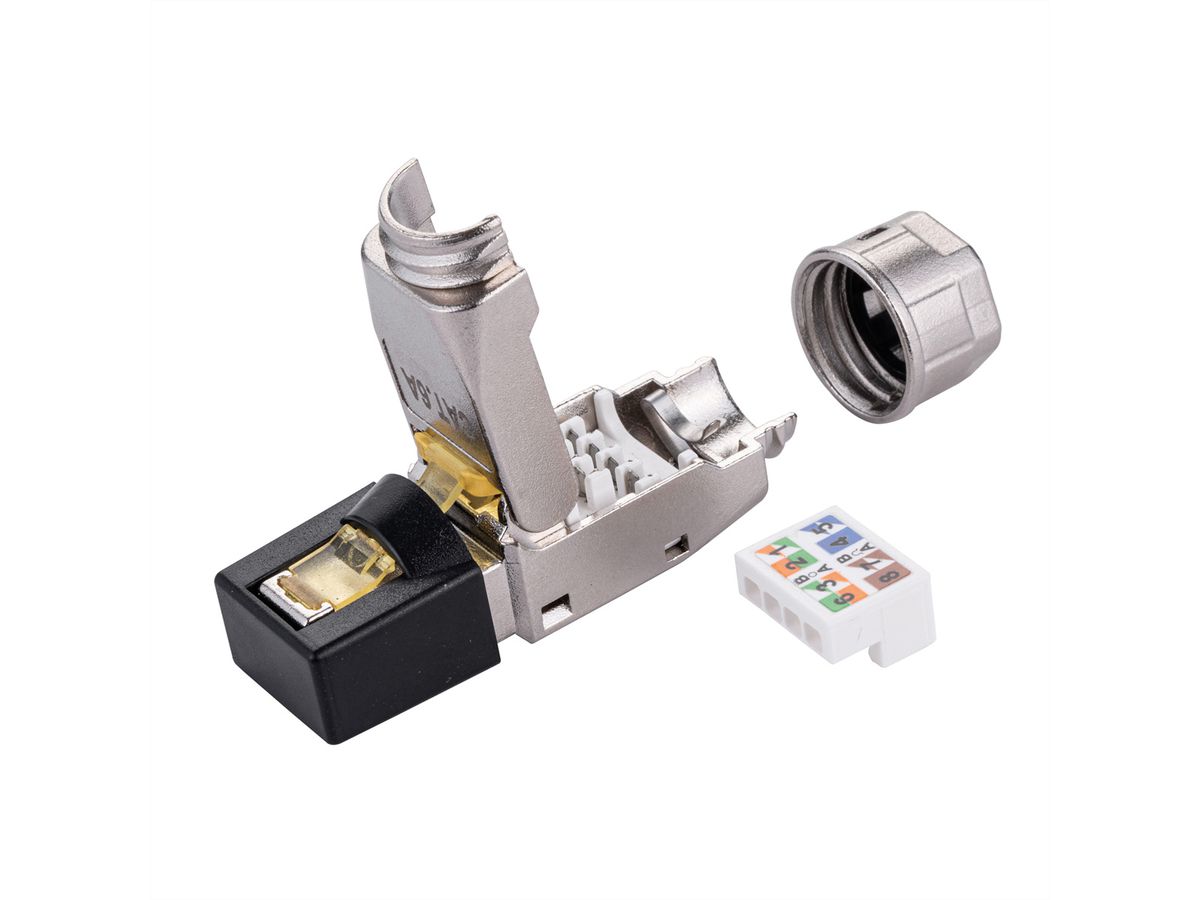

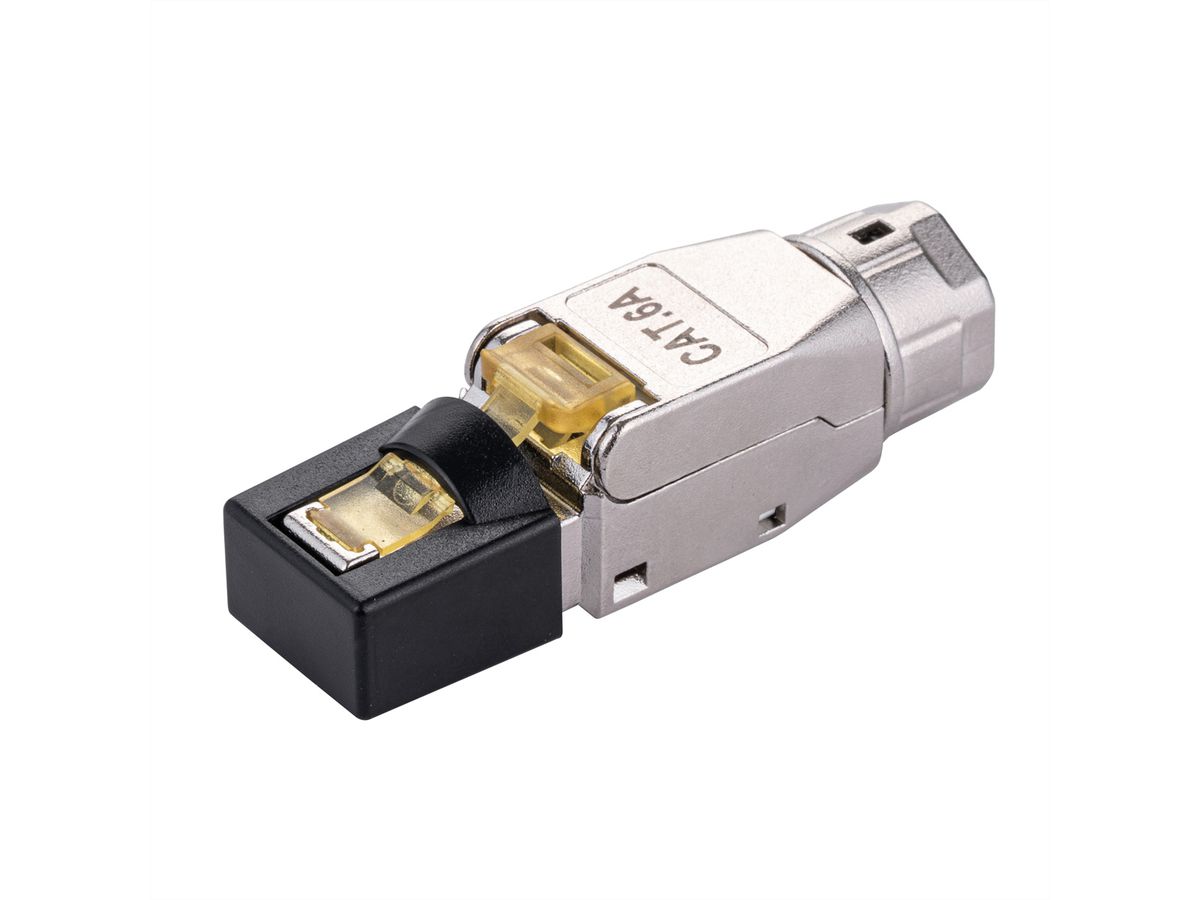

VALUE Field Plug Cat.6A/Class EA, shielded, short screw
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 26990374 |
|---|---|
| Brand / Manufacturer | VALUE |
| Manuf. item no. | 26.99.0374 |
| EAN | 7630049639089 |
| Item weight | 0.015 kg |
:strip_icc():strip_exif()/logos/value.png "VALUE")
Description
Field Plug Cat.6A/Class EA, shielded, with short screw - for fast and easy tool-free installation
- Shielded RJ45 field plug with Cat.6A / Class EA performance
- For round solid cables with AWG26/1 to AWG23/1 (wire diameter from 0.9 to 1.6mm)
- Fast and easy installation - no special tool required
- Pair management according to TIA 568B and TIA 568A color codes
- Fully shielded with zinc alloy housing
- Strain relief through cable gland
- The ring ensures 360° forwarding of the cable shielding to the plug shielding.
- Color: silver
Specifications
| Manufacturer | VALUE |
|---|---|
| Product group | Connection technology TP |
| Product type | Connectors RJ-45 |
| Colour | silver |
| Shield type | Screened |
| Transfer quality | Cat6A / Class EA |
| Quantity of ports | 1 |
| Side 1 Connector Type | RJ-45 |
| Side 1 Connector Gender | Male |
| Shield contacts | ja |
| separate strain relief | yes |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 60 °C |
| Storage temperature min. | -40 °C |
| Storage temperature max. | 70 °C |

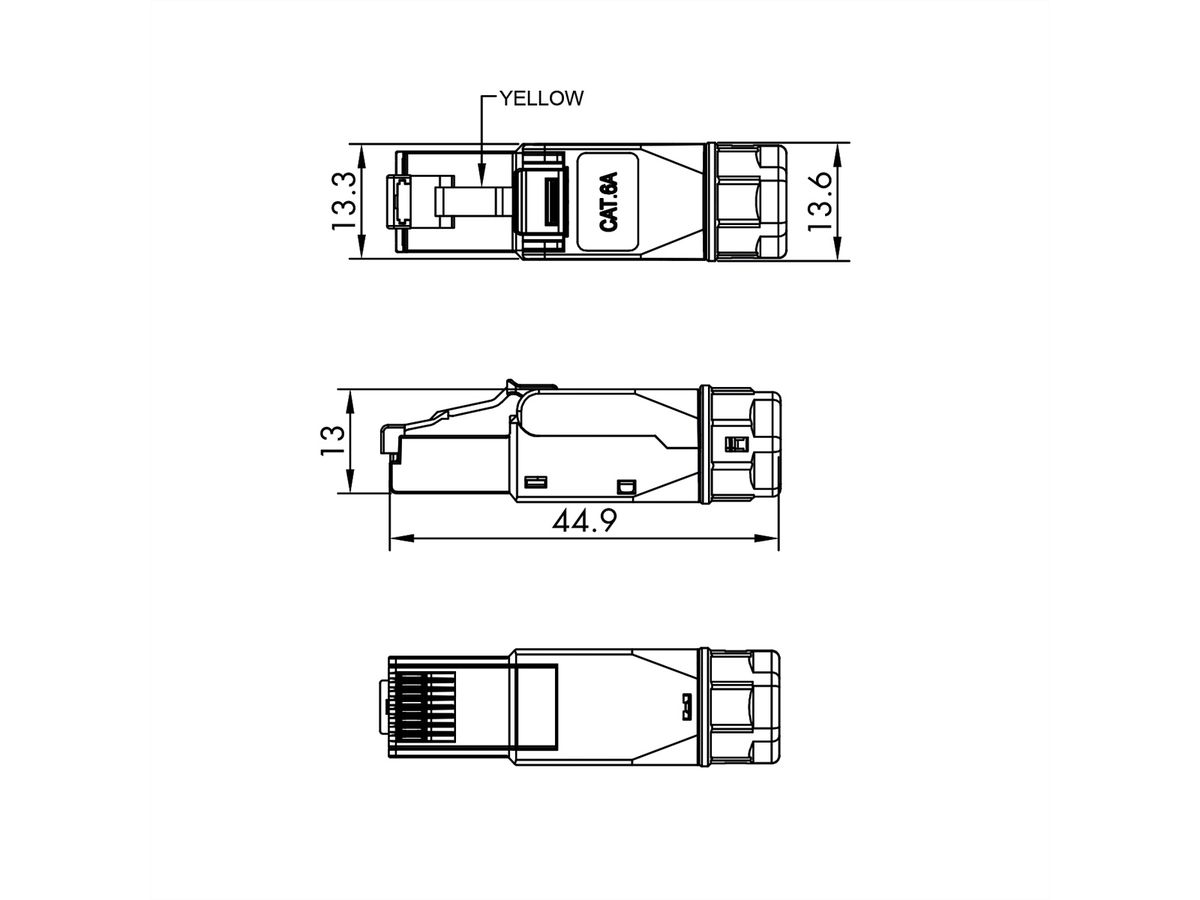

| Height | 13 mm |
| Width | 13.6 mm |
| Depth | 44.9 mm |
| Weight | 15 g |
| Height of packaging (single piece) | 10 mm |
| Width of packaging (single piece) | 100 mm |
| Depth of packaging (single piece) | 120 mm |
| Package weight (single piece) | 0.015 kg |
| Scope of delivery | Field Plug |
| Material (casing) | Zinc alloy |
| Dimensions (HxWxD) | 13 x 13.3 x 44.9 mm |
