VALUE HDMI Extender, IPCOLOR over IP, 4K60Hz, 120 m

Item no. 14993568 Brand / Manufacturer VALUE Manuf. item no. 14.99.3568 EAN 7630049633377 Item weight 1 kg

VALUE HDMI Extender, IPCOLOR over IP, 4K60Hz, 120 m

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Download PDF

Description

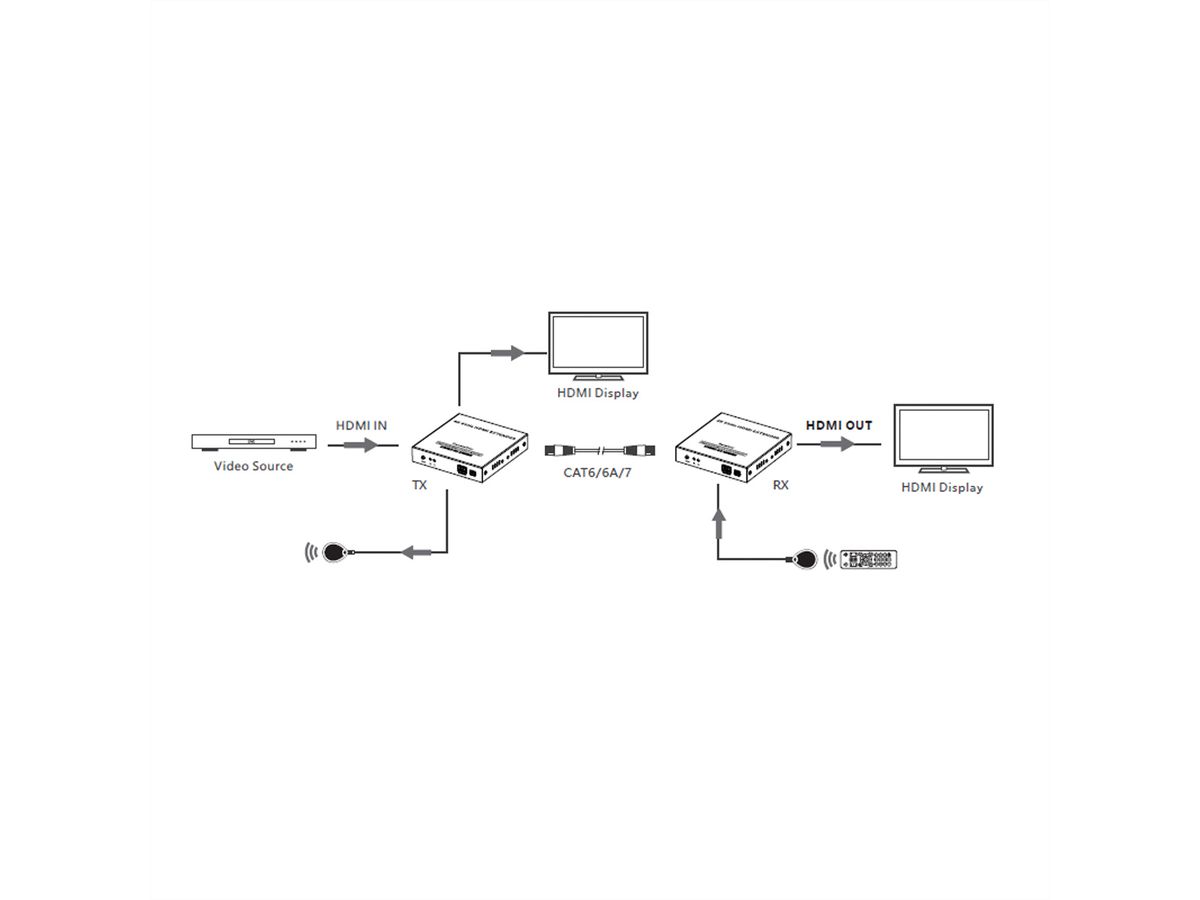

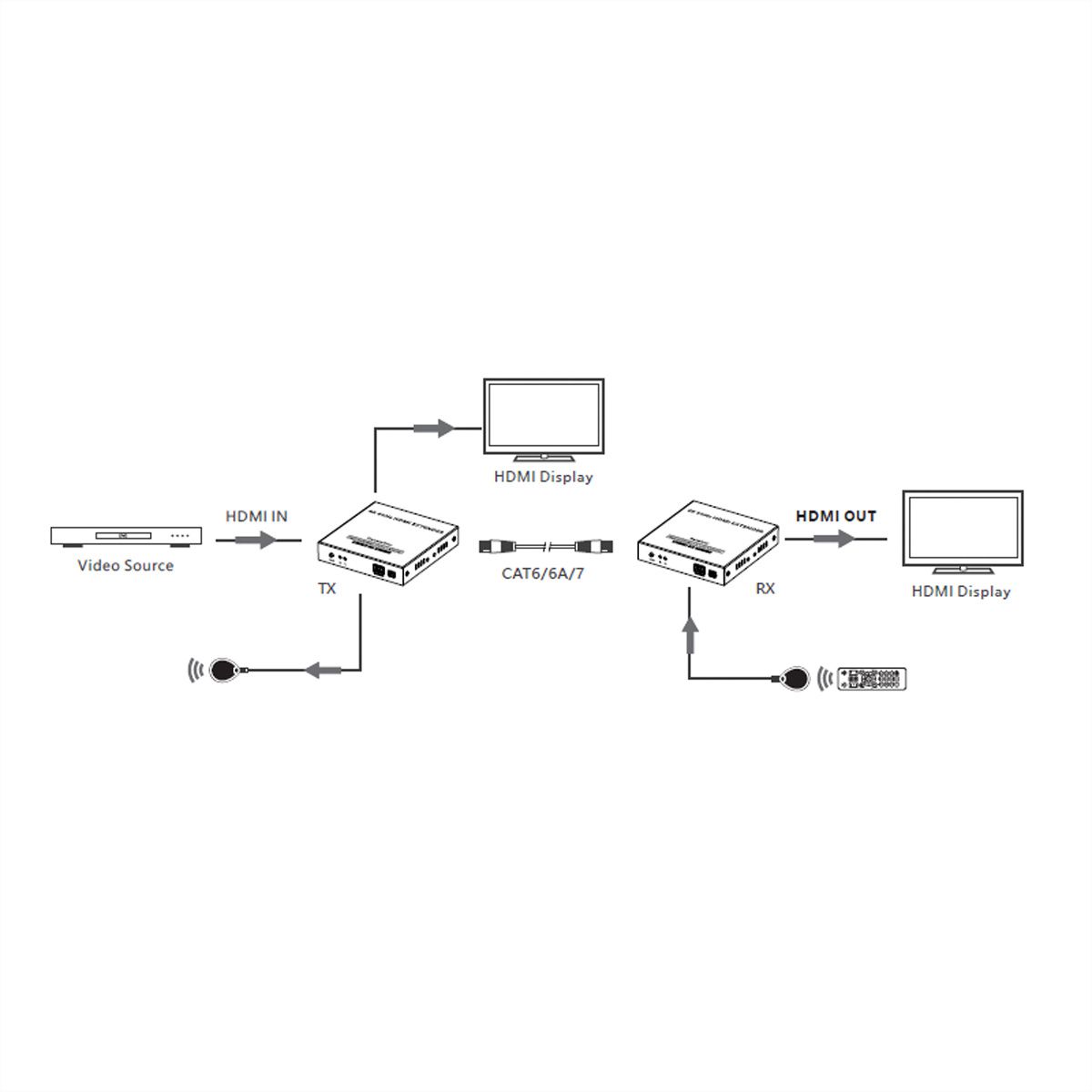

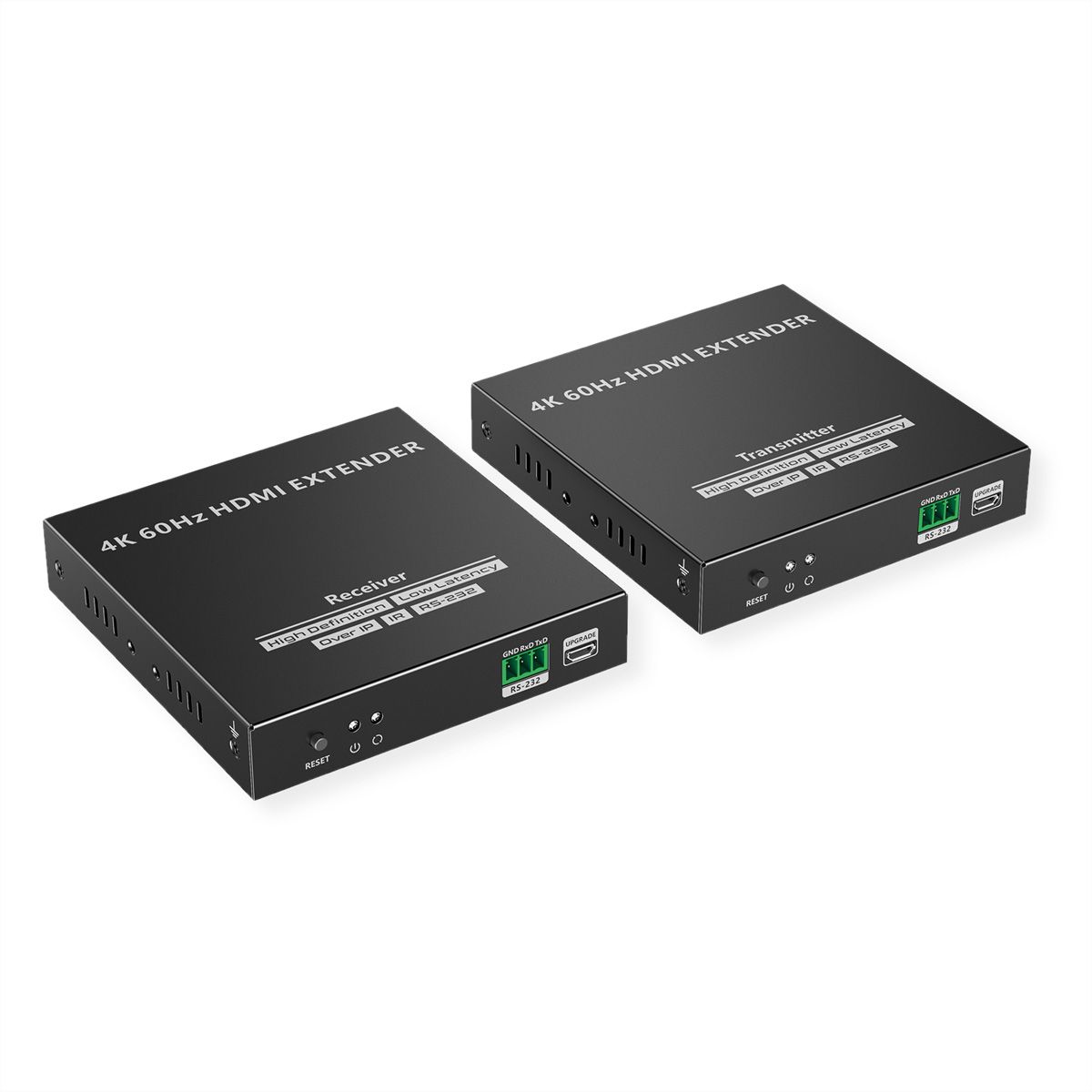

This is a 4K@60Hz HDMI extender kit, consisting of a transmitter and a receiver, using ipcolor STREAM technology for high resolution, low latency transmission. The 4K@60Hz HDMI signal can be extended up to 120m via Category 6 or higher network cables. One-to-one connections, one-to-many connections via gigabit switches or one-to-many connections via gigabit switch cascades are supported. Also HDMI loop-out, IR passback and RS-232 pass-through functions are supported. This extender kit is perfect for meetings, home entertainment, educational presentations and many other areas.

Supports up to 3840 x 2160@60Hz resolution, backwards compatible
Compatible with Cat5/5e/6 or above network cables

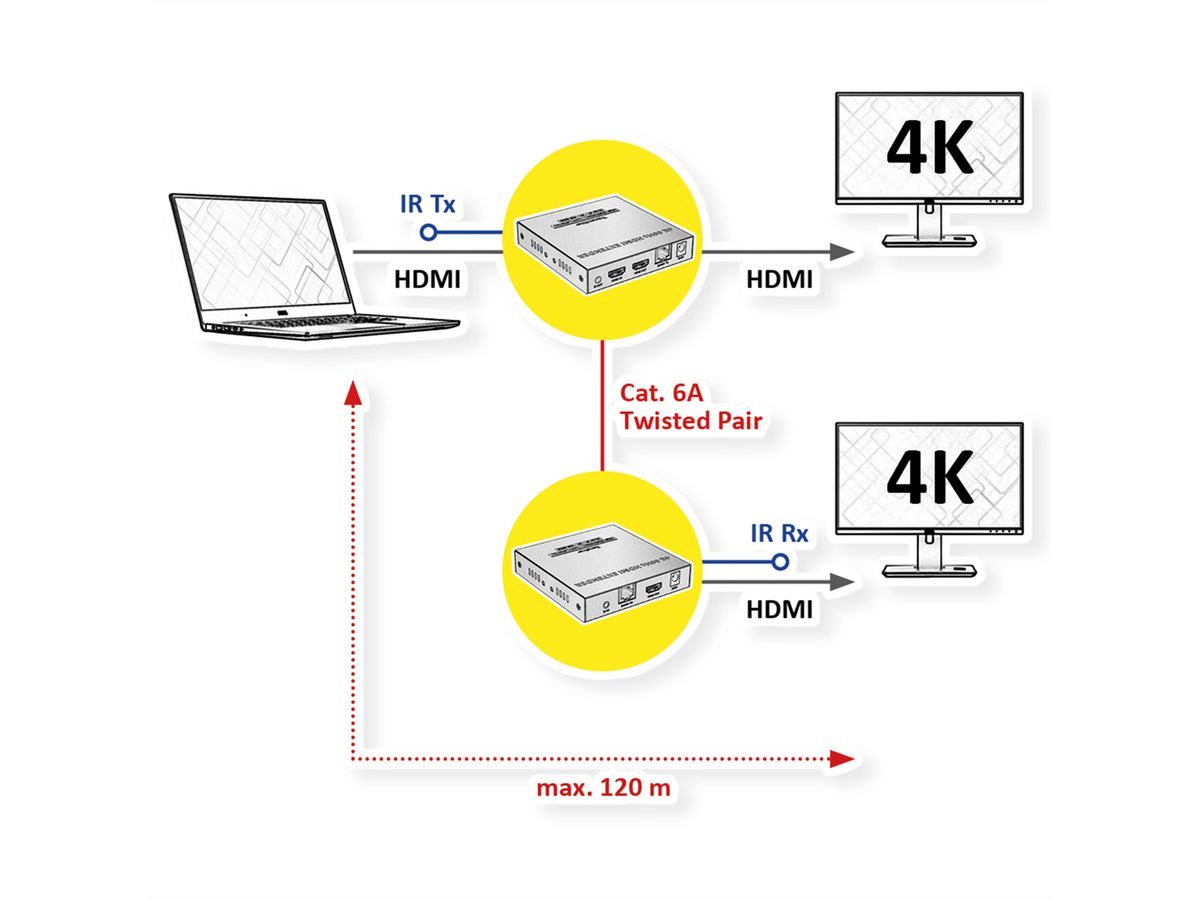

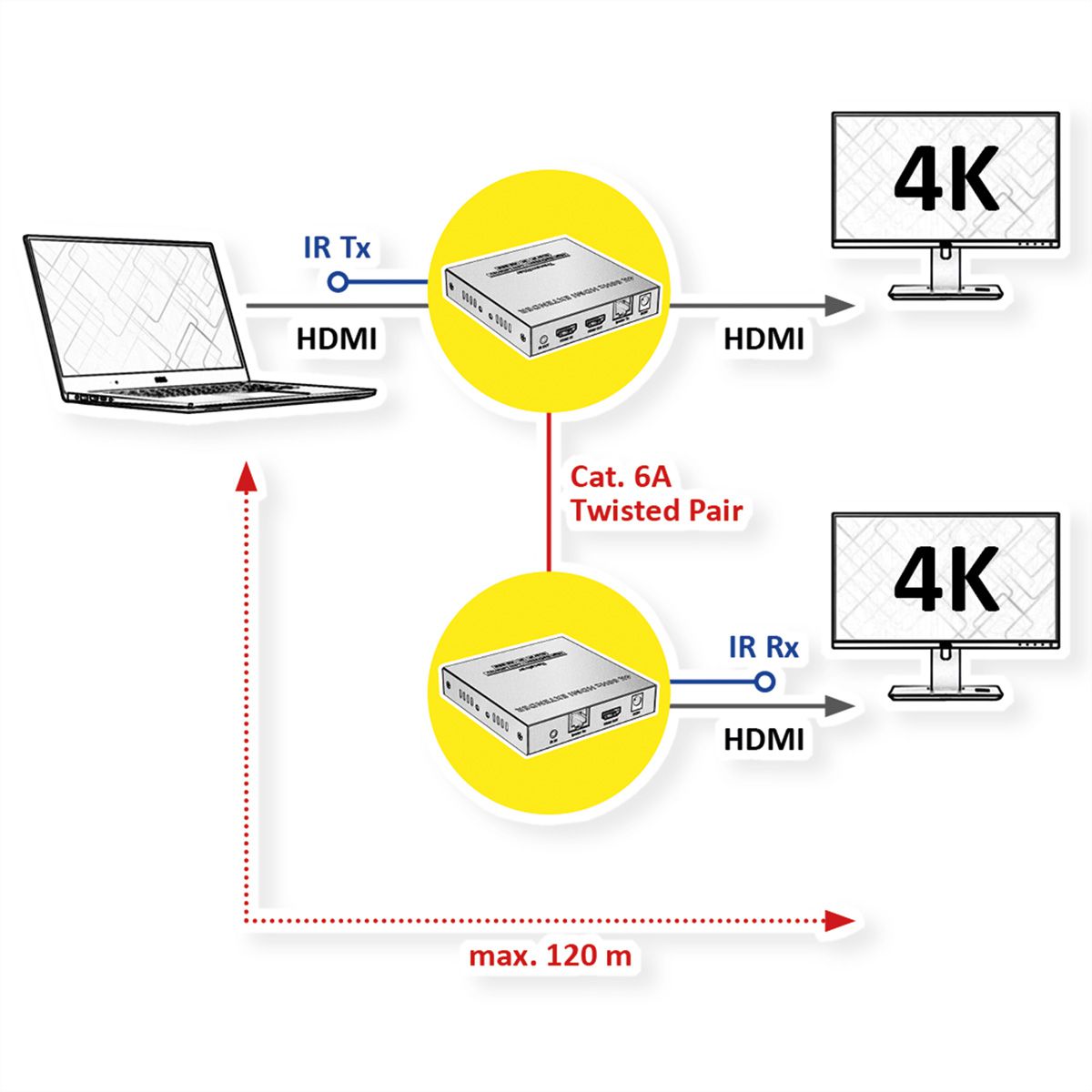

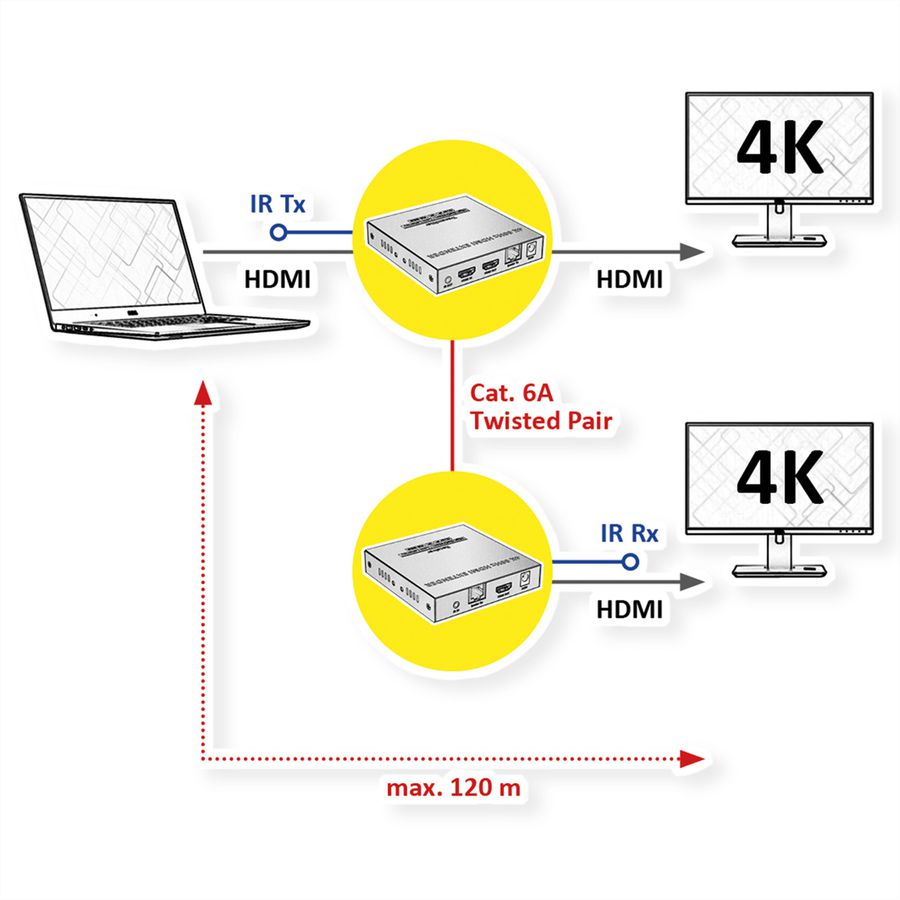

Max. transmission distance with Cat.6 or higher network cable is 120 m
ipcolor STREAM technology (high-definition and low-latency transmission)
Supports one-to-one connections and one-to-many connections through gigabit switches

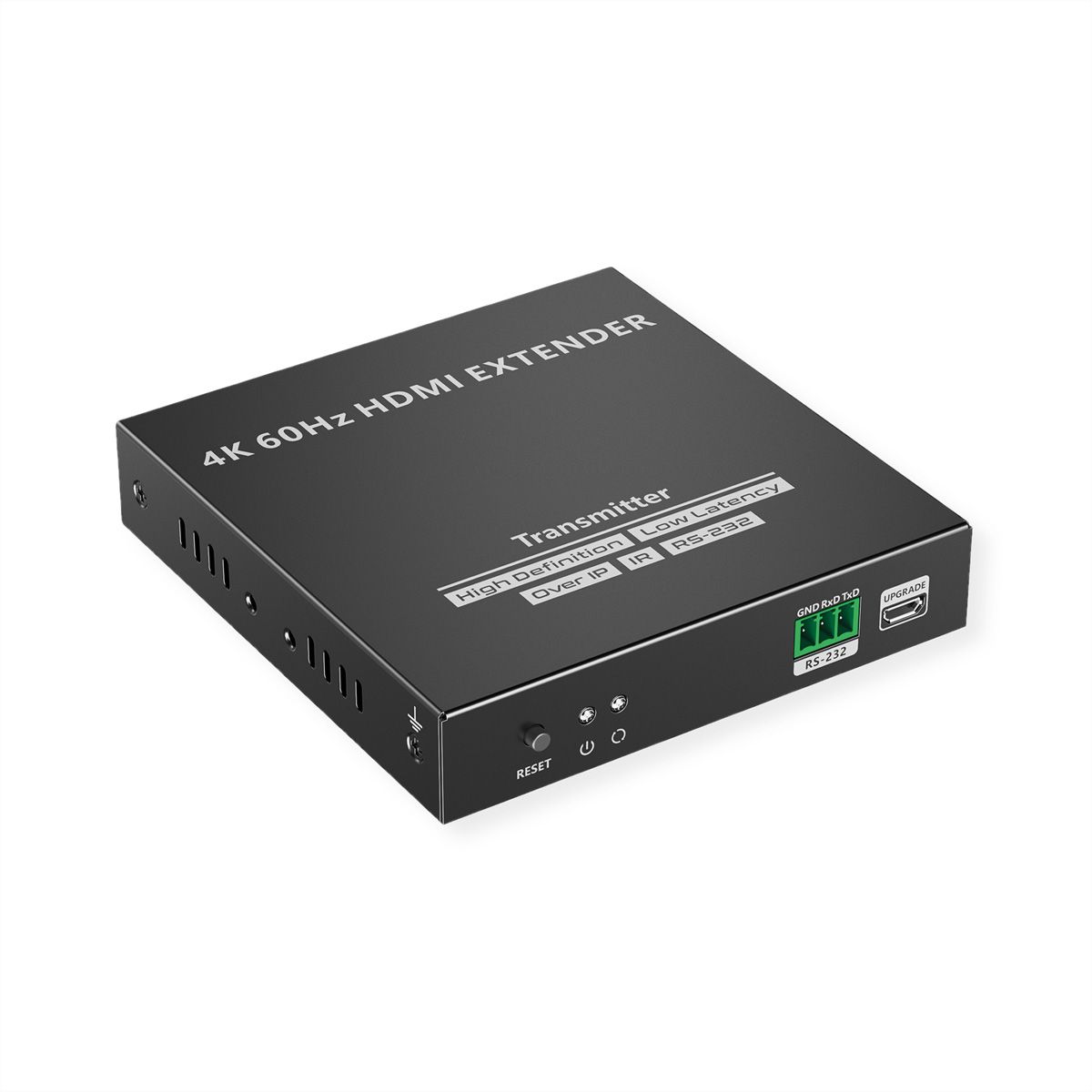

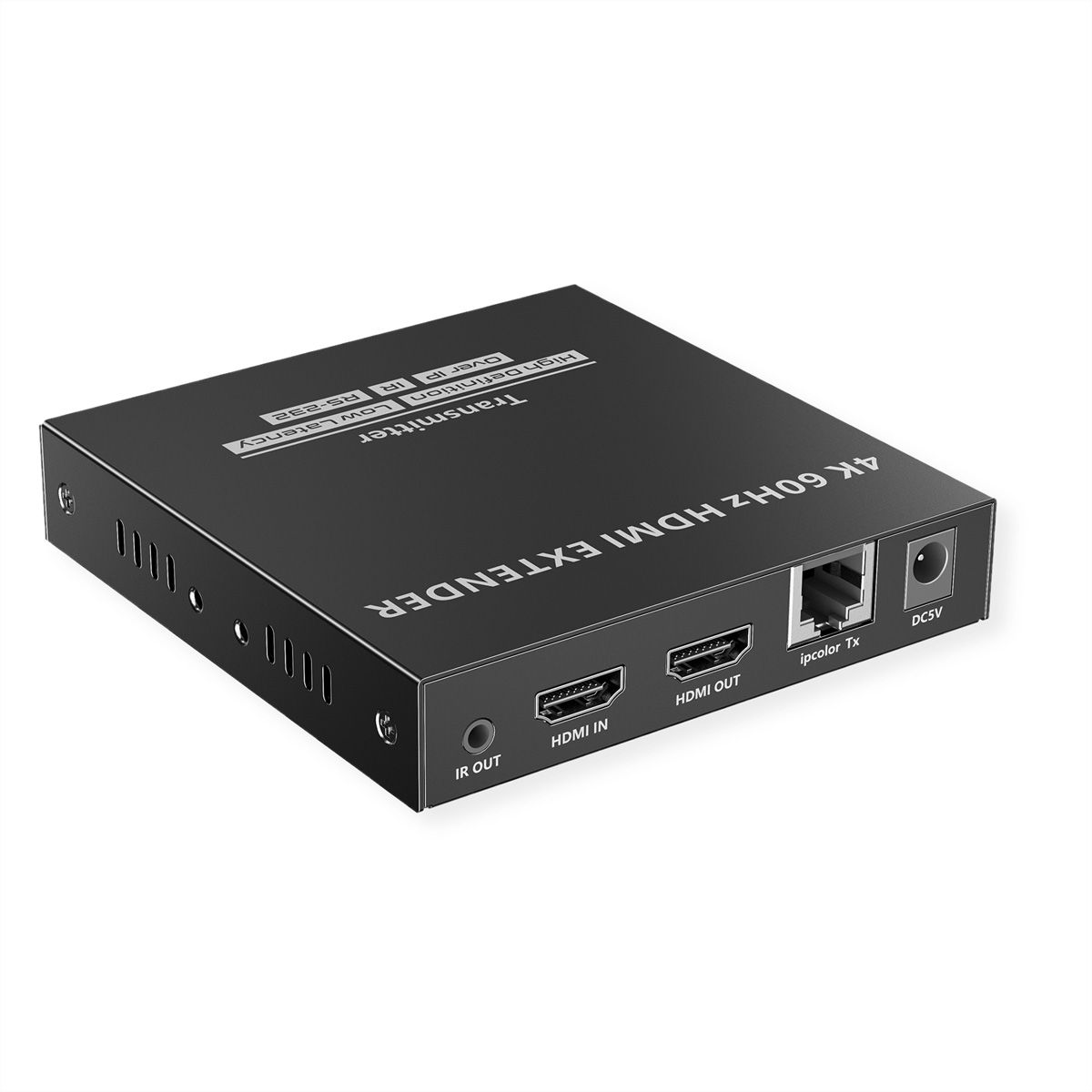

The transmitter supports HDMI loop out
Supports IR passback (20 – 60kHz) and RS-232 passthrough.
Compliant with HDCP 1.4 and HDCP 2.2
Dimensions (TX, RX each): 21 x 106 x 103 mm
Weight TX: 254 g, RX: 242 g

Specifications

Manufacturer: VALUE
Product group: Video Extender
Product type: HDMI Extender
Colour: black
Interface: HDMI
Inputs: 1
Outputs: 2
Max. distance: 120 m
Video band width: 18 Gbps
Max. resolution (nom.): 3840 x 2160@60Hz
Max. resolution: 3840 x 2160 @60Hz (4K, UHD-1)
Dimensions (HxWxD): 21 x 106 x 103 mm
Power supply unit: 2x
Power supply output: 5 V DC, 1A
Operating temperature min.: -20 °C
Operating temperature max.: 60 °C
Storage temperature min.: -30 °C
Storage temperature max.: 70 °C
Height: 21 mm
Width: 106 mm
Depth: 103 mm
Weight: 496 g
Height of packaging (single piece): 80 mm
Width of packaging (single piece): 180 mm
Depth of packaging (single piece): 240 mm
Package weight (single piece): 1 kg

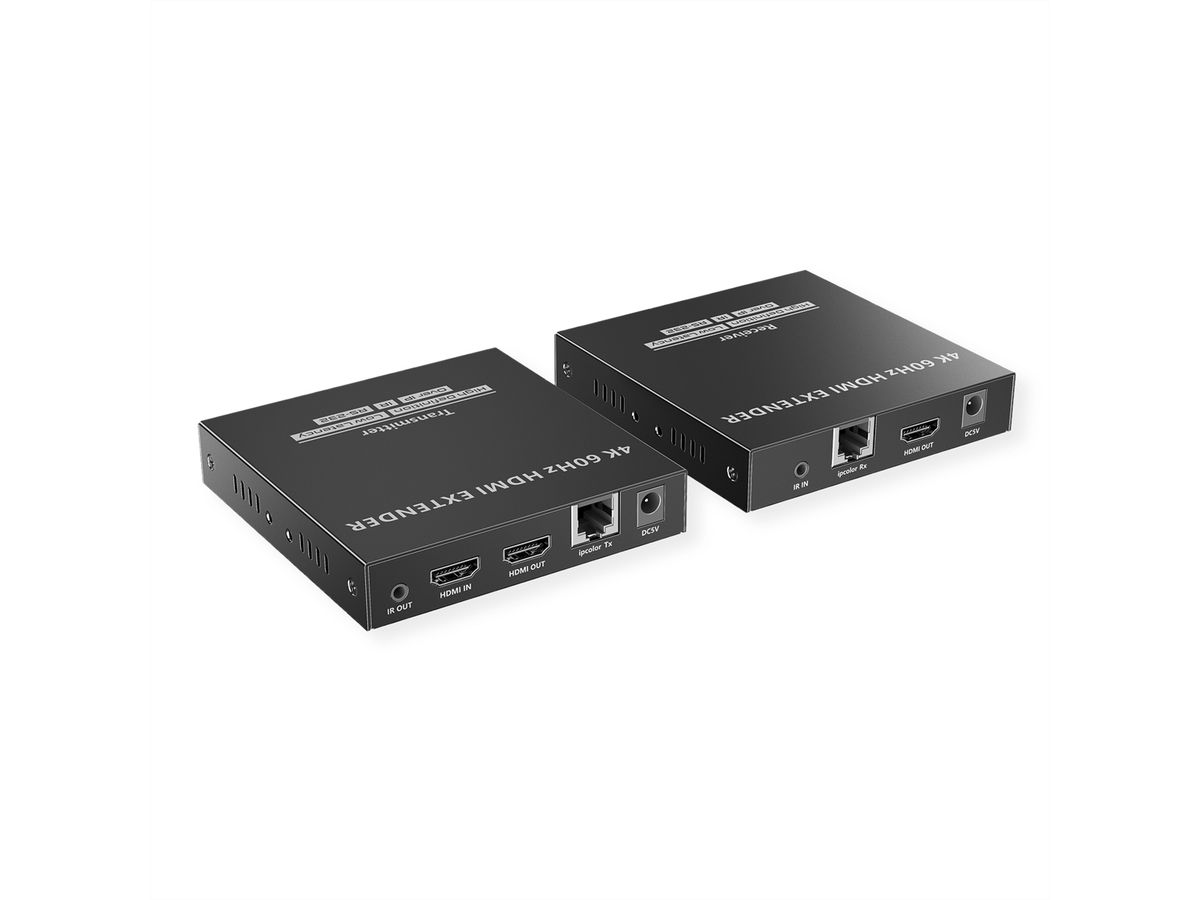

Scope of delivery: 1x Transmitter, 1x Receiver, 2x Power Adapter, 1x IR Receiver Extension Cable, 1x IR Blaster Extension Cable, 4x Mounting Ears, 2x Terminal Blocks (RS-232), User Manual

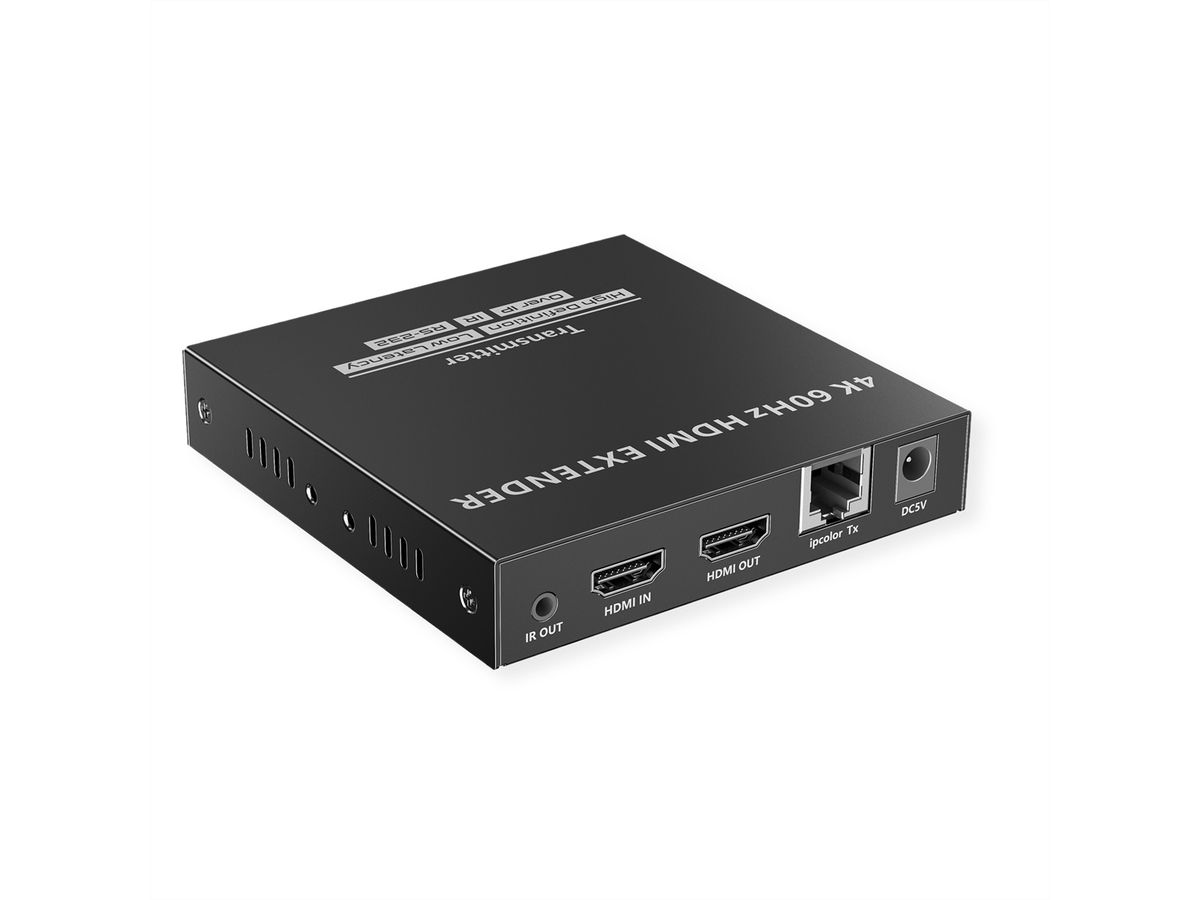

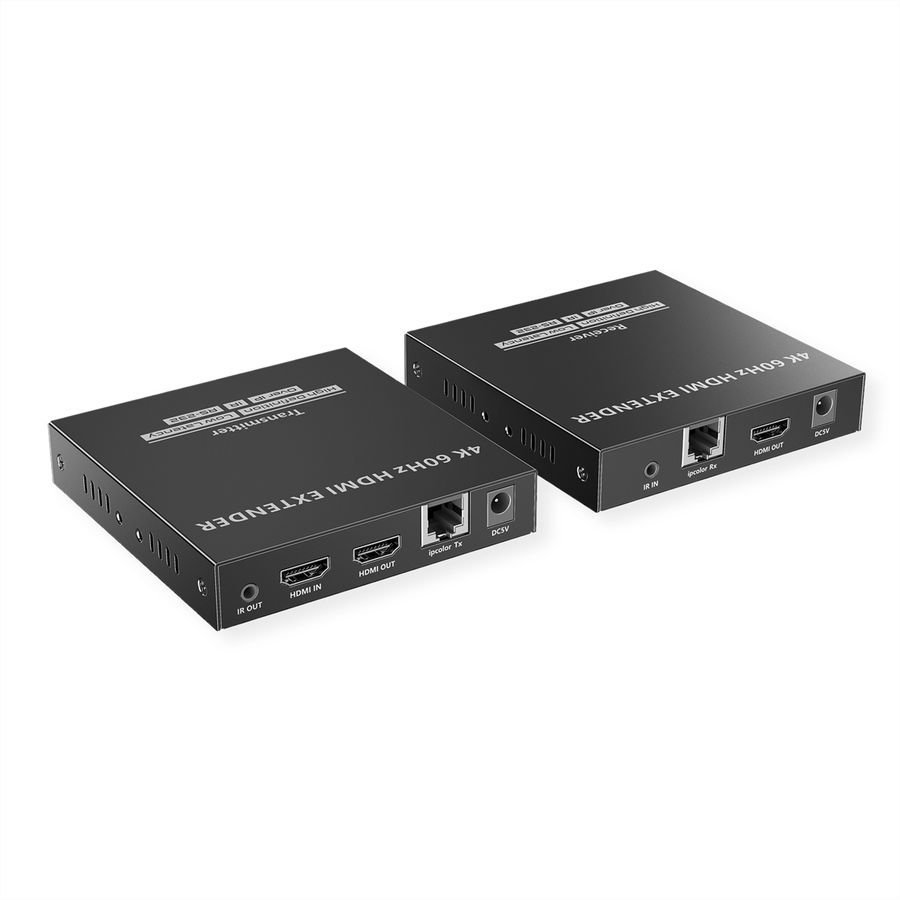

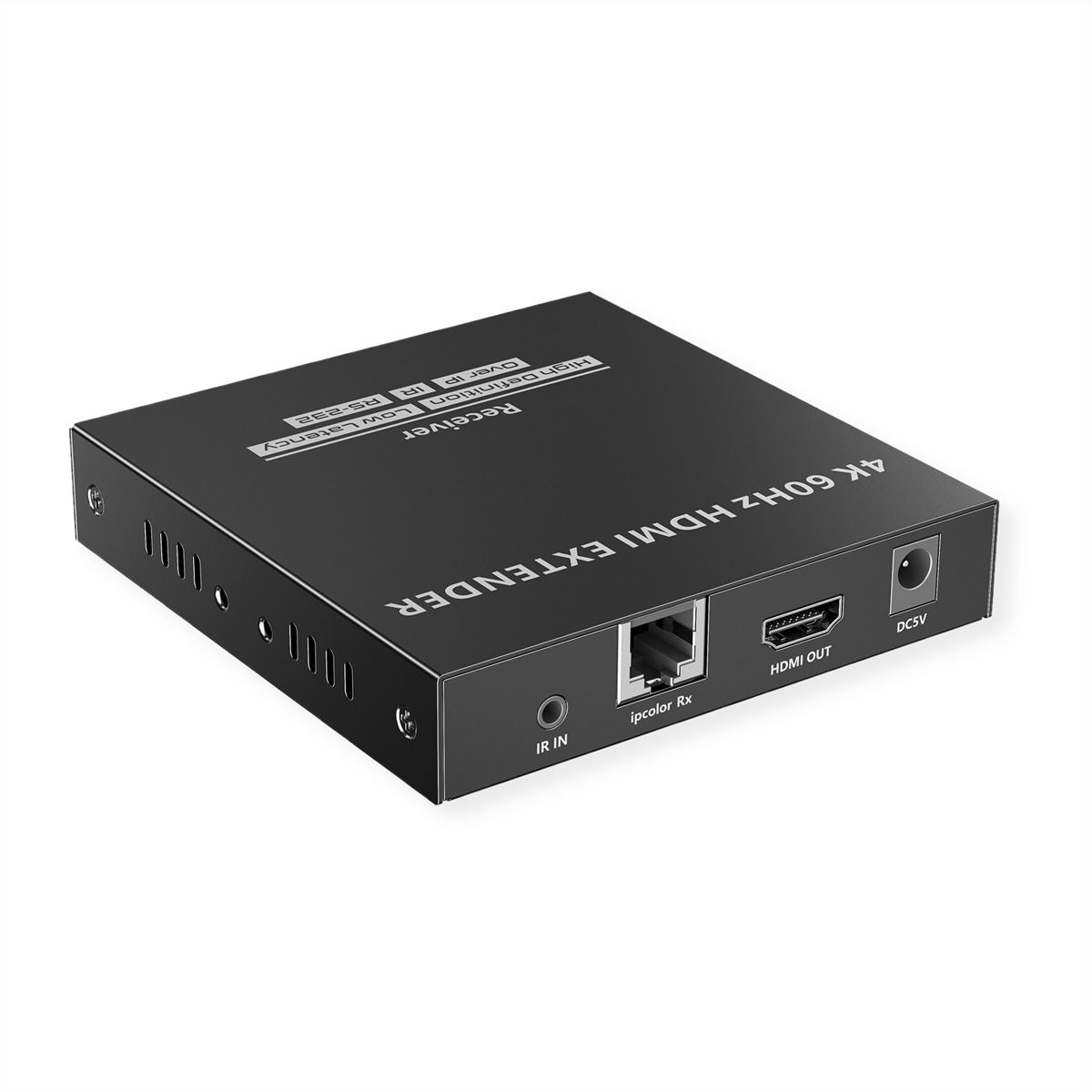

Video input: TX: 1x HDMI, RX: 1x RJ-45

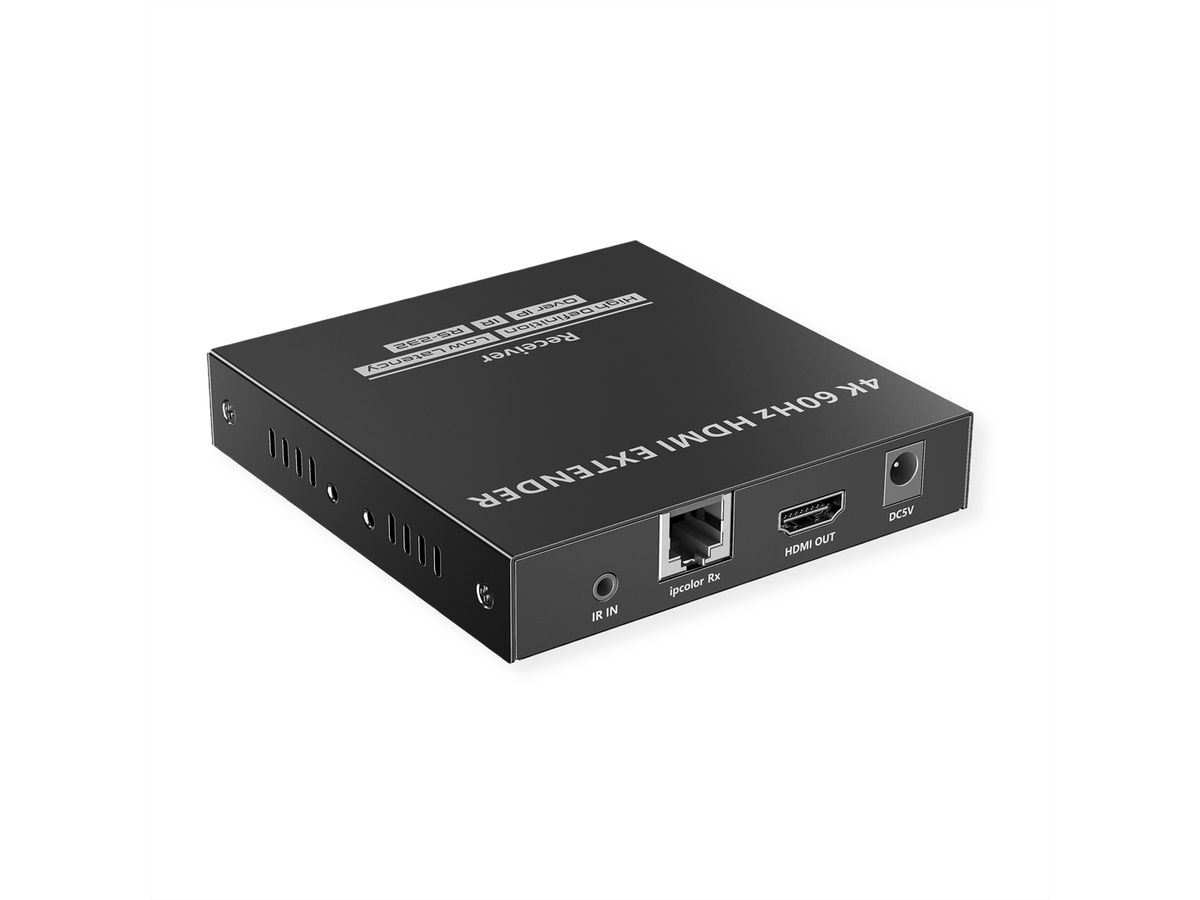

Video output: TX: 1x HDMI Loop-Out, 1x RJ-45, RX: 1x HDMI
