Item no.:14016757Herst.-Art.-Nr.:VM5404H

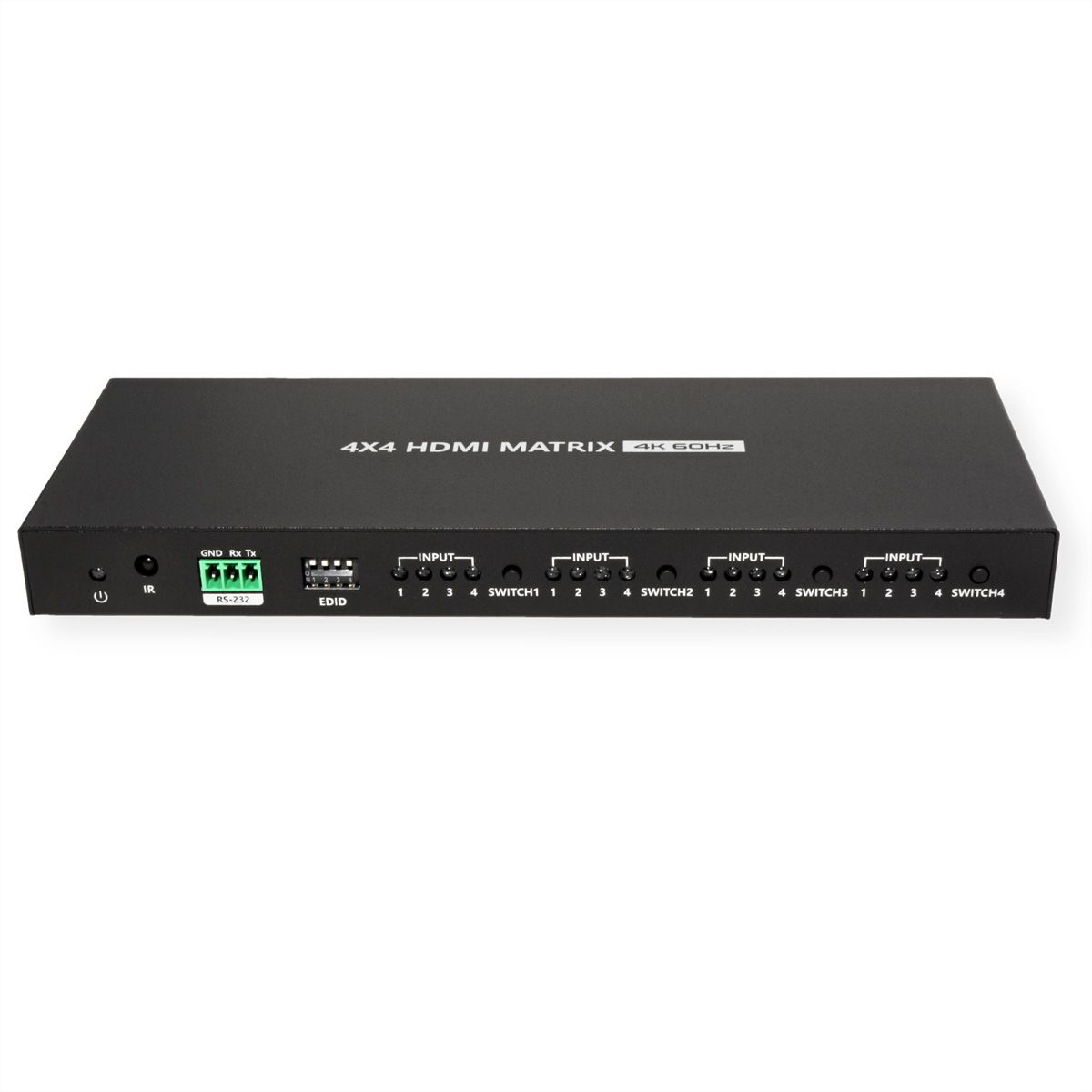

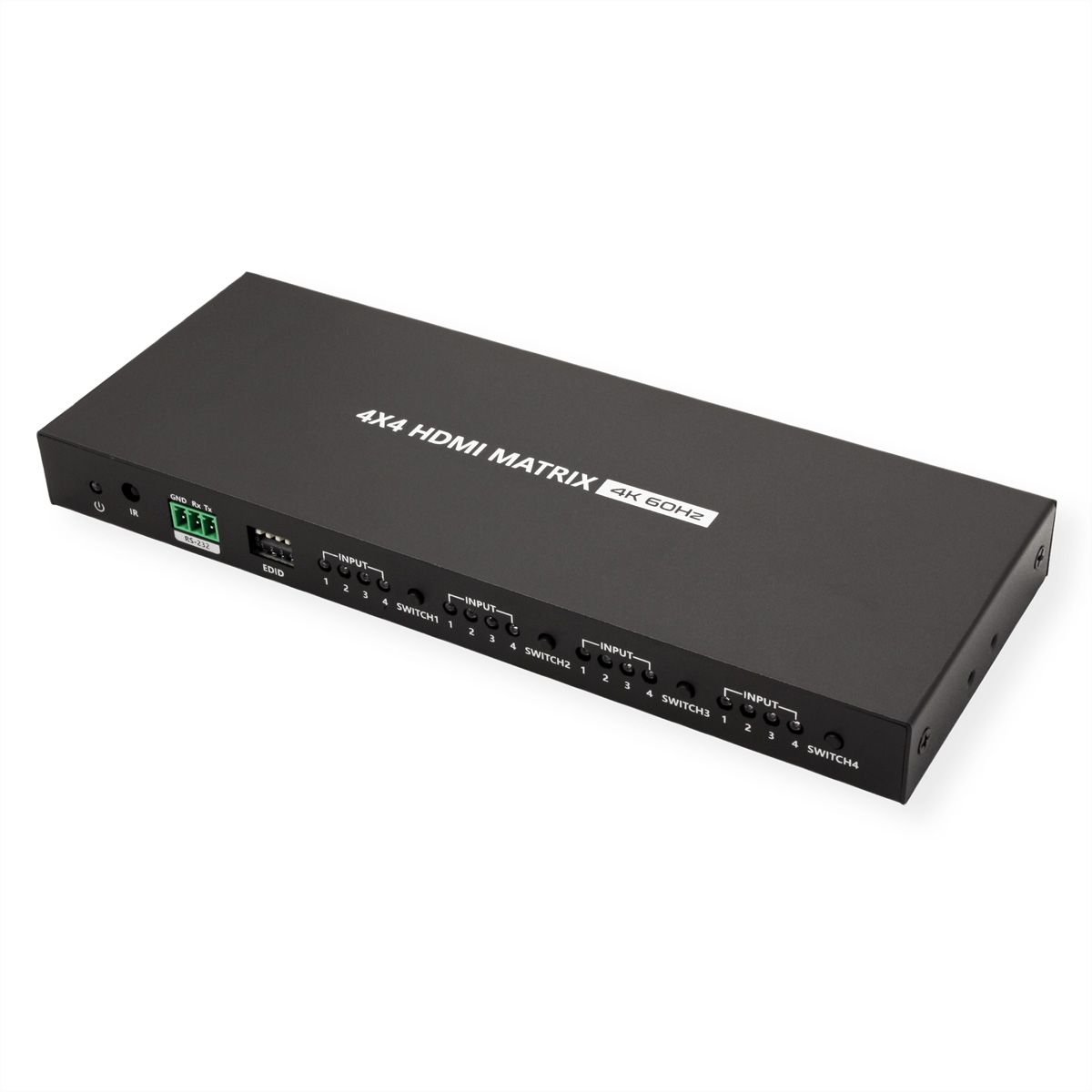

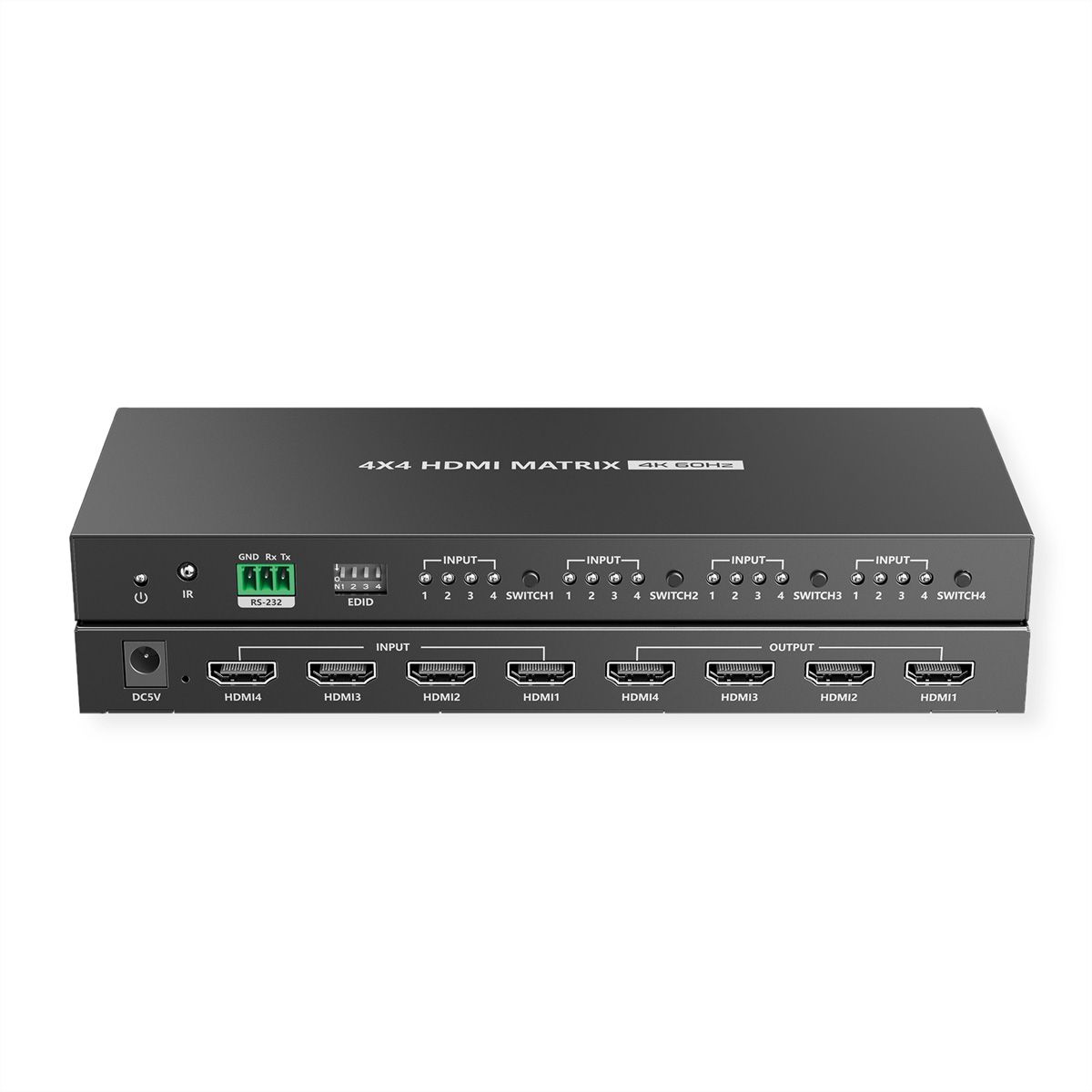

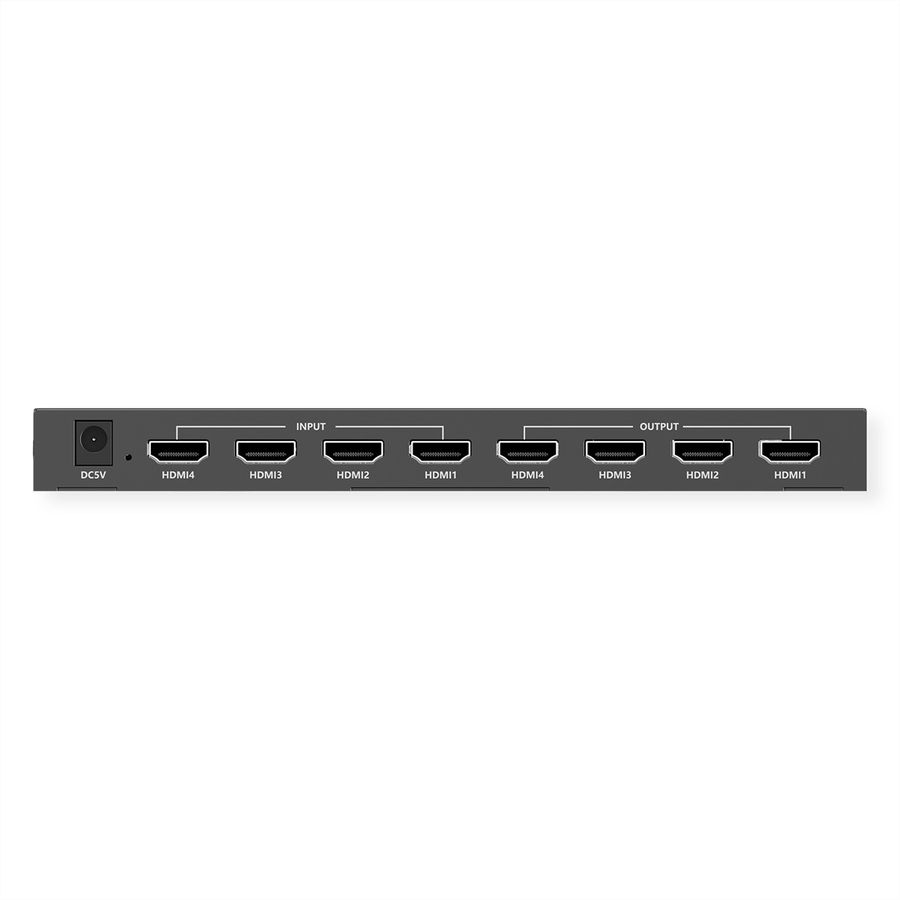

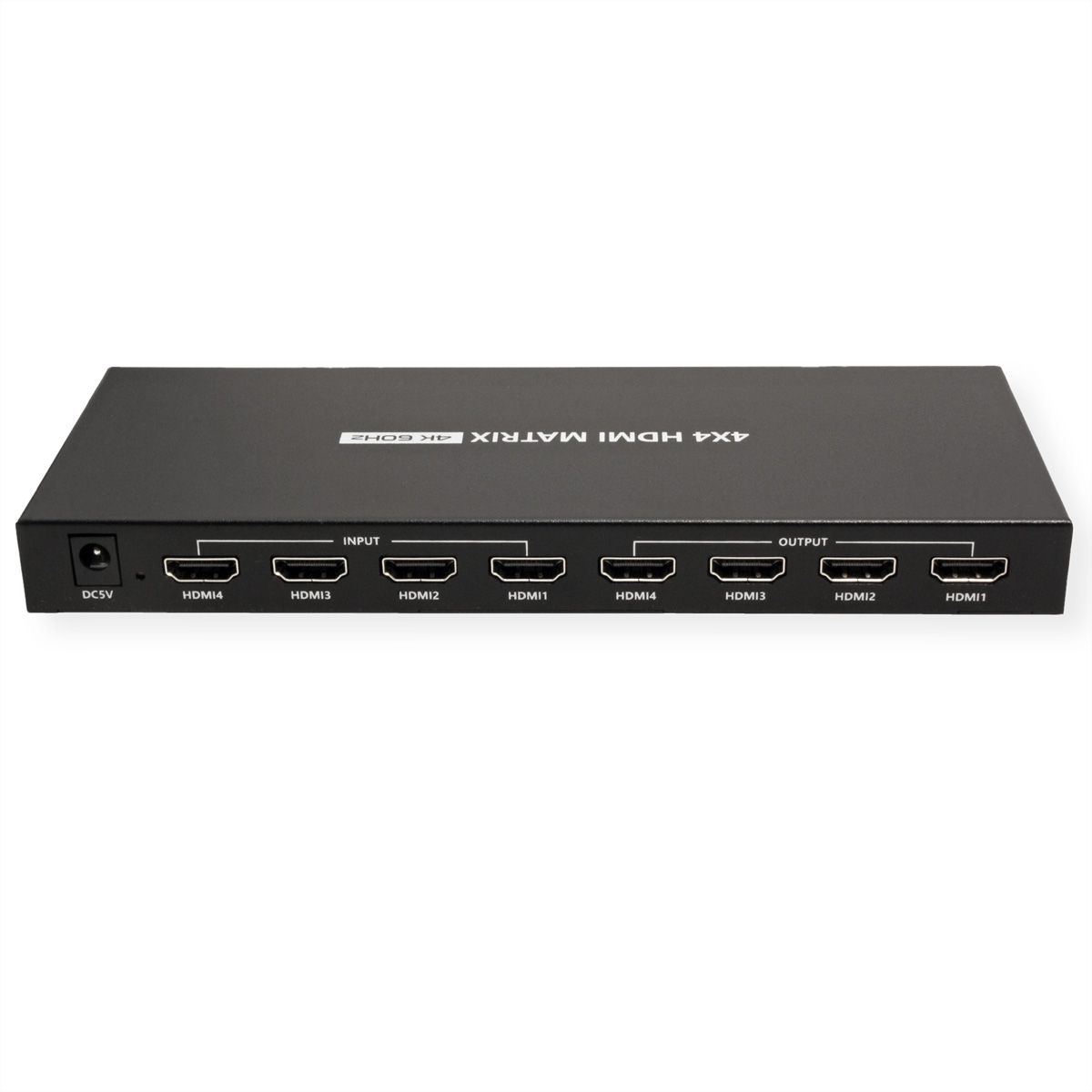

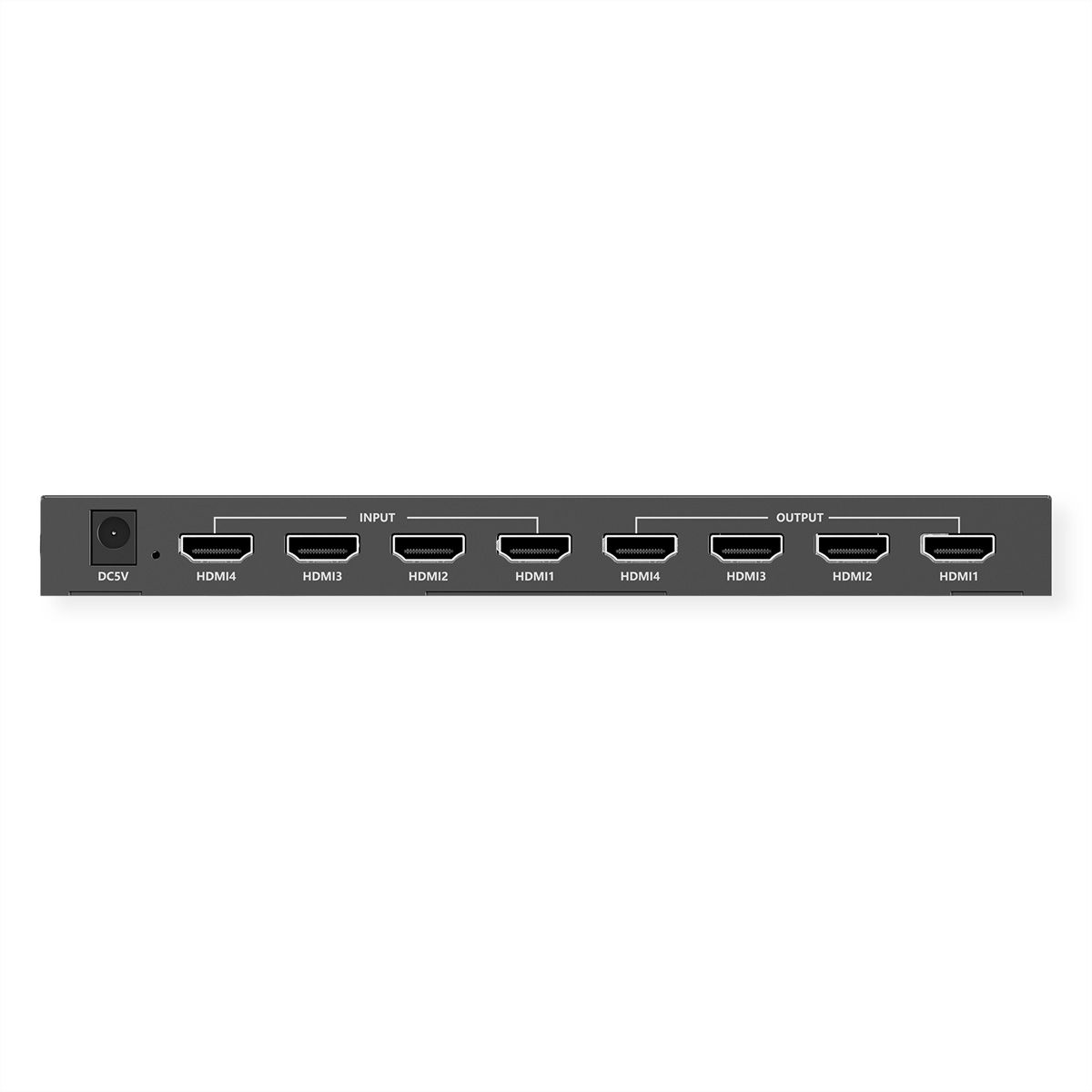

VALUE HDMI Matrix Switch, 4x4, 4K60Hz, with remote control
Item no.
14993593
Brand / Manufacturer
VALUE
Manuf. item no.
14.99.3593
EAN
7630049633360
Item weight
0.7 kg
:strip_icc():strip_exif()/logos/value.png "VALUE")
:strip_icc():strip_exif()/bilder/icons/icon_hdmi_2160p_uhd1.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_resolution_4k.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_3d.png){kind=icon}
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description

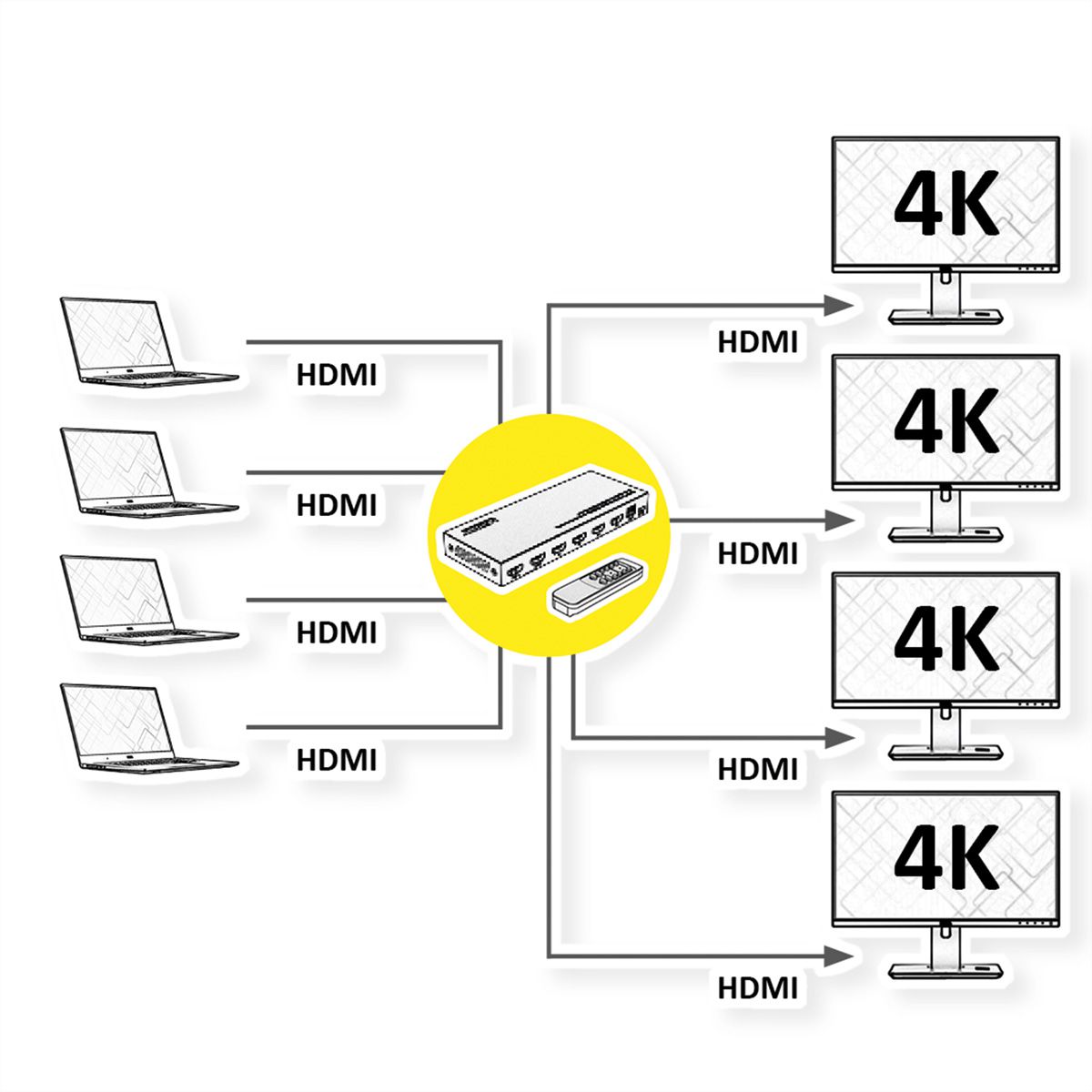

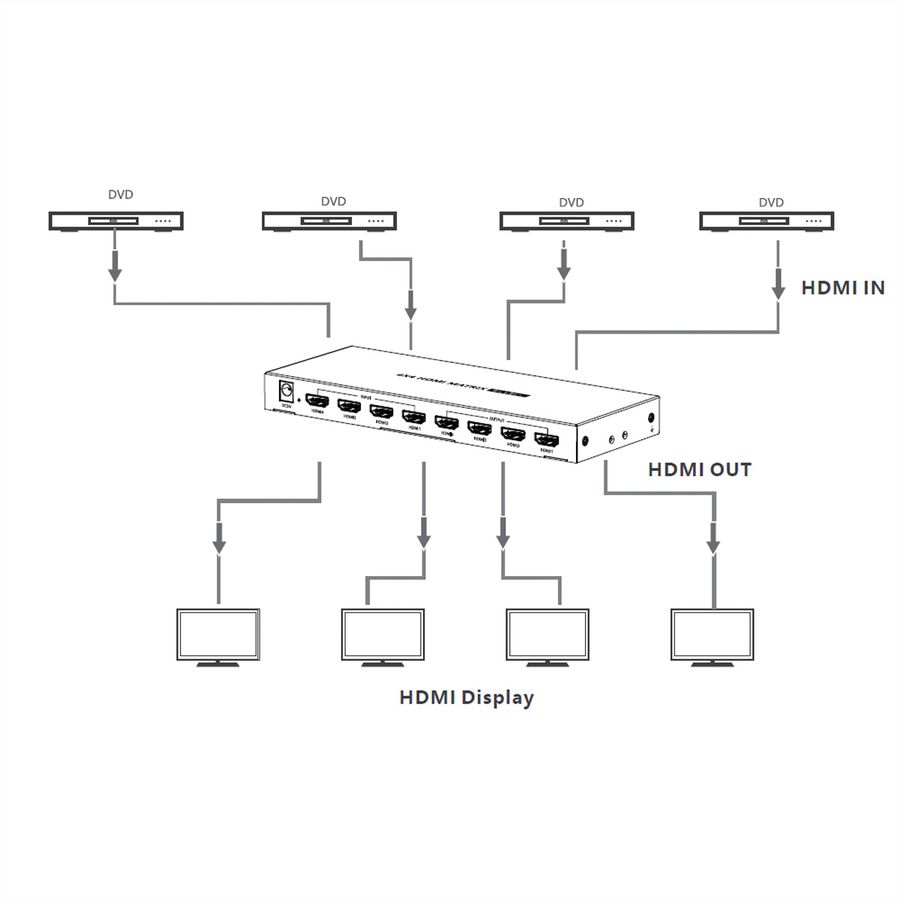

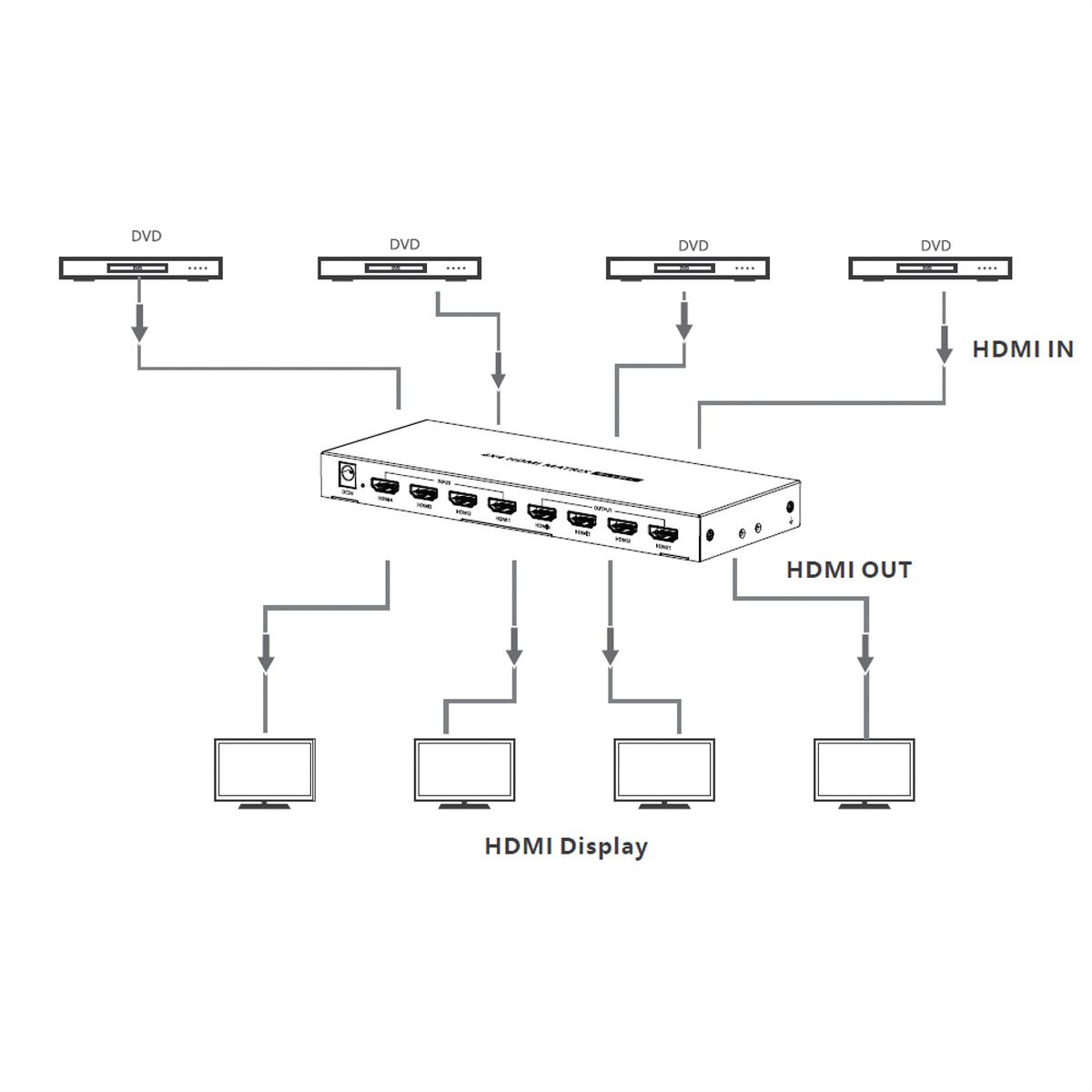

This 4 in 4 out HDMI Matrix can switch 4 HDMI input signals (PC, notebook, etc.) to 4 HDMI displays (monitor, projector, etc.) with resolutions up to 4096x2160@60Hz. It supports multiple switching methods (buttons on the matrix, IR remote control and RS232). Any two of the four HDMI outputs support automatic down-scaling. This matrix can be used in security surveillance, education, training, exhibitions, trade shows, broadcasting, command centers and many other applications.

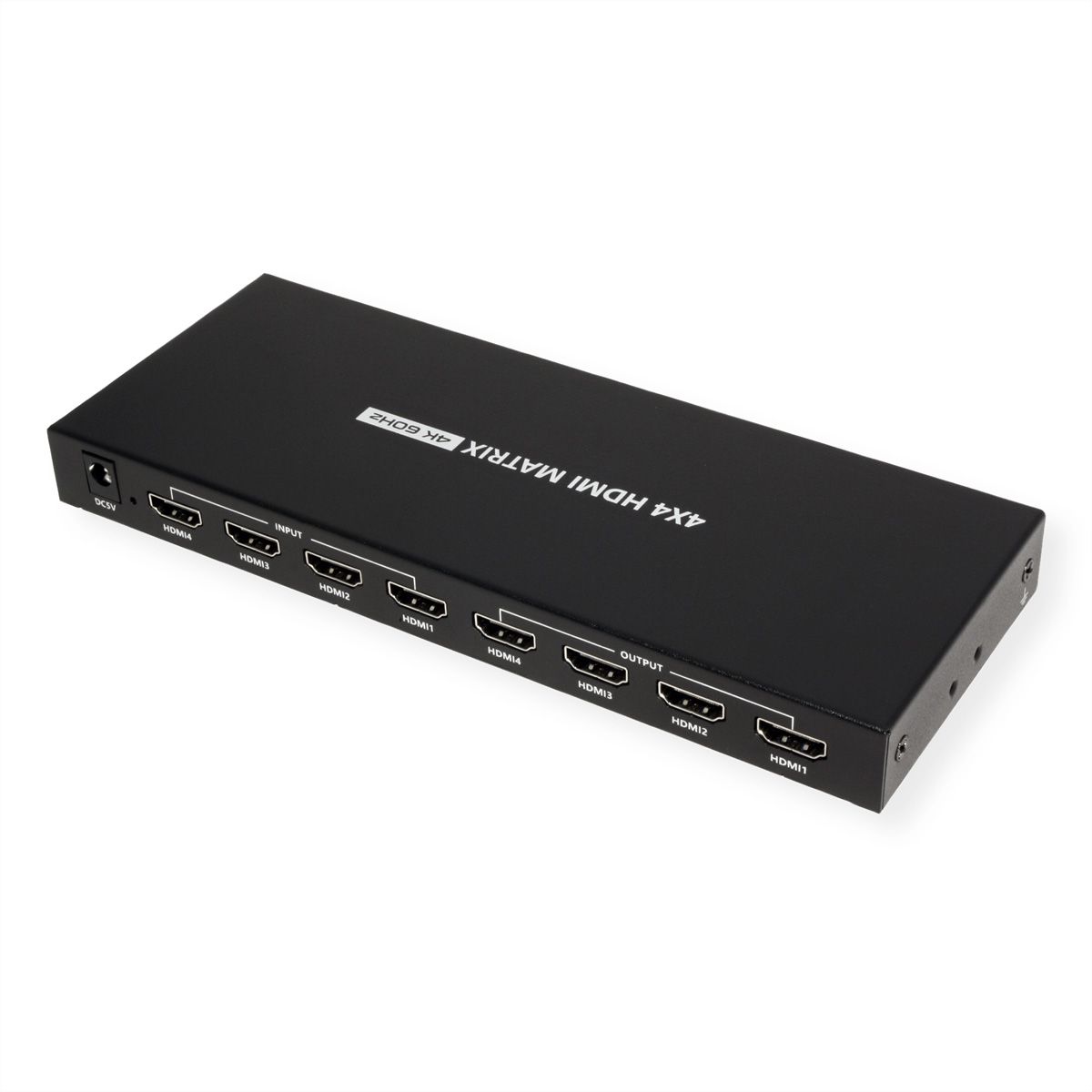

- Four HDMI input signals can be switched to four HDMI output devices
- Up to 4K (4096 x 2160 @60Hz) resolution and backwards compatible
- Compatible with HDCP 2.2 and HDCP 1.4
- Any two of the four HDMI outputs support auto down-scaling.
- Supported digital audio formats: DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/Dolby-Atmos

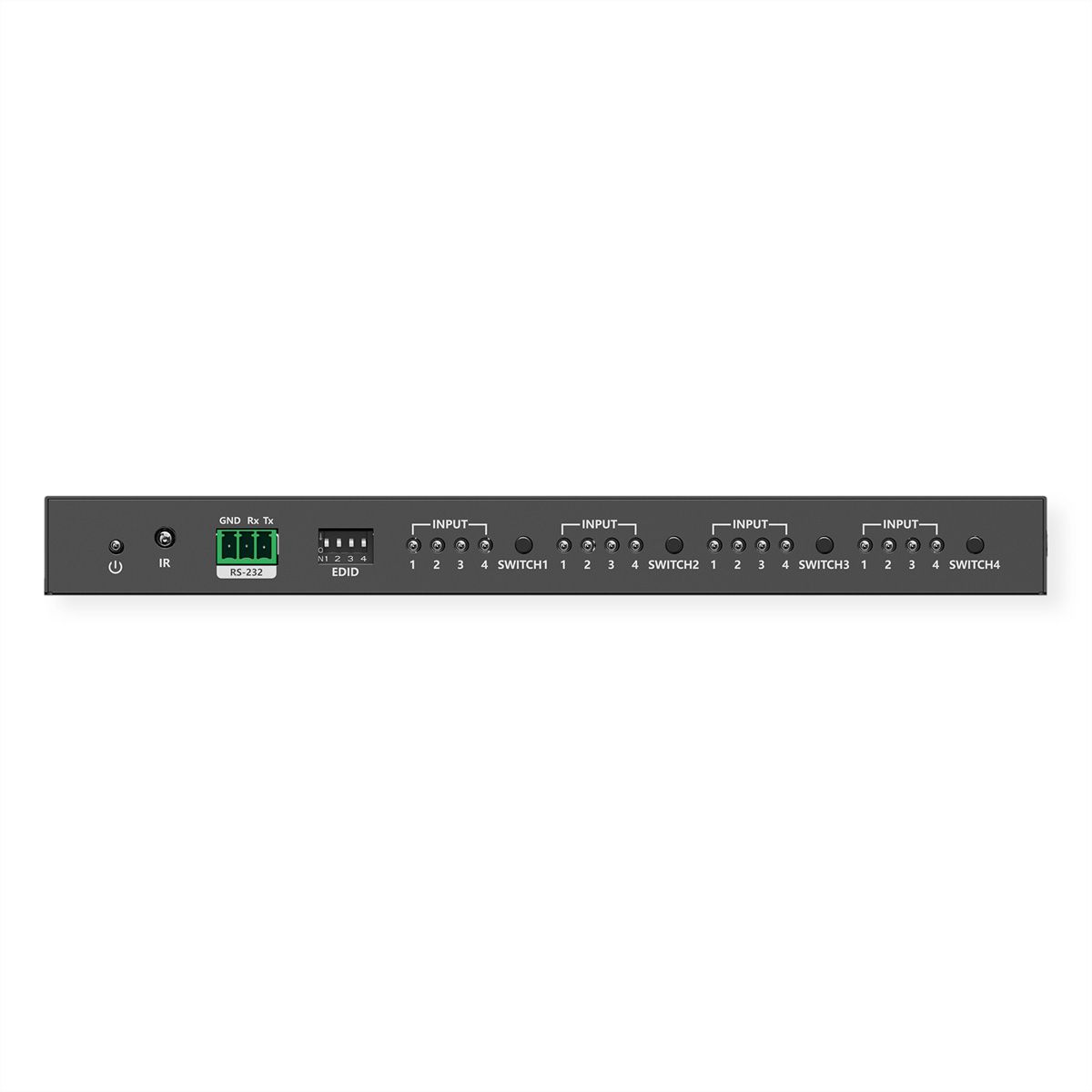

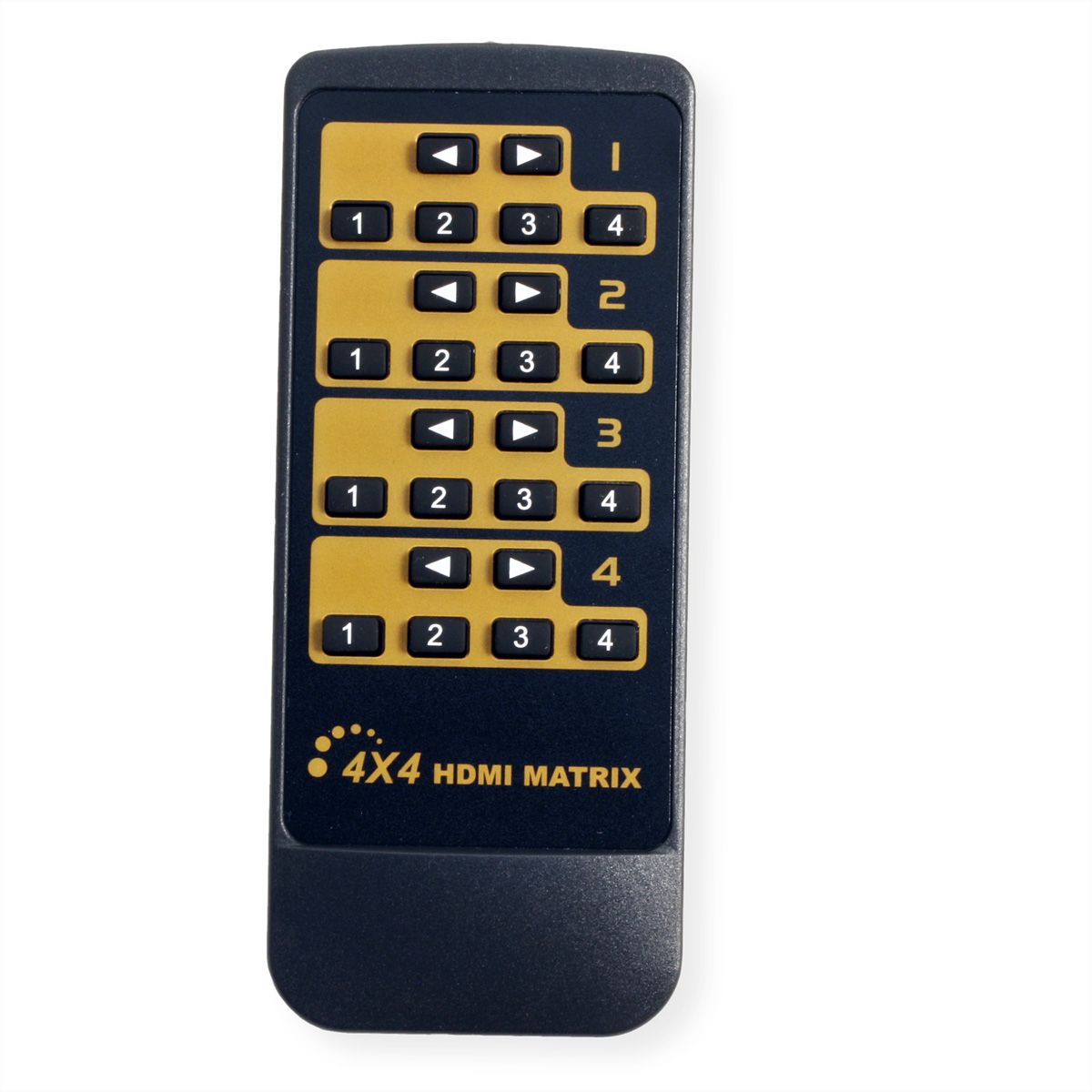

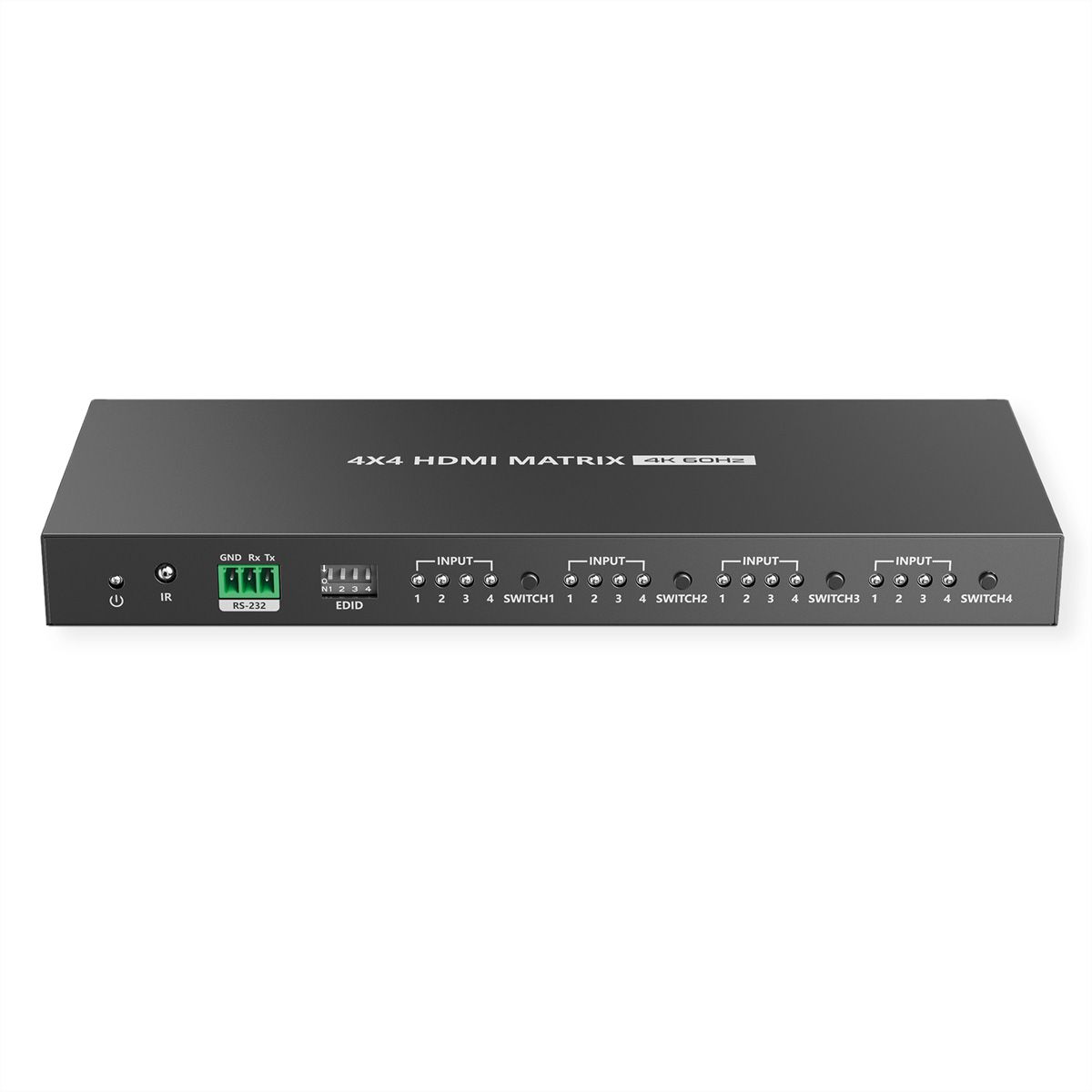

- Input devices can be switched by push buttons on the switch, IR remote control or by RS-232
- 16 different EDID states / resolutions can be set with the DIP switch
- Contents: HDMI Matrix Switch, Power Supply, Remote Control, Mounting Ears (2x), Terminal Block, User Manual
Specifications
- Manufacturer
- VALUE
- Product group
- Splitters and selectors
- Product type
- HDMI-Matrix-Switch 4K
- Colour
- black
- Scope of delivery
- HDMI Matrix Switch, Power Supply, Remote Control, Mounting Ears (2x), Terminal Block, User Manual
- Interface
- HDMI
- Inputs
- 4
- Outputs
- 4
- Video input
- 4x HDMI Female
- Video output
- 4x HDMI Female
- Video band width
- 18 Gbps
- Max. resolution (nom.)
- 4096 x 2160 @60Hz (4K)
- Max. resolution
- 4096 x 2160 @60Hz (4K)
- Dimensions (HxWxD)
- 21 x 210 x 80 mm
- Power supply output
- 5V DC, 1A
- Mains connection
- Appliance Europlug, Type-C
- Battery category
- Portable battery
- Number of batteries
- 1 pieces
- Battery type
- Button cell CR2025
- Battery
- included
- Battery technology
- Li-Ion
- Operating temperature min.
- -20 °C
- Operating temperature max.
- 60 °C
- Storage temperature min.
- -30 °C
- Storage temperature max.
- 70 °C
- Height
- 21 mm
- Width
- 210 mm
- Depth
- 80 mm
- Weight
- 375 g
- Height of packaging (single piece)
- 90 mm
- Width of packaging (single piece)
- 180 mm
- Depth of packaging (single piece)
- 250 mm
- Package weight (single piece)
- 0.7 kg
- Technical particularity
- Switching via push buttons, via IR remote control or via RS-232
