Description

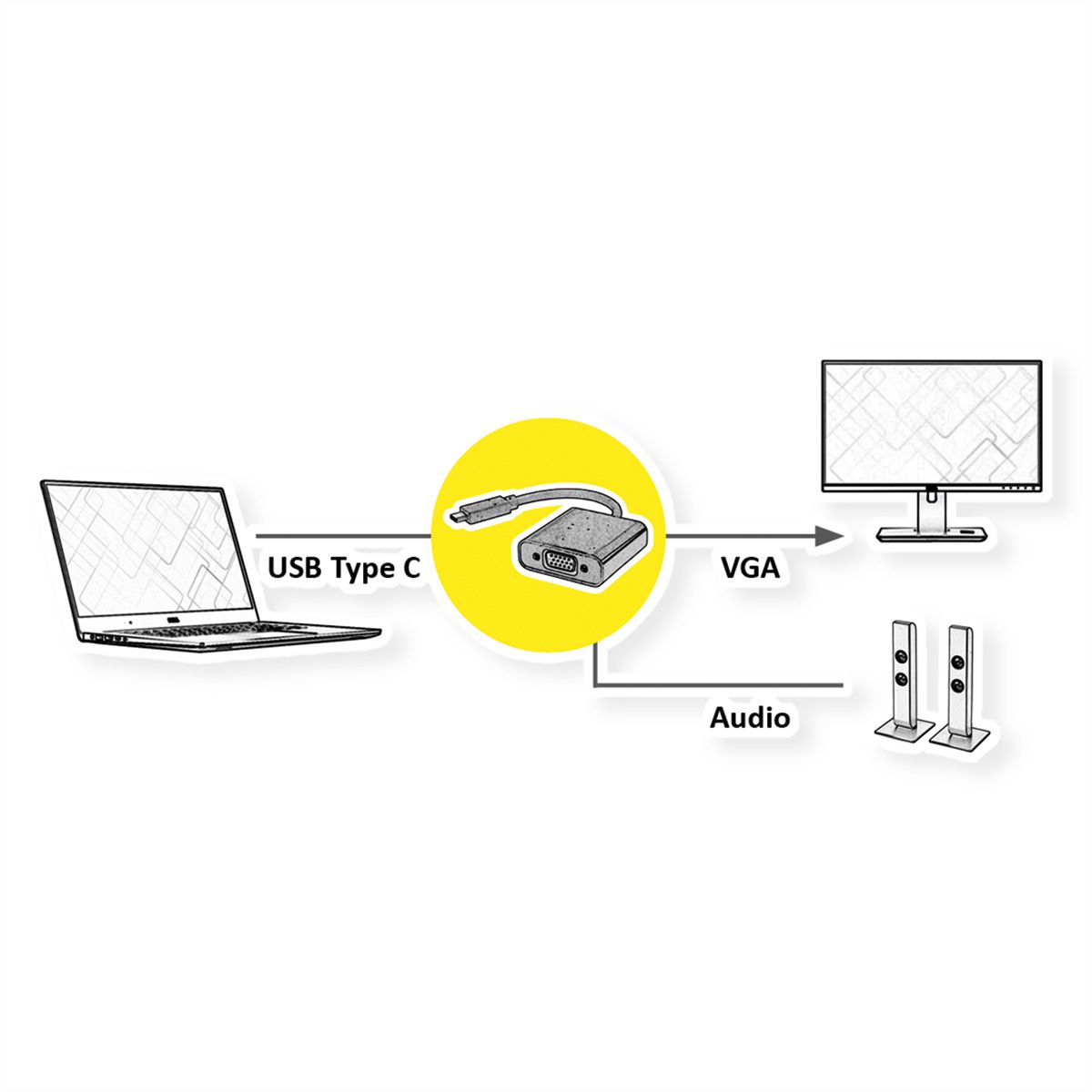

Connect your MacBook, Ultrabook, Notebook/Laptop or PC with USB Type C connection to any monitor or projector/beamer with VGA connection; the device has an additional 3.5mm connector for audio transmission!

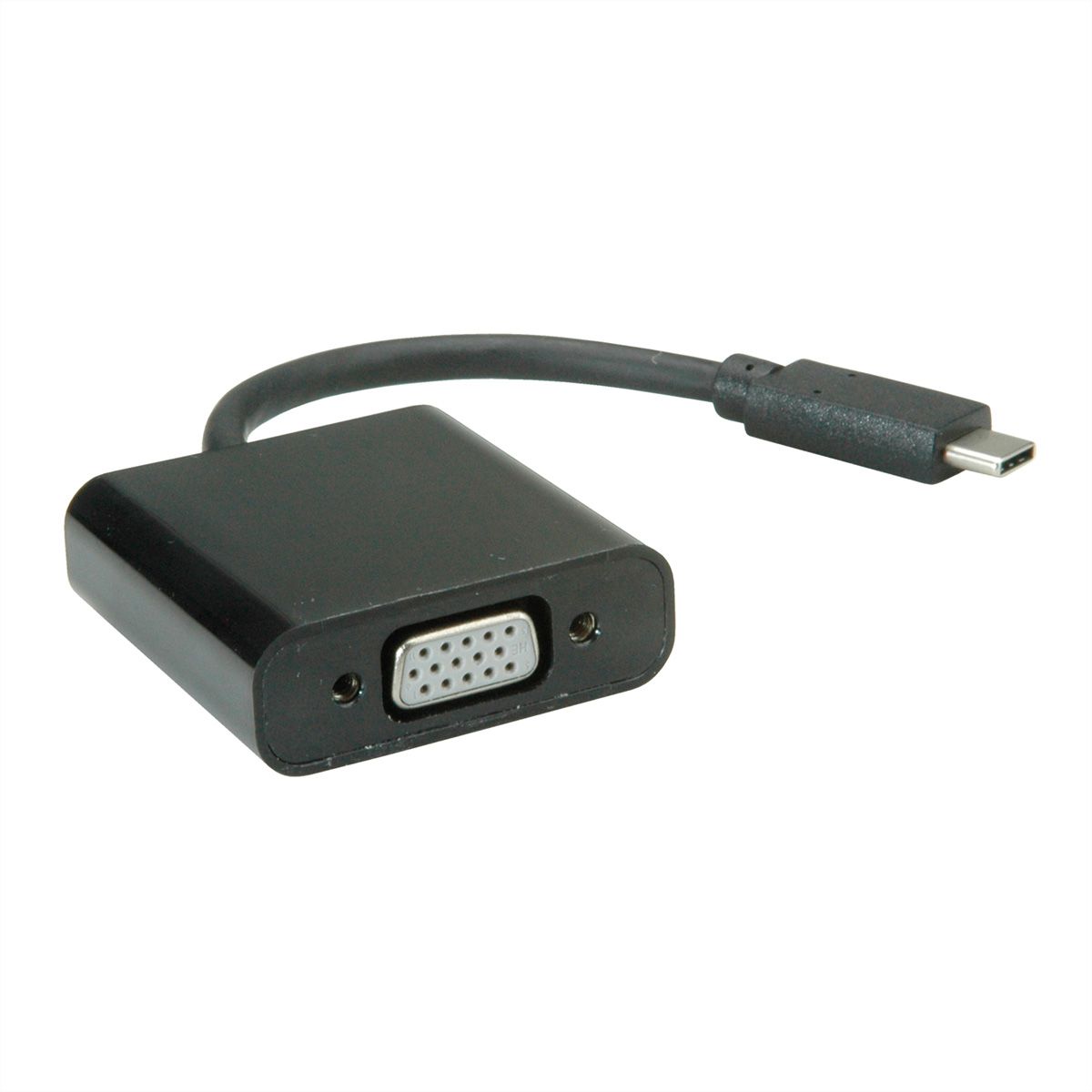

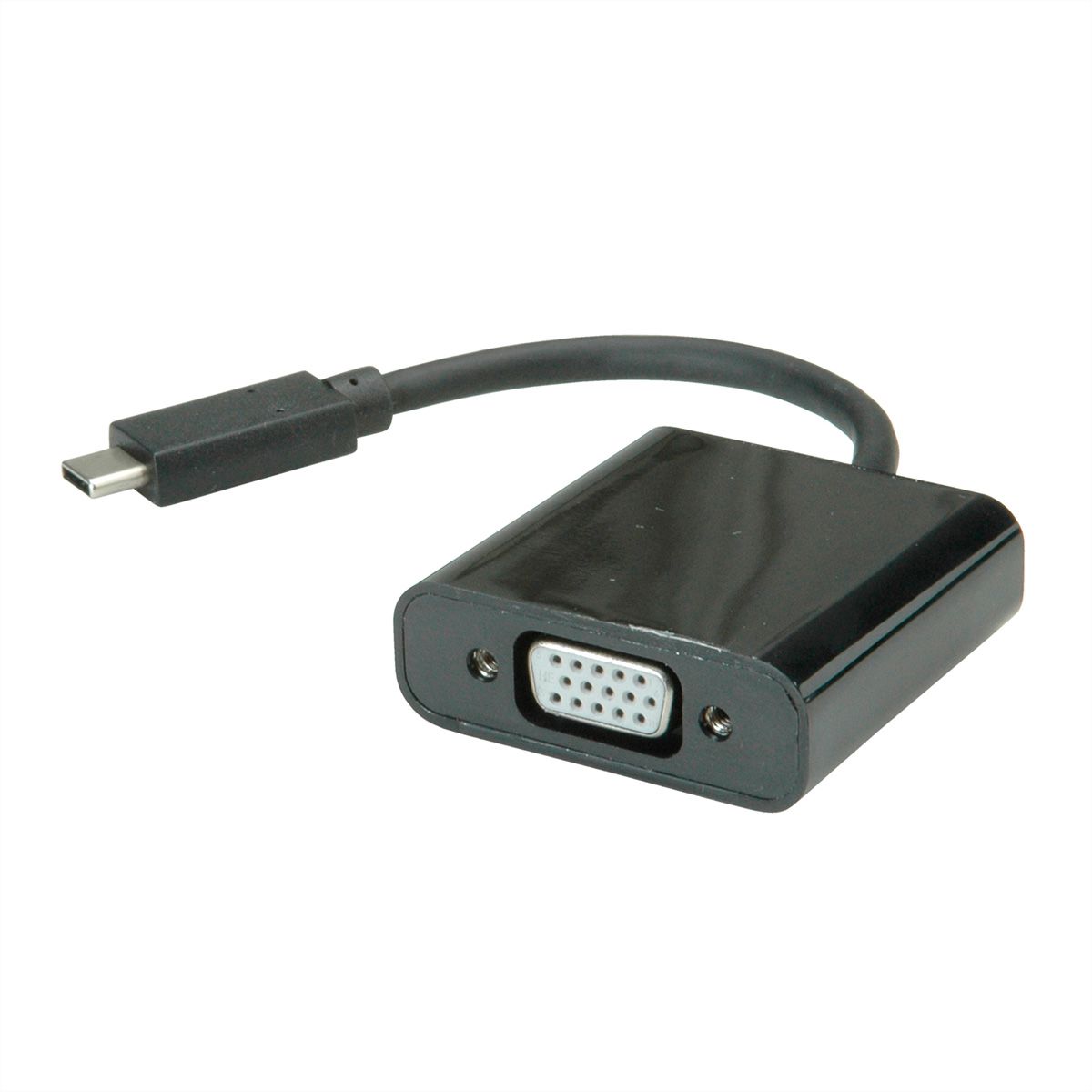

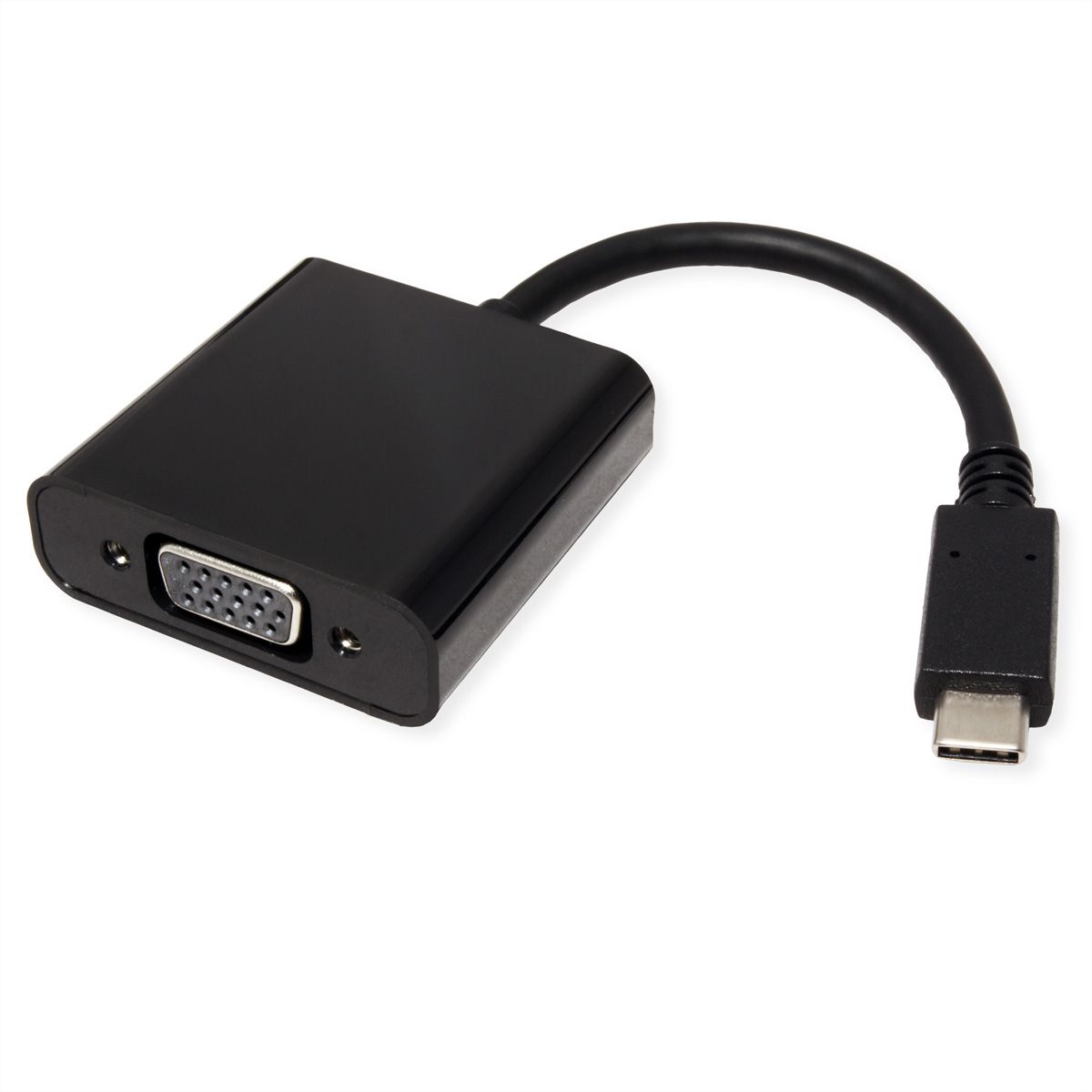

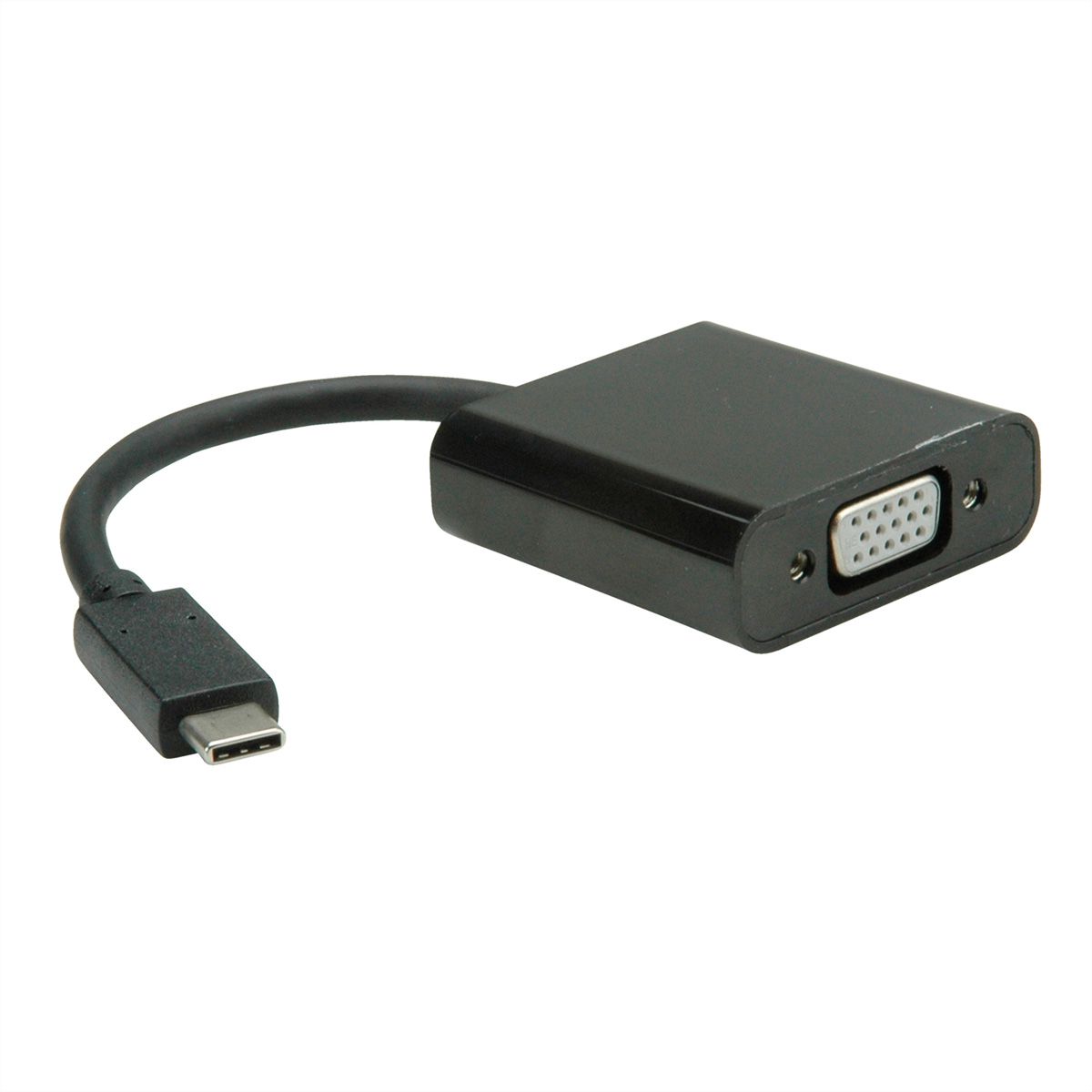

• USB 3.1 / USB 3.2 Gen 2 Type C to VGA cable adapter with additional 3.5mm connection for audio transmission
• To mirror or extend the display to your VGA-capable TV or VGA monitor.
• No power supply required

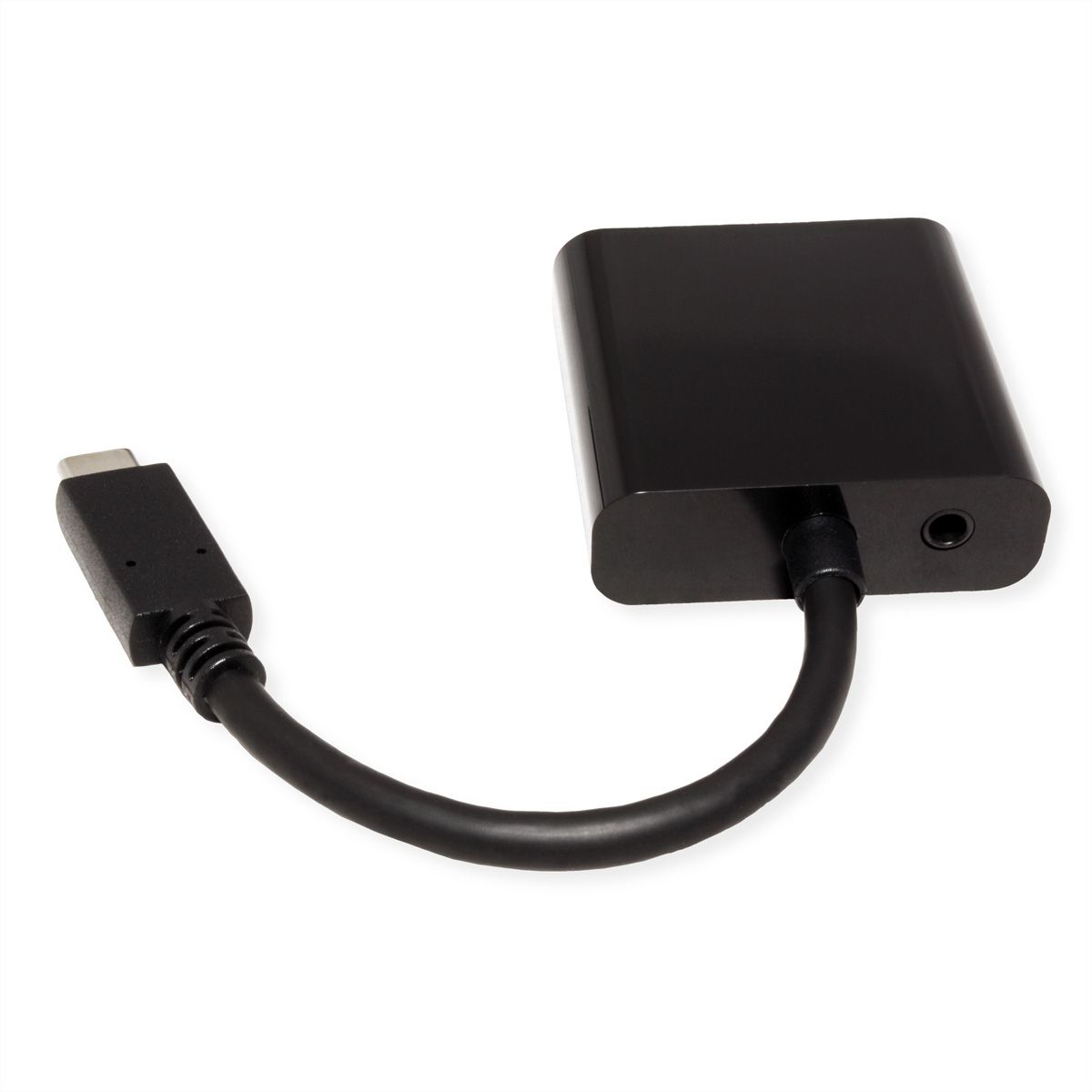

• Connections: VGA socket, 3.5mm jack and type C plug
• Cable length: approx. 10 cm

Remark: Support of "Alternate Mode (DP Alt Mode)" required

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer	VALUE
Product group	Adapters, Terminators, Converters
Product type	USB-VGA Adapter
Colour	black
Length	0.1 m
Max. resolution	1920 x 1200 @60Hz (2K, Full HD)
Side 1 connection (PC)	Typ C Male
Side 2 connection (Peripherals)	VGA Female
Side 1 Connector Type	USB Type C (USB-C)
Side 1 Connector Gender	Male
Side 2 Connector Type	HD D-Sub 15-pin (HD-15), VGA
Side 2 Connector Gender	Female
Area of application	External
Height	12 mm
Width	44.7 mm
Depth	200 mm
Weight	27.7 g
Height of packaging (single piece)	30 mm
Width of packaging (single piece)	150 mm
Depth of packaging (single piece)	160 mm
Package weight (single piece)	0.034 kg
