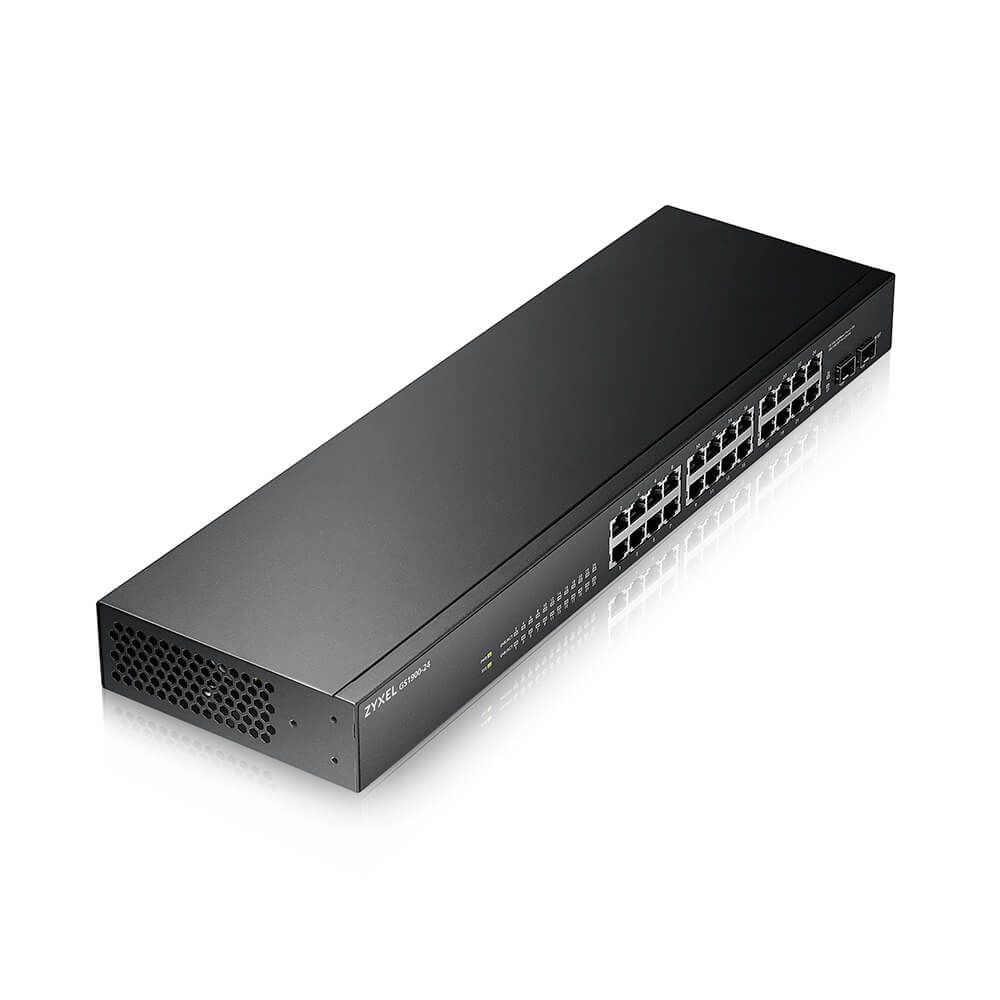

Zyxel GS-1900-24 v2 Managed L2 Gigabit Ethernet (10/100/1000) 1U Black

Item no. 526366573 Brand / Manufacturer ZYXEL COMMUNICATIONS Manuf. item no. GS1900-24-EU0102F EAN 4718937621231
ZYXEL COMMUNICATIONS

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days

Description

Zyxel GS-1900-24 v2. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE.... Power connector: AC-in jack. Rack mounting, Form factor: 1U

Near silent operationThe GS1900 Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating. It is ideal for your office environment.Intelligent PoE+ powers more devicesPoE models (8HP/10HP/24EP/24HPv2/48HPv2) come with default PoE consumption mode which delivers only the actual power required by your networked devices, reserves the rest and optimizes its power budget. That means a single switch can power more APs, IP cameras and VoIP phones, ensuring a better ROI for your business. All of them support the IEEE 802.3at providing a maximum of 30W per port.Speedy Gigabit performance—built for SMBsThe GS1900 is a series of switches with full non-blocking bandwidth of up to 1 Gbps per port. An ideal upgrade from an unmanaged switch, it’s a great choice for SMBs that want to enjoy high-speed business network applications at full wired non-blocking speed.Easy and intuitive managementThe Smart Managed GS1900 Series switch feature with web-based interface to manage advanced functions such as VLAN, QoS, IGMP Snooping, Link Aggregation (LAG), IPv6 and DoS prevention easily. Also, the user-friendly wizard helps to walk through setup, configuration and even advanced settings quickly.

Specifications

Manufacturer
ZYXEL COMMUNICATIONS
Product type
Network Switch
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
2
Power connector
AC-in jack
Weight & dimensions
Width
440 mm
Depth
131 mm
Height
44 mm
Weight
2.09 kg
Power
Power source
AC
Power supply included
Y
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
16 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 95%
Storage relative humidity (H-H)
10 - 95%
Heat dissipation
55 BTU/h
Network
Networking standards
IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support
N
Port mirroring
Y
Full duplex
Y
Flow control support
Y
Link aggregation
Y
Spanning tree protocol
Y
Ethernet LAN data rates
10,100,1000 Mbit/s
MAC address auto-learning supported
Y
VLAN support
Y
Virtual LAN features
Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN
Data transmission
MAC address table
8000 entries
Switching capacity
52 Gbit/s
Forwarding rate
39 Mpps
Store-and-forward
Y
Jumbo frames support
Y
Jumbo frames
9000
Packet buffer memory
0.525 MB
Packaging data
Cables included
AC
Package type
Box
Rack mount kit
Y
Package width
561 mm
Package depth
217 mm
Package height
82 mm
Package weight
2.85 kg
Security
DHCP features
DHCP client
IGMP snooping
Y
Security algorithms
802.1x RADIUS
MAC address filtering
Y
Static port security
Y
SSH/SSL support
Y
Password protection
Y
Authentication type
RADIUS, TACACS+
Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Y
Web-based management
Y
System event log
Y
MIB support
RFC 1213 MIB II, RFC 2819 RMON (group 1, 2, 3, 9), RFC 1215, RFC 1493
Design
Rack mounting
Y
Stackable
Y
Form factor
1U
Product colour
Black
Reset button
Y
LED indicators
Y
Certification
EMC■ CE, FCC, C-Tick, Class A(GS1900-24/24EP/24HPv2/48/48HPv2)■ CE, FCC, C-Tick, Class B(GS1900-8/8HP/10HP/16/24E)■ BSMI CNS13438• Safety■ LVD EN60950-1■ BSMI CNS14336-1■ CB IEC60950-1(GS1900-8HP/10HP/16/24E/24)• RoHS compliant
Power over Ethernet (PoE)
Power over Ethernet (PoE)
N
Performance
Mean time between failures (MTBF)
432.673 h
Logistics data
Harmonized System (HS) code
85176990
