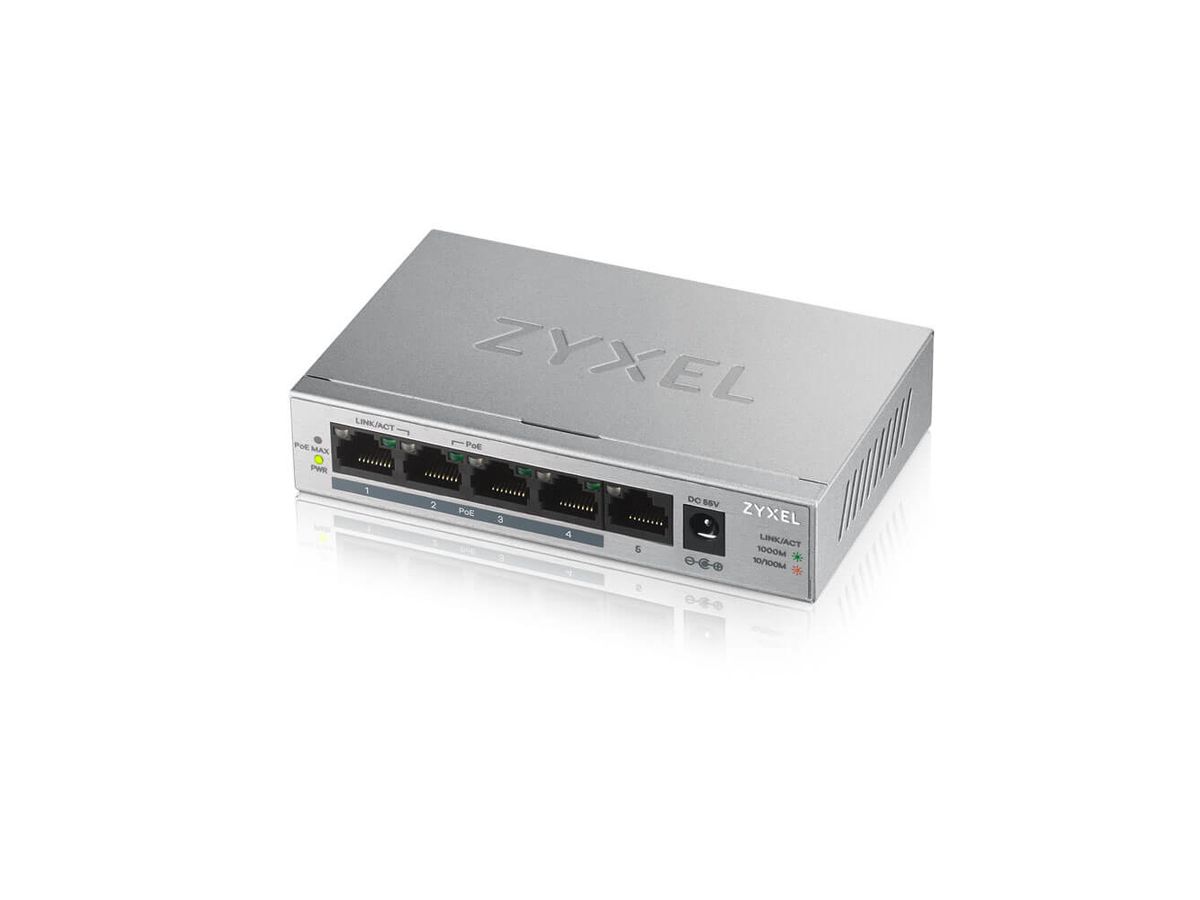

Zyxel GS1005HP Unmanaged Gigabit Ethernet (10/100/1000) Silver Power over Ethernet (PoE)

Zyxel GS1005HP Unmanaged Gigabit Ethernet (10/100/1000) Silver Power over Ethernet (PoE)

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Item no. 521351819
Brand / Manufacturer ZYXEL COMMUNICATIONS
Manuf. item no. GS1005HP-EU0101F
EAN 4718937603923

Description

Zyxel GS1005HP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2048 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x. Power over Ethernet (PoE)

Meeting the price and power demands of small businesses The Zyxel GS1005HP is equipped with 5 gigabit Ethernet ports, 4 of which are PoE ports that can deliver up to 60W of total PoE budget. The GS1005HP can easily connect with PoE ready devices to your network with plug-and-play design while providing power-saving benefits without compromising performance. The GS1005HP fills a long-standing hole in the market for unmanaged PoE switches that feature the 802.3at standard, has a high power budget and are affordable for SOHOs and small businesses. Smart PoE+ 802.3af/802.3at support The GS1005HP supports the IEEE 802.3at standard, providing a maximum of 30 watts per port (with a max total power budget of 60 watts) to supply power to PoE network devices such as wireless APs, IP cameras, and VoIP phones. Easy PoE Budget Management The GS1005HP boasts a total power budget of 60W and features a handy LED indicator that shows orange when the 50W threshold is reached. If power usage exceeds the budget, the last device will automatically be dropped with no impact on the other devices that are powered through the switch. Gigabit data transmission and smart features Featuring Gigabit performance, it provides 10 times faster than Fast Ethernet. Delivers up to 2,000 Mbps of dedicated bandwidth per port. Get more advanced features like Jumbo Frame, flow control, and auto-negotiation. It’s a great choice for SMBs who want to enjoy high-speed business network applications! Fanless design Extend your network without disrupting your quiet business environment. This switch features a fanless design that ensures noiseless operation and greater reliability over time with no moving parts that may fail. Advanced Energy-Savings at Work The GS1005HP's built-in IEEE 802.3az Energy Efficient Ethernet (EEE) function automatically detects network traffic and adjusts power consumption dynamically to reduce power usage during low link utilization periods.

Specifications

Manufacturer ZYXEL COMMUNICATIONS
Product type Network Switches
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Weight & dimensions
Width 121 mm
Depth 75 mm
Height 26 mm
Weight 235 g
Power
AC input voltage 100 - 240 V
Output voltage 55 V
Output current 1.3 A
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 10 - 90%
Network
Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
10G support N
Full duplex Y
Flow control support Y
Auto MDI/MDI-X Y
Data transmission
MAC address table 2048 entries
Switching capacity 10 Gbit/s
Jumbo frames support Y
Jumbo frames 9126
Packaging data
Quick start guide Y
AC adapter included Y
Package width 210 mm
Package depth 132 mm
Package height 78 mm
Package weight 834 g
Management features
Switch type Unmanaged
Quality of Service (QoS) support Y
Design
Product colour Silver
Certification CE, FCC, BSMI, EAC
Power over Ethernet (PoE)
Power over Ethernet (PoE) Y
Power over Ethernet plus (PoE+) ports quantity 4
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 60 W
Performance
Buffer size 128 KB
