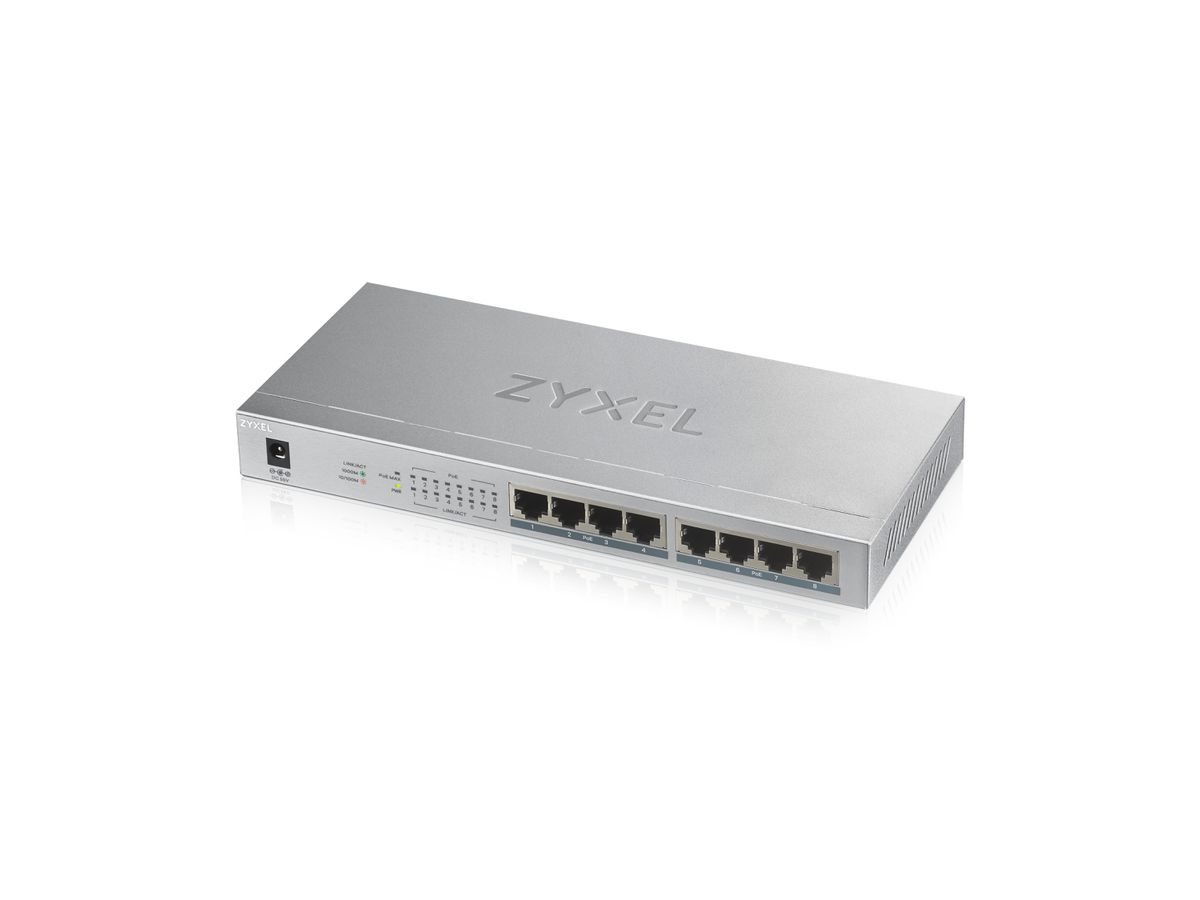

Zyxel GS1008HP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 521354586 |
|---|---|
| Brand / Manufacturer | ZYXEL COMMUNICATIONS |
| Manuf. item no. | GS1008HP-EU0101F |
| EAN | 4718937604135 |
:strip_icc():strip_exif()/logos/zyxel-communications.png "ZYXEL COMMUNICATIONS")
Description
Zyxel GS1008HP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. DC input voltage: 55 V. Power connector: DC-in jack. Power over Ethernet (PoE)
Meeting the price and power demands of small businessesThe Zyxel GS1008HP is equipped with 8 gigabit Ethernet ports, all of which are PoE ports that can deliver up to 60W of total PoE budget. The GS1008HP can easily connect with PoE ready devices to your network with plug-and-play design while providing power-saving benefits without compromising performance. The GS1008HP fills a long-standing hole in the market for unmanaged PoE switches that feature the 802.3at standard, has a high power budget and are affordable for SOHOs and small businesses.Smart PoE+ 802.3af/802.3at SupportThe GS1008HP supports the IEEE 802.3at standard, providing a maximum of 30 watts per port (with a max total power budget of 60 watts) to supply power to PoE network devices such as wireless APs, IP cameras, and VoIP phones.Easy PoE Budget ManagementThe GS1008HP boasts a total power budget of 60W and features a handy LED indicator that shows orange when the 50W threshold is reached. If power usage exceeds the budget, the last device will automatically be dropped with no impact on the other devices that are powered through the switch.Gigabit data transmission and smart featuresFeaturing Gigabit performance, it provides 10 times faster than Fast Ethernet. Delivers up to 2,000 Mbps of dedicated bandwidth per port. Get more advanced features like Jumbo Frame, flow control, and auto-negotiation. It’s a great choice for SMBs who want to enjoy high-speed business network applications!Fanless designExtend your network without disrupting your quiet business environment. This switch features a fanless design that ensures noiseless operation and greater reliability over time with no moving parts that may fail.Advanced Energy-Savings at WorkThe GS1008HP's built-in IEEE 802.3az Energy Efficient Ethernet (EEE) function automatically detects network traffic and adjusts power consumption dynamically to reduce power usage during low link utilization periods.
Specifications
| Manufacturer | ZYXEL COMMUNICATIONS |
|---|---|
| Product type | Network Switches |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
Weight & dimensions
| Width | 240 mm |
|---|---|
| Depth | 105 mm |
| Height | 26 mm |
| Weight | 610 g |
Power
| Power supply included | Y |
|---|---|
| DC input voltage | 55 V |
| Input current | 1.3 A |
| Power consumption (max) | 72 W |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Network
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
|---|---|
| 10G support | N |
| Flow control support | Y |
| Auto MDI/MDI-X | Y |
Data transmission
| Switching capacity | 16 Gbit/s |
|---|---|
| Store-and-forward | Y |
| Jumbo frames support | Y |
| Jumbo frames | 9000 |
Packaging data
| Cables included | AC |
|---|---|
| Quick start guide | Y |
| AC adapter included | Y |
| Package width | 256 mm |
| Package depth | 132 mm |
| Package height | 78 mm |
| Package weight | 1.26 kg |
Management features
| Switch type | Unmanaged |
|---|
Design
| Product colour | Grey |
|---|---|
| LED indicators | PoE, Power |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Y |
|---|---|
| Power over Ethernet (PoE) ports quantity | 8 |
Logistics data
| Master (outer) case width | 283 mm |
|---|---|
| Master (outer) case length | 415 mm |
| Master (outer) case height | 282 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case gross weight | 9 kg |
