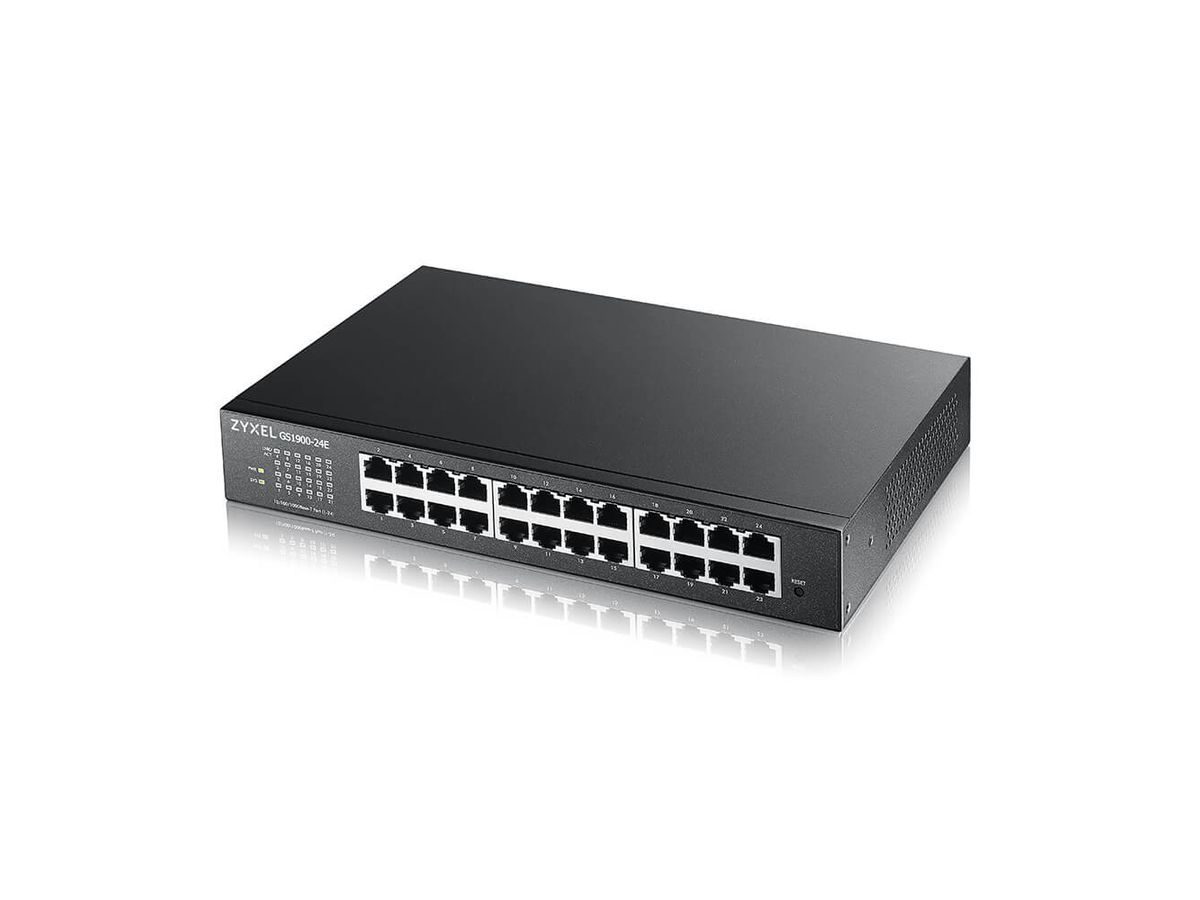

Zyxel GS1900-24E-EU0103F network switch Managed L2 Gigabit Ethernet (10/100/1000) 1U Black
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 526366572 |
|---|---|
| Brand / Manufacturer | ZYXEL COMMUNICATIONS |
| Manuf. item no. | GS1900-24E-EU0103F |
| EAN | 4718937621132 |
:strip_icc():strip_exif()/logos/zyxel-communications.png "ZYXEL COMMUNICATIONS")
Description
Zyxel GS1900-24E-EU0103F. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE.... Power connector: AC-in jack. Wall mountable, Rack mounting, Form factor: 1U
Near silent operation
The GS1900 Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating. It is ideal for your office environment.
Intelligent PoE+ powers more devices
PoE models (8HP/10HP/24EP/24HPv2/48HPv2) come with default PoE consumption mode which delivers only the actual power required by your networked devices, reserves the rest and optimizes its power budget. That means a single switch can power more APs, IP cameras and VoIP phones, ensuring a better ROI for your business. All of them support the IEEE 802.3at providing a maximum of 30W per port.
Speedy Gigabit performance—built for SMBs
The GS1900 is a series of switches with full non-blocking bandwidth of up to 1 Gbps per port. An ideal upgrade from an unmanaged switch, it’s a great choice for SMBs that want to enjoy high-speed business network applications at full wired non-blocking speed.
Easy and intuitive management
The Smart Managed GS1900 Series switch feature with web-based interface to manage advanced functions such as VLAN, QoS, IGMP Snooping, Link Aggregation (LAG), IPv6 and DoS prevention easily. Also, the user-friendly wizard helps to walk through setup, configuration and even advanced settings quickly.
Specifications
| Manufacturer | ZYXEL COMMUNICATIONS |
|---|---|
| Product type | Network Switches |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | AC-in jack |
Weight & dimensions
| Width | 267 mm |
|---|---|
| Depth | 162 mm |
| Height | 42 mm |
| Weight | 1.56 kg |
Power
| Power source | AC |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 15.1 W |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 10 - 95% |
| Heat dissipation | 51.49 BTU/h |
Network
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
|---|---|
| 10G support | No |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| MAC address auto-learning supported | Yes |
| VLAN support | Yes |
| Virtual LAN features | Stacked VLAN, VLAN mapping |
Data transmission
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 48 Gbit/s |
| Forwarding rate | 35.7 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 0.525 MB |
Packaging data
| Cables included | AC |
|---|---|
| Package type | Box |
| Rack mount kit | Yes |
| Package width | 325 mm |
| Package depth | 223 mm |
| Package height | 71 mm |
| Package weight | 2.05 kg |
Security
| DHCP features | DHCP client |
|---|---|
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS |
| MAC address filtering | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Password protection | Yes |
| Authentication type | RADIUS, TACACS+ |
Management features
| Switch type | Managed |
|---|---|
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| MIB support | RFC 1213 MIB II, RFC 2819 RMON (group 1, 2, 3, 9),RFC 1215 generic traps, RFC 1493 bridge, Zyxel private common MIB |
Design
| Rack mounting | Yes |
|---|---|
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Yes |
| Wall mountable | Yes |
| Certification | EMC■ CE, FCC, C-Tick, Class A(GS1900-24/24EP/24HPv2/48/48HPv2)■ CE, FCC, C-Tick, Class B(GS1900-8/8HP/10HP/16/24E)■ BSMI CNS13438• Safety■ LVD EN60950-1■ BSMI CNS14336-1■ CB IEC60950-1(GS1900-8HP/10HP/16/24E/24)• RoHS compliant |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Performance
| Mean time between failures (MTBF) | 804.714 h |
|---|
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
