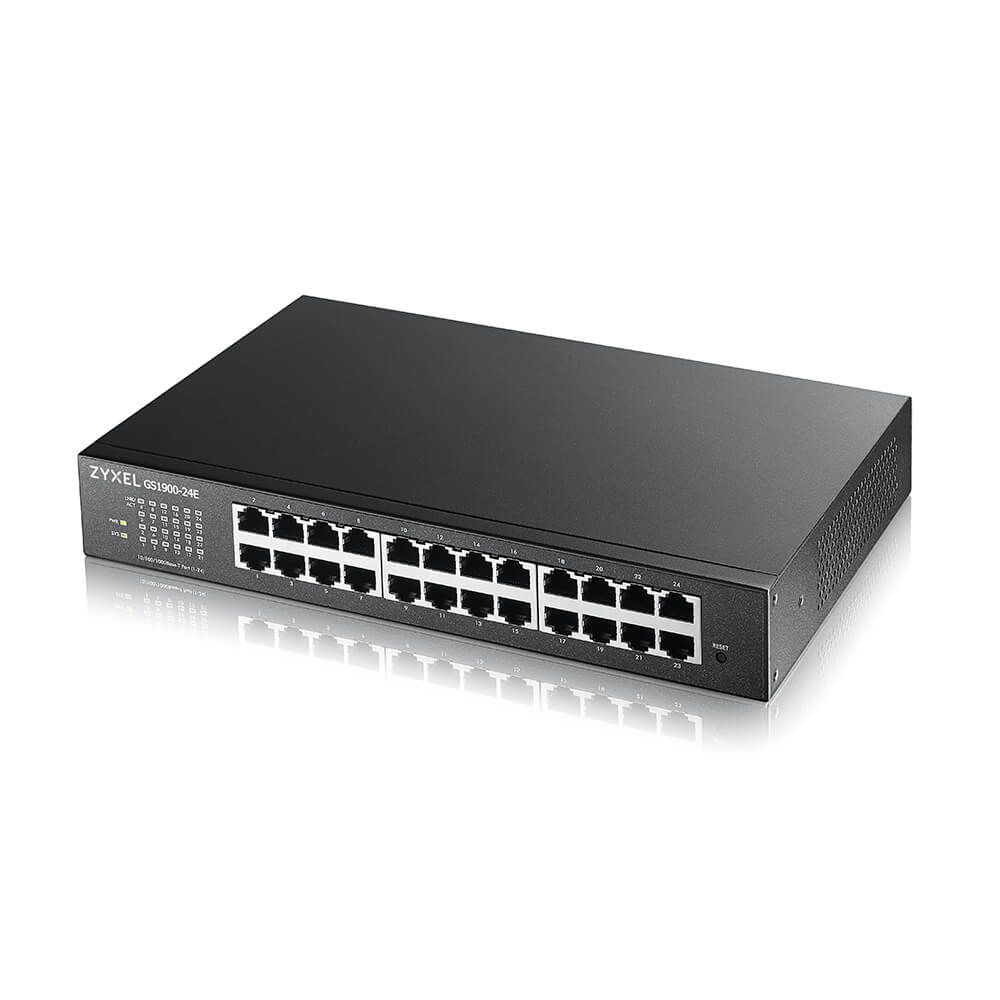

Zyxel GS1900-24E-EU0103F network switch Managed L2 Gigabit Ethernet (10/100/1000) 1U Black

Item no. 526366572 Brand / Manufacturer ZYXEL COMMUNICATIONS Manuf. item no. GS1900-24E-EU0103F EAN 4718937621132
ZYXEL COMMUNICATIONS

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days

Description

Zyxel GS1900-24E-EU0103F. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE.... Power connector: AC-in jack. Wall mountable, Rack mounting, Form factor: 1U

Near silent operation
The GS1900 Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating. It is ideal for your office environment.

Intelligent PoE+ powers more devices
PoE models (8HP/10HP/24EP/24HPv2/48HPv2) come with default PoE consumption mode which delivers only the actual power required by your networked devices, reserves the rest and optimizes its power budget. That means a single switch can power more APs, IP cameras and VoIP phones, ensuring a better ROI for your business. All of them support the IEEE 802.3at providing a maximum of 30W per port.

Speedy Gigabit performance—built for SMBs
The GS1900 is a series of switches with full non-blocking bandwidth of up to 1 Gbps per port. An ideal upgrade from an unmanaged switch, it’s a great choice for SMBs that want to enjoy high-speed business network applications at full wired non-blocking speed.

Easy and intuitive management
The Smart Managed GS1900 Series switch feature with web-based interface to manage advanced functions such as VLAN, QoS, IGMP Snooping, Link Aggregation (LAG), IPv6 and DoS prevention easily. Also, the user-friendly wizard helps to walk through setup, configuration and even advanced settings quickly.

Specifications

Manufacturer
ZYXEL COMMUNICATIONS
Product type
Network Switch
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power connector
AC-in jack
Weight & dimensions
Width
267 mm
Depth
162 mm
Height
42 mm
Weight
1.56 kg
Power
Power source
AC
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
15.1 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 95%
Storage relative humidity (H-H)
10 - 95%
Heat dissipation
51.49 BTU/h
Network
Networking standards
IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support
No
Port mirroring
Yes
Full duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Spanning tree protocol
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
MAC address auto-learning supported
Yes
VLAN support
Yes
Virtual LAN features
Stacked VLAN, VLAN mapping
Data transmission
MAC address table
8000 entries
Switching capacity
48 Gbit/s
Forwarding rate
35.7 Mpps
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
0.525 MB
Packaging data
Cables included
AC
Package type
Box
Rack mount kit
Yes
Package width
325 mm
Package depth
223 mm
Package height
71 mm
Package weight
2.05 kg
Security
DHCP features
DHCP client
IGMP snooping
Yes
Security algorithms
802.1x RADIUS
MAC address filtering
Yes
Static port security
Yes
SSH/SSL support
Yes
Password protection
Yes
Authentication type
RADIUS, TACACS+
Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
System event log
Yes
MIB support
RFC 1213 MIB II, RFC 2819 RMON (group 1, 2, 3, 9),RFC 1215 generic traps, RFC 1493 bridge, Zyxel private common MIB
Design
Rack mounting
Yes
Stackable
Yes
Form factor
1U
Product colour
Black
Reset button
Yes
LED indicators
Yes
Wall mountable
Yes
Certification
EMC■ CE, FCC, C-Tick, Class A(GS1900-24/24EP/24HPv2/48/48HPv2)■ CE, FCC, C-Tick, Class B(GS1900-8/8HP/10HP/16/24E)■ BSMI CNS13438• Safety■ LVD EN60950-1■ BSMI CNS14336-1■ CB IEC60950-1(GS1900-8HP/10HP/16/24E/24)• RoHS compliant
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Performance
Mean time between failures (MTBF)
804.714 h
Logistics data
Harmonized System (HS) code
85176990
