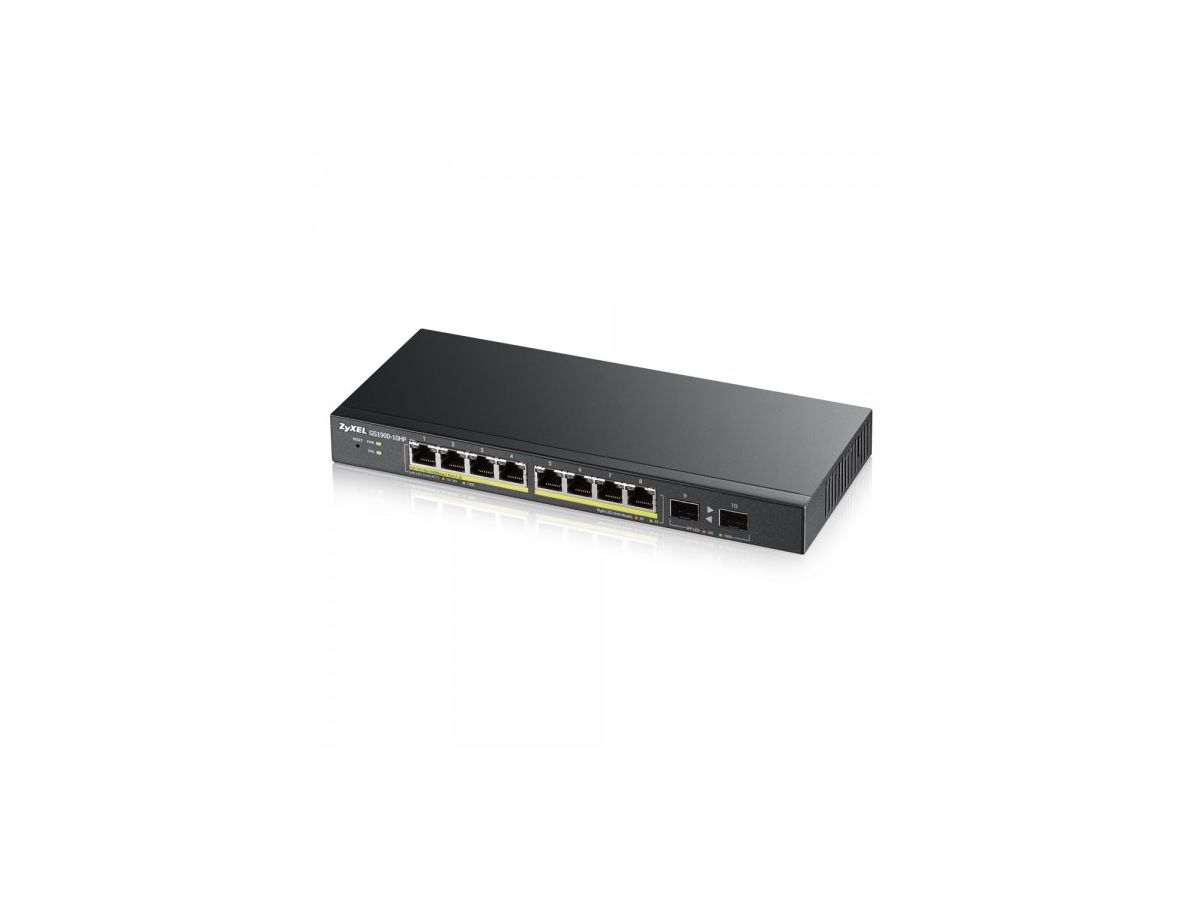

Zyxel GS1900-8HP v3 PoE Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Zyxel GS1900-8HP v3 PoE Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Item no. 526887936
Brand / Manufacturer ZYXEL COMMUNICATIONS
Manuf. item no. GS1900-8HP-EU0103F
EAN 4718937621279

Description

Zyxel GS1900-8HP v3 PoE. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE.... Power connector: DC-in jack. Power over Ethernet (PoE)

Simple, Fast and Smart Managed Switches for Small Business ConnectivityThe ZyXEL GS1900 Series of 8/10/16/24/48-port GbE Smart Managed Switch with Gigabit speed and essential managing functions bring your business network more flexibility and connectivity. The 1900 Series consists of nine (9) models—the GS1900-8, GS1900-8HP, GS1900-10HP, GS1900- 16, GS1900-24E, GS1900-24, GS1900-24HP, GS1900-48 and GS1900-48HP. Providing GbE switches with power-saving functions, fanless design and full IPv6 support ensure your network to be ready for future expansions. In addition, the PoE models GS1900-8HP/10HP/24HP/48HP Gigabit switch complies with the IEEE 802.3at Power over Ethernet (PoE) Plus standard. The complete GS1900 Series has been designed with useful features and advanced performances that empower your networks with speed and security as well as silent operation in your office environments.The complete ZyXEL GS1900 Series has an essential portfolio of 8/10/16/24/48-port compact desktop and rackmount size with GbE connectivity. All models support multiple deployment methods to fulfill the needs for small offices and meeting room environments such as wall-, under table- or desktop-mounting and rackmount options1. It’s now quick and effortless to enjoy the high-speed business network applications without a hitch. Additionally, the GS1900-10HP/24/24HP/48/48HP is equipped with 2 extra SFP slots to provide 100M and GbE speeds for long-distance deployments.The GS1900-8HP/10HP/24HP/48HP features IEEE 802.3at PoE Plus with up to 30 W powers per port to flexibly extend network deployment, especially for high-power devices such as Wi-Fi APs, IP cams and IP phones. The 802.3at PoE Plus capability makes the switch ideal for connecting numerous powered devices to form a flawless business network.

Specifications

Manufacturer ZYXEL COMMUNICATIONS
Product type Network Switches
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Power connector DC-in jack
Weight & dimensions
Width 250 mm
Depth 104 mm
Height 27 mm
Weight 710 g
Power
Power source AC/DC
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Power consumption (typical) 90 W
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Network
Networking standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Full duplex Y
Flow control support Y
Broadcast storm control Y
Rate limiting Y
Auto MDI/MDI-X Y
VLAN support Y
Data transmission
MAC address table 8000 entries
Switching capacity 16 Gbit/s
Number of queues 8
Jumbo frames support Y
Jumbo frames 9216
Security
DHCP features DHCP client
IGMP snooping Y
Security algorithms 802.1x RADIUS
MAC address filtering Y
Management features
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Y
Web-based management Y
Design
Product colour Black
Reset button Y
Certification CE, FCC, C-Tick, RoHS
Power over Ethernet (PoE)
Power over Ethernet (PoE) Y
Power over Ethernet (PoE) ports quantity 8
Total Power over Ethernet (PoE) budget 70 W
Performance
Mean time between failures (MTBF) 533086 h
Logistics data
Harmonized System (HS) code 85176990
Multicast features
Multicast support Y
