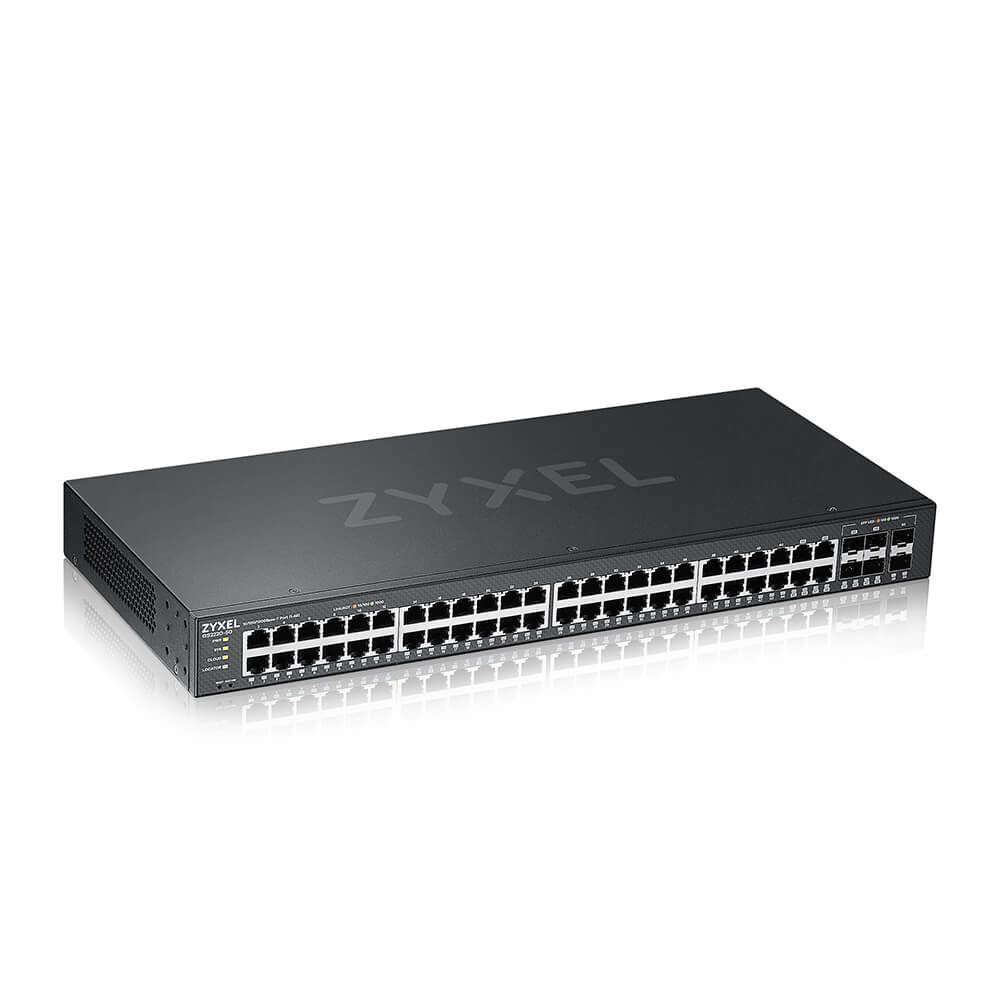

Zyxel GS2220-50-EU0101F network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

Item no. 523632450 Brand / Manufacturer ZYXEL COMMUNICATIONS Manuf. item no. GS2220-50-EU0101F EAN 4718937607525
ZYXEL COMMUNICATIONS

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days

Description

Zyxel GS2220-50-EU0101F. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 44. MAC address table: 16000 entries, Switching capacity: 100 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Rack mounting

Designed for converged networksGS2220 SeriesZyxel’s new generation of Layer 2 Managed Switch GS2220 Series are fully featured Layer 2 Gigabit access switches designed to meet converged data, video and voice networking needs. This latest series’ eye-catching new look comes in 10-, 28-, and 50-port models with a combination of PoE and non-PoE. On top of the fully manageable L2 features set comes with the state-ofart Zyxel NebulaFlex Pro technology for cloud manageability.Industry first tri-mode switch.The GS2220 Series is the first managed hybrid switch with Nebula Cloud management, Standalone management, and SNMP.Powerful L2 features.The GS2220 Series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference and IPTV deployments. Advanced traffic control features of the GS2220 Series such as L2 multicast, IGMP snooping, MVR provide businesses greater agility and more effective traffic management for the converged applications of today. Manage it your way!The support of Zyxel NebulaFlex Pro allows you to easily switch standalone management and intuitive Nebula cloud management platform with 1-YEAR Pro Pack bundled anytime with just a few simple clicks. Experience whisper-silent operations.This Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating.Flexible port combination.The GS2220 Series includes copper ports and combo ports, 50 and 50HP models even come with additional dedicated SFP ports for uplinks. This flexible port combination can fit in every Layer 2 switching applications easily.Plug into the power of the Zyxel One Network.The Zyxel One Network (ZON) Utility is a unified installation tool to discover and configure Zyxel Switches, WLAN and Gateways in the standalone network. Users can easily maintain the network in a single platform. ZON Utility is a free of charge tool which has been downloaded by over 32,000 users to date.

Specifications

Manufacturer
ZYXEL COMMUNICATIONS
Product type
Network Switch
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
44
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
4
Fiber ports quantity
2
Fiber optic connector
SFP
Weight & dimensions
Width
440 mm
Depth
200 mm
Height
44.5 mm
Weight
2.9 kg
Power
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
36.9 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 95%
Storage relative humidity (H-H)
10 - 95%
Heat dissipation
125.829 BTU/h
Network
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
N
Copper ethernet cabling technology
10BASE-TX, 1000BASE-T
Port mirroring
Y
Flow control support
Y
Link aggregation
Y
Broadcast storm control
Y
Rate limiting
Y
Spanning tree protocol
Y
VLAN support
Y
Virtual LAN features
Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Data transmission
MAC address table
16000 entries
Switching capacity
100 Gbit/s
Forwarding rate
74 Mpps
Packet buffer memory
1.5 MB
Packaging data
Cables included
AC
Package width
496 mm
Package depth
289 mm
Package height
90 mm
Package weight
3.97 kg
Security
DHCP features
DHCP client, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay
Access Control List (ACL)
Y
IGMP snooping
Y
Security algorithms
SNMP, SNMPv2, SNMPv3, SSH-2, SSL/TLS
MAC address filtering
Y
Authentication
Guest VLAN, MAC-based authentication
Authentication type
IEEE 802.1x, RADIUS
Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Y
Web-based management
Y
Configuring Location Settings (CLI)
Y
System event log
Y
Optical fiber
Fiber ethernet cabling technology
1000BASE-X
Design
Rack mounting
Y
Product colour
Black
Certification
LVD, BSMIFCC 15 A, CE EMC A, BSMI ENCRoHS A
Power over Ethernet (PoE)
Power over Ethernet (PoE)
N
Performance
Internal memory
256 MB
Flash memory
32 MB
Noise level
47.3 dB
Mean time between failures (MTBF)
660245 h
Logistics data
Harmonized System (HS) code
85176990
Multicast features
Multicast support
Y
