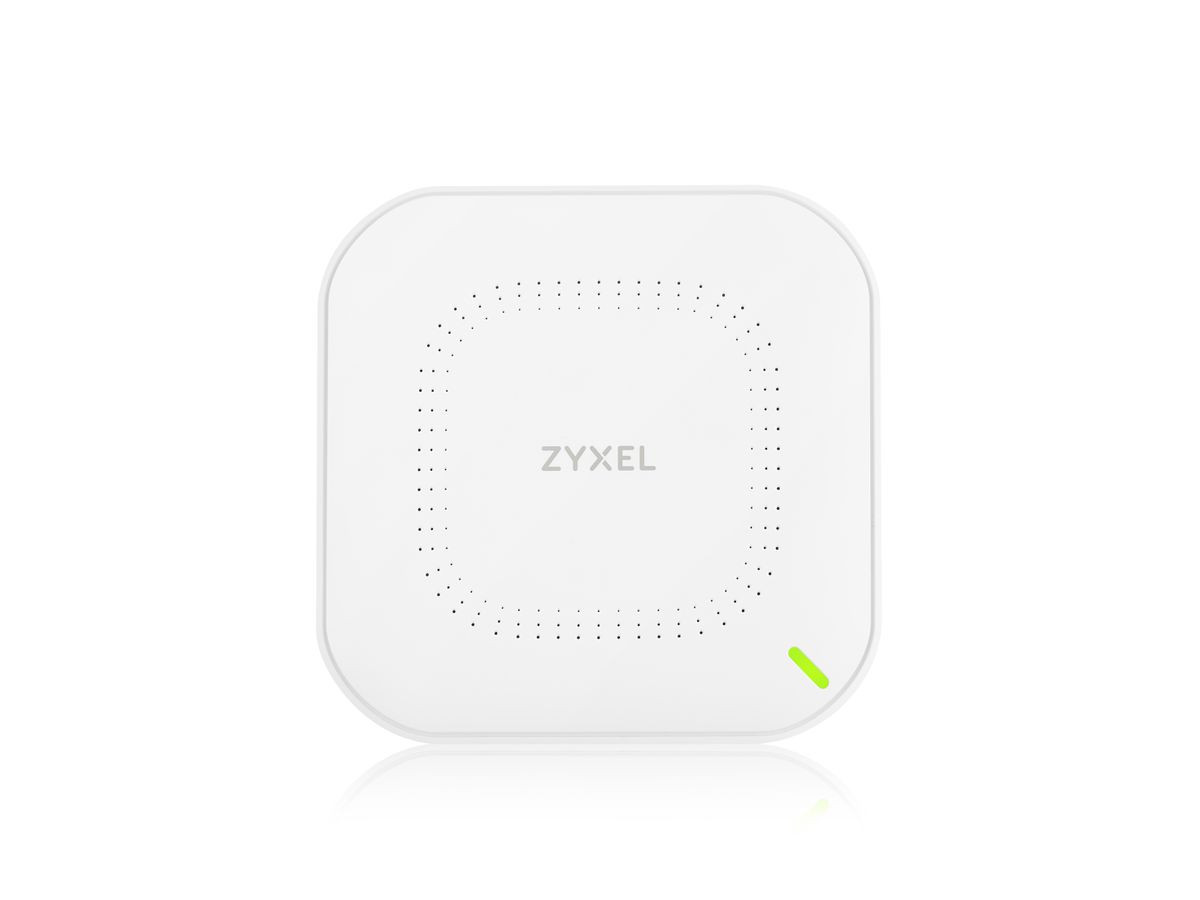

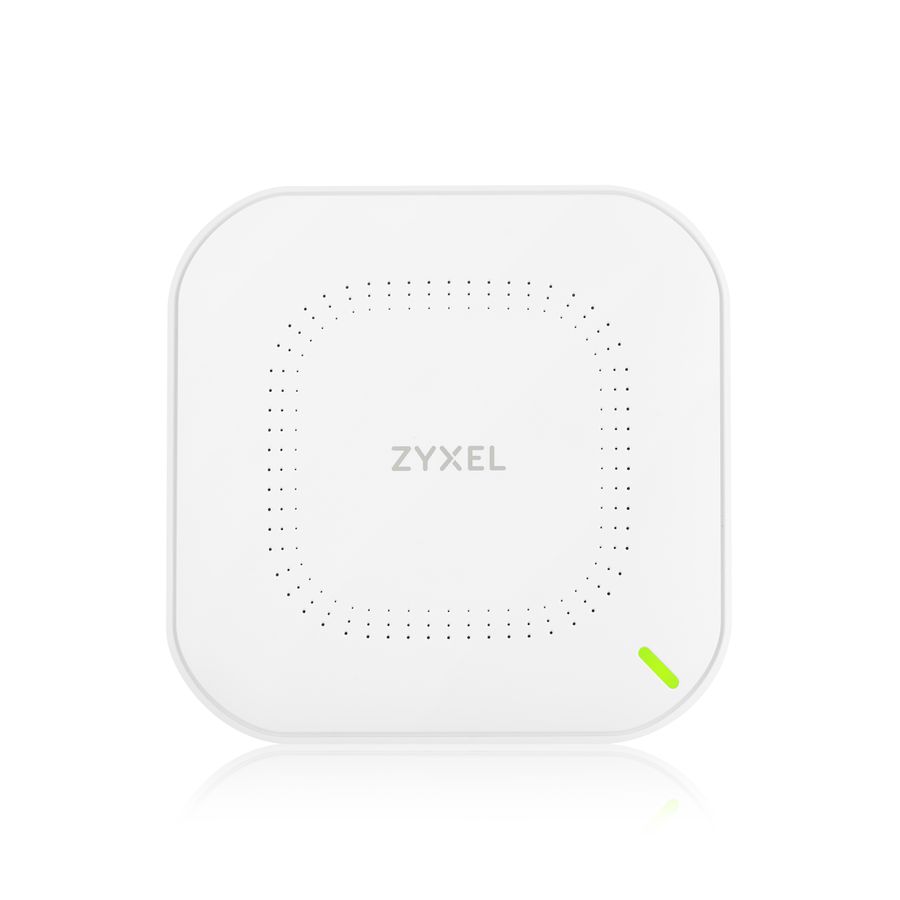

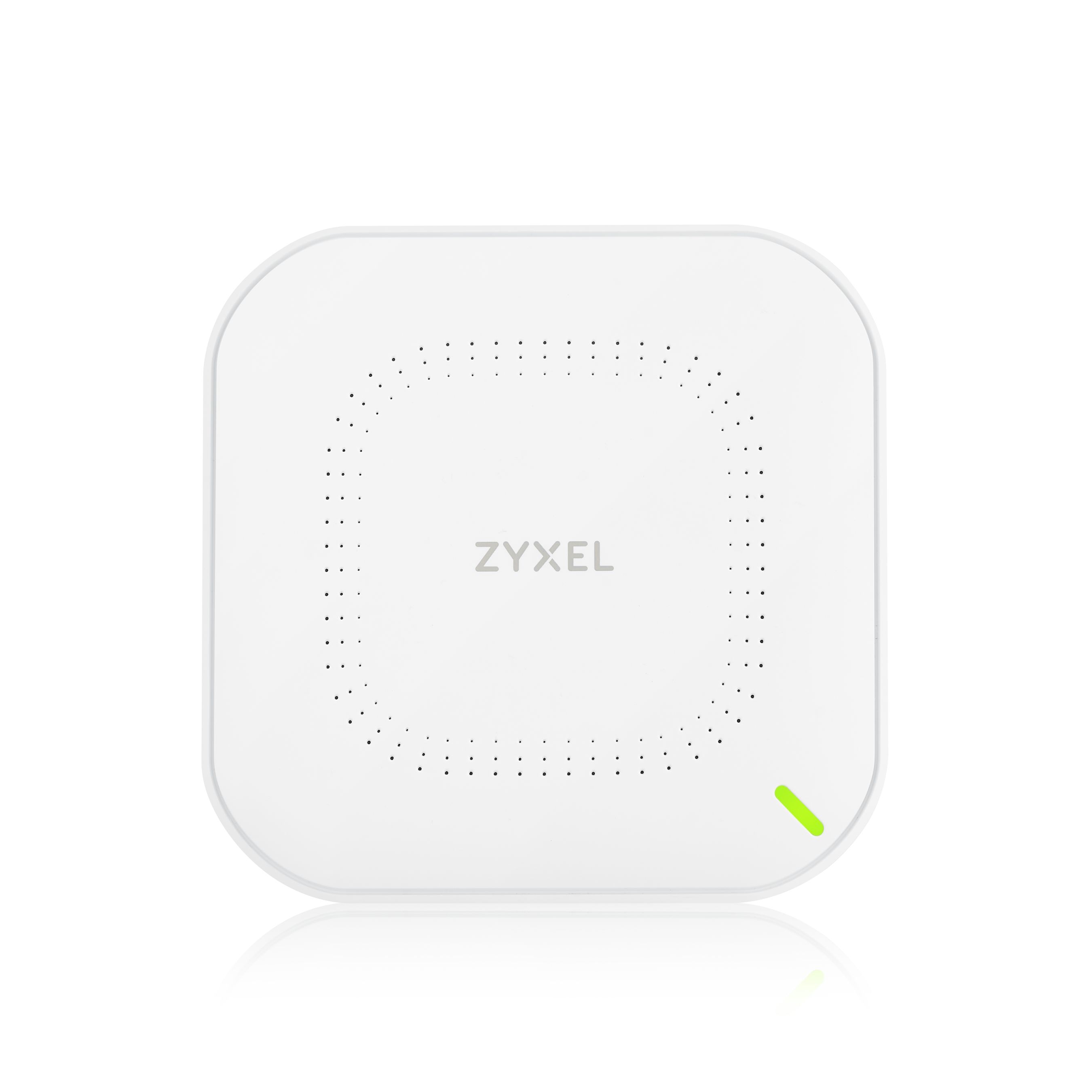

Zyxel NWA50AX 1775 Mbit/s White Power over Ethernet (PoE)
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 525963734 |
|---|---|
| Brand / Manufacturer | ZYXEL COMMUNICATIONS |
| Manuf. item no. | NWA50AX-EU0102F |
| EAN | 4718937618743 |
:strip_icc():strip_exif()/logos/zyxel-communications.png "ZYXEL COMMUNICATIONS")
Description
Zyxel NWA50AX. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1775 Mbit/s. Security algorithms: WPA, WPA2, WPA3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White
Specifications
| Manufacturer | ZYXEL COMMUNICATIONS |
|---|---|
| Product type | Wireless Access Points |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|
Weight & dimensions
| Width | 140 mm |
|---|---|
| Depth | 140 mm |
| Height | 37.5 mm |
| Weight | 290 g |
Power
| Power over Ethernet (PoE) | Yes |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.3 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90% |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Security
| Security algorithms | WPA, WPA2, WPA3 |
|---|---|
| MAC address filtering | Yes |
| Auto Wireless Distribution System (WDS) | Yes |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|---|
| AC adapter included | Yes |
| Mounting kit | Yes |
Antenna
| Antenna type | Internal |
|---|---|
| Antenna gain level (max) | 4 dBi |
Design
| Placement | Ceiling, Wall |
|---|---|
| Product colour | White |
Features
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| Maximum data transfer rate | 1775 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 575 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Fast roaming | Yes |
| VLAN support | Yes |
| Band steering | Yes |
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|---|
| Country of origin | China |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 483 mm |
| Master (outer) case height | 332 mm |
| Master (outer) case gross weight | 13 kg |
| Products per master (outer) case | 20 pc(s) |
