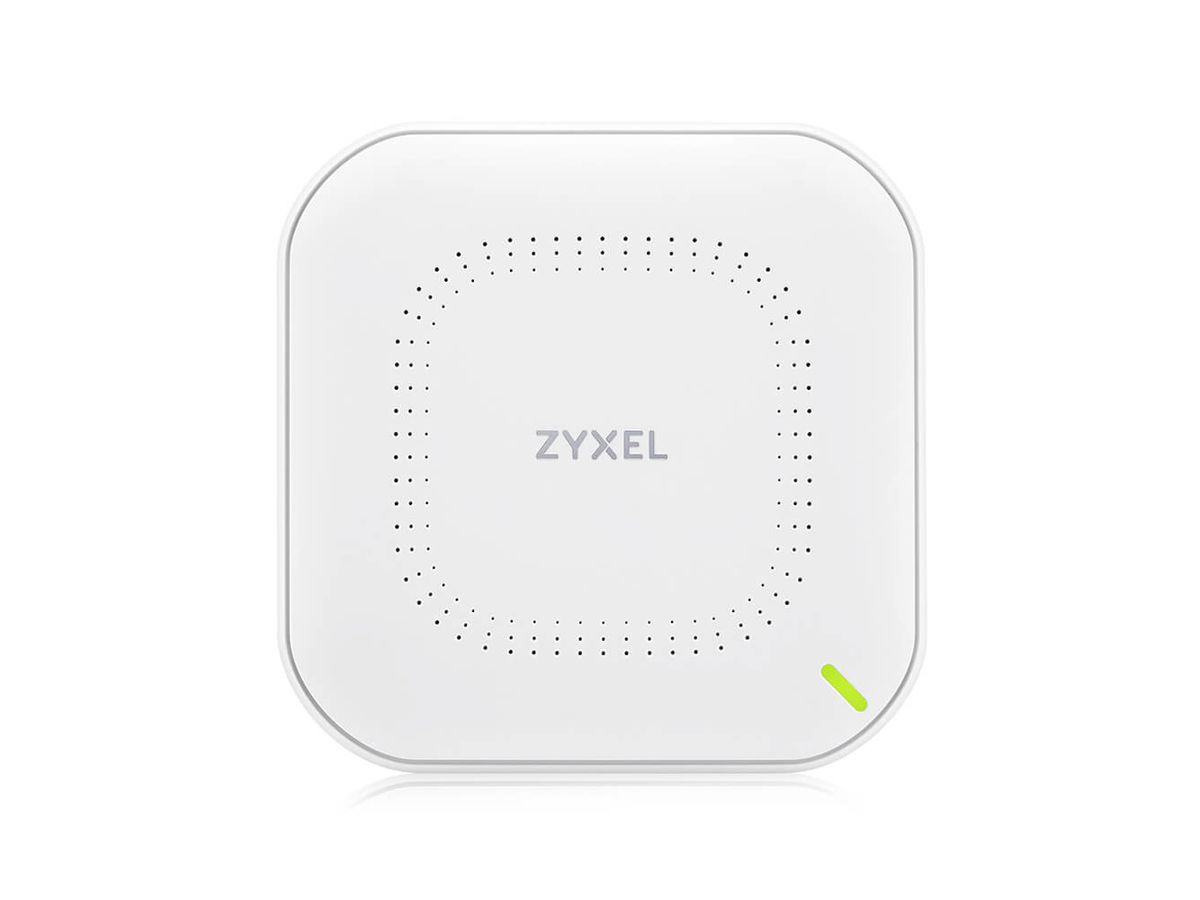

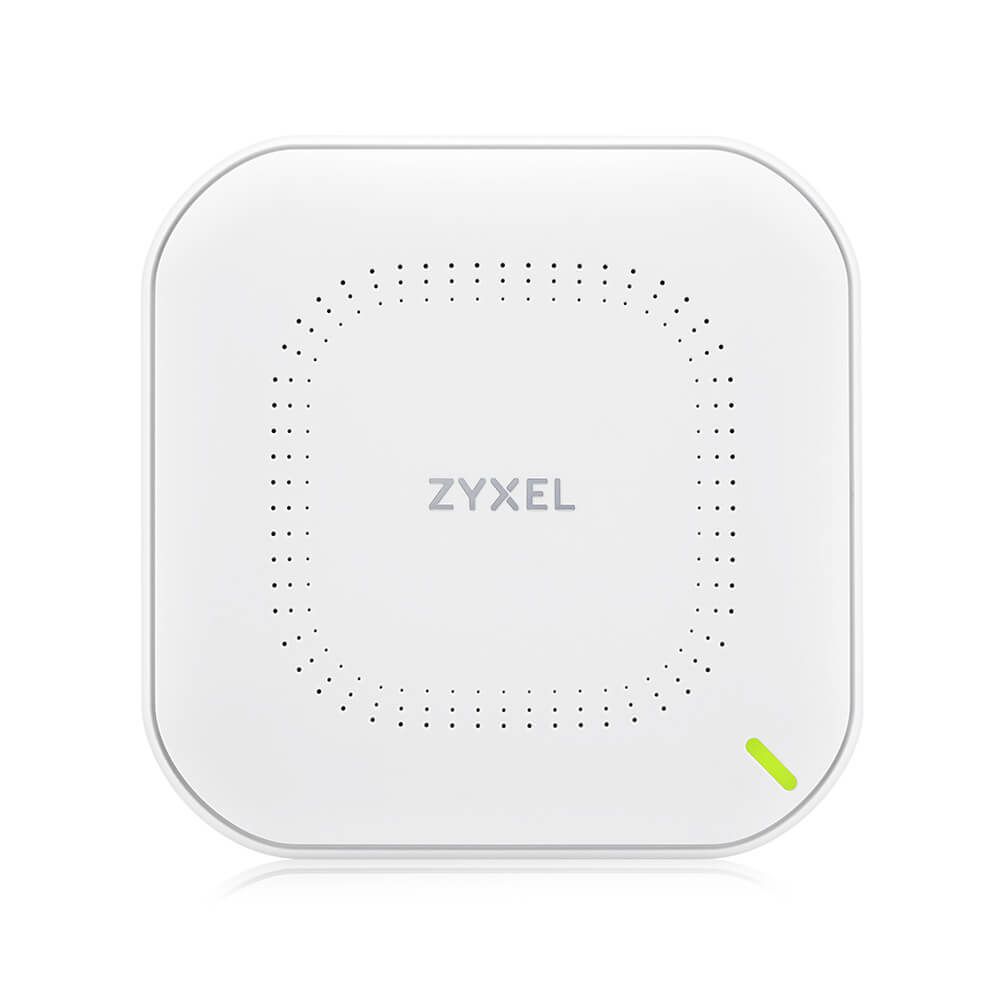

Zyxel NWA50AX PRO 2400 Mbit/s White Power over Ethernet (PoE)

Zyxel NWA50AX PRO 2400 Mbit/s White Power over Ethernet (PoE)

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Item no. 528031393
Brand / Manufacturer ZYXEL COMMUNICATIONS
Manuf. item no. NWA50AXPRO-EU0102F
EAN 4718937630554

Description

Zyxel NWA50AX PRO. 2.4 GHz, 5 GHz, Maximum data transfer rate: 2400 Mbit/s. Security algorithms: WPA, WPA2, WPA3. Ethernet LAN data rates: 1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White

Multi-gig WiFi 6 access point for small businesses

Zyxel NWA50AX Pro
AX3000 Dual-Radio Multi-gig PoE Access Point


Multi-gig WiFi 6 access point for small businesses

Delivering AX3000 WiFi speed with 2.5G Ethernet uplink port, the Zyxel NWA50AX Pro provides the powerful and fastest WiFi 6 speed for small businesses, SoHo, and home offices.

Small business owners looking for an affordable WiFi 6 access point with multi-gig connectivity, Zyxel’s NWA50AX Pro is no doubt the ideal choice for them to support more connected devices and applications with the fastest speeds.

Boost your WiFi performance

To better leverage the faster speeds in 5Ghz band, Zyxel NWA50AX Pro equips with 3x high-gain antennas to boost WiFi signals and extend coverage, especially to previously hard-to-reach areas.

In addition to the WiFi boost, NWA50AX Pro also comes with the premium multi-gig Ethernet connections. As it can run on the common-type Cat5e cabling, a 2.5G uplink port breaks through the 1.0G bottleneck without re-cabling, making it easy to create an affordable high-speed network environment for your business or home.


Set up your wireless network in minutes!
No networking expertise required - The NWA50AX Pro is designed to be easily configured and installed in places like small hotels, retail stores, restaurants, or home offices.

The simple configuration allows you to set up the network for your customers and employees in minutes. The AP can be managed either with Nebula Cloud networking platform or the device’s local interface.

Easy deployment with Zyxel’s Smart Mesh
Zyxel’s Smart Mesh technology automatically forms dynamic wireless links between access points and mitigates the complex, inconvenient cabling for WiFi deployment.

The Smart Mesh technology can save you from extra wiring by enabling the wireless connectivity between APs for extended range and flexible deployment.

Manage it your way!

The NWA50AX Pro with NebulaFlex offers the flexible manageability for you to freely choose between the device’s local web interface or onboarding to our super easy Nebula cloud management interface that you never need to worry about forgetting the IP address or lost account and password when managing it on cloud.

Specifications

Manufacturer ZYXEL COMMUNICATIONS
Product type Wireless Access Points
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
DC-in jack Yes
Weight & dimensions
Width 140 mm
Depth 140 mm
Height 37.5 mm
Weight 352 g
Power
Power over Ethernet (PoE) Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Input current 0.3 A
Output voltage 12 V
Output current 2 A
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 10 - 90%
Protocols
Management protocols SNMP
Packaging data
Package width 240 mm
Package depth 155 mm
Package height 60 mm
Package weight 668 g
Security
Security algorithms WPA, WPA2, WPA3
MAC address filtering Yes
Management features
Web-based management Yes
Firmware upgradeable Yes
Packaging content
Quantity per pack 1 pc(s)
AC adapter included Yes
Mounting kit Yes
Antenna
Antenna type Internal
Antenna features Integrated antenna
Antenna gain level (max) 4 dBi
Design
Placement Ceiling
Product colour White
LED indicators Yes
Features
2.4 GHz Yes
5 GHz Yes
6 GHz No
Maximum data transfer rate 2400 Mbit/s
Maximum data transfer rate (2.4 GHz) 575 Mbit/s
Maximum data transfer rate (5 GHz) 2400 Mbit/s
Ethernet LAN data rates 1000,2500 Mbit/s
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
MIMO Yes
MIMO type Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME) Yes
VLAN support Yes
