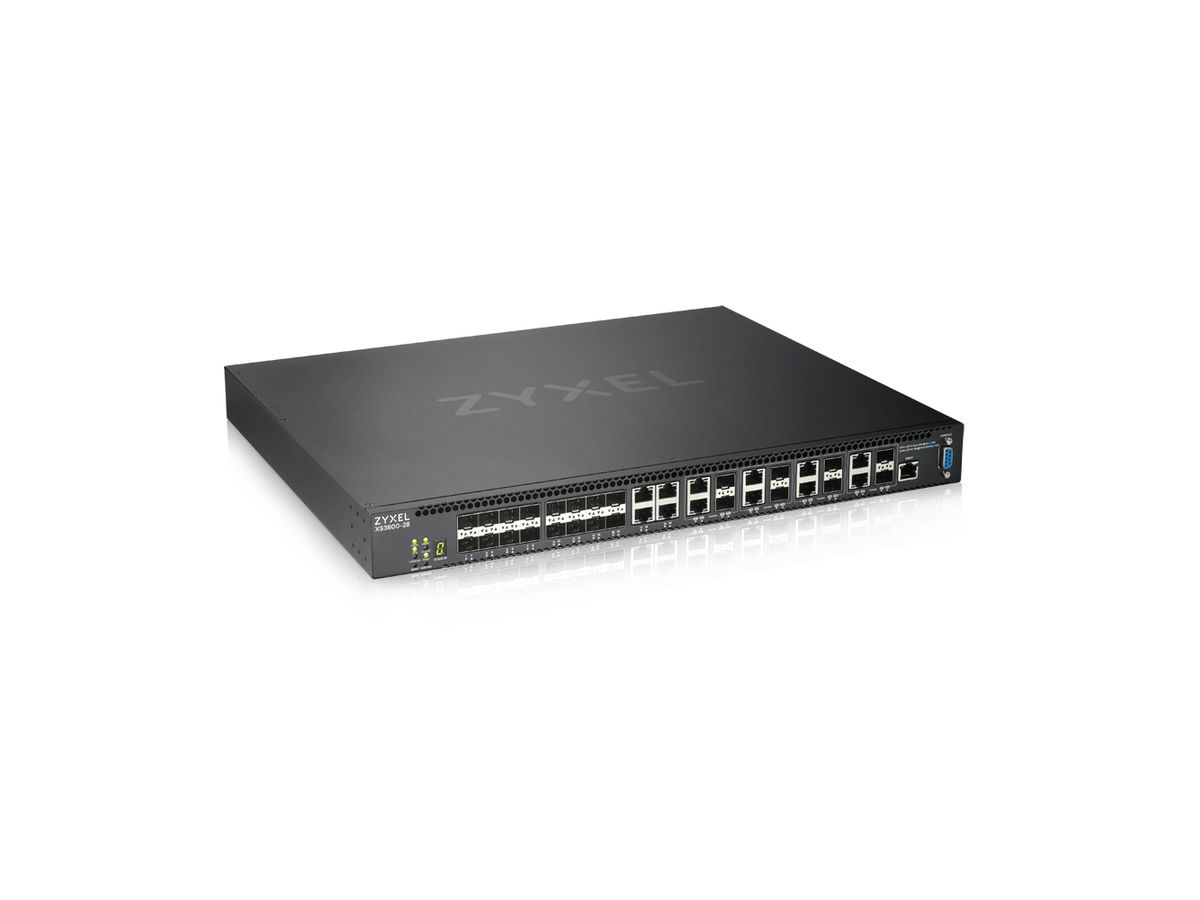

Zyxel XS3800-28 Managed L2+ 10G Ethernet (100/1000/10000) Black
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 521579514 |
|---|---|
| Brand / Manufacturer | ZYXEL COMMUNICATIONS |
| Manuf. item no. | XS3800-28-ZZ0101F |
| EAN | 4718937600960 |
:strip_icc():strip_exif()/logos/zyxel-communications.png "ZYXEL COMMUNICATIONS")
Description
Zyxel XS3800-28. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 32 entries, Switching capacity: 560 Gbit/s. Networking standards: IEEE 802.1D,IEEE 802.1ab,IEEE 802.1ad,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ab,IEEE.... Power connector: AC-in jack. Rack mounting
Flexible port designXS3800-28 offers a maximum of 24 10G fiber ports or 12 10G copper ports that are for most flexible adoption to your networks.Essentials of a core switchXS3800-28 is suitable for network aggregation such as SMB or campus networks that require low latency and high-density 10G backbone architectures with basic routing capability.Restore ButtonThe "Restore" button saves the last workable configuration as the custom default, which allows you to fall back instantly in case of network misconfigurations.Dual PowerTwo PSUs support active-standby power redundancy that triggers backup power supply if the main unit fails.Designed for the long haulQuality hardware design is how Zyxel differentiate ourselves from others. We ensure stability and longevity for XS3800-28 for your networks.
Specifications
| Manufacturer | ZYXEL COMMUNICATIONS |
|---|---|
| Product type | Network Switches |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 4 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Combo SFP ports quantity | 8 |
| SFP+ module slots quantity | 16 |
| Fiber optic connector | SFP+ |
| Power connector | AC-in jack |
Weight & dimensions
| Width | 441 mm |
|---|---|
| Depth | 340 mm |
| Height | 44 mm |
| Weight | 4.81 kg |
Power
| Power supply included | Y |
|---|---|
| Redundant power supply (RPS) support | Y |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 10 - 95% |
Network
| Networking standards | IEEE 802.1D,IEEE 802.1ab,IEEE 802.1ad,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3ah,IEEE 802.3an,IEEE 802.3az,IEEE 802.3bz,IEEE 802.3x,IEEE 802.3z |
|---|---|
| 10G support | Y |
| Copper ethernet cabling technology | 10GBASE-T,100BASE-T,1000BASE-T |
| Port mirroring | Y |
| IP routing | Y |
| Policy-based routing | Y |
| Flow control support | Y |
| Broadcast storm control | Y |
| Rate limiting | Y |
| Spanning tree protocol | Y |
| Auto-negotiation | Y |
| VLAN support | Y |
Data transmission
| MAC address table | 32 entries |
|---|---|
| Switching capacity | 560 Gbit/s |
| Forwarding rate | 416 Mpps |
| Packet buffer memory | 4 MB |
Packaging data
| Cables included | AC |
|---|---|
| Rack mount kit | Y |
Security
| DHCP features | DHCP client,DHCP relay,DHCP server |
|---|---|
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| IGMP proxy | Y |
| MAC address filtering | Y |
| SSH/SSL support | Y |
| Loop protection | Y |
| BPDU filtering/protection | Y |
| Authentication | MAC-based authentication |
| Password protection | Y |
Management features
| Switch type | Managed |
|---|---|
| Switch layer | L2+ |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Traffic classification | Y |
| Traffic shaping | Y |
| ARP inspection | Y |
| Configuring Location Settings (CLI) | Y |
| MIB support | Y |
Optical fiber
| Fiber ethernet cabling technology | 1000BASE-X |
|---|
Design
| Rack mounting | Y |
|---|---|
| Product colour | Black |
| Reset button | Y |
Performance
| Internal memory | 8000 MB |
|---|---|
| Flash memory | 64 MB |
| Mean time between failures (MTBF) | 656274.78 h |
Multicast features
| Multicast support | Y |
|---|
