nVent SCHROFF Varistar CP enclosures

MAXIMUM FLEXIBILITY FOR DEMANDING APPLICATIONS - THE NVENT SCHROFF VARISTAR CP SERIES:

• Robust, modular, EMC-optimised

• Individually configurable for your projects

• Fast availability & proven brand quality

Take the opportunity now to take your 19" environment to the next level - with a cabinet that can do more.

FEATURES OF THE VARISTAR CP CABINET:

Comprehensive all-round protection:

EMC (EN 61000-5-7 and IEC 61587-3), protection class IP 55 (IEC 60529) & fire protection (EN45545)

Access control:

100% access security thanks to a multi-point locking system consisting of a locking system and special mechanical design

Cable management for professionals:

Avoidance of tensile stress, kinking and crushing of data cabling

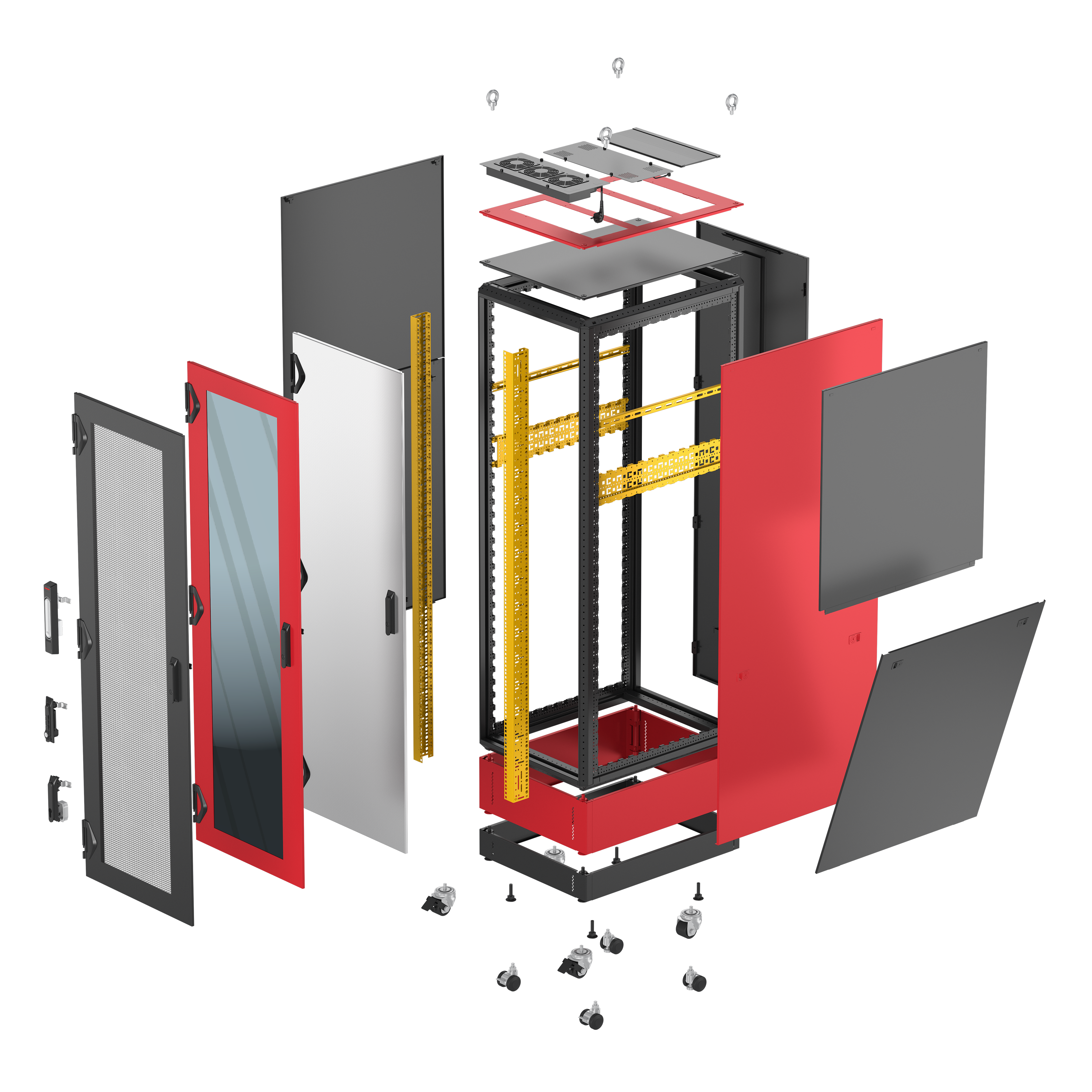

Modularity:

Easy to customise to meet numerous application requirements and also reflect individual brand identity

Stability:

Tested load capacity: 1,600 kg static payload and 1,000 kg dynamic payload on integrated swivel castors

Short installation and assembly time:

Simple and quick assembly of accessories possible with just one tool (thanks to standardised TORX 30 screws)

Power management:

Integrated power supply and efficient power management

VARISTAR CP IN DIRECT COMPARISON:

Advantages of Varistar CP vs Varistar:

• With the Varistar CP, the door collides less frequently with the base or top of the enclosure
• The Varistar CP is now always available with levelling feet
• The doors are more stable
• The hinges are now closer to the outer edge
• There is now a 4-point locking system and 4 hinges on the 38U, 42U and 47U variants. There is also a 5-point locking system and 5 hinges for the 52U variant.
• Various locking options are available for the Varistar CP

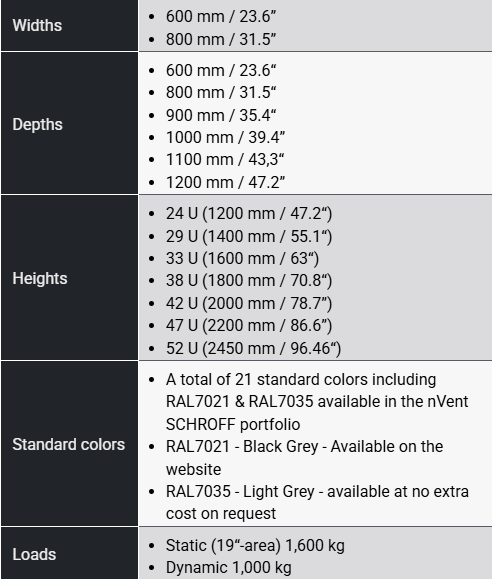

MORE FLEXIBILITY IN LESS TIME:

With a wide range of standard sizes, the Varistar CP series offers optimum conditions for customisation - fast, uncomplicated and precisely tailored to your requirements:

SECOMP SUPPORTS YOU WITH THE CONFIGURATION!

We would be happy to advise you personally or provide you with further information.
We look forward to your enquiry!
