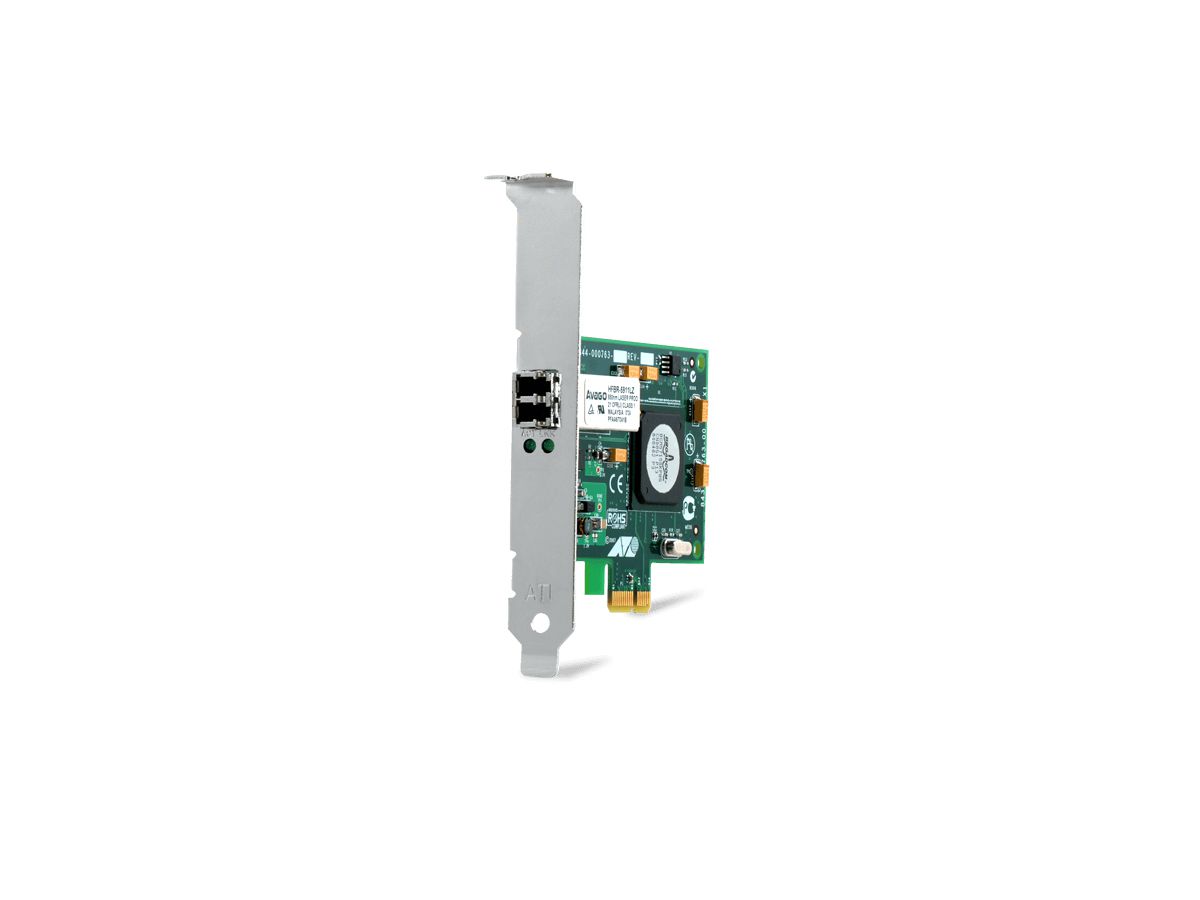

Allied Telesis 2914SP Internal Fiber 1000Mbit/s networking card
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 518865522 |
|---|---|
| Brand / Manufacturer | Allied Telesis |
| Manuf. item no. | AT-2914SP-901 |
| EAN | 0767035210384 |
:strip_icc():strip_exif()/logos/allied-telesis.png "Allied Telesis")
Description
Allied Telesis 2914SP. Internal, Connectivity technology: Wired, Host interface: PCI-E, Interface: Fiber. Data transfer rate (max): 1000 Mbit/s. Input voltage: 3.3
The Allied Telesis 2914SP is a gigabit PCIe x1 network adapter with an open SFP port. This port supports both Fast Ethernet and Gigabit SFP’s. This adapter supports Wake-on-LAN without the use of an external power supply. - Jumbo frames up to 9.6KB - Smart Load Balancing (SLB) and failover - Link aggregation (IEEE 802.3ad) - Generic trunking (FEC/GEC) / IEEE 802.3ad-draft static - UEFI network boot - Low-profile and standard height brackets included
Specifications
| Manufacturer | Allied Telesis |
|---|---|
| Product type | Network Cards |
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Internal | Y |
| Host interface | PCI-E |
| Interface | Fiber |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
Weight & dimensions
| Width | 88 mm |
|---|---|
| Height | 69 mm |
| Weight | 68 g |
Bandwidth
| Data transfer rate (max) | 1000 Mbit/s |
|---|
Power
| Input voltage | 3.3 |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Networking
| Networking standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.2,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3x,IEEE 802.3z |
|---|---|
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Flow control support | Y |
| Jumbo frames support | Y |
| Load balancing system | Y |
| Jumbo frames | 9600 |
Certificates
| Certification | UL, FCC/EN55022 Class A, TUV, EN55024, CE, C-TICK, VCCI |
|---|---|
| RoHS compliance | Y |
Packaging content
| Number of products included | 1 pc(s) |
|---|---|
| Low-profile bracket | Y |
Antenna
| Quality of Service (QoS) support | Y |
|---|
Design
| LED indicators | Y |
|---|
Performance
| Wake-on-LAN ready | Y |
|---|---|
| Auto-negotiation | Y |
| Priority queuing supported | Y |
| Windows operating systems supported | Windows 10,Windows 7,Windows 8,Windows Vista |
| Linux operating systems supported | Y |
| Server operating systems supported | Windows Server 2008,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2 |
