Description

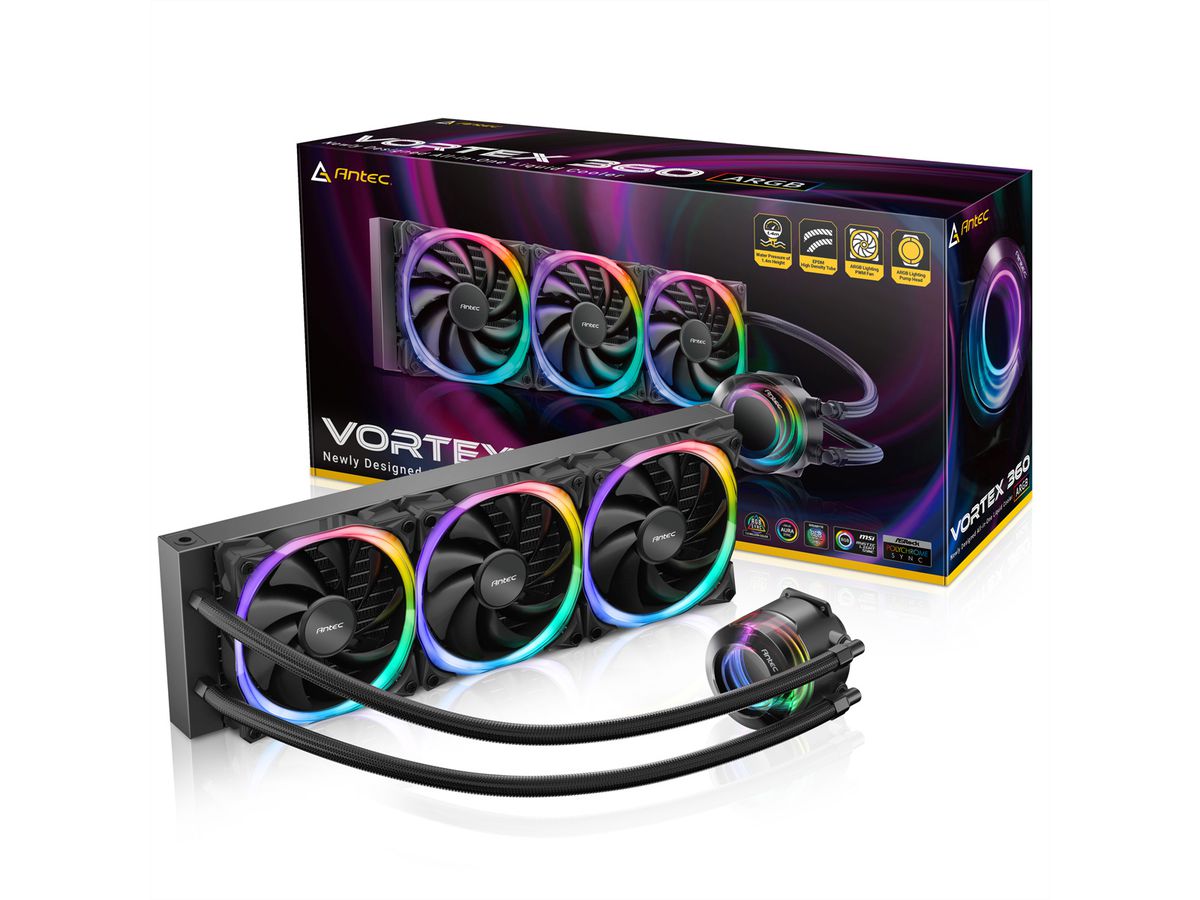

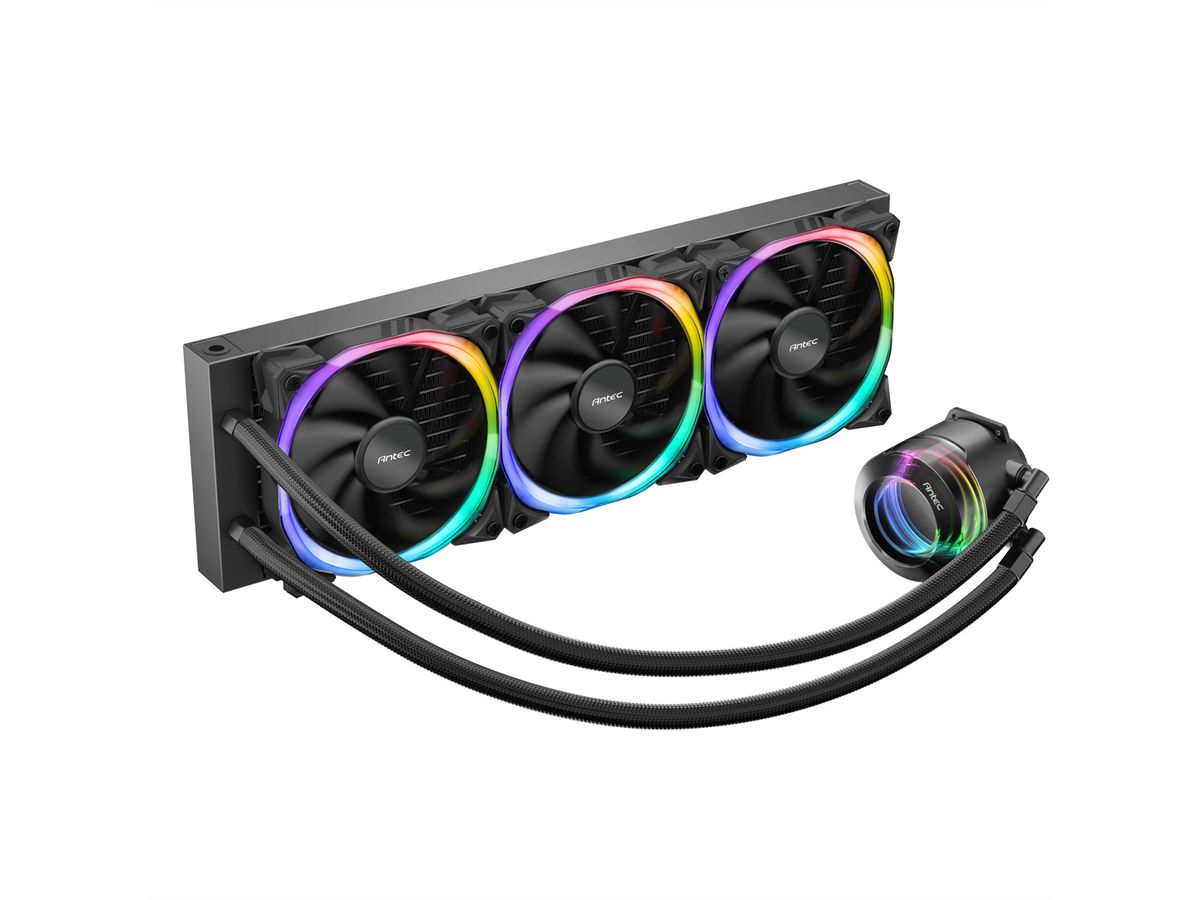

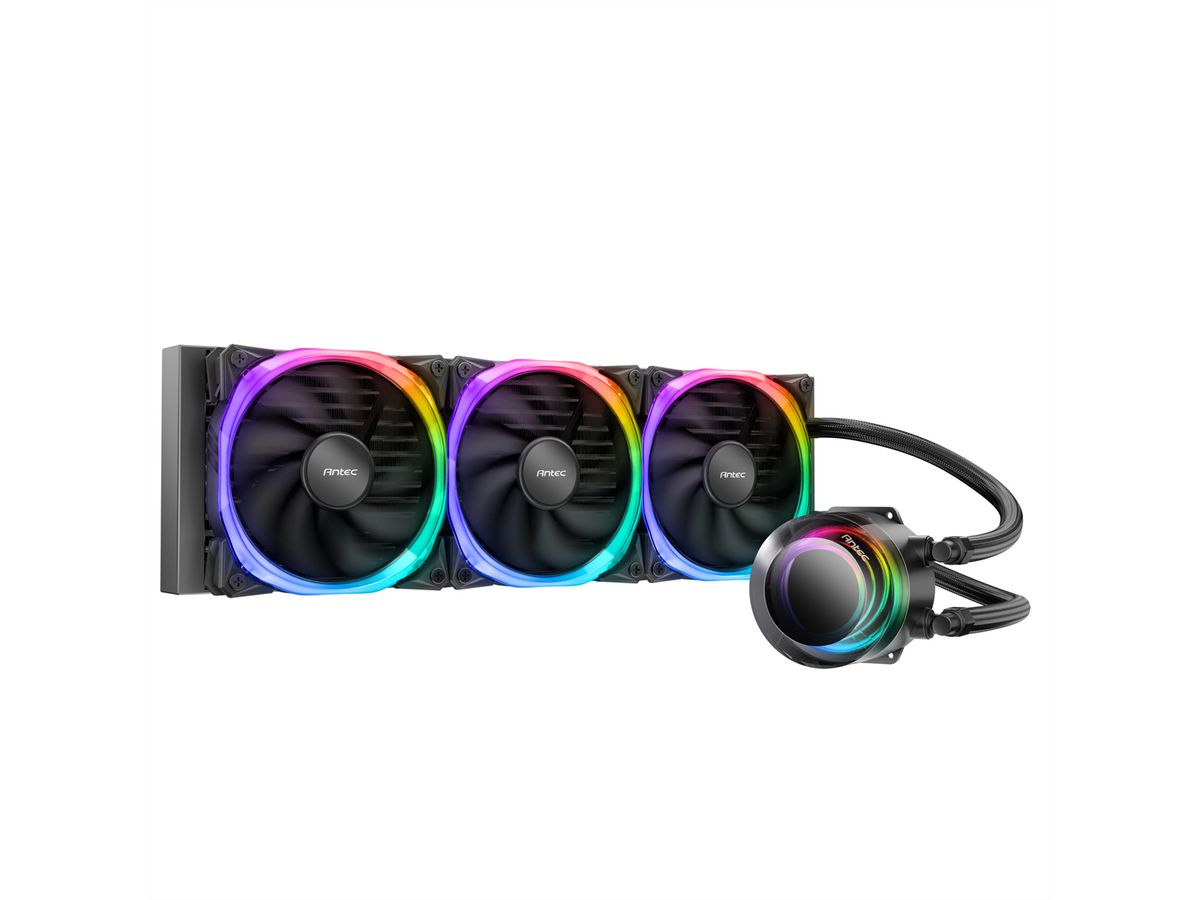

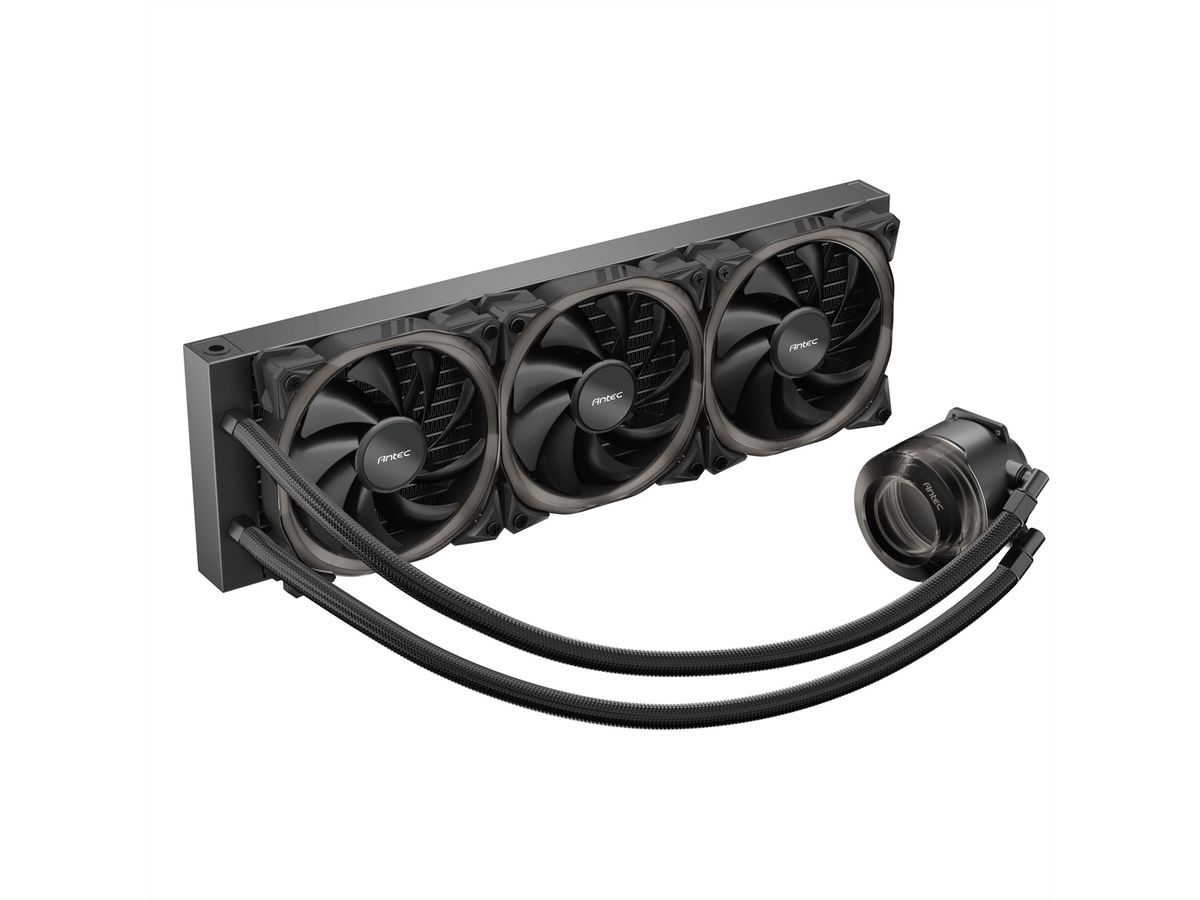

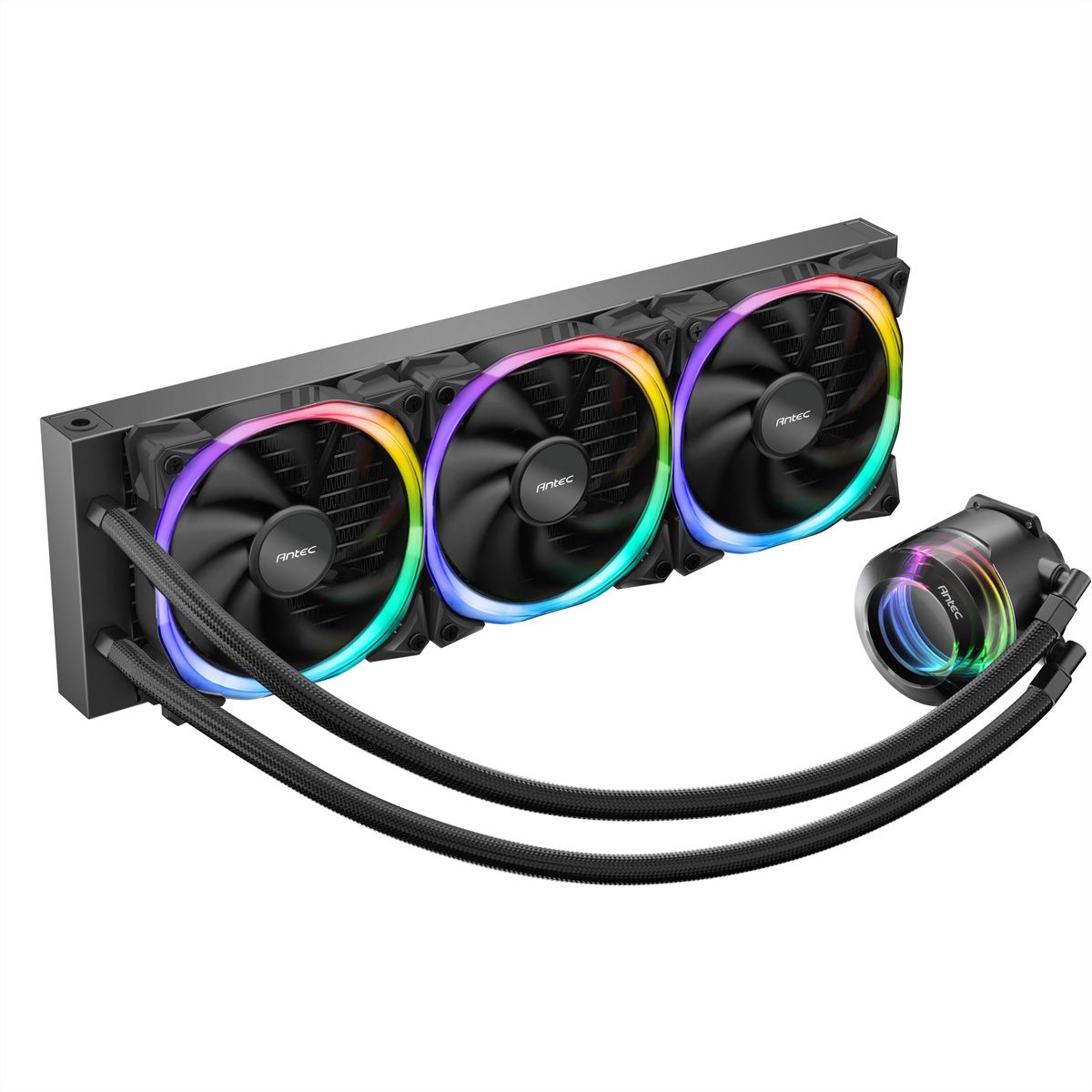

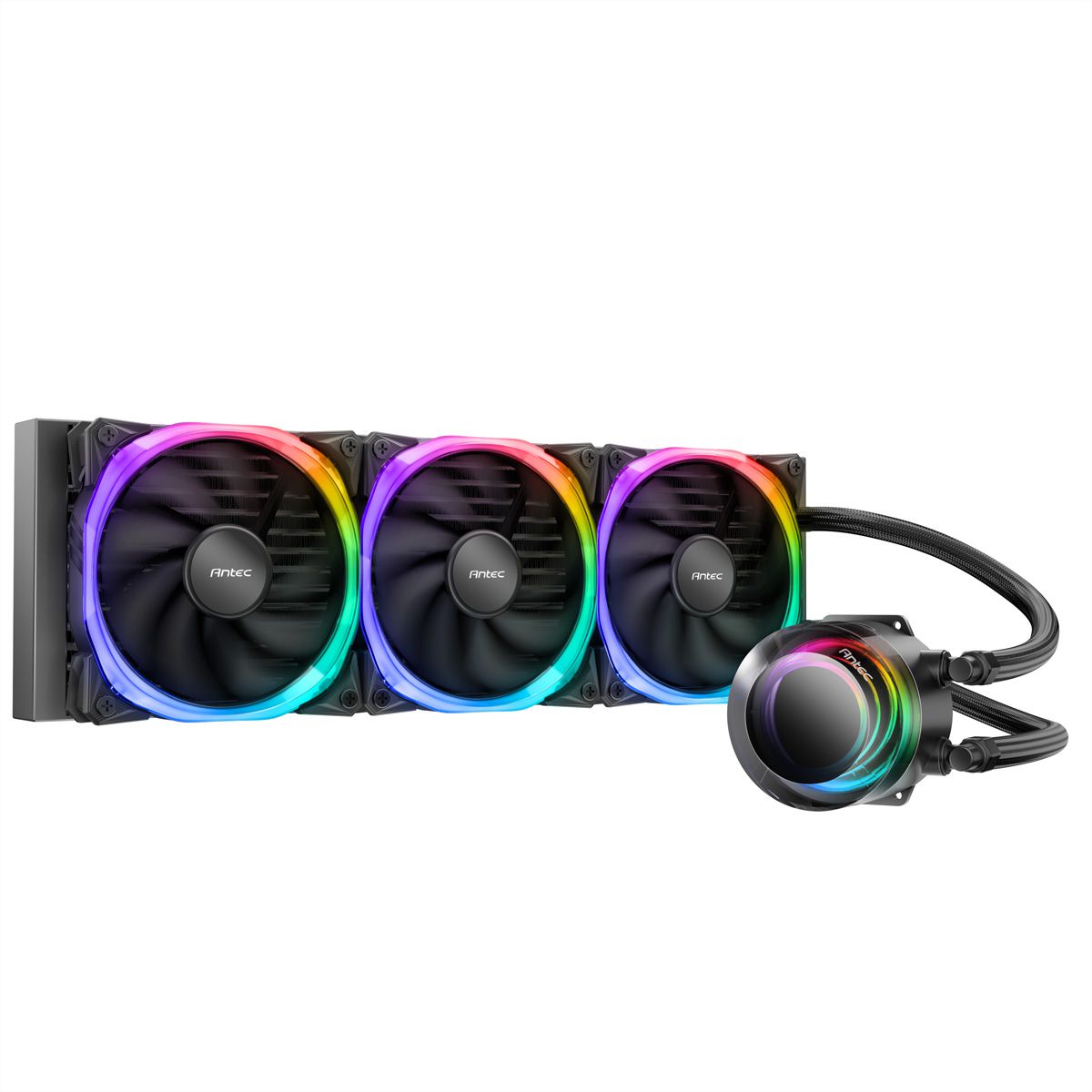

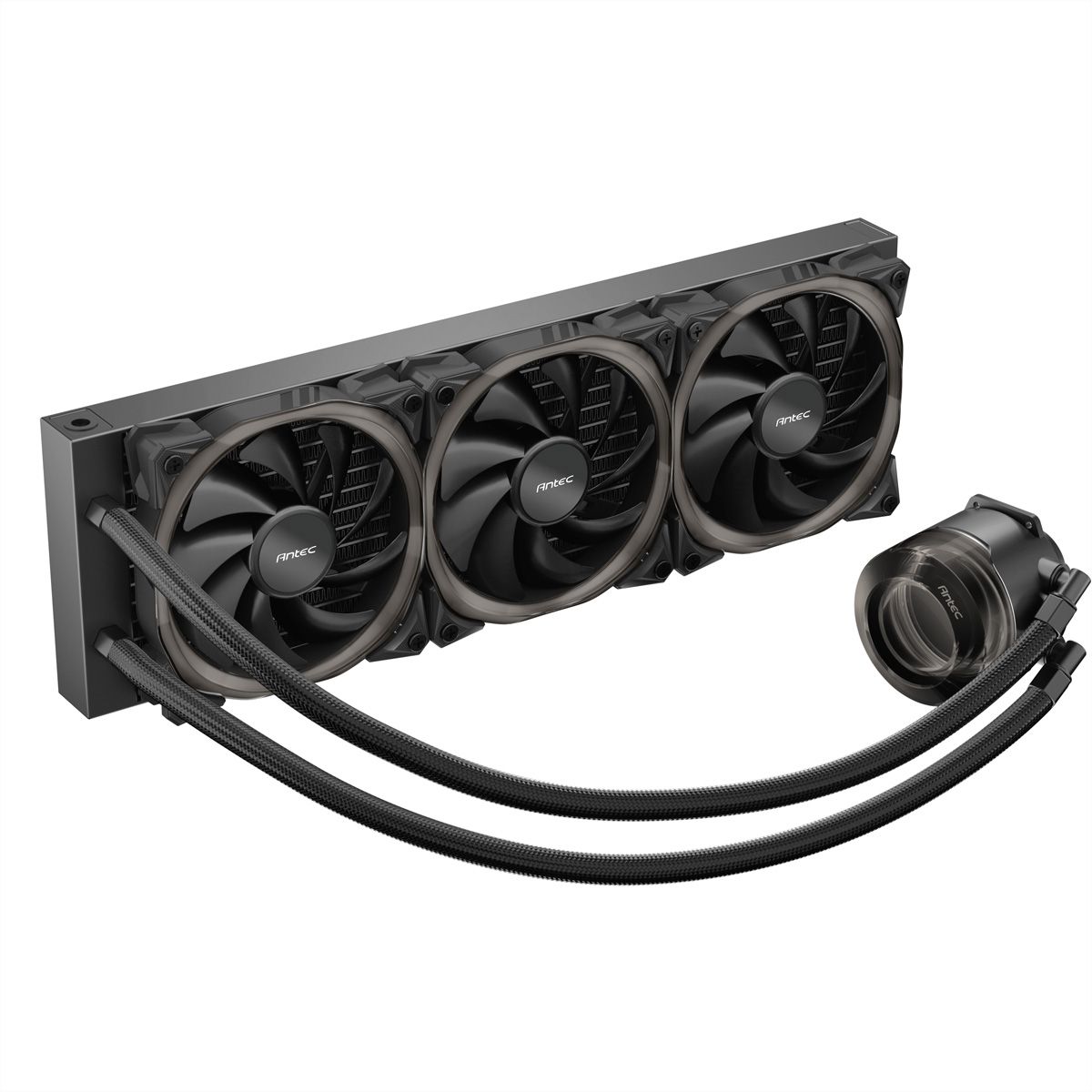

The groundbreaking all-in-one ARGB CPU water cooling system

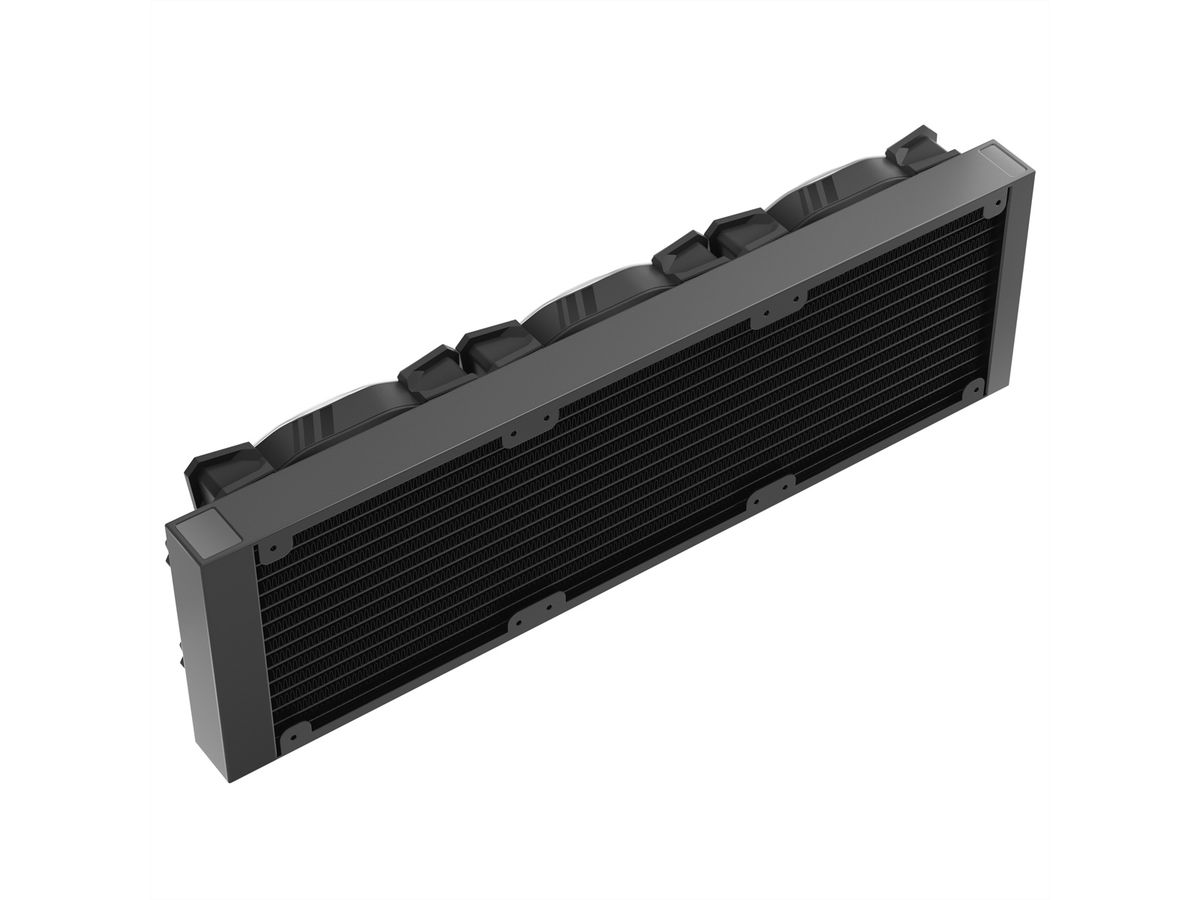

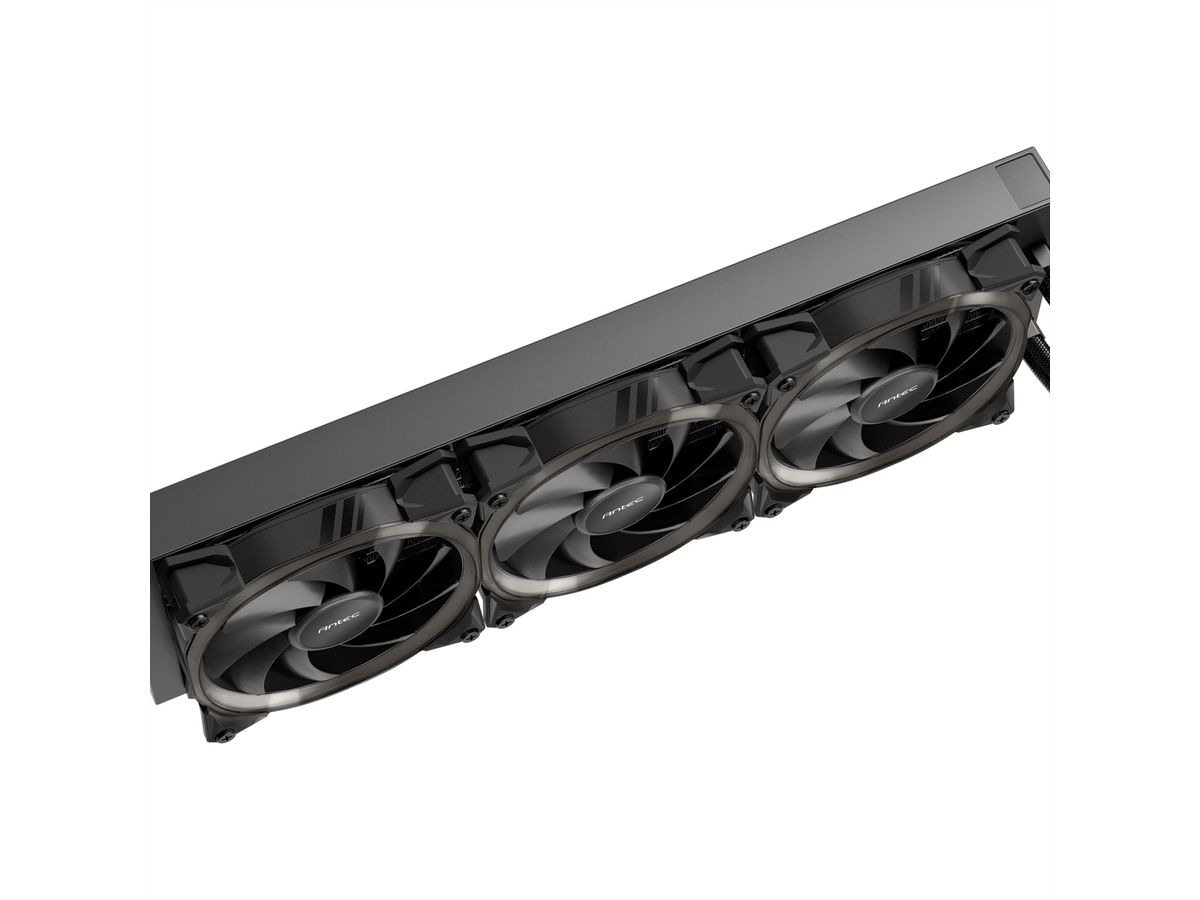

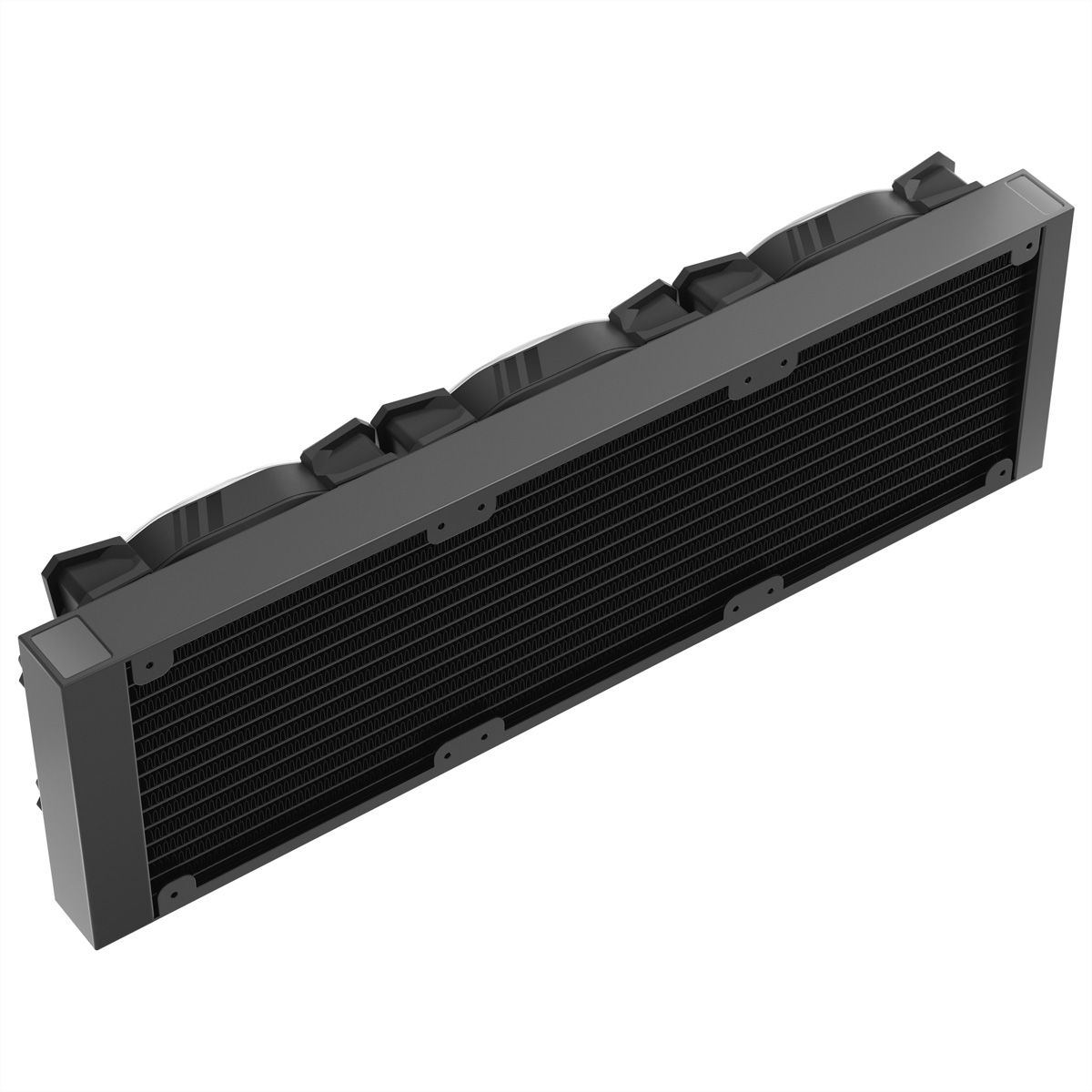

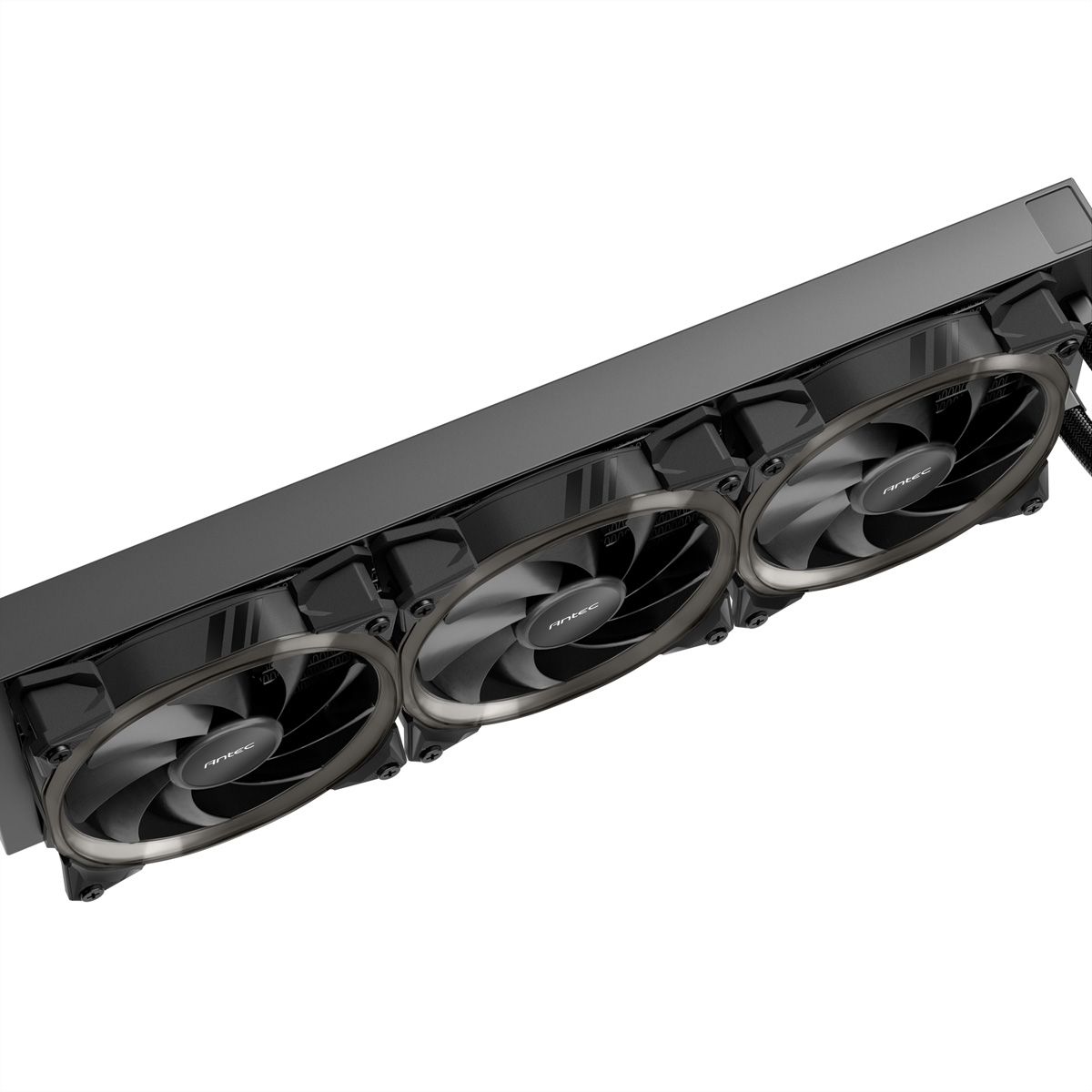

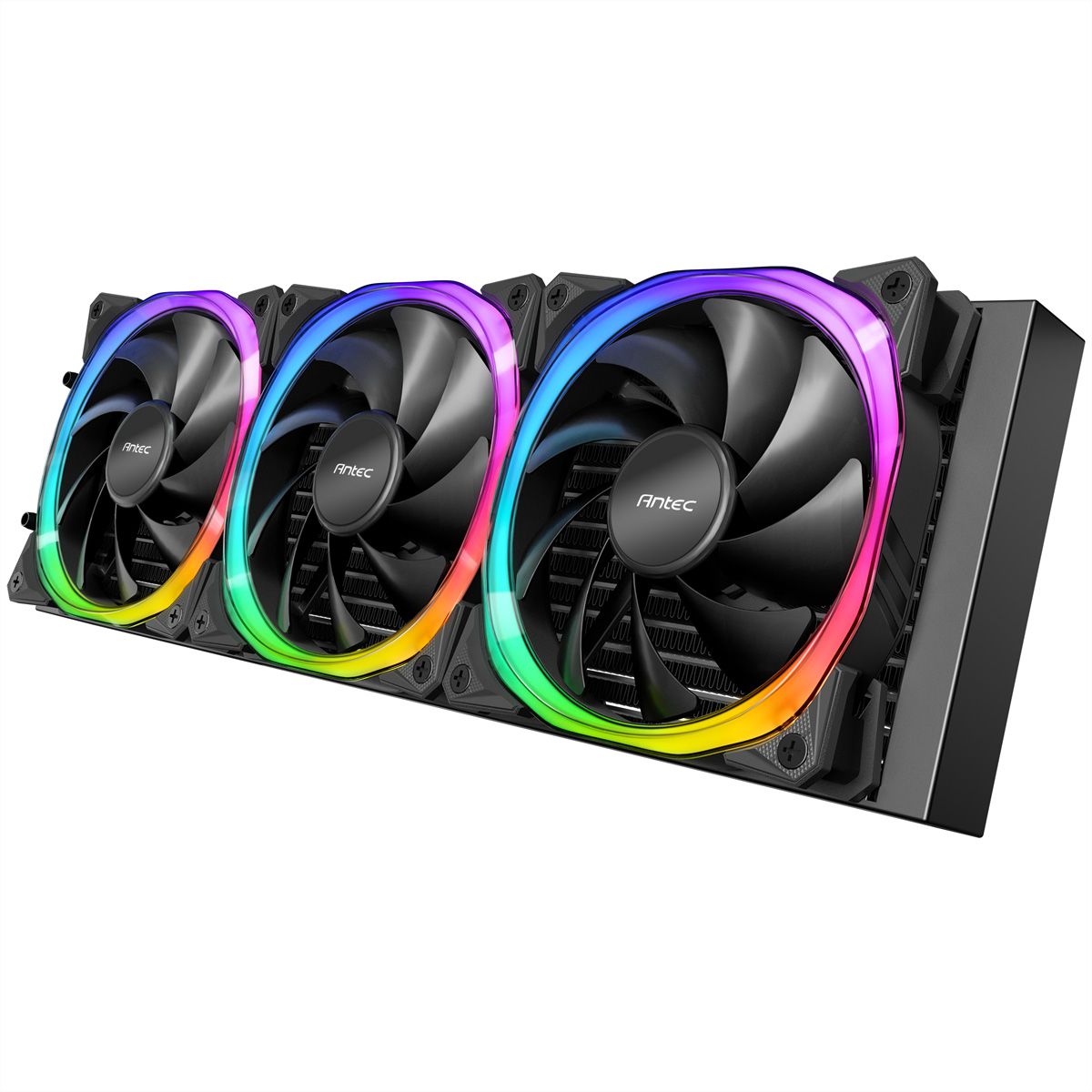

Radiator

• Radiator Dimensions: 397*120*27 mm
• Radiator Material: Aluminum

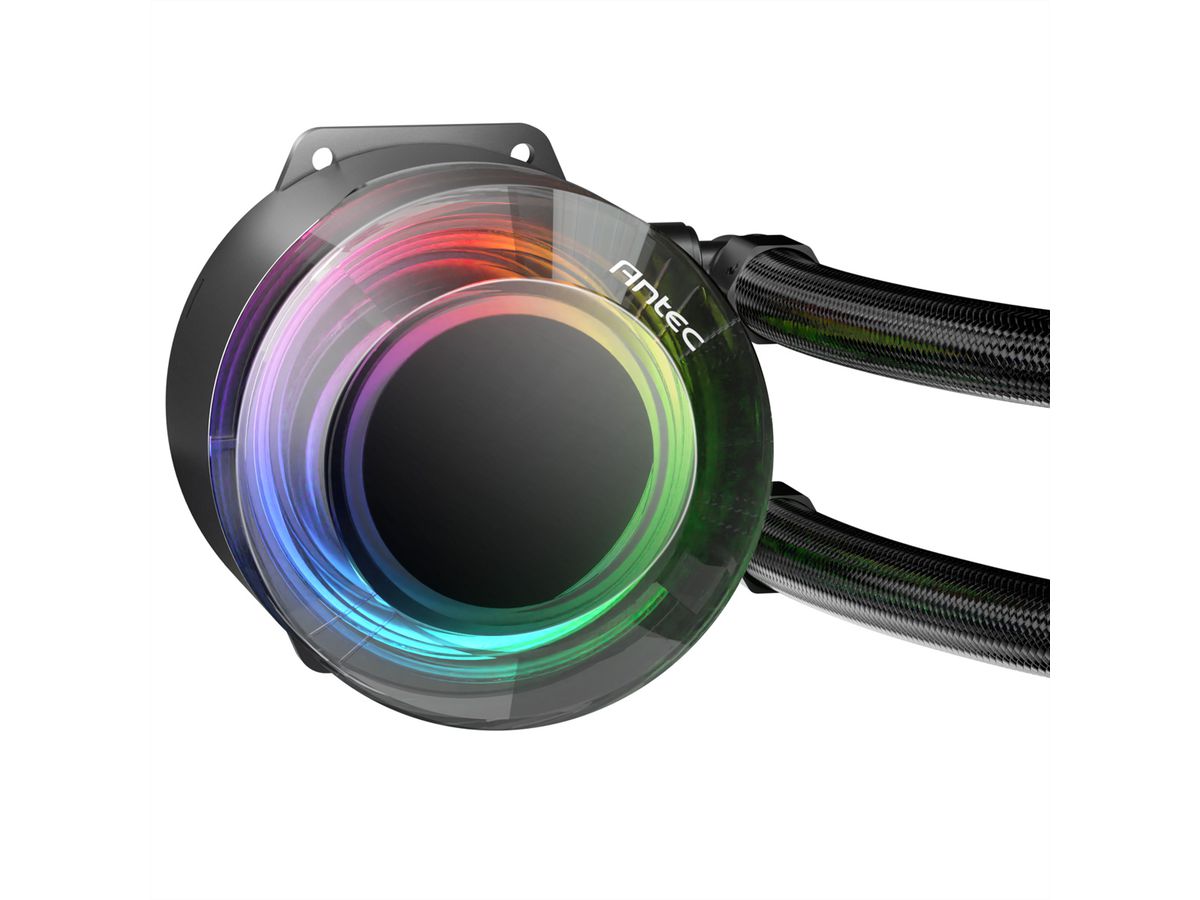

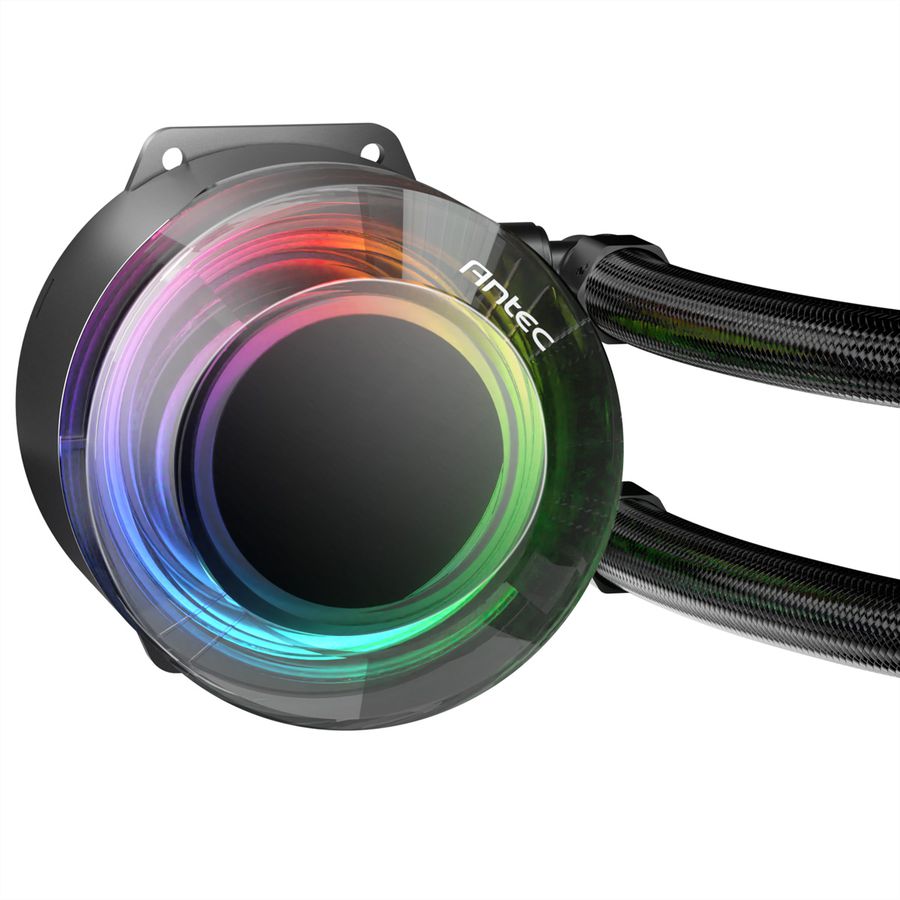

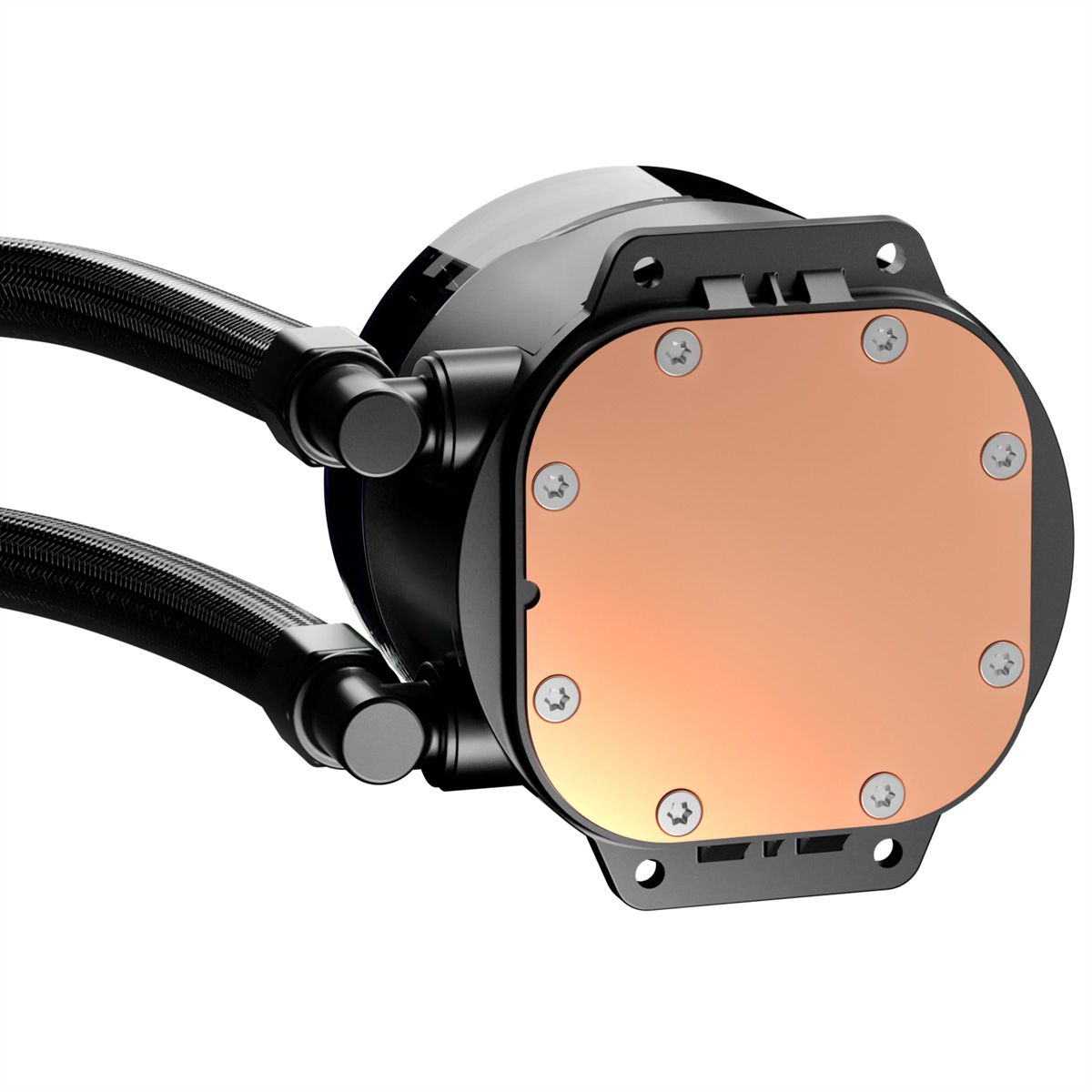

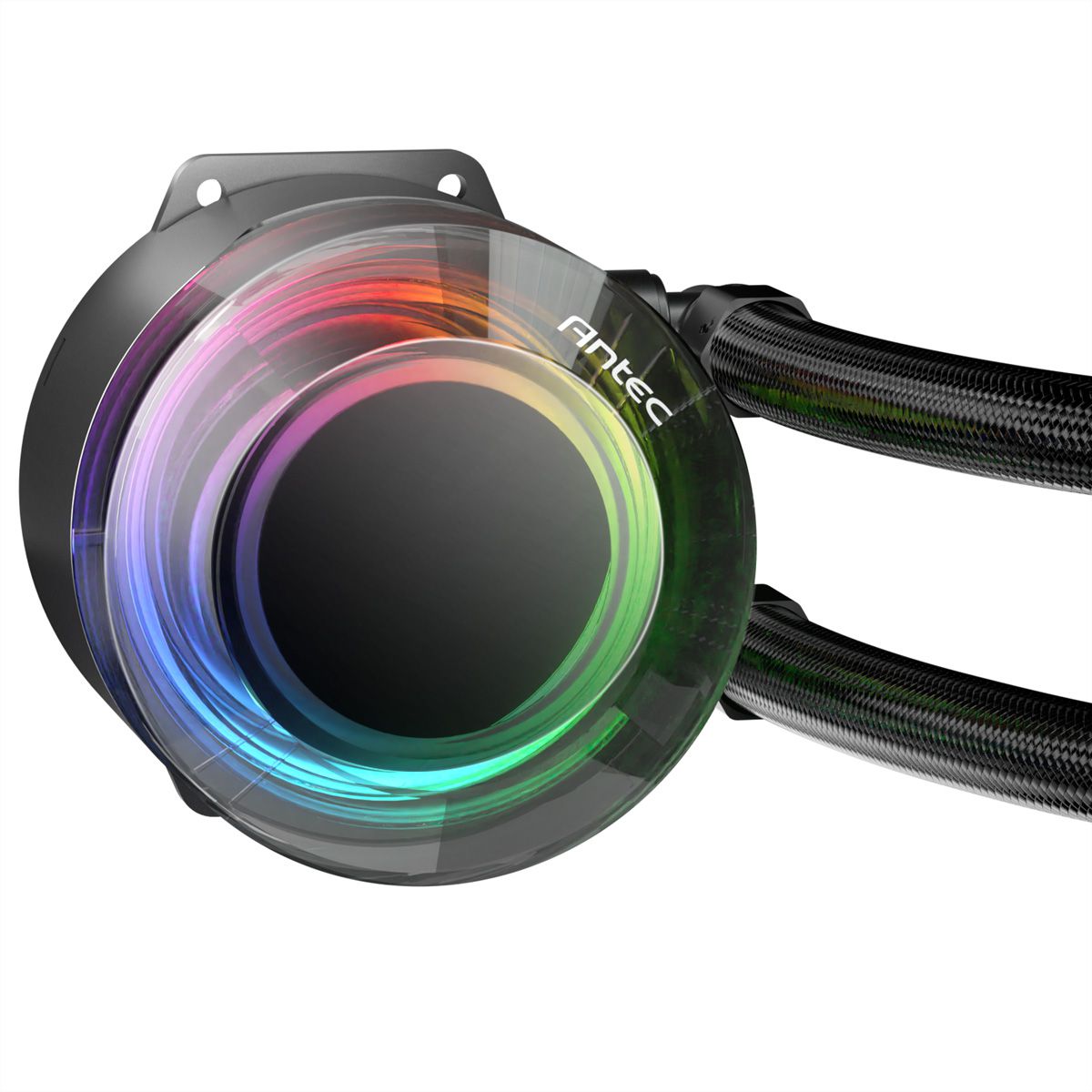

• Pump Dimensions:￠67*48.5 mm
• Rating Voltage: DC 12 V
• Minimum Startup Voltage: ≥5.0 V
• Fan Speed: 2800±10% RPM
• Rated Current: 0.25±20% A
• Consumed Power: 3.0 W
• Flow rate: ≥1300 mL/min
• Water Pressure: 1.4M
• Noise Level: ≤28 dB(A)
• Lifespan: 40,000 hours
• Connector: PUMP: 3-pin | LED: 3-pin

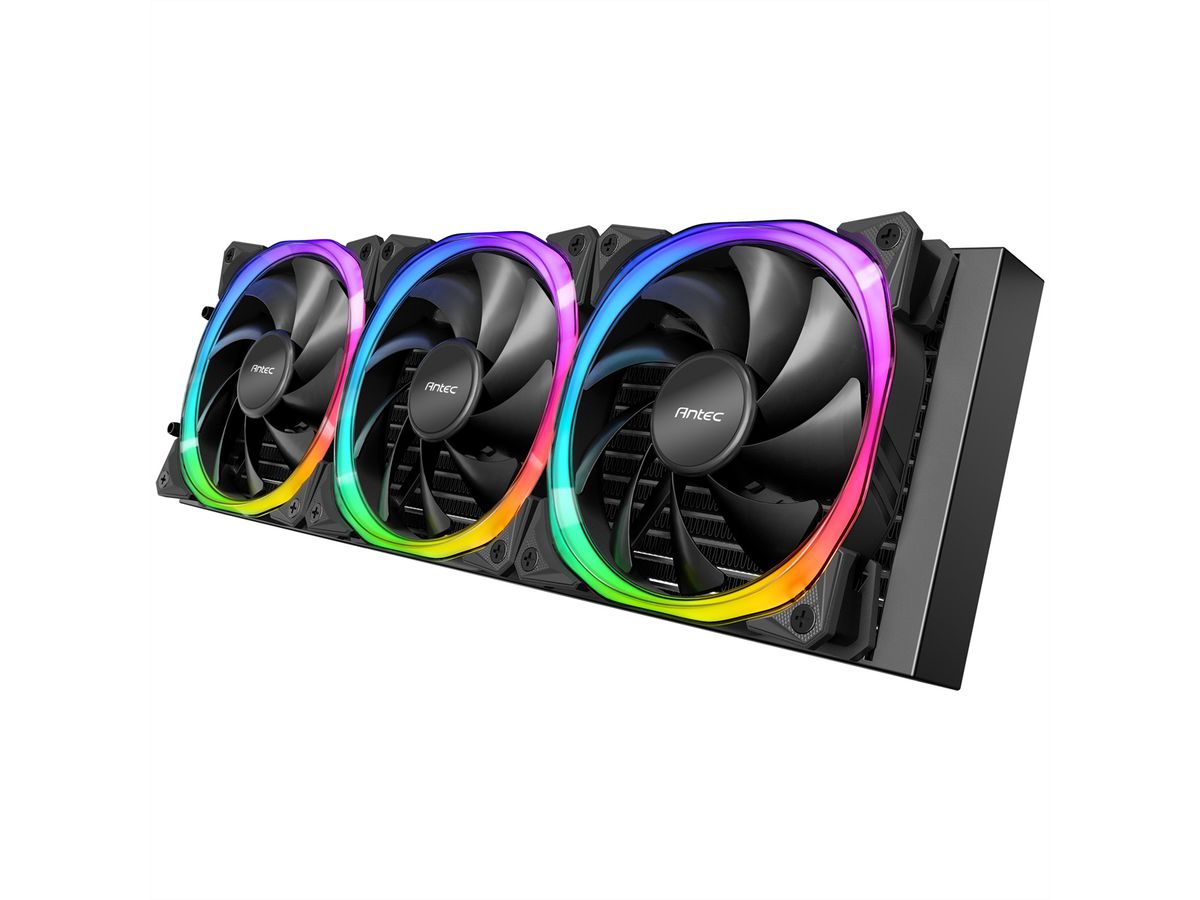

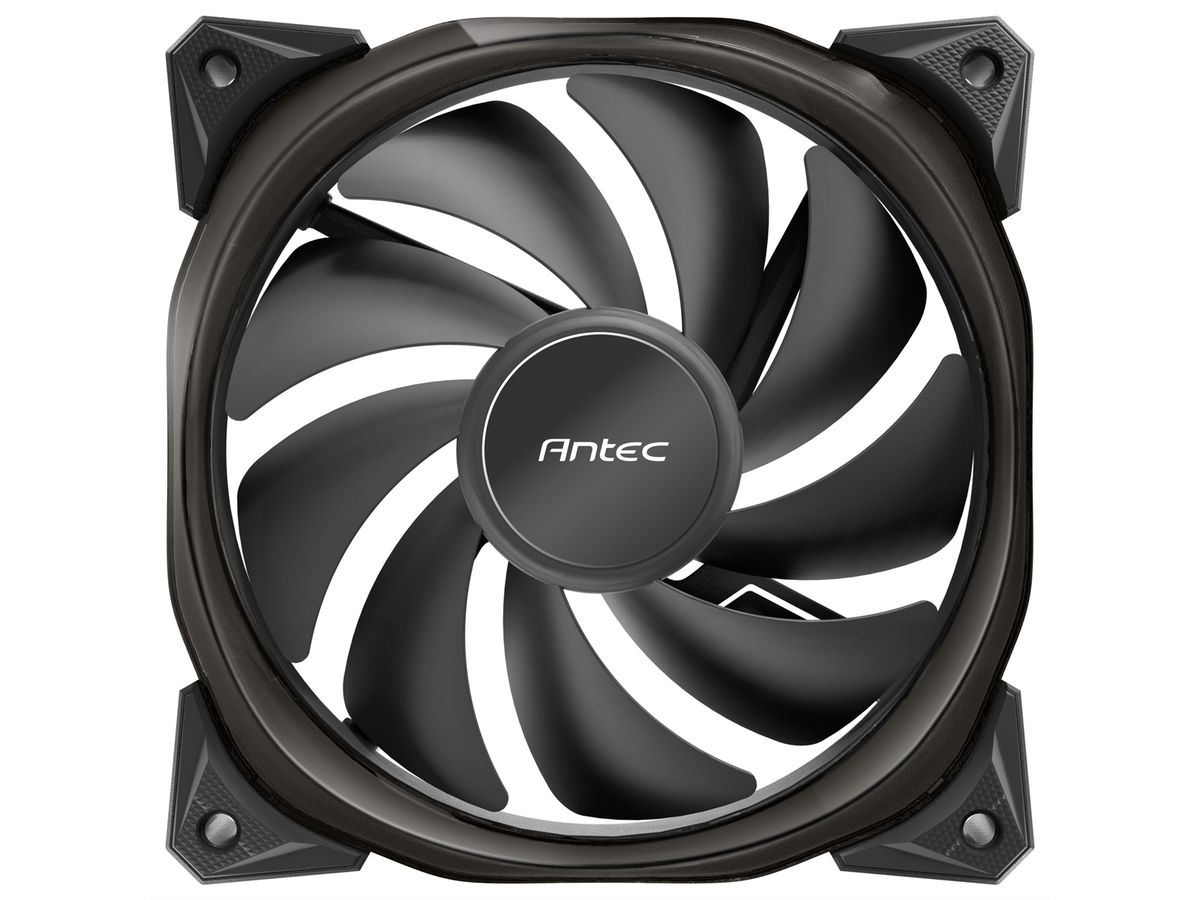

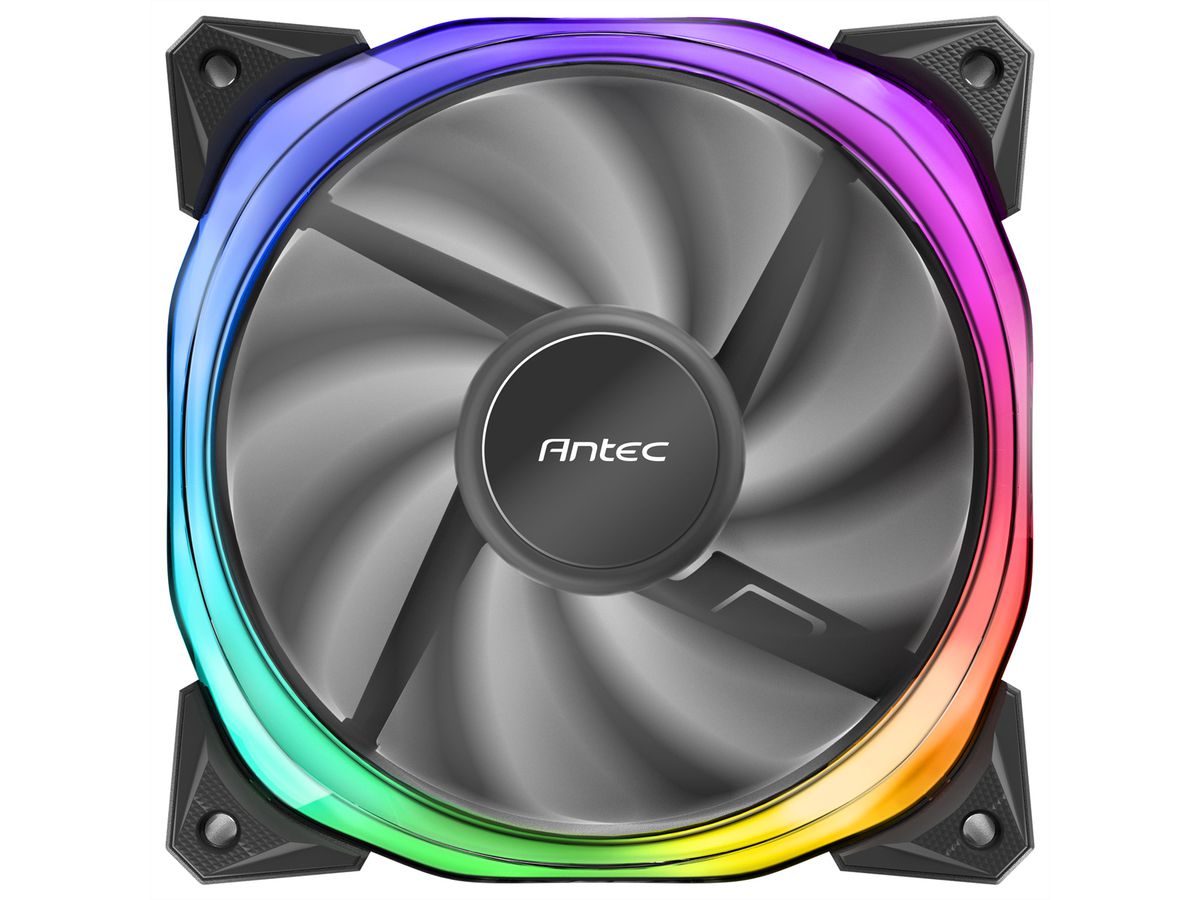

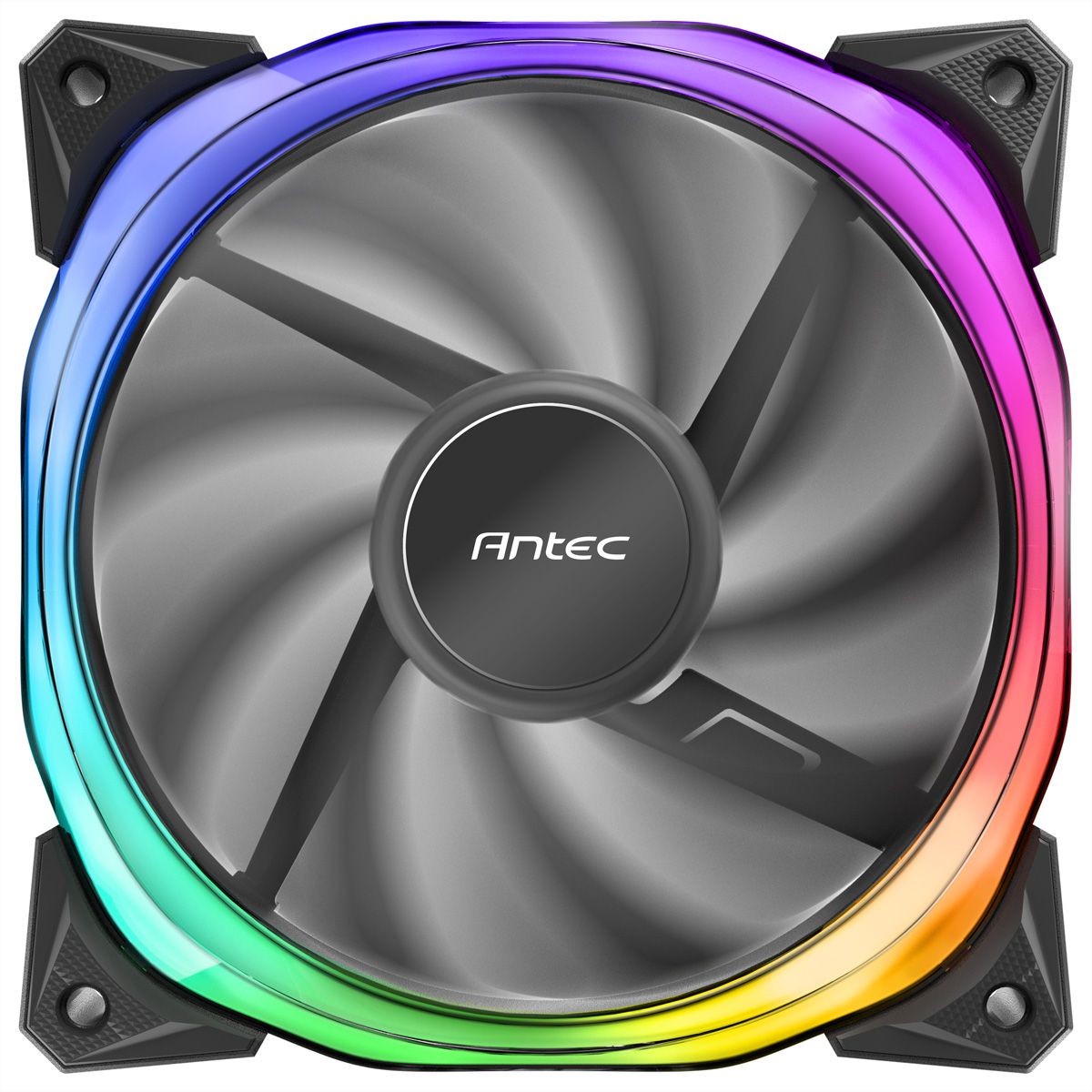

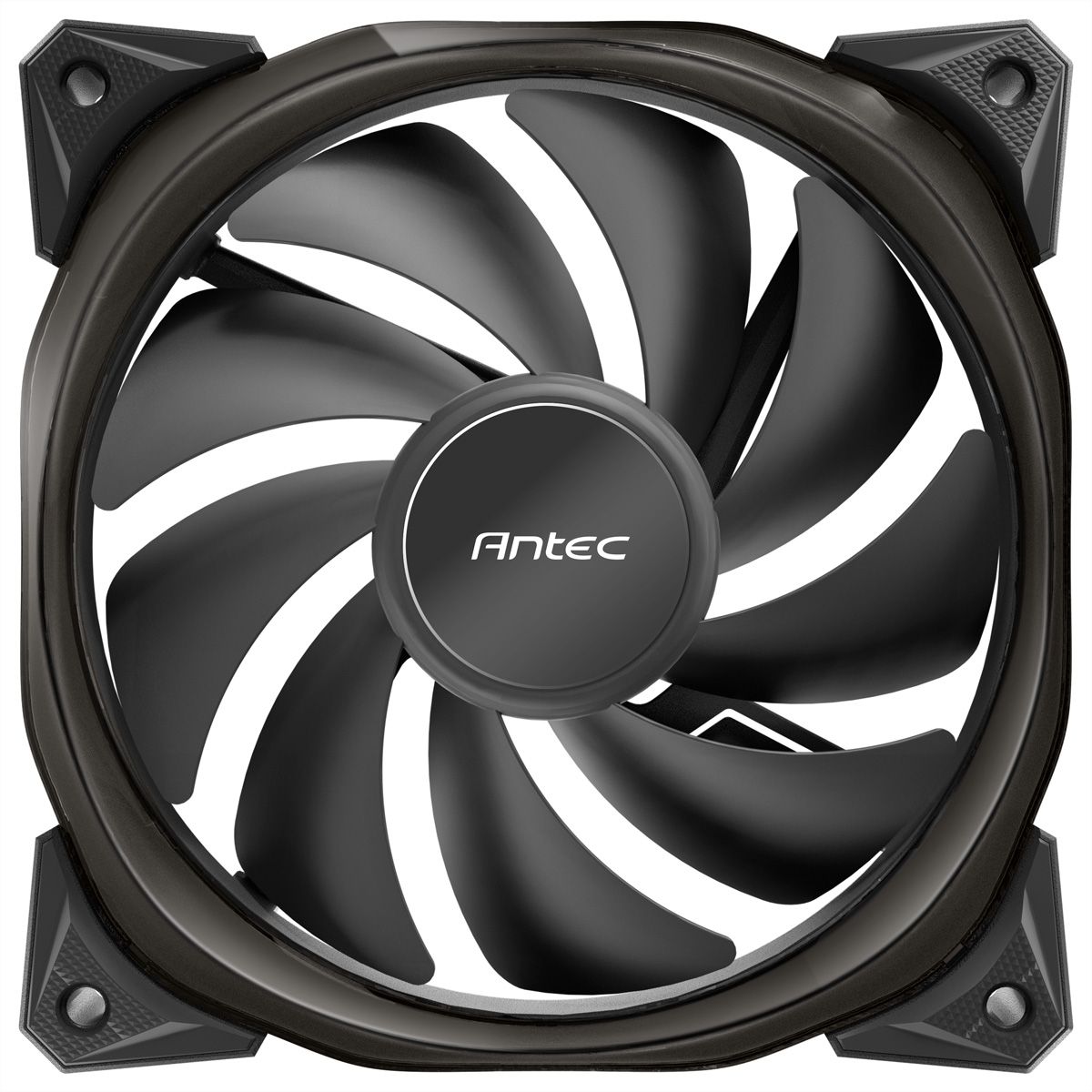

Fan

• Fan Type: PWM Fan
• Dimensions: 120*120*25 mm
• Bearing Type: Hydraulic Bearing
• LED Type: Addressable RGB
• Fan Speed: 600±200~2000±10% RPM
• Airflow: 57.93 CFM (max.)
• Air Pressure 2.11 mmH₂O (max.)
• Fan Noise Level: 31.24 dB(A)
• Lifespan: 40,000 hours
• Connector: FAN: 4-pin PWM | LED: 3-pin
• Rated Voltage: FAN: DC 12 V | LED: DC 5 V
• Operation Voltage: FAN: DC 6.0-13.8 V | LED: DC 4.5-5.5 V
• Rated Current: FAN : ≤ 0.21 A | LED : ≤ 0.58 A
• Socket Compatibility CPU: Intel: LGA 115X/1200/1700 /20XX - AMD: AM3/AM4/AM5/TR4

Specifications

Manufacturer	ANTEC
Product group	Processor fan
Product type	Water cooling
Colour	black
Scope of delivery	1x fan
Dimensions (HxWxD)	27 x 120 x 397 mm
Material (fan)	Aluminium
Dimensions (HxWxD) fan	25 x 120 x 120 mm
Fan rotational speed	2800±10 %
Air pressure	2.11 mm H²O
Rated fan current	0.21 A
Noise level spinning (max.)	31 dB
Operating temperature min.	-10 °C
Operating temperature max.	60 °C
Height	27 mm
Width	120 mm
Depth	397 mm
Weight	1.57 kg
Height of packaging (single piece)	0 mm
Width of packaging (single piece)	0 mm
Depth of packaging (single piece)	0 mm
Package weight (single piece)	0 kg
